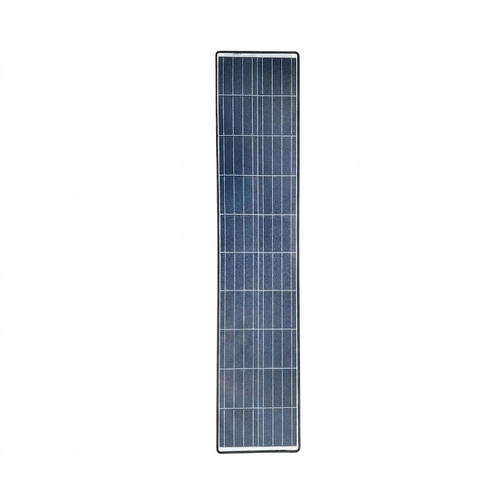

Sunman 9V 85W eArc Flexible Solar Panel | Junction Box Underneath w/ VGK
SKU: eASMS085P2x10D Learn More»

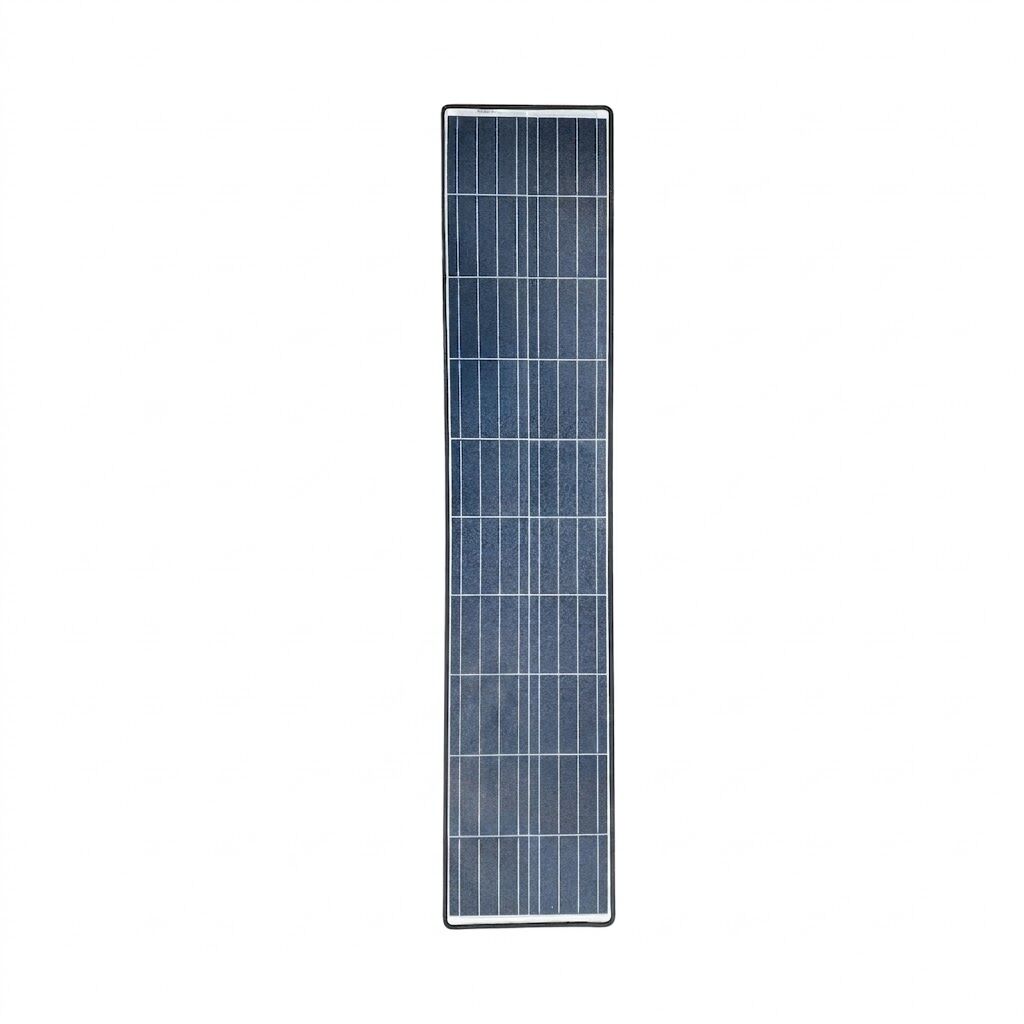

Sunman 9V 85W eArc Flexible Solar Panel | Junction Box Underneath w/ VGK

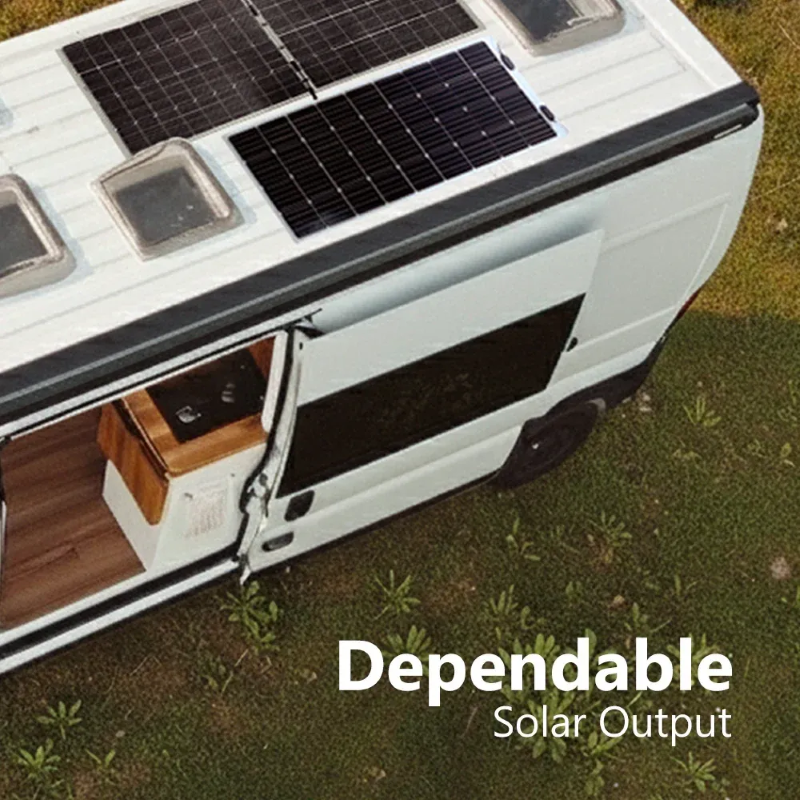

The Sunman eArc 9V 85W flexible solar panel is engineered for lightweight, low-profile solar on vehicles and surfaces where traditional framed glass modules are impractical. Designed with a flexible composite construction and a junction box underneath for a cleaner top-side finish, it’s well suited to caravans, motorhomes, yachts, buses, trains and other mobile or space-constrained applications.
This model is an 85W 9V solar panel. That 9V output is a key selection point: it can be an excellent match for certain charging systems, but it needs to be configured correctly when charging a 12V battery. The information below explains the common wiring and controller options so you can design a system that performs as expected under Australian conditions.

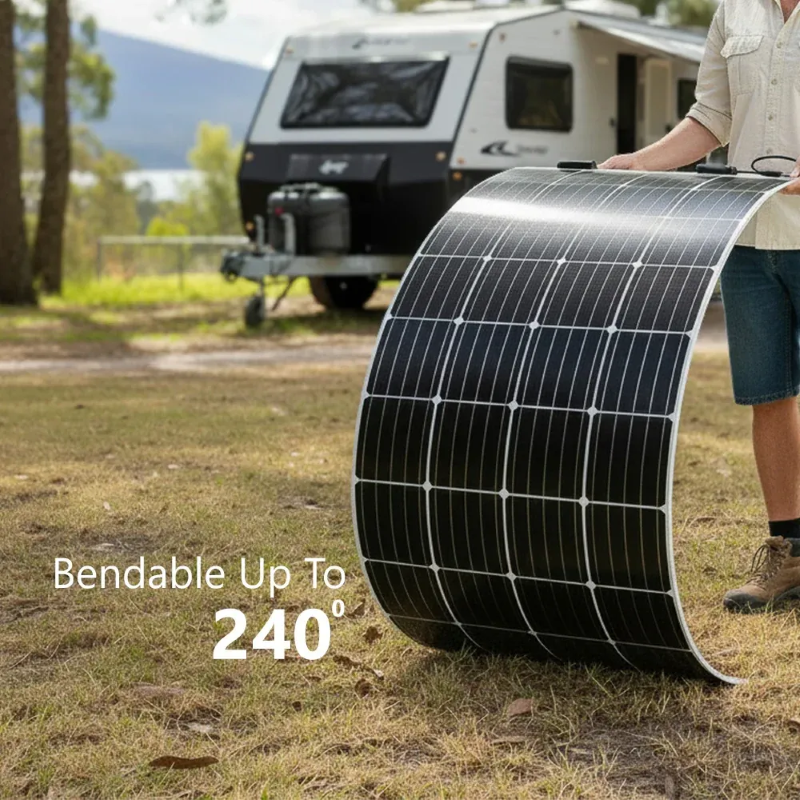

This new version of the Sunman eArc series uses monocrystalline Mono-PERC solar cells to support strong energy yield from a compact footprint. The flexible form factor makes it easier to mount on subtly curved surfaces and low-clearance rooftops, without the weight and profile of framed panels.
Built using a patent-pending composite material (often compared to aircraft window materials), Sunman eArc panels are designed to be tough without requiring heavy glass or a rigid aluminium frame. They are CEC-approved technology, supporting confidence for installers and customers looking for compliant solar components in Australia.
Key Features:
- 85W flexible solar panel (9V) for space-limited and curved mounting surfaces
- Junction box underneath to support a clean top-side profile

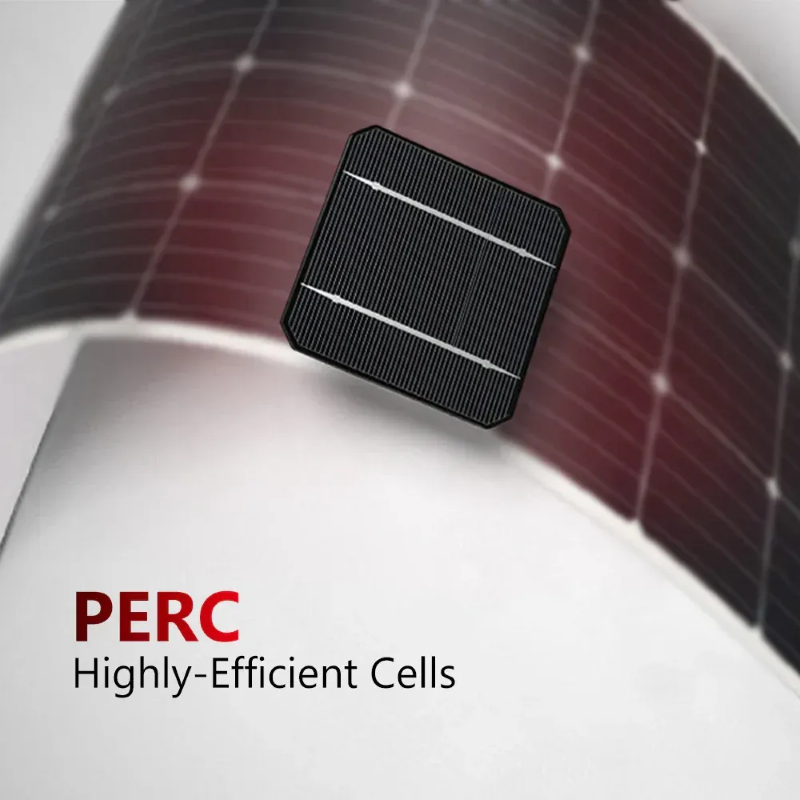

- Mono-PERC monocrystalline cells for efficient energy production in a compact format
- Lightweight, frame-free composite construction designed for mobile applications
- CEC-approved for residential and commercial use in Australia
- Free Vented Gap Kit included to support airflow, reduce heat build-up and improve mounting outcomes
Specifications:
- Solar cells: 20 (2x10)

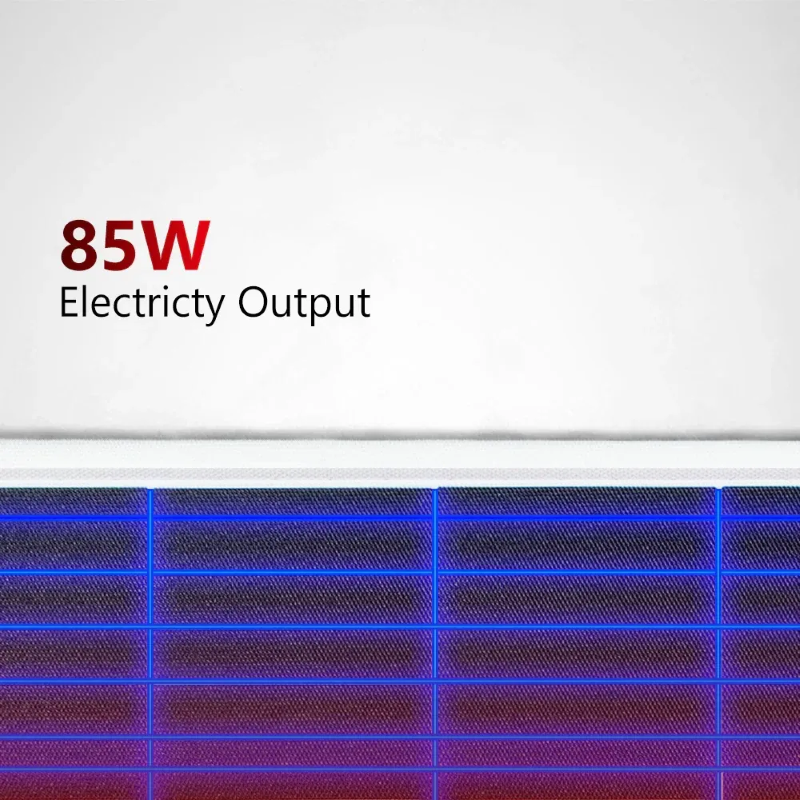

- Maximum Power (Pmax): 85
- Maximum Power Voltage (Vmp): 10.5
- Maximum Power Current (Imp): 8.1
- Open-circuit Voltage (Voc): 12.9
- Short-circuit Current (Isc): 8.55
- Operating Temperature (°C): -40 °C to 85 °C
- Maximum System Voltage: 600 V DC (IEC)
- Maximum Series Fuse Rating: 20 A
- Application Class: Class A
- Power Tolerance: 0/+5 W
- Backsheet: White

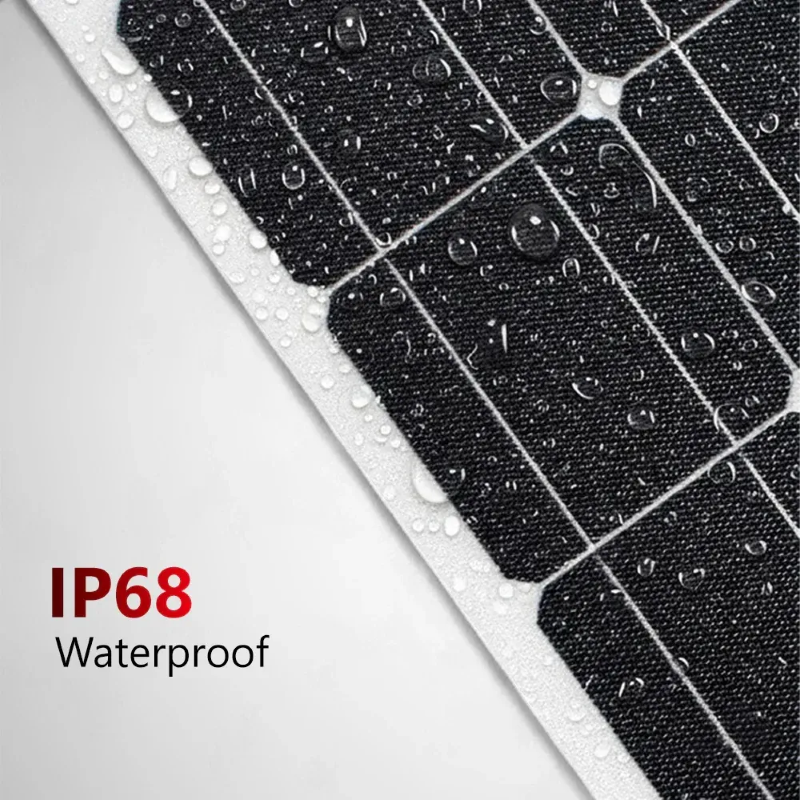

- Junction box: IP 68 rated (each j-box has one by-pass diode)
- Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
- Connector: MC4 compatible
Specifications
SKU eASMS085P2x10D
Brand Sunman
Product Category Solar Panels
Watts (W) 85
Solar Panel Cell Type Monocrystalline-PERC
Solar Panel Type Flexible Solar Panels
Short Circuit Current Isc(A) 8.55
Operating Temperature -40°C to 85°C
Power Tolerance 0/+5 W
Connector MC4 Compatible

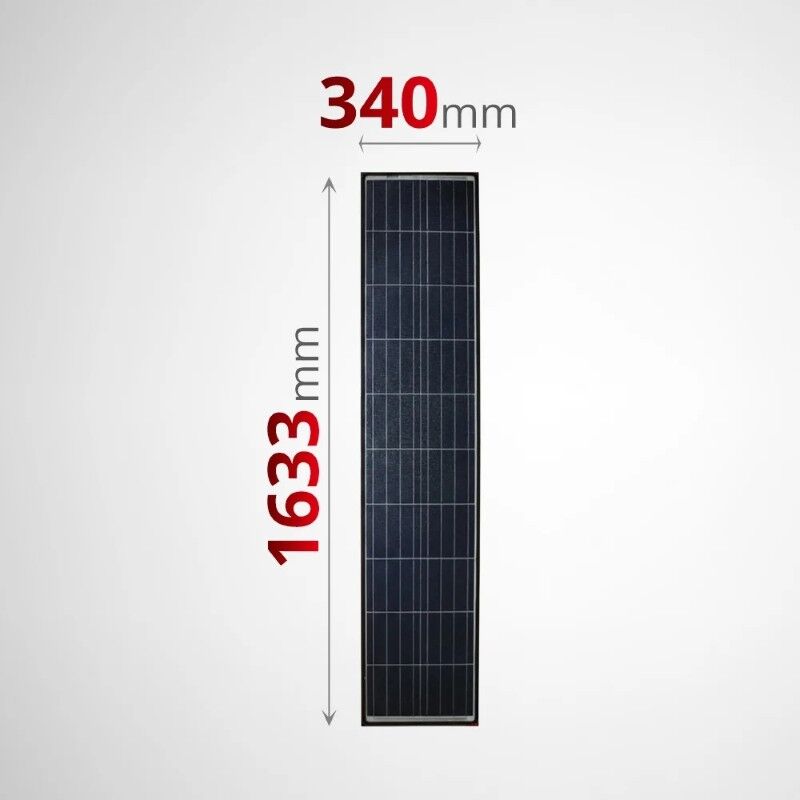

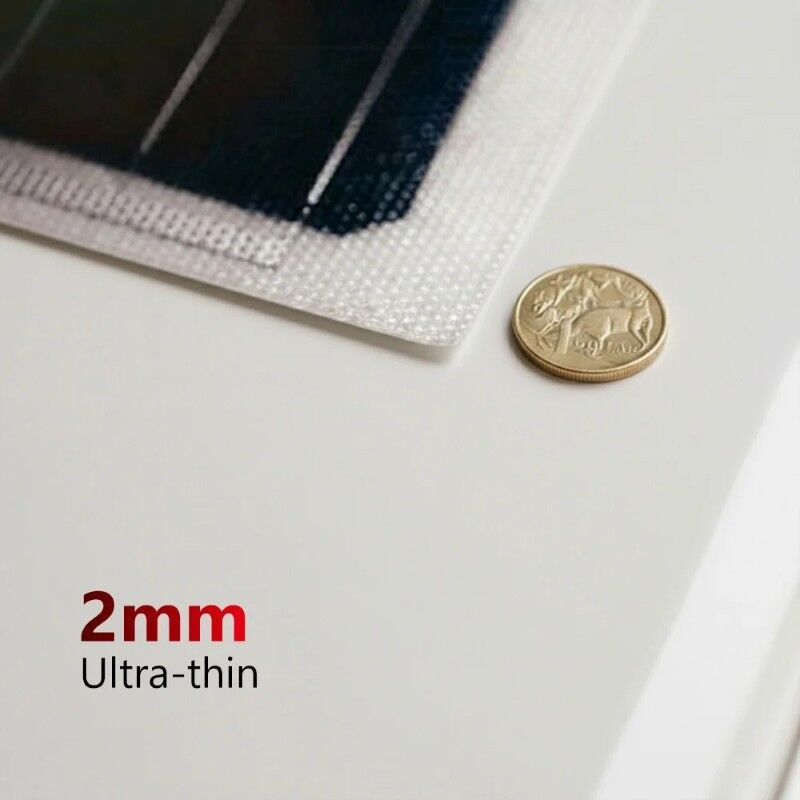

Dimensions 1633 x 340mm x 2mm
Weight (kg) 2
IP Rating IP68
Maximum System Voltage 600 V DC (IEC)
