Sunman eArc 100W Flexible Solar Panel

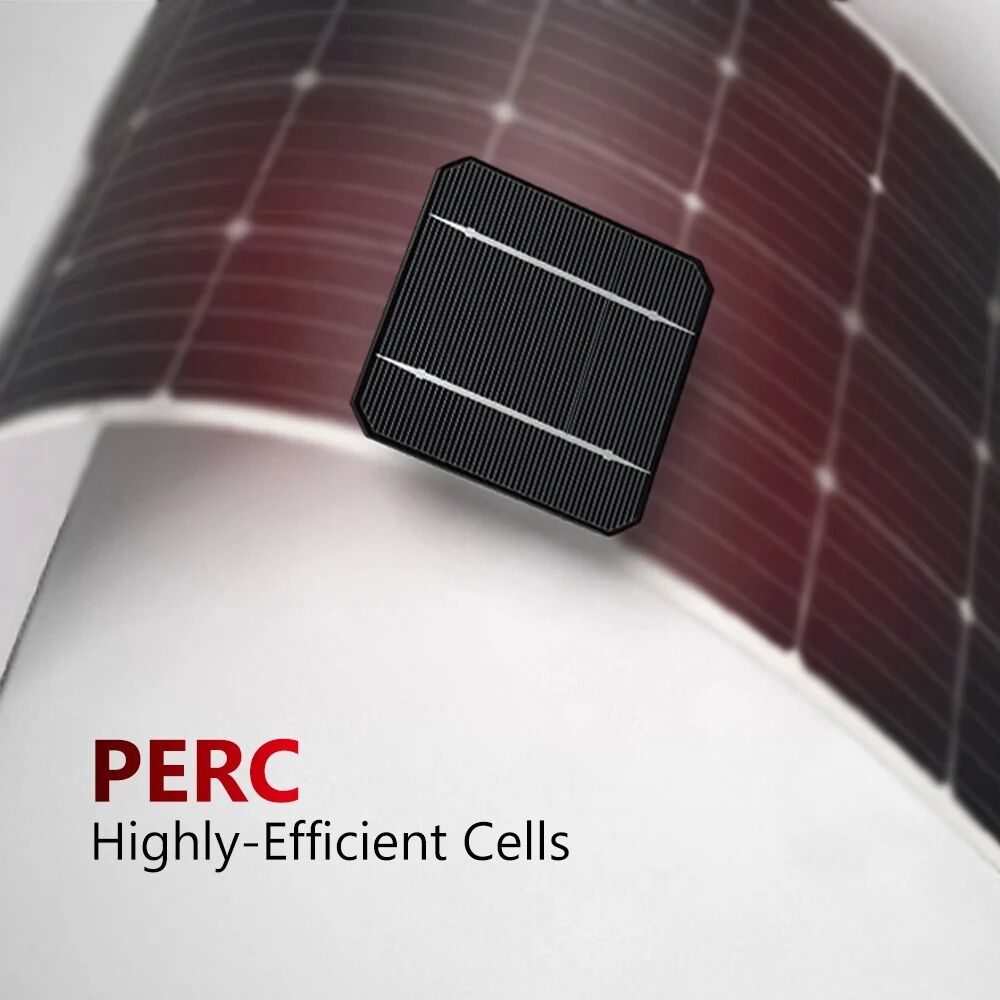

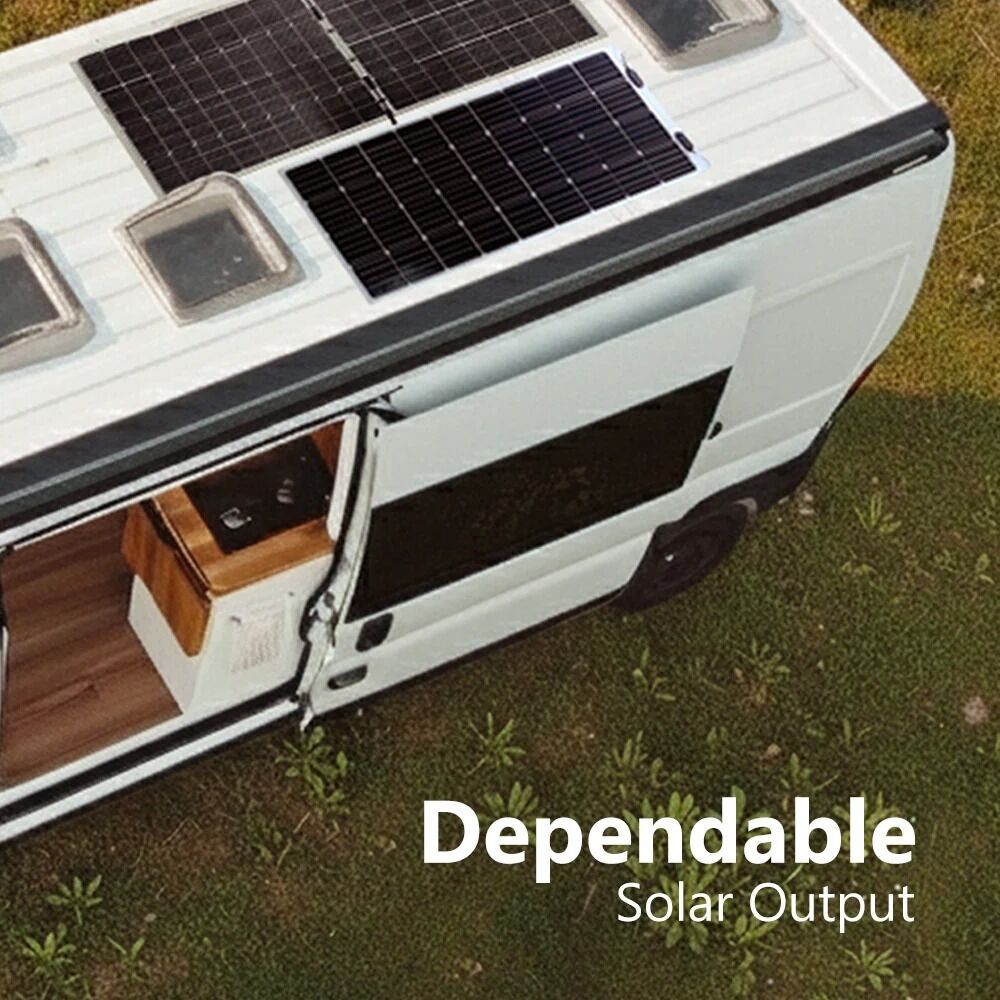

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.
Key Features:
- Lightweight and durable construction with cutting-edge technology
- Highly efficient monocrystalline cells for optimal energy production

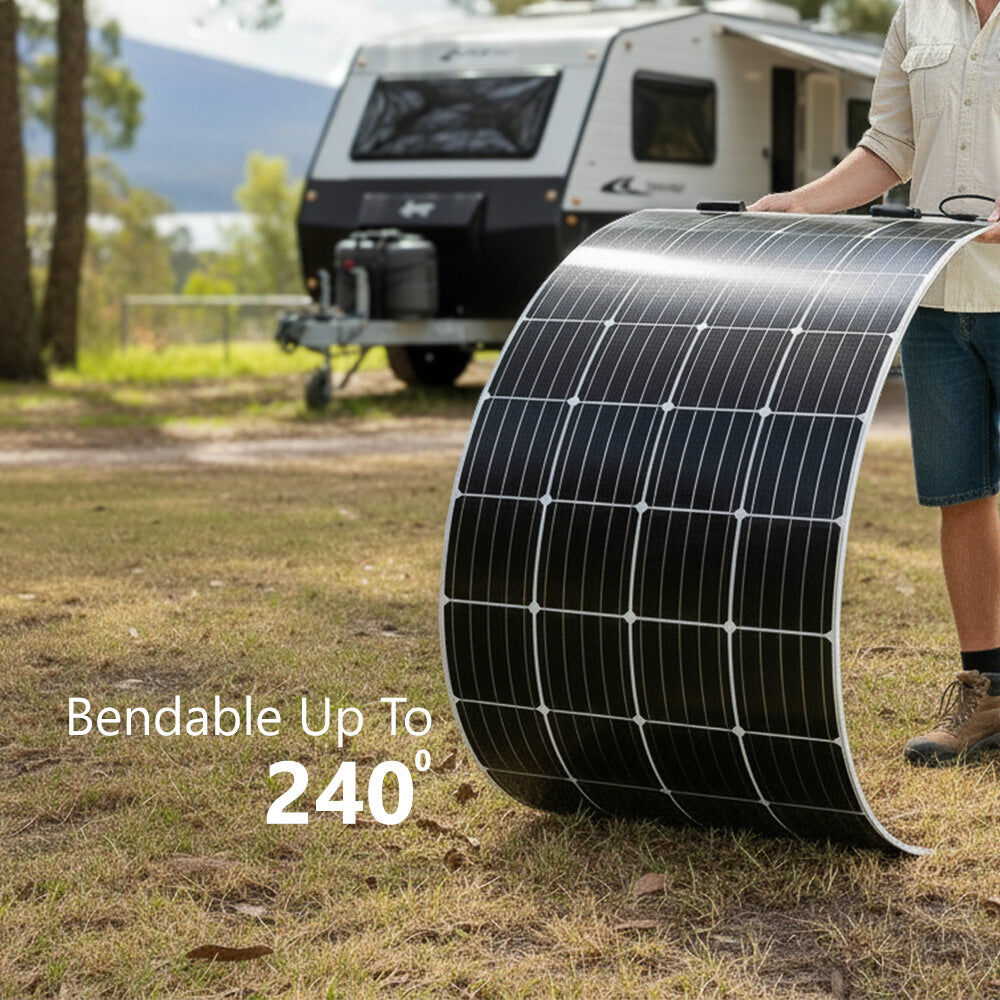

- Flexible design for easy installation on various surfaces
- Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
- CEC-approved for residential and commercial use
- 10-year product warranty for buildings and 5 years for mobile applications
- Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Mounting Options:
- Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips. (Height increase of approximately 15mm)
- High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
- Bi-Adhesive Backing: We can fit a continuous sheet of 1mm bi-adhesive material on the back of the panel for easy peel-and-stick installation on smooth surfaces.
- Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
Specifications:

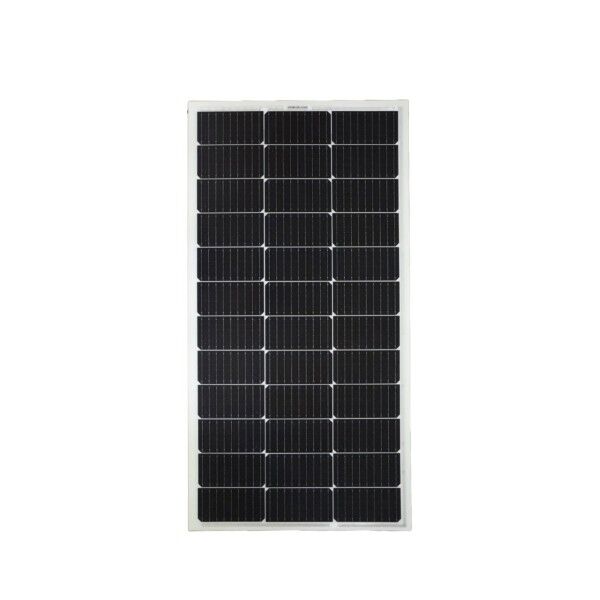

- Solar Cells: 36 (3 × 12)

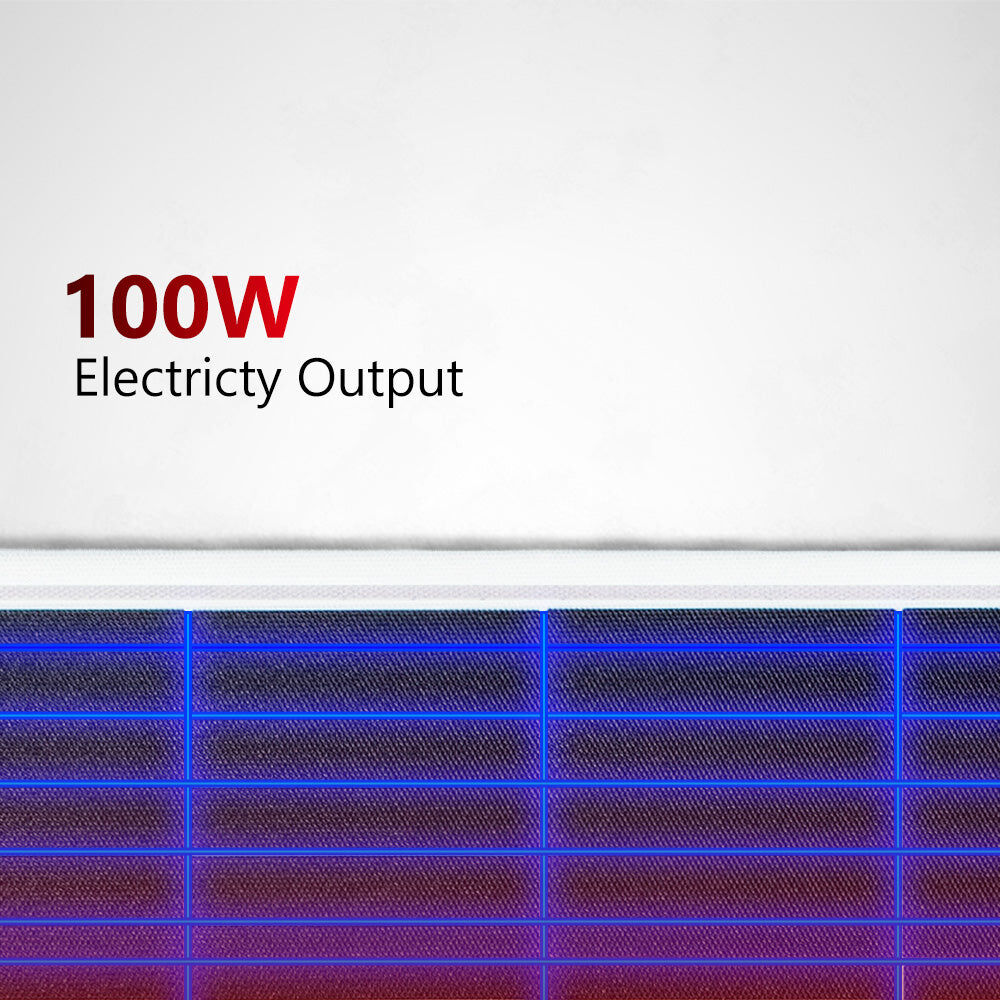

- Maximum Power (Pmax): 100 W
- Maximum Power Voltage (Vmp): 21.2 V
- Maximum Power Current (Imp): 4.75 A
- Open-Circuit Voltage (Voc): 25.2 V
- Short-Circuit Current (Isc): 5.12 A
- Operating Temperature: -40°C to 85°C
- Maximum System Voltage: 1000 V DC (IEC)
- Maximum Series Fuse Rating: 20 A
- Application Class: Class A
- Power Tolerance: 0/+5 W
- Backsheet: White

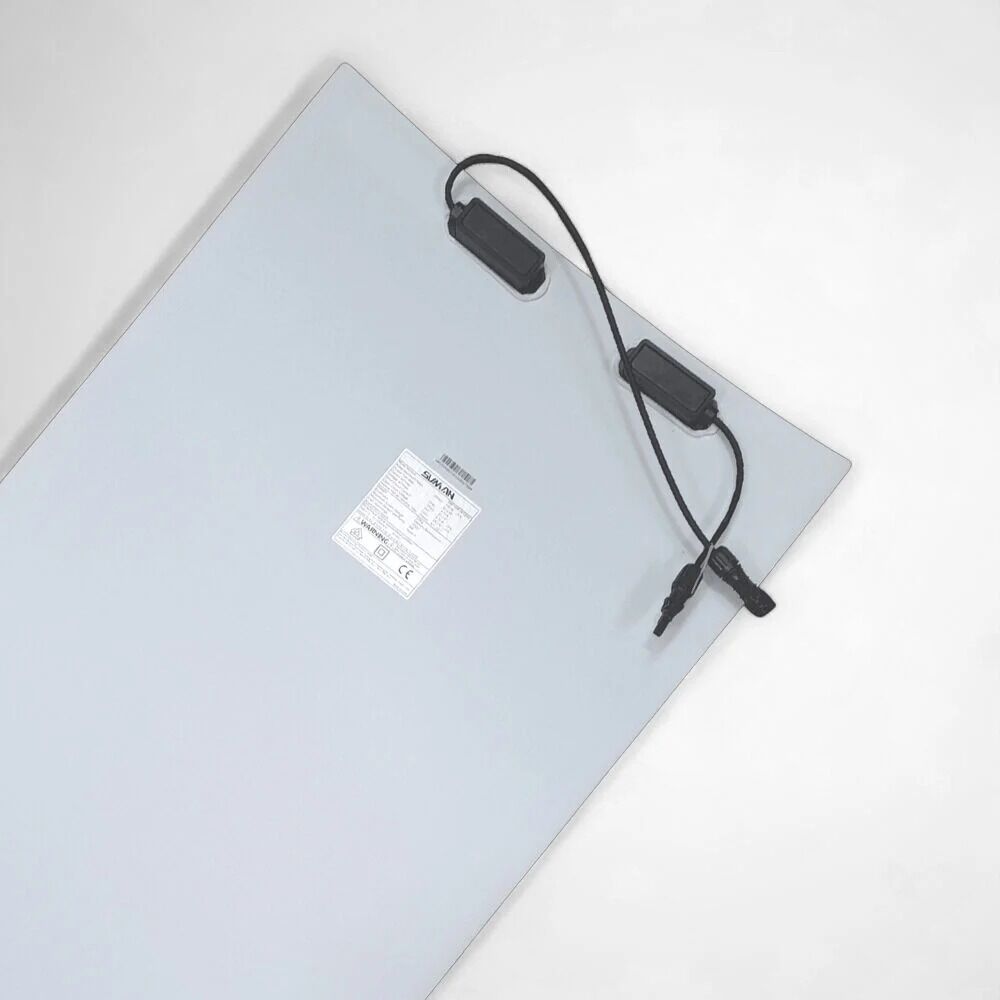

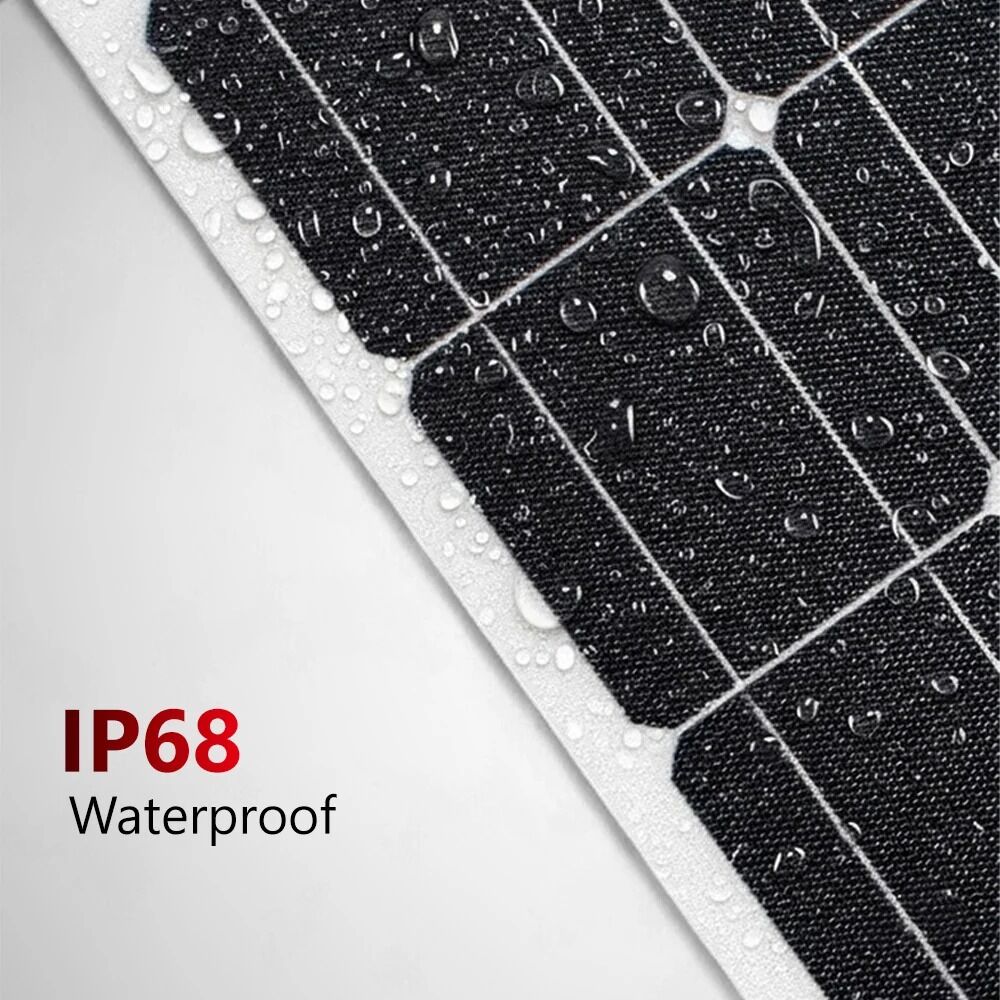

- Junction Box: IP68 rated (each junction box has one bypass diode)
- Output Cables: Photovoltaic technology cable, 4.0 mm², (+) 150 / (-) 450 mm
- Connector: MC4 compatible
Note: To ensure the best outcome of your eArc solar panels, we recommend to our Victron solar charge controllers with your flexible solar panels. You can find our range of Victron Solar Charge Controllers HERE
Specifications
SKU eASMF100F-3x12DW
Brand Sunman
Product Category Solar Panels
Watts (W) 100
Solar Panel Cell Type Monocrystalline
Solar Panel Type Flexible Solar Panels

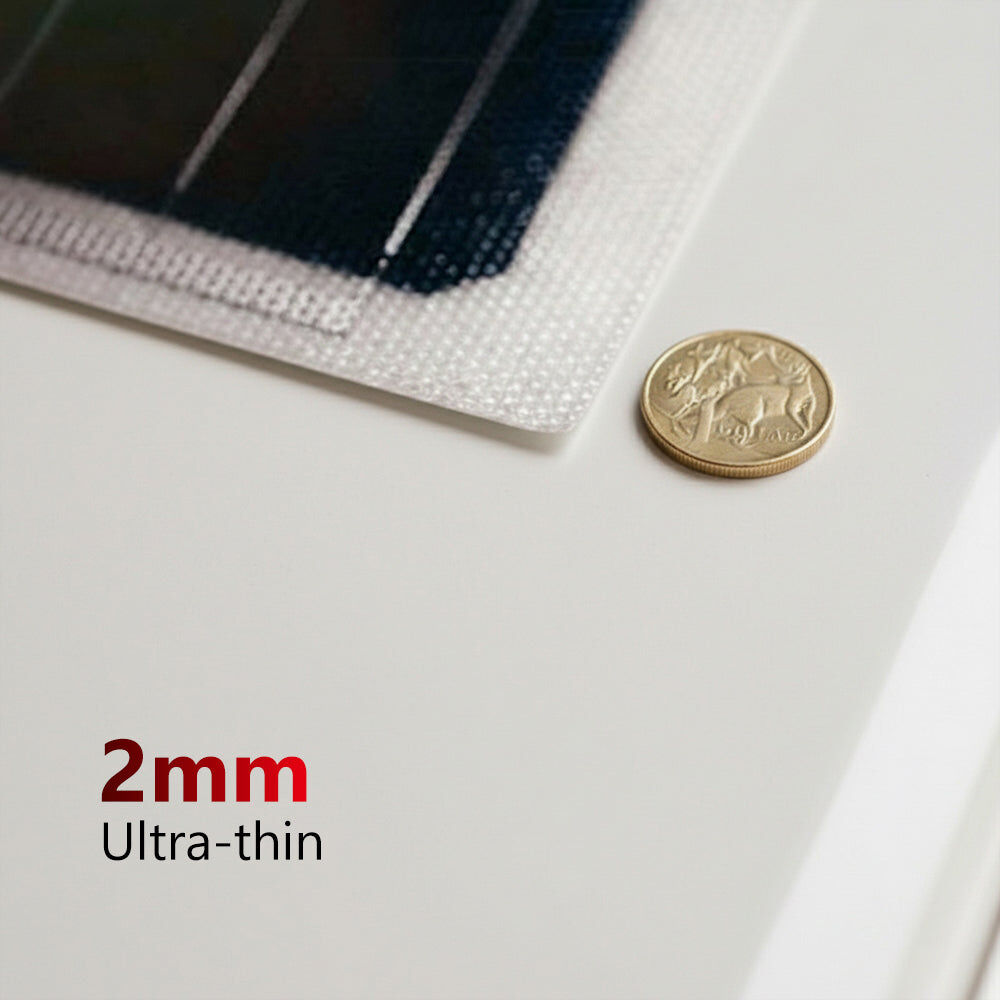

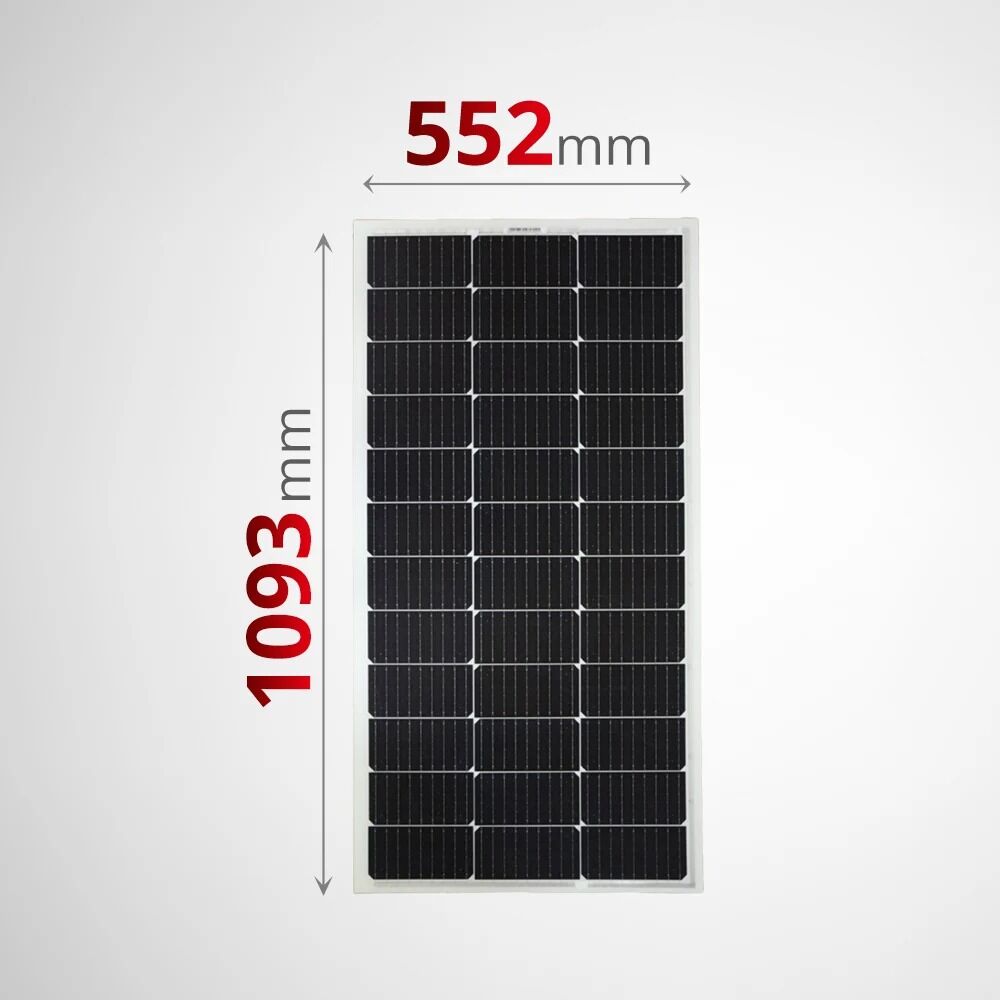

Dimensions 1093 x 552 x 2 mm
Weight (kg) 2.1 Kg
