TAG Adjustable Heavy Duty Tow Ball Mount 90¡ Face, 50mm Square Hitch - 360mm Drop, 385mm Rise
SKU: UNTTBM150 Learn More»

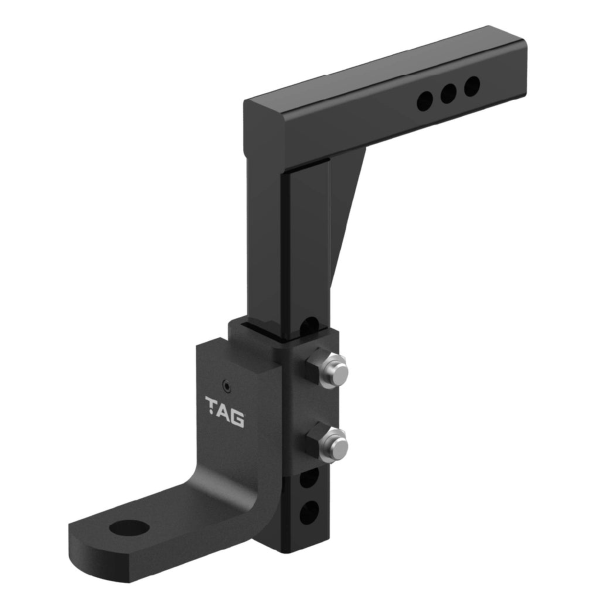

TAG Adjustable Heavy Duty Tow Ball Mount 90¡ Face, 50mm Square Hitch - 360mm Drop, 385mm Rise
Introducing our new line of adjustable tow ball mounts! By leveraging the same head design featured in the UNTTBM450 and integrating it with our trusted Weight Distribution Hitches, we’ve crafted cost-effective alternatives to our existing range of adjustable hitch products.
The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup.
Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping. (Please note that the finish on the head and shank are different).
Features:
- 90° Separate Tongue Face with four adjustable positions.

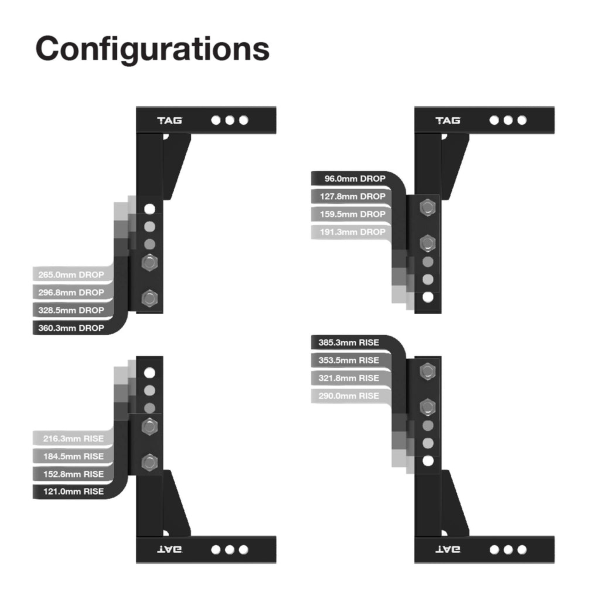

- Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
- Includes reducer bush to suit 50mm or 70mm Towball (Limited to 3500kg)
- Includes nuts, bolts and washers
- Gross Trailer 3500kg (50mm Tow Ball)
- Ball Weight 350kg (50mm Tow Ball)
- Durable Powder Coated Finish
- ADR 62/02 Compliant
- TAG Limited Lifetime Warranty
- Torque: 441nm

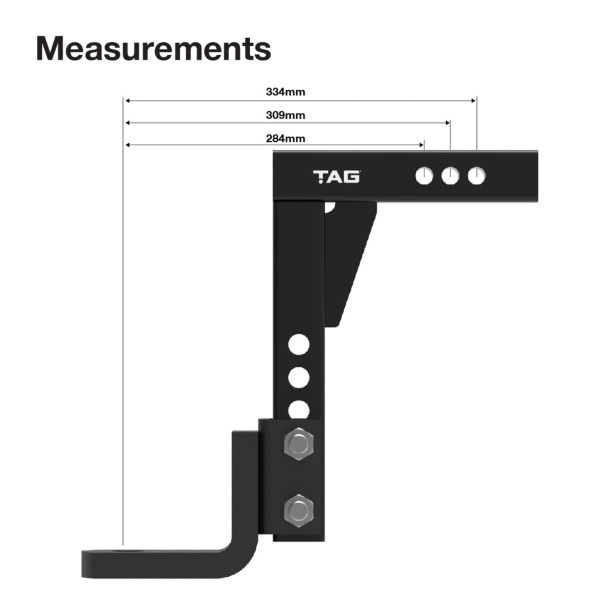

Specifications:
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Hitch Type: Heavy Duty 50mm Square
- Drop: 360mm
- Rise: 385
- Coating: Powder Coated
- Towbar Capacity [kg]: 3500
- Adjustable: Adjustable
- Ball Weight [kg]: 350
- Tongue Face: 90°
- Material Type: Solid Steel
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
Specifications
SKU UNTTBM150
Brand TAG
Product Category Towballs, Hitches and Couplings
Tow Ball Weight (kg) 350
Coating Powder Coating
Drop 310mm
Gross Trailer Weight 3500
Q & A
-
What is the towing capacity when in the rise position?
This hitch is rated to 3500kg in both the drop and the rise position.
