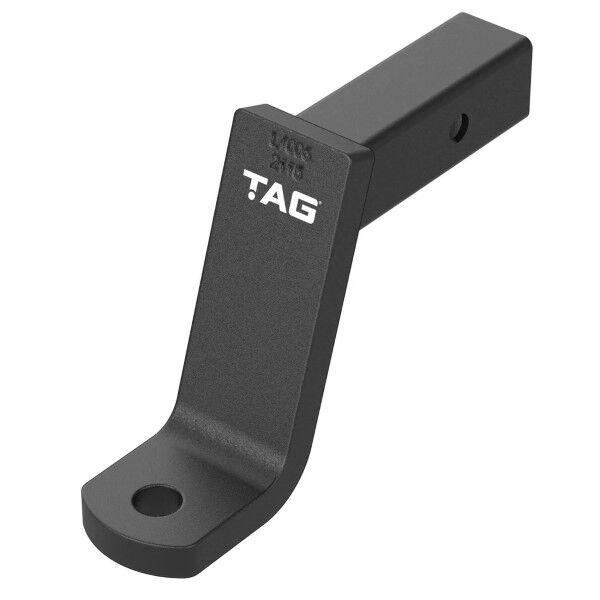

TAG Tow Ball Mount, 210mm Long, 108° Face, 50mm Square Hitch
SKU: L4006 Learn More»
TAG Tow Ball Mount, 210mm Long, 108° Face, 50mm Square Hitch
TAG Tow Ball Mounts are manufactured using stainless steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

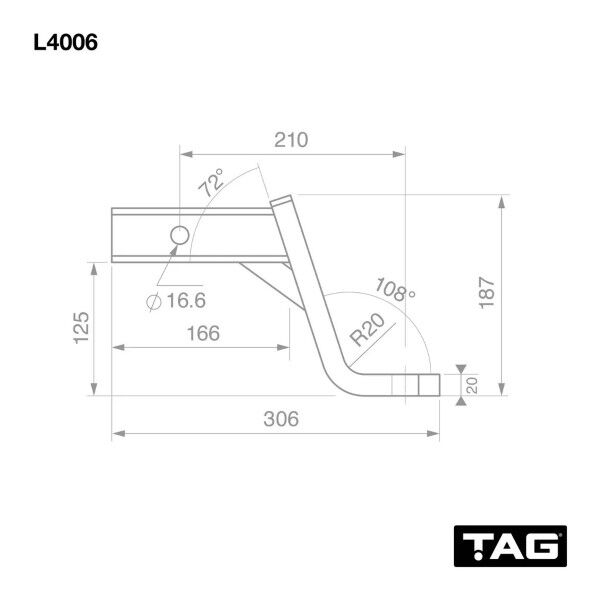

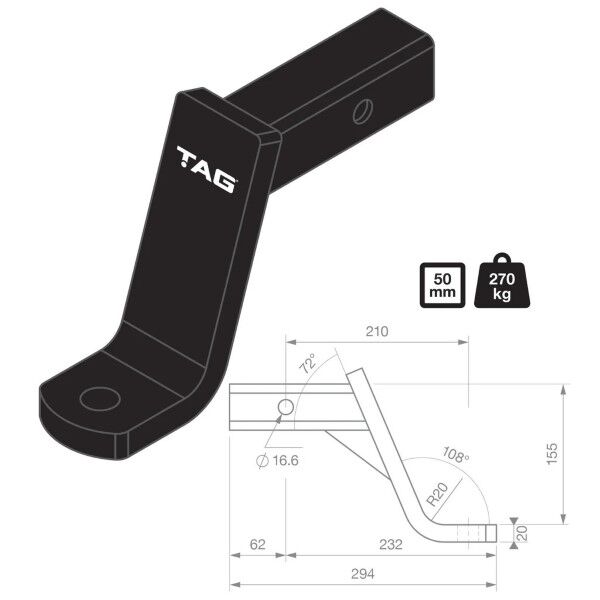

Specifications:
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 2700
- Hitch Type: 50mm Square Hitch Receiver
- Drop: 130mm
- Rise: Cannot be used in Rise Mode
- Length: 306
- Length (Pin To Ball): 210mm
- Front to Pin (mm): 232
- Back to Pin (mm): 62
- Tongue Face: 108°
- Coating: Powder Coated
- Ball Weight [kg]: 270
Tow Ball, R-Clip & Hitch Pin sold separately.
Specifications
SKU L4006
Brand TAG
Product Category Towballs, Hitches and Couplings
Length 306
Tow Ball Weight (kg) 270
Coating Powder Coated
Drop 130mm
Gross Trailer Weight 2700
Hitch Type 50mm Square Hitch Receiver
Tow Ball Mount Class Heavy Duty (Class 4)
Rise Cannot be used in Rise Mode
Front To Pin (mm) 232
Back To Pin (mm) 62
Tongue Face 108¡
