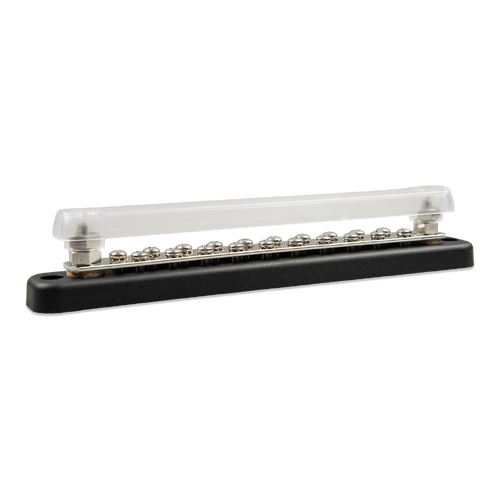

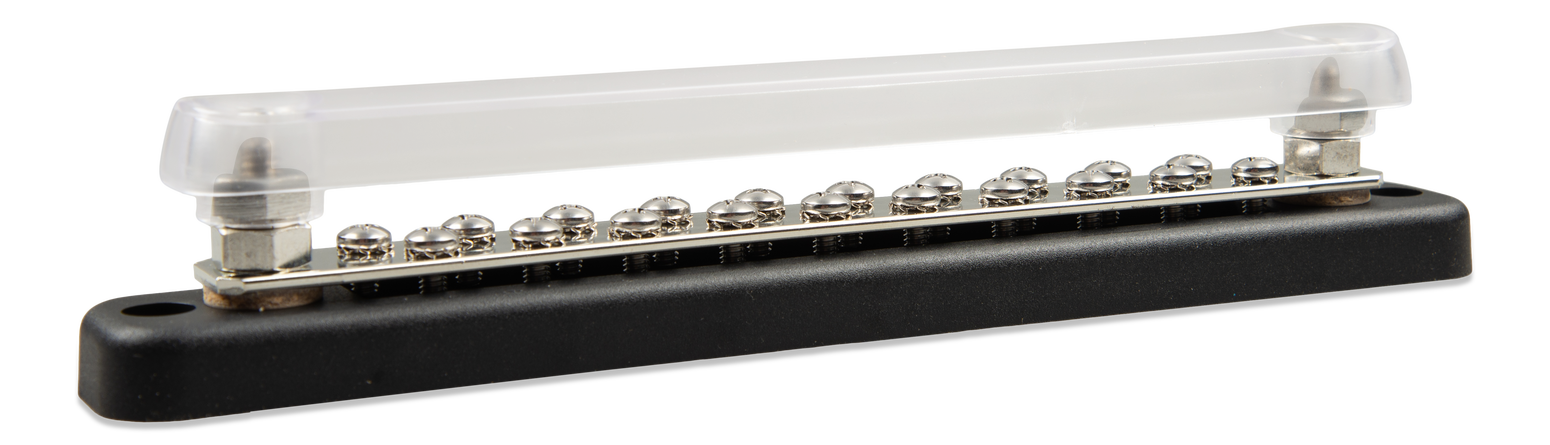

Victron Busbar 150A/70A 2P With 20 Screws + Cover

SKU: VBB115022020 Learn More»
Victron Busbar 150A/70A 2P With 20 Screws + Cover
$75
In StockDispatch 5-7 Days

CALCULATE SHIPPING:

Go to: Product Details
Go to: Specifications

Description

Victron Busbar 150A/70A 2P With 20 Screws + Cover



Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.



Available models:

  • 150A / 70V - 4 high current connections
  • 150A / 70V - 6 high current connections
  • 150A / 70A - 2P with 10 screws +cover
  • 150A / 70A - 2P with 20 screws +cover
  • 250A / 70V - 4 high current connections
  • 250A / 70V - 6 high current connections
  • 250A / 70A - 2P with 6 screws +cover
  • 250A / 70A - 2P with 12 screws +cover
  • 600A / 70V - 4 high current connections and 8 low current connections
  • 600A / 70V - 8 high current connections and 8 low current connections



Specifications:

  • Max. current: 150 A
  • Max. Voltage: 70 VDC
  • Terminal diameter: 6.35 mm
  • Terminal height: 17 mm
  • Terminal material: Stainless steel
  • Hex nut material: Tin-plated copper
  • Recommended torque: 7 N·m
  • Terminal screws: 4.2 mm
  • Terminal material: Stainless steel
  • Busbar strip material: Tin-plated copper (2.4 x 19 mm)
  • Base material: ABS, black, UL 94 V-0
  • Cover material: Clear Polycarbonate, UL 94 HB
  • Weight: 1 kg
  • Dimensions 20 screws (hxwxd):  45 x 232 x 32 mm (with cover)





Show More
Go to: Description
Go to: Q&A

Specifications

SKU VBB115022020

Brand Victron

GTIN 8719076056379

Product Category Electrical Accessories

Dimensions 10 screws (hxwxd) 45 x 232 x 32 mm(with cover)
