Victron Smart 12/200 Battery Management System
Q & A | SKU: BMS210055000 Learn More»
Description

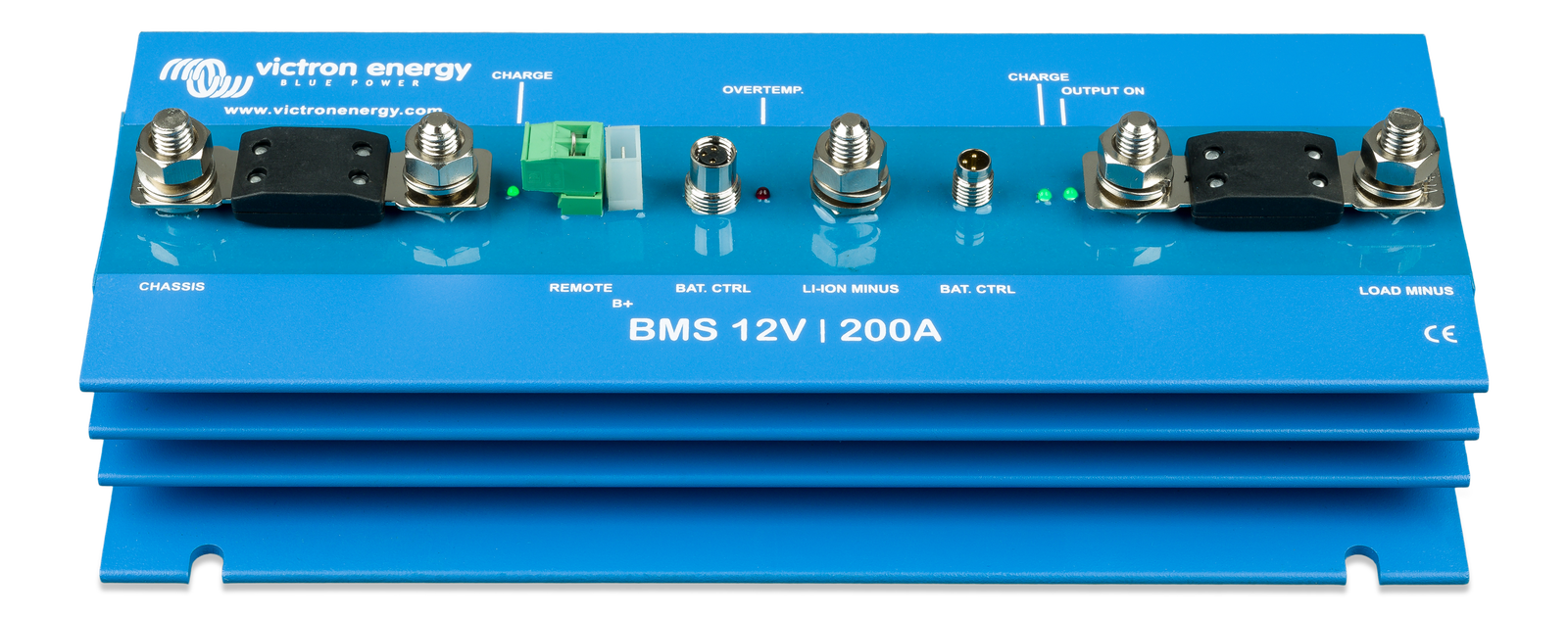

Victron Smart 12/200 Battery Management System
The BMS 12/200 lets you safely connect any size 12V alternator (and start battery) to Victron LiFePO4 Smart Batteries. This all-in-one Battery Management System, Current Limiter, Battery Combiner and Battery Protector is a robust and compact solution, specifically designed for 12V systems with 12V alternators, such as vehicles and boats.
The BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources or DC loads in case of low battery voltage, high battery voltage or over temperature.
The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, this so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries and the starter battery is protected from excessive discharge.
The dedicated load connection will disconnect loads and charge in case of low battery voltage, high battery voltage or over temperature.
The BMS is also equipped with a remote on/off connector, to turn the BMS (and the system) off via a remote switch.
Specifications:
- Maximum number of 12,8V batteries: 10
- Maximum charge current, Power Port AB: 80A @ 40°C
- Maximum charge current, Power Port LB: 200A @ 40°C
- Maximum continuous discharge current, LB: 200A @ 40°C
- Peak discharge current, LB (short circuit proof): 400A
- Approximate cut-off voltage: 11V
- No load current when operating: 10mA
- Current consumption when switched off (discharging is stopped and charging remains enabled, both through AB and LB, when switched off): 5mA
- Current consumption after battery discharge cutoff due to low cell voltage: 3mA
- Operating temperature range: -40 to +60°C
- Humidity, maximum: 100%
- Humidity, average: 95%
- Protection, electronics: IP65
- DC connection AB, LB and battery minus: M8
- DC connection battery plus: Faston female 6.3mm
- Weight: 1.8kg
- Dimensions (hxwxd): 65mm x 120mm x 260mm
.png)
Specifications
SKU BMS210055000
Brand Victron
GTIN 8719076052883
Product Category Batteries Other
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 5 Years
Warranty Details: Please CLICK HERE for Warranty Information on this product
