Welling & Crossley 13.75 kVA Open Frame AVR Petrol Generator E-Start & RCD
SKU: WC-P13750RCD Learn More»
Welling & Crossley 13.75 kVA Open Frame AVR Petrol Generator E-Start & RCD
The Welling and Crossley P13750RCD is a powerful 10,000W open-frame AVR (Automatic Voltage Regulated) petrol generator equipped with a convenient electric start and RCD (Residual Current Device) for protection against electrical faults. The WC-P13750RCD has a generous 45L fuel tank and an economical motor, providing reliable, clean, and consistent power for running multiple appliances over extended periods. The WC-13750RCD is the workhorse you need when you’re on the job
Features:
- RCD (Residual Current Device): An RCD is a safety device that quickly cuts off the power supply if it detects an imbalance between live and neutral currents - which can indicate a leakage current through a person or a fault in the circuit. This helps to prevent electric shocks.
- AVR (Automatic Voltage Regulator): An AVR stabilises the output voltage of a generator, preventing fluctuations that can damage electronic equipment. It ensures a steady and consistent voltage level, enhancing the safety and reliability of the generator.
- 2-Wire Start: This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal.
- Fuel Efficient: This refers to how much power a generator can produce relative to its fuel consumption. Fuel-efficient generators run longer on less fuel, saving money and reducing the frequency of refuelling, which is particularly important for extended use.
- Multiple start options: Push-button electric start, wireless remote start, 2-wire remote start
- Large fuel capacity: 45L petrol tank - extended run times with an economical motor, ideal for prolonged use
- Powerful & efficient: 4-Stroke, air-cooled, OHV engine - reliable performance for a variety of applications
- Heavy duty wheels, handle and lifting bar: Designed for easy transportation and mobility, the lifting bar to aid in vertical mechanical lifts

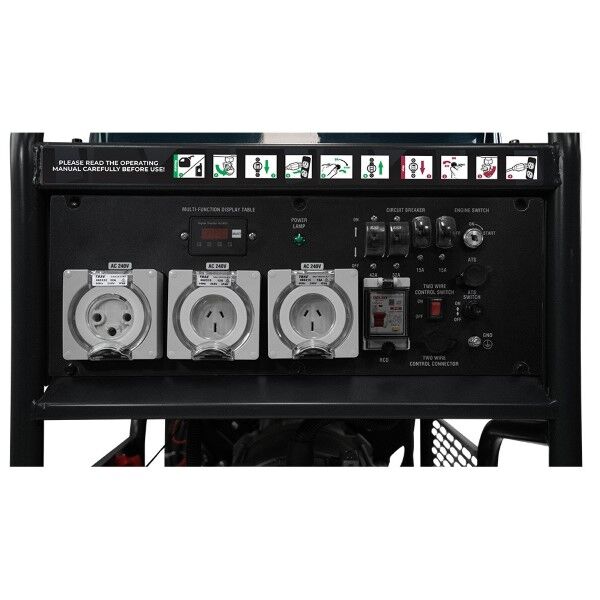

- Digital V/F/T display: 3-in-1 display - easy-to-read display shows Volts, Frequency and Time for convenient monitoring
Applications:

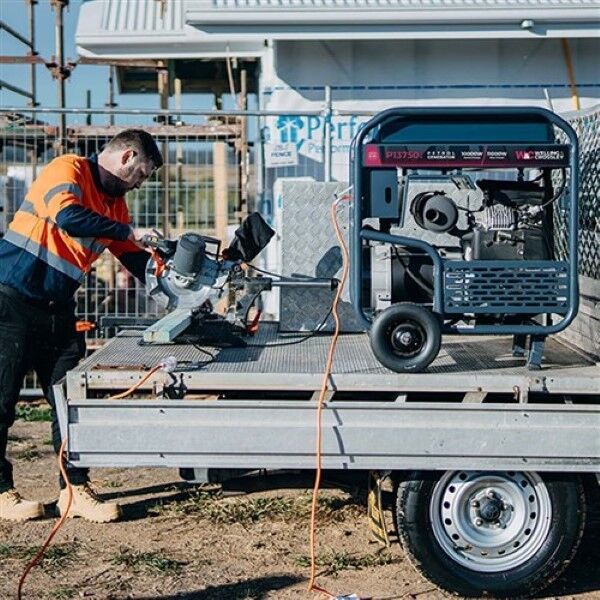

- Compliant with safety regulations for work areas and construction sites
- Off-grid solar pumping system backup
- Power irrigation systems, farm equipment and agriculture machinery
- Outdoor events for lights, sound systems etc
- Larger mobile businesses or market stalls to power lights and appliances
- RCD’s cannot be used in conjunction with power boards configured with surge protection
Specifications:
- Generator Rating: 13.75 kVA
- Max AC Output: 11,000W
- Rated AC Output: 10,000W
- Rated Motor Speed: 3000rpm
- Rated Voltage: 230/240V AC
- Phase: Single
- Frequency: 50hz
- Outlets: 2 x IP66 15Amp, 1 x IP66 32Amp
- USB Connections: 1 x USB Type C (15w), 1 x USB Type A (18w)
- Engine Model: WC-690: Euro 5 emissions compliant
- Engine Type: 4 stroke, OHV, air cooled. Transistor ignition
- Starting System: Recoil / Electric / 2-Wire / Remote
- Displacement: 688cc
- Oil: 1.5L SAE10W-30
- Noise Level @ 7m: <90 dBA
- Fuel Type: Petrol – 91 octane unleaded
- Fuel Tank Capacity: 45 L
- Fuel Consumption: 2.2 L/Hr @ 1/4 Load
- Operation Hours: 27 hrs @ 1/4 Load
- Product Dimensions (L x W x H): 810 x 640 x 920 mm
- Weight: 160 kg
.png)
Specifications
SKU WC-P13750RCD
Brand Welling & Crossley
GTIN 9312198867343
Product Category Portable Generators
Voltage 240 VAC
kVA 11.25
Maximum Output (Watts) 11000
Continuous Output (Watts) 10000
Max Output (KW) 11
Continuous Output (KW) 10
Dimensions 810 x 920 x 640mm
Weight (kg) 160
Fuel Tank Capacity (L) 45
Phase Single Phase
Outlets 2 x IP66 15A / 1 x IP66 32A / 1 x USB-A (18W) / 1 x USB-C (15W)
Fuel Petrol (Euro 5)
