Welling & Crossley 7.75kVA Open Frame AVR Honda Powered Generator
SKU: WC-P7750H Learn More»

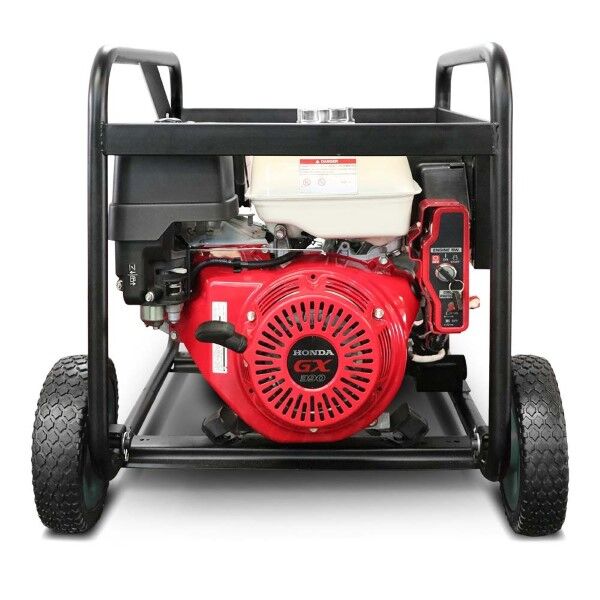

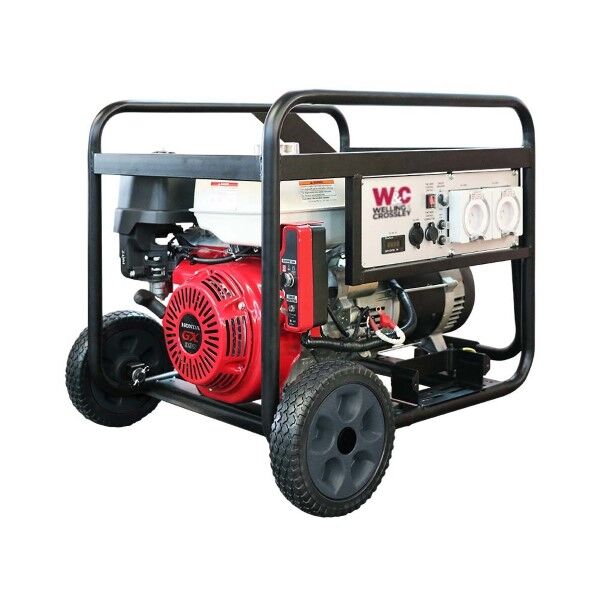

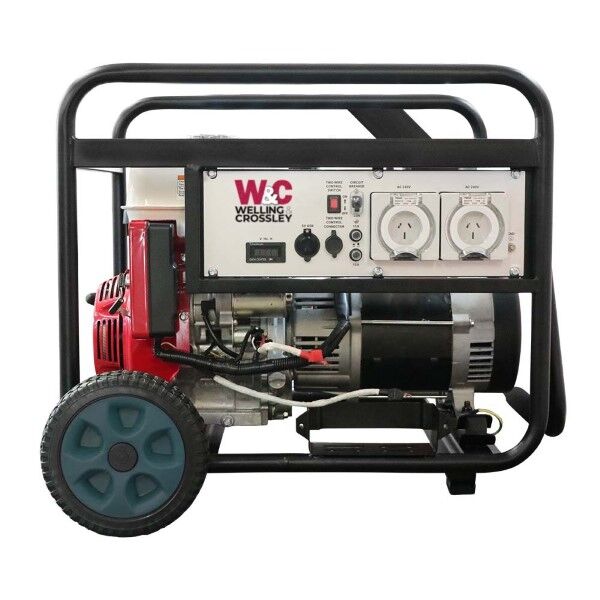

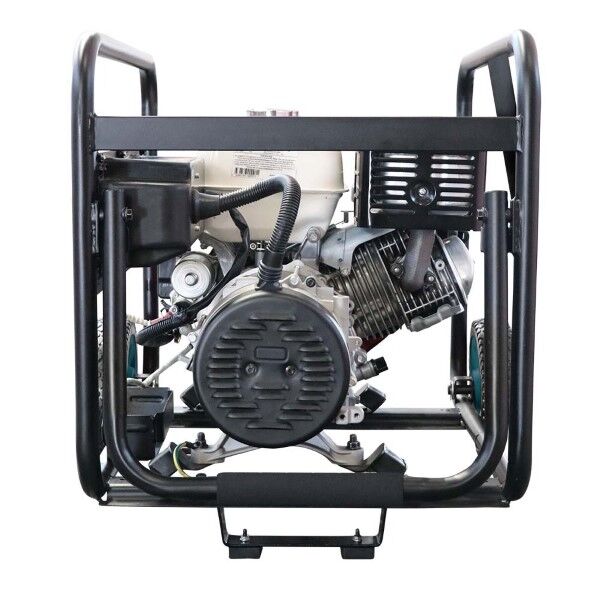

Welling & Crossley 7.75kVA Open Frame AVR Honda Powered Generator
The Welling and Crossley P7750H is an AVR (automatic voltage regulated) generator with key-start, powered by a Honda Australia approved GX390 engine.
Supplied with transport kit (handles and wheels), this generator is Euro 5 emissions compliant. It features multiple output options – including two IP66-rated 15A AC outlets, plus USB-A and USB-C ports – suitable for powering a wide range of devices.
Combining W&C’s market expertise with the reliability of a genuine Honda engine, the WC-P7750H packs plenty of power in a compact footprint.
Applications:

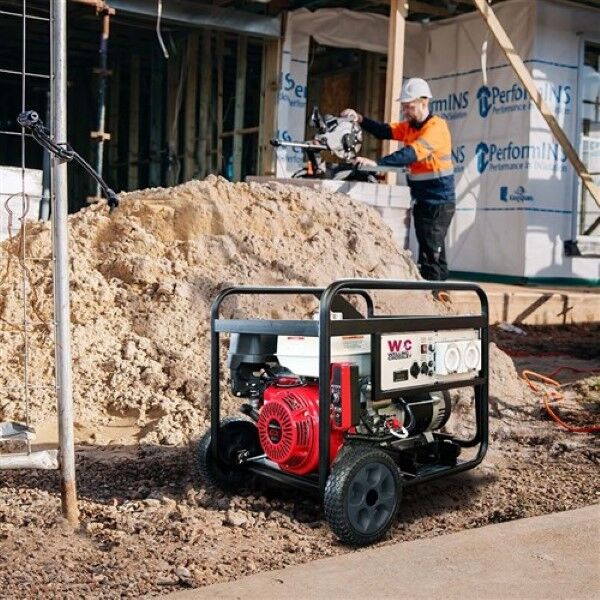

- Work sites to power small to medium tools and lights. RCD may be required for some worksites
- Home back-up solution for essential appliances
- Outdoor events for lights, sound systems etc.
- Mobile businesses or market stalls for powering small appliances
Features:
- Powered by Honda: This generator is powered by a genuine, robust Honda GX390 engine, and backed by Honda Australia
- Euro 5 emission compliant petrol electric start engine
- Automatic Voltage Regulator for stable power output
- 2-Wire Start: This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal
- Heavy-duty wheels and handles: Designed for easy transportation and mobility, even on rough terrain
- 2 x IP66 Outlets (single phase – 15 Amp)
- USB A and USB C outlets
- Recoil, Push-button electric or 2 wire remote starting
- Digital V/F/T Display (Volts, Frequency, Time)
- Limited warranty: Engine – 3 years, Alternator & Frame – 2 years. Battery excluded
Specifications:
- Generator Rating: 7.75 kVA
- Max AC Output: 6000W
- Rated AC Output: 5500W
- Rated Motor Speed: 3000rpm
- Rated Voltage: 230/240V AC
- Phase: Single
- Frequency: 50hz
- Outlets: 2 x IP66 15Amp
- USB Connections: 1 x USB Type C (15w), 1 x USB Type A (18w)
- Engine Model: Honda GX390. Euro 5 emissions compliant
- Engine Type: 4 stroke, OHV, air cooled petrol
- Starting System: Recoil / Electric / 2-Wire
- Displacement: 389cc
- Oil: 1.1L SAE10W-30
- Noise Level @ 7m: 89 dBA
- Fuel Type: Petrol – 91 octane unleaded
- Fuel Tank Capacity: 6.1 L
- Fuel Consumption: 1.37 L/Hr @ 1/4 Load
- Product Dimensions (L x W x H): 700 x 660 x 500 mm
- Weight: 80 kg
.png)
Specifications
SKU WC-P7750H
Brand Welling & Crossley
GTIN 9312198867381
Product Category Portable Generators
Voltage 230Ð240_VAC
kVA 9
Continuous Output (Watts) 5500
Continuous Output (KW) 5.5
Starting Method Recoil / Electric Start / 2_Wire Start / Wireless Remote
Dimensions 550 x 700 x 660
Weight (kg) 80
Frequency 50_Hz
Fuel Tank Capacity (L) 6.1
Phase Single Phase
Outlets 2 x IP66 15A / 1 x USB Type A (18W) / 1 x USB Type C (15W)
Max Output (kW):6
Fuel Petrol
Max Output (watts) 6000
