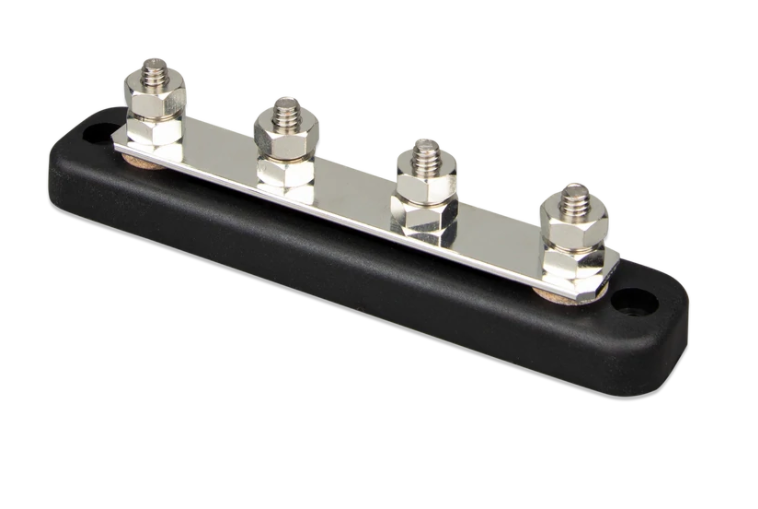

Victron Busbar 600A 4Pole & Cover


Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.



  • Max. current: 600 A
  • Max. Voltage: 70 VDC
  • Terminal diameter: 3/8 inch / 9.53 mm
  • Terminal height: 0.76 inch / 19 mm
  • Terminal material: Stainless steel
  • Flange Nut Material: Stainless steel
  • Recommended torque: 180 lbf·inch / 20 N·m
  • Screw terminals: diameter #8 (0.164 inch) / 4.2 mm
  • Screw material: Stainless steel
  • Busbar strip material: Tin-plated copper (19 x 24 mm)
  • Base material: ABS, black, UL 94 V-0
  • Cover material: ABS, black, UL 94 V-2
  • Weight, 4 terminals: 0.75 kg
  • Dimensions (hxwxd): (with cover) 65mm x 216mm x 86 mm

Warranty Period: 5 Years
