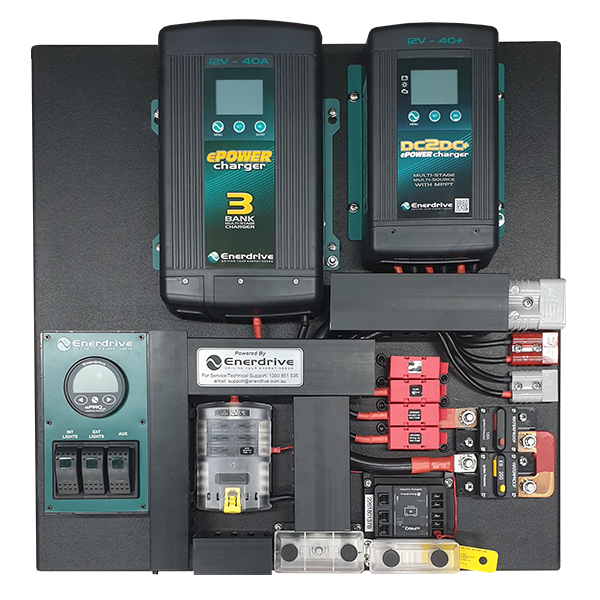

Enerdrive DIY 40A AC and 40A DC2DC Charging Board ( With Battery Option)
The Enerdrive DIY 40A AC and 40A DC2DC Charging Board is perfect for the DIY installer seeking a quality solution at a budget price!
Included:
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger - EN3DC40
- Enerdrive ePOWER 12V 40A Battery Charger - EN31240
- Enerdrive ePRO PLUS Battery Monitor - EN55050
- Quality midi fuse assemblies
- Fuse block distribution ready for accessory load circuits
- Master circuit Breakers ready for an additional Inverter up to 2000W Inverter
- Andreson connectors for ease of installation.
Available with or without an accessory box including 3 switches and provision to mount your battery monitor display.
Optional Accessories:
- AGM Board Cable Kit 70mm2 x 1000mm POS & NEG - ENC-KIT-70-1000MM
- AGM Board Cable Kit 70mm2 x 1500mm POS & NEG - ENC-KIT-70-1500MM
- AGM Board Cable Kit 95mm2 x 1000mm POS & NEG - ENC-KIT-95-1000MM
- AGM Board Cable Kit 95mm2 x 1500mm POS & NEG - ENC-KIT-95-1500MM
- Enerdrive Anderson 50A Connector to DC to DC Charger Cable Kit - ENC-KIT-AP50-DCDC-16
- Enerdrive 16mm Cable Kit Start Battery To 50A Anderson Connector - ENC-KIT-BATT-AP50-16
- Enerdrive 16mm Cable Kit (Inc 70A Fuse) Start Battery to DC to DC Charger - ENC-KIT-BATT-DCDC-16
EXPERT TIP: One or two AGM Board Cable Kits are common accessories suitable for the Enerdrive DIY 40A AC and 40A DC2DC Charging Board. Thickness, length and quantity will depend on installation type. Please check cable description for details. All the accessories are available in the Accessory List above as optional extras.
Compare all the DIY Installation Kit models below:
|
Items Included |
eSYS-C |
eSYS-D |
eSYS-E |
eSYS-F |
eSYS-G |
eSYS-H |
eSYS-I |
eSYS-J |
K-DIY-Board-01 |
|---|---|---|---|---|---|---|---|---|---|
|
ePOWER AC 40Amp 230v Charger |
* |
* |
* |
* |
* |
|
|
|
* |
|
ePOWER AC 60Amp 230v Charger |
|
|
|
|
|
* |
* |
* |
|
|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Morningstar Tristar PWM-45A Solar Controller |
|
|
|
|
|
* |
* |
* |
|
|
ePRO Plus 500A Battery Monitor |
* |
|
* |
|
|
* |
|
* |
* |
|
with Remote Display |
|||||||||
|
Simarine Pico LCD WIFI Monitoring Screen |
|
* |
|
* |
* |
|
* |
|
|
|
Simarine SC303 300A Main Battery Shunt |
|
* |
|
* |
* |
|
* |
|
|
|
Simarine SCQ25T Individual Load/Charge Module |
|
* |
|
* |
* |
|
|
|
|
|
Simarine SCQ50 Individual Load/Charge Module |
|
* |
|
* |
* |
|
* |
|
|
|
3 Stud Main Negative Bus Bar |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
40A Low Battery Cutout |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
Main System Circuit Breaker 120A |
* |
* |
* |
* |
* |
|
|
|
* |
|
Main System Circuit Breaker 200A |
|
|
|
|
|
* |
* |
* |
|
|
Inverter Circuit Breaker 200A |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Solar Input Positive Circuit Breaker 40A |
|
* |
* |
* |
* |
* |
|
* |
|
|
Solar Input Positive Circuit Breaker 60A |
|
* |
* |
* |
* |
* |
* |
* |
|
|
ePOWER DC2DC 60A Output Fuse Connection |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
ePOWER AC Charger 50A Output Fuse Connection |
* |
* |
* |
* |
* |
|
|
|
* |
|
ePOWER AC Charger 70A Output Fuse Connection |
|
|
|
|
|
* |
* |
* |
|
|
1 x 30A Load Output Fuse Connections |
|
|
|
|
|
|
* |
|
* |
|
2 x 30A Load Output Fuse Connections |
|
|
|
* |
* |
* |
|
* |
|
|
50A Load Output Fuse Connection |
* |
|
|
|
|
|
* |
|
|
|
24hr Critical Load 4 Circuit "Wedge" Fuse Block |
|
* |
|
* |
* |
|
|
|
|
|
24hr Critical Load 8 Circuit "Wedge" Fuse Block |
|
|
* |
|
|
|
|
|
|
|
Main 6 Circuit "Wedge" Fuse Block |
|
|
|
|
|
* |
* |
|
* |
|
with Negative Bus and Cover |
|||||||||
|
Main 12 Circuit "Wedge" Fuse Block |
|
* |
* |
|
|
|
|
|
|
|
with Negative Bus and Cover |
|||||||||
|
ePOWER 2000W AC Transfer Inverter |
* |
|
|
* |
|
|
|
|
|
|
Battery Restart Switch (Lithium Batteries) |
* |
* |
* |
* |
* |
|
|
|
|
|
12mm Black Plastic Mounting Board. |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Water & Rot Resistance |
|||||||||
|
175A Anderson Plug (Inverter) |
|
|
|
|
|
|
|
|
* |
|
50A Anderson Plug (Solar Input) |
|
|
|
|
|
|
|
|
* |
|
50A Anderson Plug (Vehicle Input) |
|
|
|
|
|
|
|
|
* |

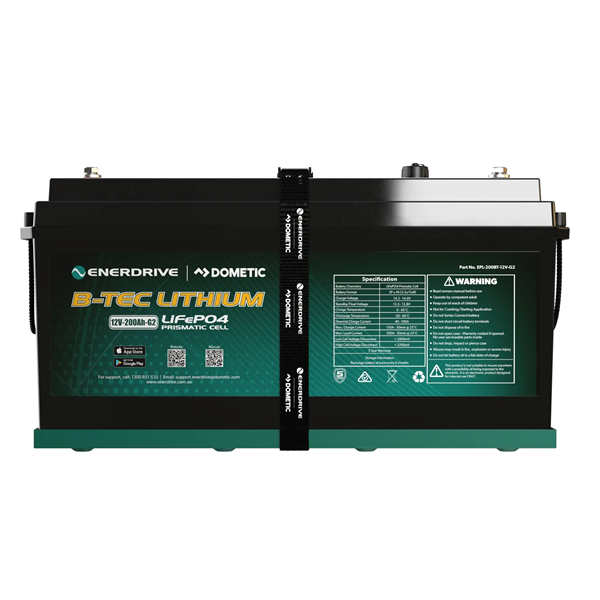

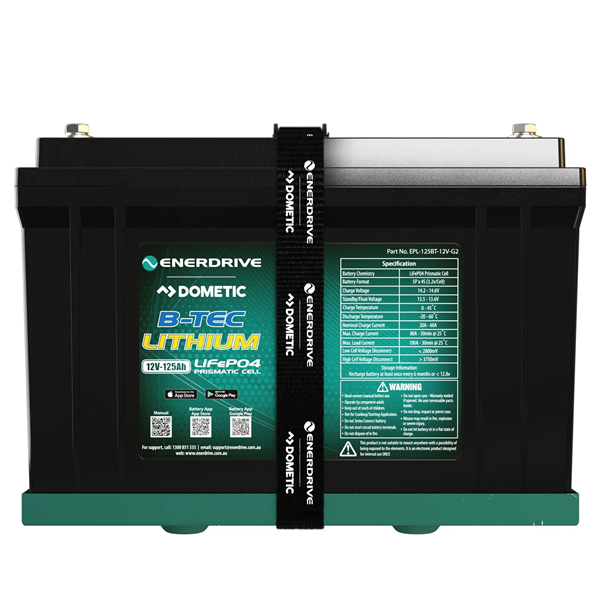

| 125Ah B-Tec Lithium Battery | * | ||||||||
| 200Ah B-Tec Lithium Battery | * | ||||||||
|
Dimensions |
1185L x 380W x 130Dmm |
600L x 490W x 100Dmm |
600L x 490W x 100Dmm |
1185L x 380W x 130Dmm |
790L x 380W x 100Dmm |
1195L x 380W x 111Dmm |
1195L x 380W x 111Dmm |
920L x 380W x 111Dmm |
580L x 580W x 100Dmm |
|
Weight |
23kg |
14kg |
14kg |
23kg |
16kg |
17kg |
16.5kg |
17kg |
14kg |
|
(*) Indicates Standard Fitment |
|||||||||
Specifications:
Output Current Rating (Amps) |
40.0 Amps |
|
Charger Mode Output Voltage |
13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger) |
|
Float |
13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger) |
|
Equalize |
15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger) |
|
Charging Control |
Three Stages (DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging (AC Battery Charger) |
|
DC Output |
Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger) |
|
Selectable Battery Type |
Gel, AGM, Flooded, Lithium, Program (DC & AC Battery Charger) (AC Battery Charger) |
|
Standby Current |
< 2 mA (AC Battery Charger) |
|
AC Input Voltage |
90 to 265 VAC (AC Battery Charger) |
|
AC Input Operating Range |
207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger) |
|
AC Input Frequency Range |
47 – 63 Hz (AC Battery Charger) |
|
Power consumption (DC 12V) |
700W (Full Load) (AC Battery Charger) |
|
Power Factor Correction |
Yes (AC Battery Charger) |
|
Charger Efficiency |
> 82% (AC Battery Charger) |
|
Efficiency |
95% (DC Battery Charger) |
|
Reverse Polarity |
Yes, (with user replaceable fuse/s) (AC Battery Charger) |
|
Over Charge |
Yes, unit shutdown (AC Battery Charger) |
|
Over Temperature Protection |
Yes, unit de-rated and shutdown (AC Battery Charger) |
|
Cooling |
Forced air ventilation (thermo controlled fan) (AC Battery Charger) |
|
Output Short Circuit |
Yes, (with user replaceable fuse/s) (AC Battery Charger) |
|
Temperature Setting |
Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger) |
|
Battery Temp Sensor Port |
RJ12 (standard battery temp. sensor supplied) (AC Battery Charger) |
|
LCD Display |
Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger) |
|
AC Input Connection |
IEC with Supplied 1.2M Power Lead (AC Battery Charger) |
|
DC Output Connection |
Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger) |
|
DC Output Ground |
Single Heavy Duty Common Ground Stud (AC Battery Charger) |
|
Storage Range (temp) |
-40° to 70° C (AC Battery Charger) |
|
Operating Range (temp) |
-20° to 60° C (AC Battery Charger) |
|
Humidity |
5-95%, relative humidity non-condensing (AC Battery Charger) |
|
Ingress Protection |
IP32 (Basic drip proof in vertical orientation) (AC Battery Charger) |
|
Dimensions (LxWxH mm) |
242 x 172 x 74mm (DC Battery Charger) | 295mm x 206mm x 90mm (AC Battery Charger) |
|
Regulatory Compliance |
Complies with AS/NZS 60335.2.29 Including Australian deviations (AC Battery Charger) |
|
NOTE |
Please note, if you order the K-DIY-BOARD-01, you will receive the Epor plus monitor display screen as a loose item to be mounted where you choose. You will not however receive the switches. The switches and accessories box is offered in K-DIY-BOARD-01_K- |
|
Manufacturers Warranty |
5 Years |

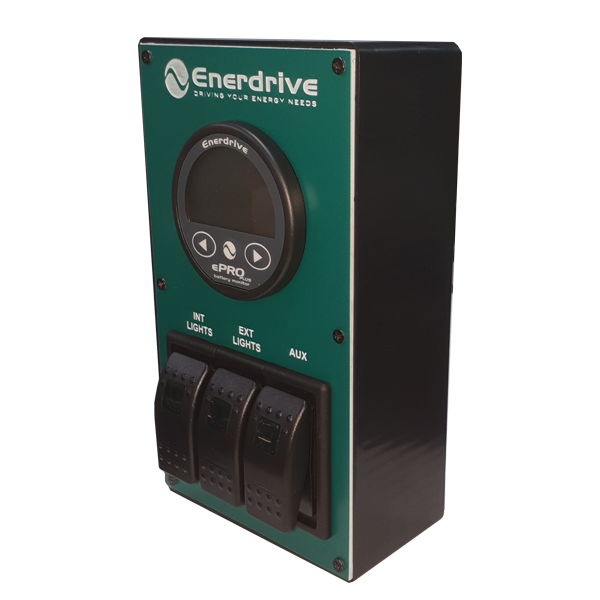

Enerdrive Accessories Box with ePro Plus Battery Monitor and Switches, Not Pre-Wired:

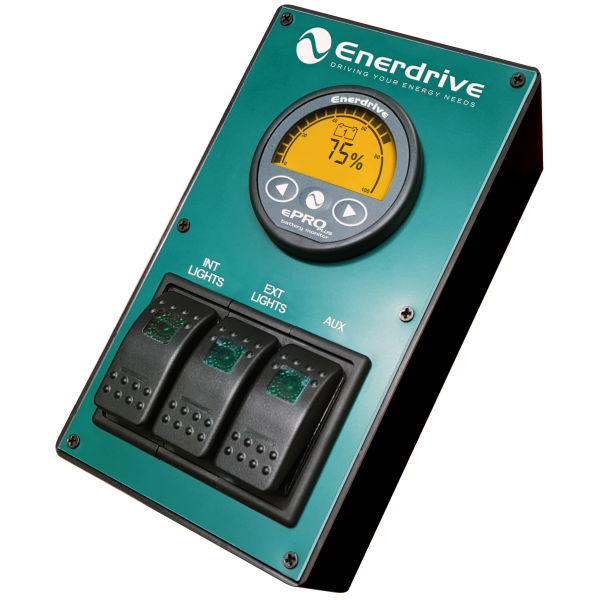

The Enerdrive Accessories Box comprises of an ePRO Plus Battery Monitor, three switches and the provision to mount your battery monitor display.
If you choose to purchase the board with the accessories box, the accessories box will be included in your package but not mounted and not pre wired. There is a space on the board to mount the accessories box, or you may want to mount it elsewhere in your vehicle.
Specifications
SKU K-DIY-BOARD
Brand Enerdrive
Product Category Power Systems
Amp Hours (ah) 125
Amp Hours (ah) 200
Voltage 12V
Output Current Rating (Amps) 40
NOTE: see full product specifications & further product info in the Description section on this page.
