Black Jack Electric Trailer Jack Bundle with Harness kit & Jockey Wheel
SKU: FD-1001-JW Learn More»
CALCULATE SHIPPING:
Accessories List:
Description
Note: This model is now discontinued - Please find the Replacement models HERE!
Black Jack Electric Trailer Jack Bundle with Harness kit & Jockey Wheel
The Black Jack™ Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. Easy DIY installation and insanely simple RAISE\LOWER switch operation.
Hugely popular in the USA, the Black Jack™ now comes complete with the all-weather cover, and the Black Jack Clamp™ allowing uses the ability to easily bolted to the Caravan or Trailer A-Frame. For easier and faster deployment or retraction the Black Jack™ includes the Black Jack™ Folding Foot providing no more bending down to adjust the foot extension height position. Also included is the Black Jack™ Foot Pad giving improved stability on soft or unstable surfaces.
For easy installation, the Black Jack™ installation wiring harness is also included.

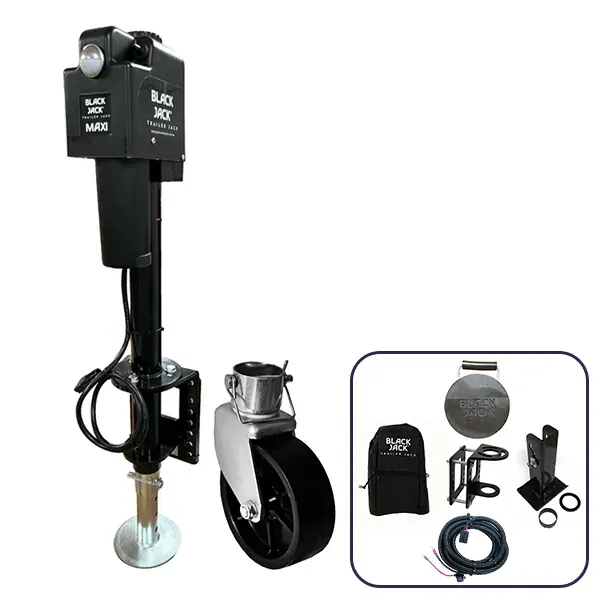

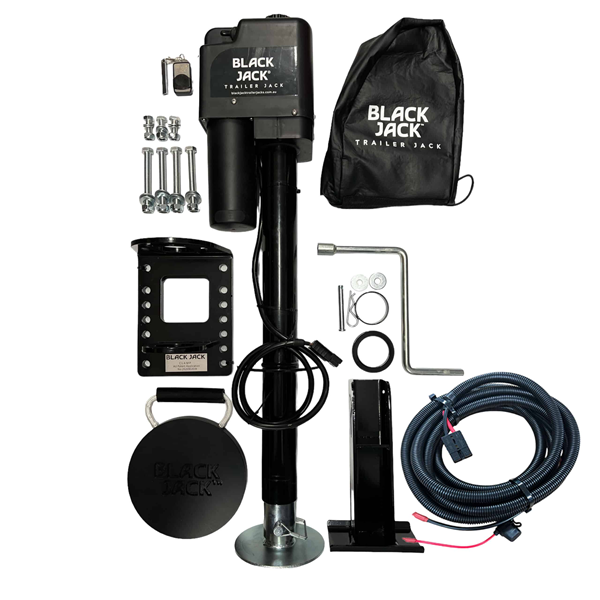

Kit Includes:
- 1x Black Jack Electric Trailer Jack

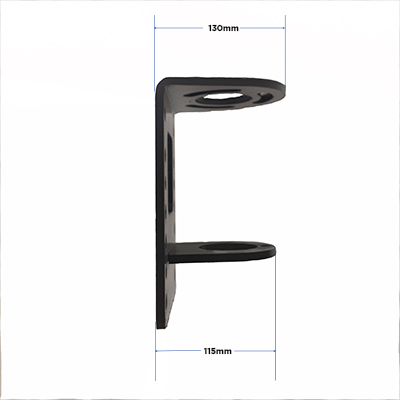

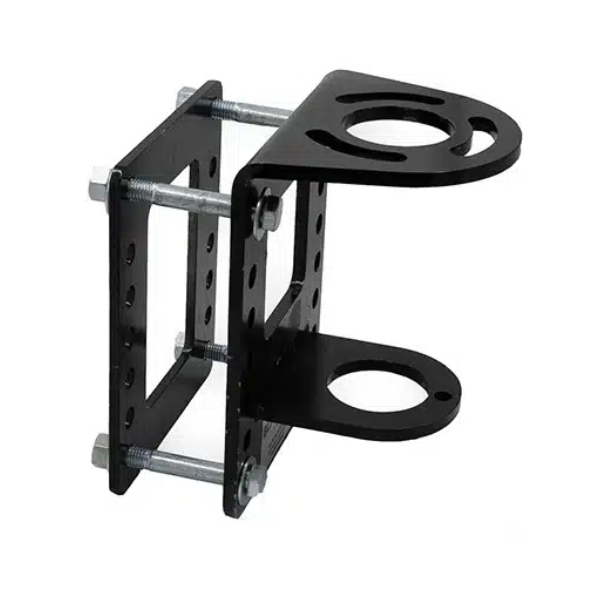

- 1x Black Jack Clamp Patented

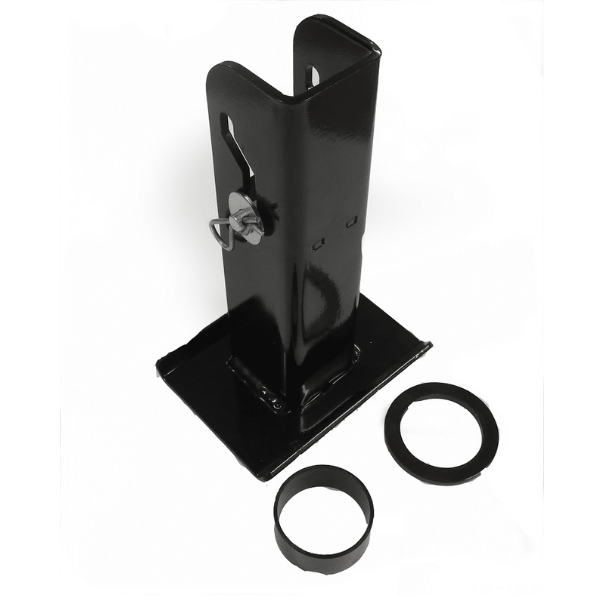

- 1x Black Jack Folding Foot
- 1x Black Jack Foot Pad
- 1x Black Jack All Weather Cover
- 1x Black Jack Harness
- 1x Black Jack Jockey Wheel

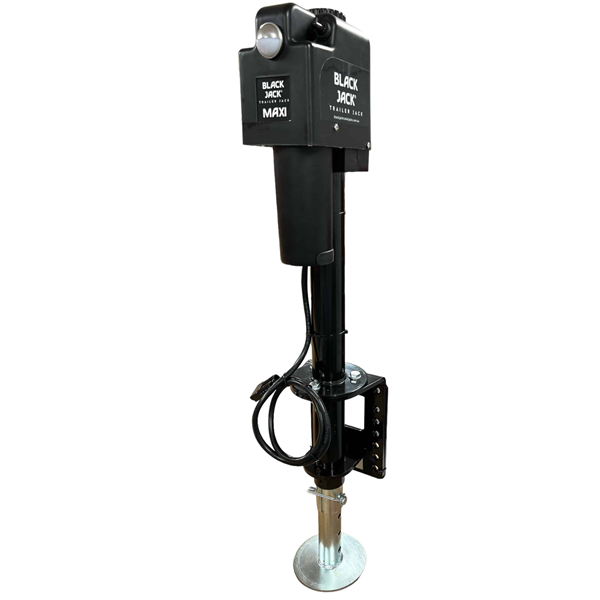

Black Jack Trailer Jack Features:
- 1600 kg lifting capacity, more than enough muscle
- Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
- Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
- Built in level indicator to easily adjust the caravan level after you unhitch
- Removable foot pad extension for travelling
- Tough powder coated finish
- Emergency crank handle included as an emergency back up
- Built in night light for operating after hours
- 12 volt 28 amp DC power plugs directly to 12 volt battery
- Free installation kit included, easy DIY Installation (with BJTJ – 1001)Free all weather cover to keep the rain out
- Total weight including Black Jack Clamp 17 kg
- Black Jack cable length is 1.3m

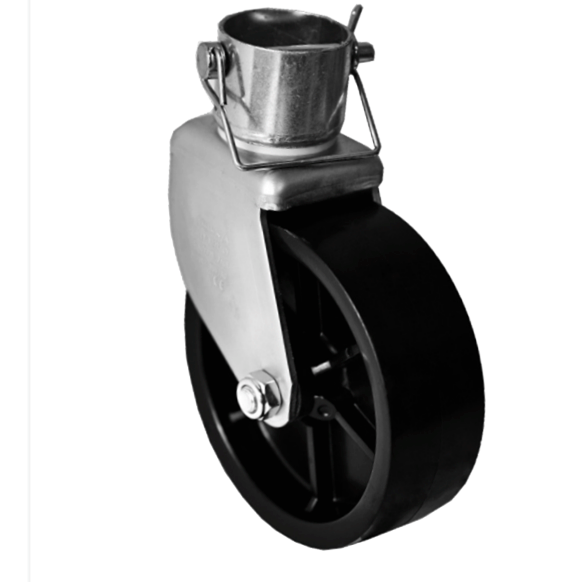

Also Included is the Black Jack™ Jockey Wheel:
The Black Jack Trailer Jack Jockey Wheel are designed to easily connect to the shaft in just a few easy steps. Simply remove existing Extension foot supplied by releasing the clip-pin. Position and align the Jockey Wheel in its place and insert the clip-pin in the holes provided. Makes swapping from one to the other a breeze and making manoeuvring your trailer or caravan a simple exercise.
Heavy duty but also light weight provides a great travel accessory in doubling up as a Jockey wheel and not just a Jack stand. It’s also designed to protect damaging hard surfaces such as driveways or pavements.
- Easy interchangeable design.
- Light weight and compact to take travelling on the road.
- Doubles as a Jockey Wheel, not just a Jack Stand.
- Have a non-stick surface, easy to clean.
- Are corrosion, oil and chemical resistant.
Specificatiions
- Wheel Diameter: 15cm
- Height: 22cm
- Maximum Load: 540kg
- Dimensions: H 781 x W 216 x D 140mm
- Net Weight (kg): 17
- Engine / Motor Type: Sealed brushless motor
- Lifting Capacity: 1600kg

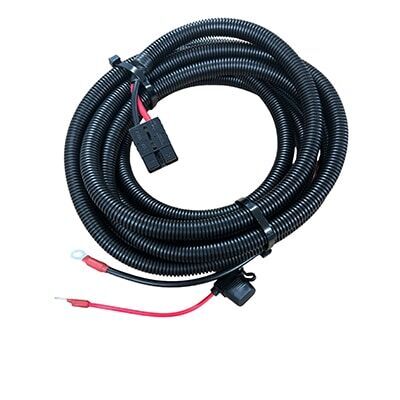

Black Jack DIY Harness Kit
The Black Jack Trailer Jack Harness Kit saves you time and money by not having to source components when installing your Black Jack Trailer Jack. The ‘DIY’ Harness kit provides the correct protection and process, making your installation a breeze.
Features:
- Pre installed Andersen Plug
- Pre installed 30amp Fuse
- Suitable for Caravans and Trailers.
- DIY saving you time and money on install.
- One size suits most applications
- 5 m of battery cable
- All wires secures in a protective casing
Specifications
SKU FD-1001-JW
Brand Black Jack
Product Category Jockey Wheels and Jacks
Dimensions 781 x 216 x 140 (H x W x D)
Maximum Load Capacity (kg) 1600
Weight (kg) 17
Engine / Motor Type Sealed brushless motor
Lifting Capacity 1600kg
Q & A
-
Do I need power to run my Black Jack?
Yes, you require 12V power to run your Black Jack. This can be achieved via an Andersen plug to your caravan battery or your vehicle battery through the tow connection point.
-
What is the lifting capacity of a Black Jack?
The Black Jack has a 1600kg lifting capacity, more than enough for all caravans in todays market
-
Do I require the Harness Kit?
You will only need the harness kit if you don't already have 12V power at your connection point, ie Andersen plug on tow vehicle and/or caravan battery.
-
How long is the cable that comes attached to the Black Jack?
1.3m
-
How high will the Black Jack go up?
The Black Jack has a stroke of 560mm, if you require more you can utilise the RedFoot Big Block to increase your stroke length.
-
Do I have to take off the Black Jack when travelling?
No, provided you have securely attached the Jack using the supplied clamp and the leg and foot plate is fully retracted.
-
I need new tracks for my Camper Trolley but there are two types, what is the difference and which one should I get?
The bevelled tracks are for pre 2019 trolleys and any post 2019 trolleys require the square tracks.
