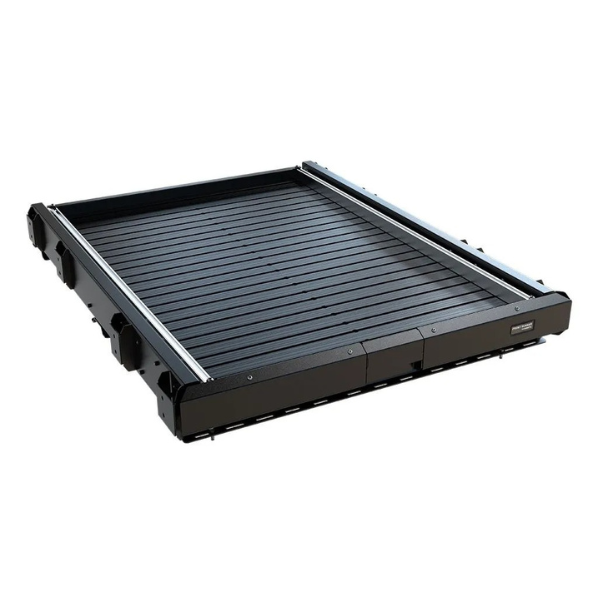

Cargo Bed Slide / Medium - by Front Runner
Improve access and organisation of your gear with the versatile medium Cargo Bed Slide. Its T-slots let you easily attach accessories like Tie Down Rings and Wolf Pack Pro brackets. With one hand, you can effortlessly pull the gear on the slide towards you.
Features:

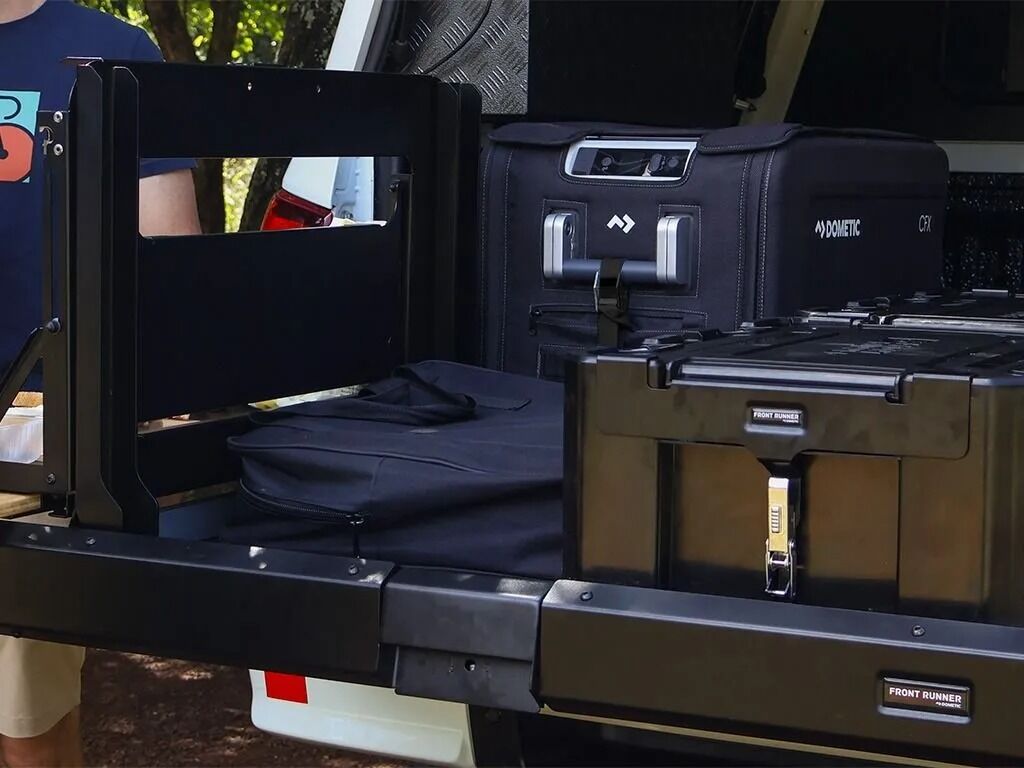

- Improve access to your gear. Secure cargo, fridges and other accessories to the sliding deck, bringing your gear to you.

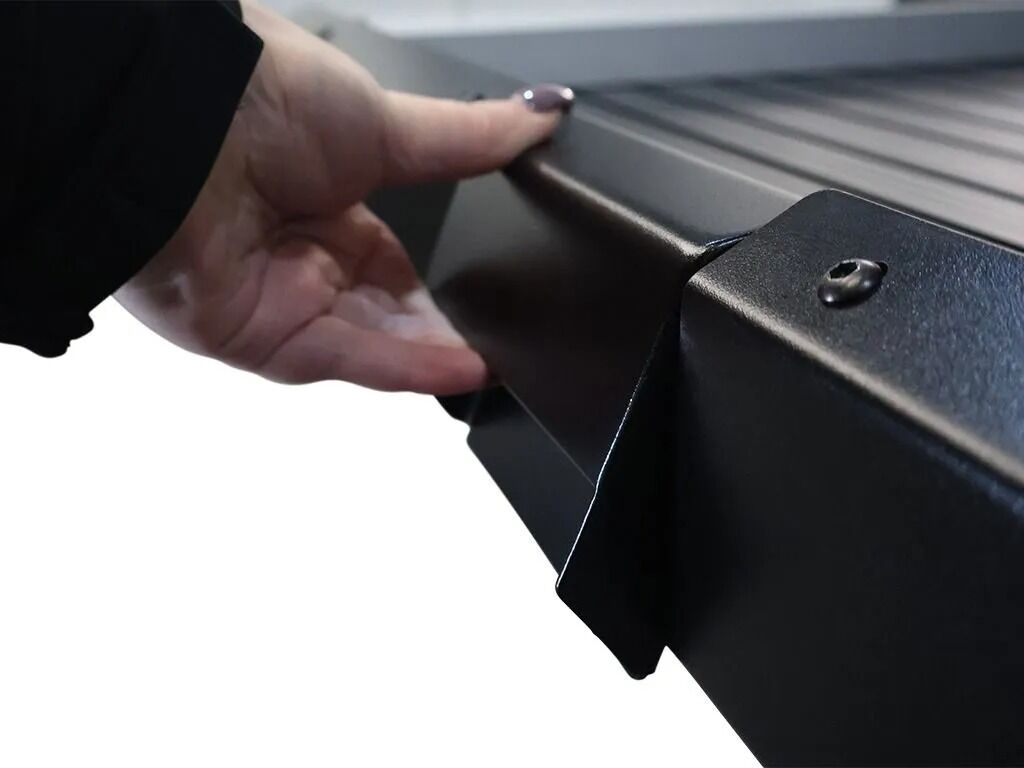

- Ergonomic handle allows for single handed operation.

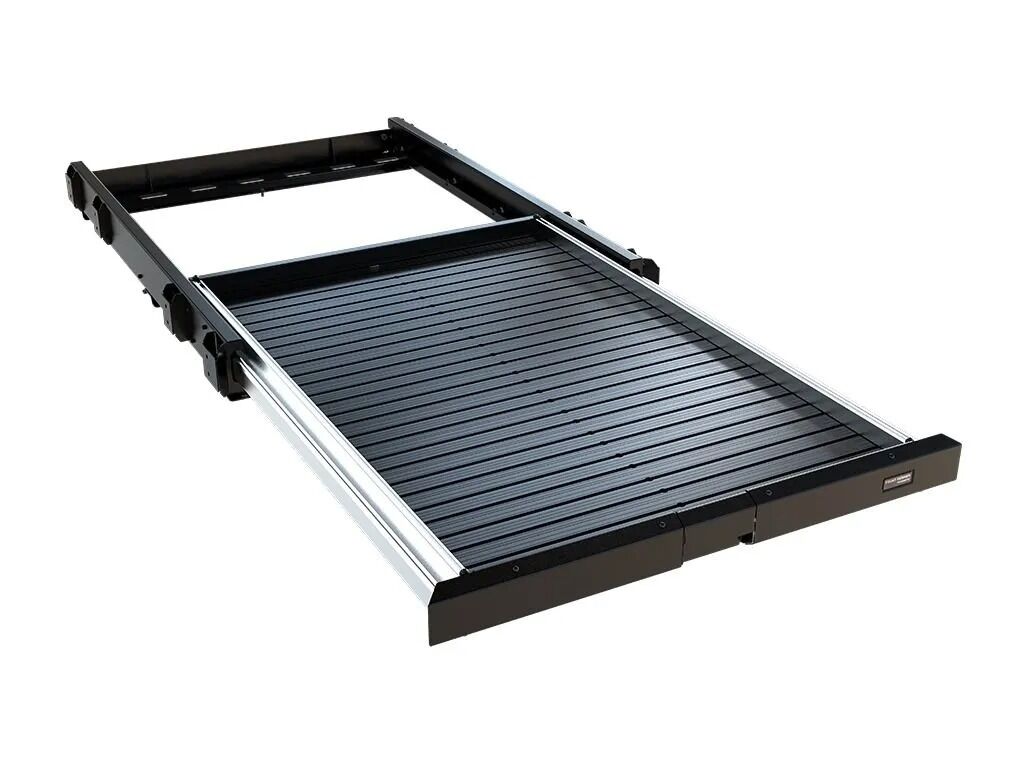

- The sliding tray features a slat deck with the same t-slot pitch as your Front Runner Dometic roof rack to allow mounting of accessories such as:

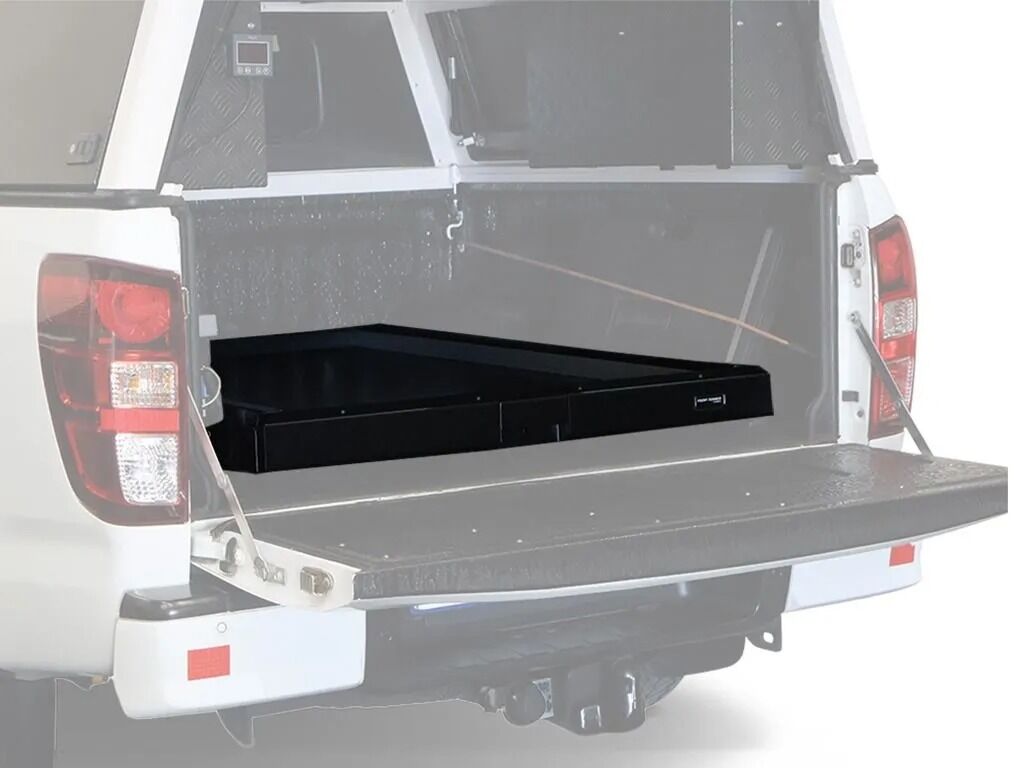

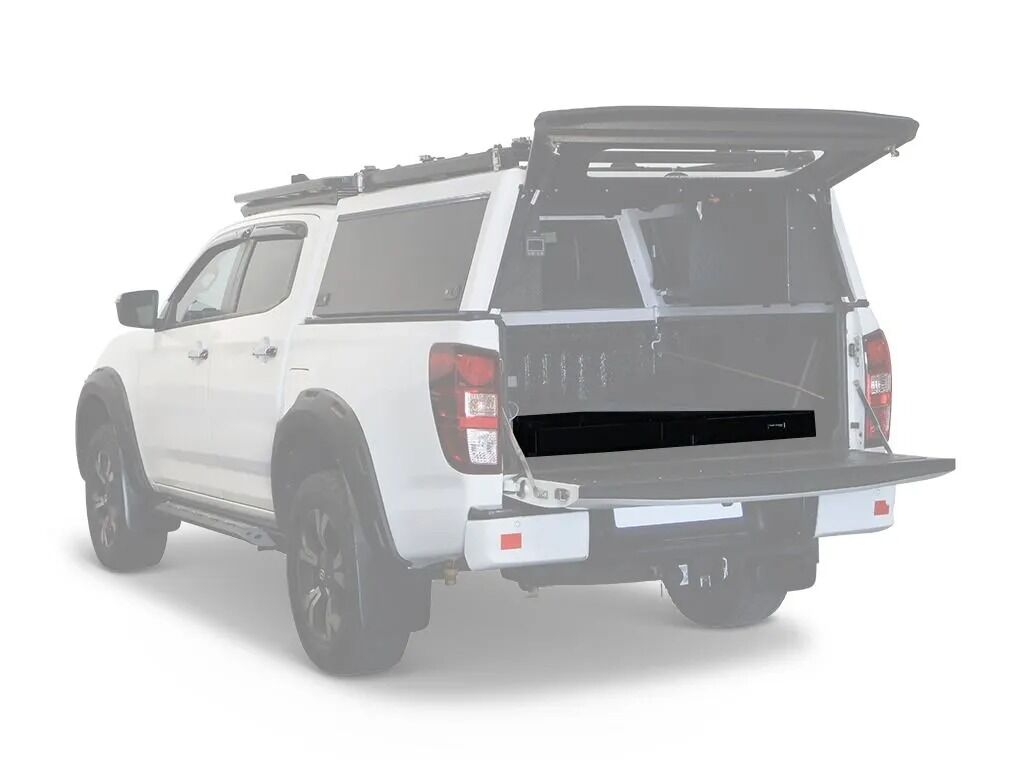

- The Cargo Slide / Medium installs into the Load Bed of your vehicle. Bolt through or riv-nut installation options are available.
- Drilling is required to secure the base of the Cargo Slide Bed / Medium to your Load Bed.
- Creates a loading area of 1402mm (55.2") L x 893mm (35.2") W.
- The cargo load area sits 85mm / 3.5" high from load bed maximising cargo space utilization.

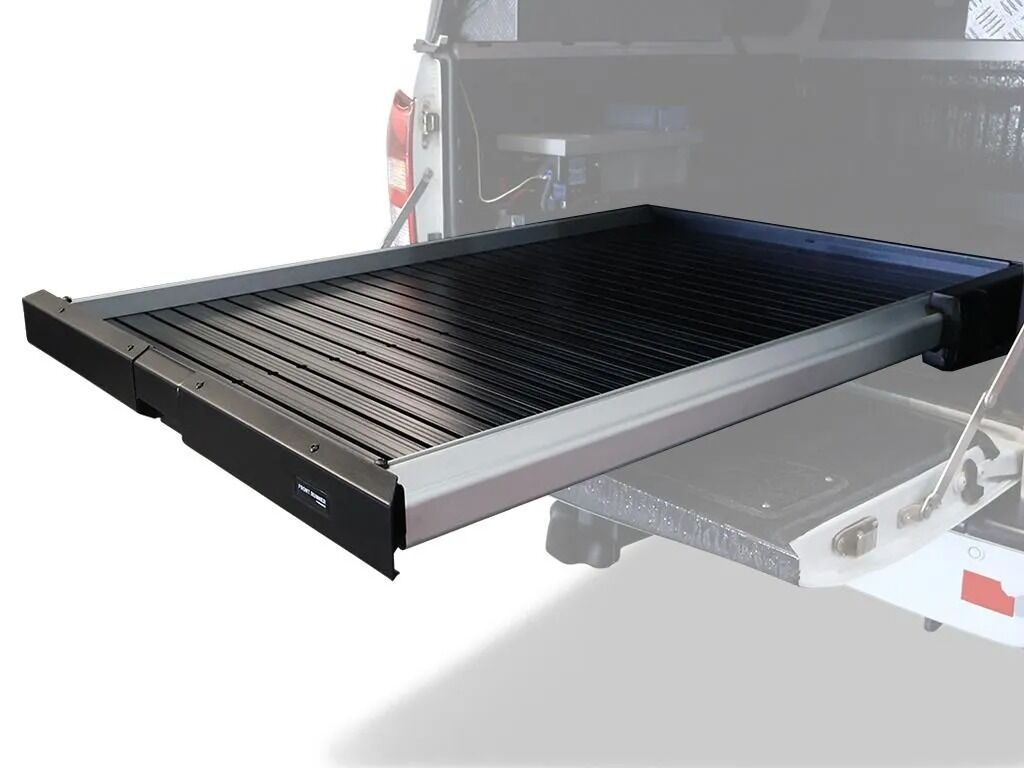

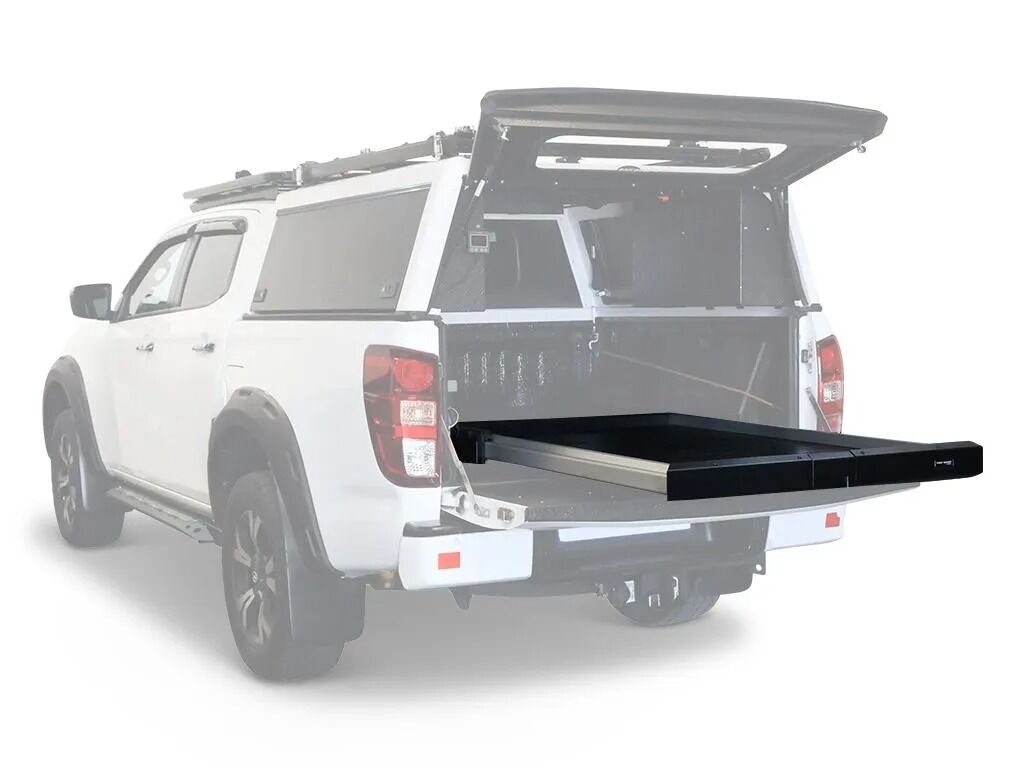

- High strength nylon wheels and sealed bearings allows the tray to smoothly extend out 1070mm/42", 73% from the anchored base.
- Three (3) locking positions allow the slide to hold in place when open, in a partially open and closed position.
- Made of heat treated aluminium with anodised silver accents and mild steel ensures unmatched strength.

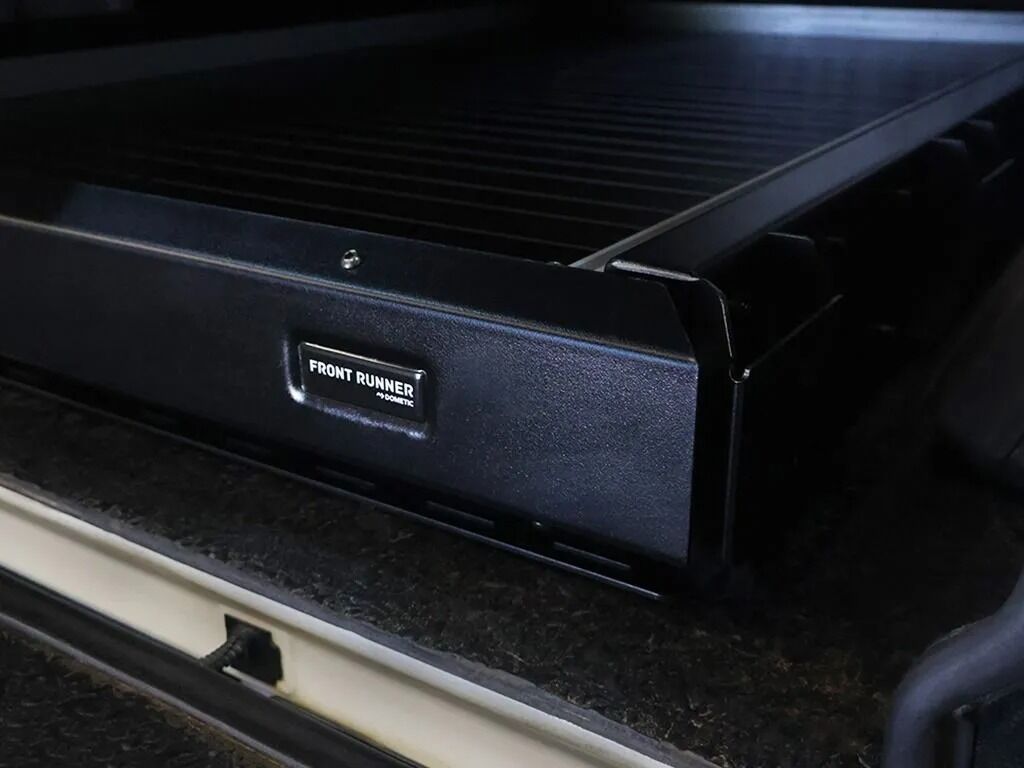

- Sealed in the same black powder-coating as Front Runner Dometic Racks to protect your Cargo Slide / Medium from the elements.

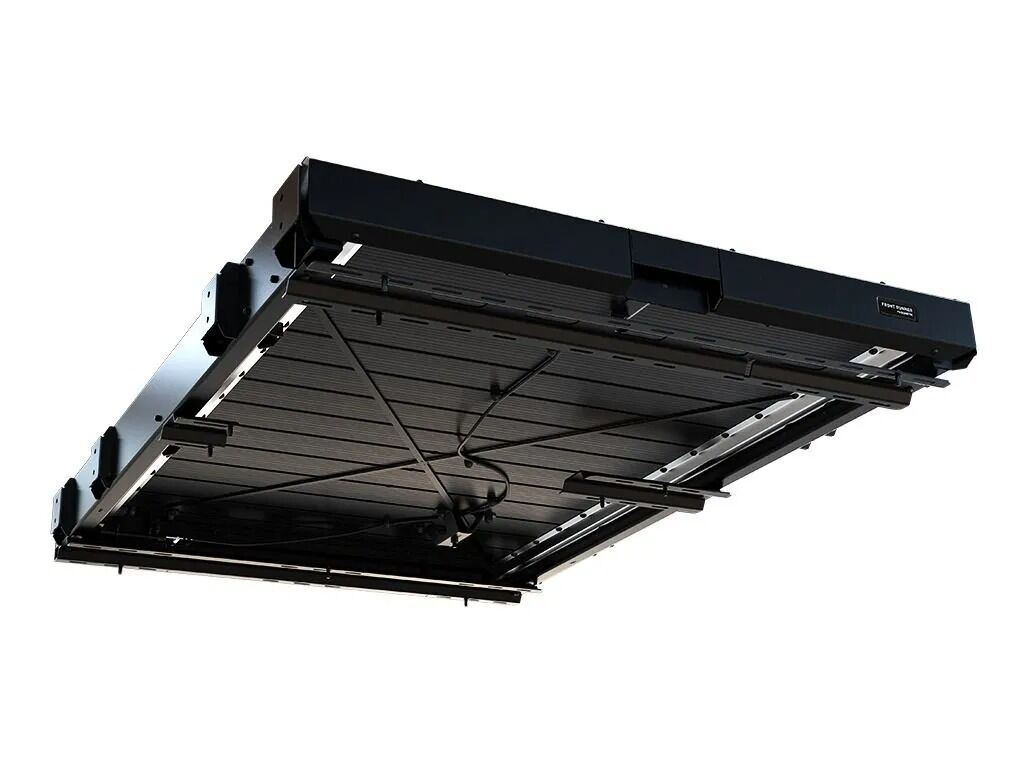

- The Cargo Bed Slide has exterior mounting points to secure additional accessories.
- The weatherproof design enables installation onto open Load Beds as well as Load Beds fitted with a Front Runner Pro Bed Rack, canopy, camper shell, or other style load bed cover.
Note: This cargo slide will only fit certain sized load beds. Please see SPECS for exact product measurements and to determine if this product is the right fit.
Note: If a bin liner is installed, removal of this liner may be needed for installation.
Specifications:
- Rated for an evenly distributed load of 350kg / 771.6 lbs when being extended.
- Rated for an evenly distributed load of 500kg / 1102 lbs when locked in the closed position.
- Materials used: Black powder-coated aluminium and Anodised silver aluminium
- Closed Dimensions:1490mm L x 1100mm W x 140mm H
- Internal Dimensions:1402mm L x 893mm W x 40mm H / 85mm H (from Load bed)
- Weight: 58kg
Includes:
- 1 x Cargo Bed Slide Bottom Frame / Medium
- 1 x Cargo Bed Slide Tray / Medium
- Installation Hardware
- Fitting Instructions
Specifications
SKU SSBS017
Brand Front Runner
GTIN 6009542282954
Product Category 4x4 Drawers
Dimensions (closed) 1490 x 1100 x 140mm (LxWxH)
Weight (kg) 58
Load Rating 350kg
Product Material Anodised silver & black powder-coated high strength steel
Inner Tray Dimensions 1402 x 893 x 40mm (LxWxH)
