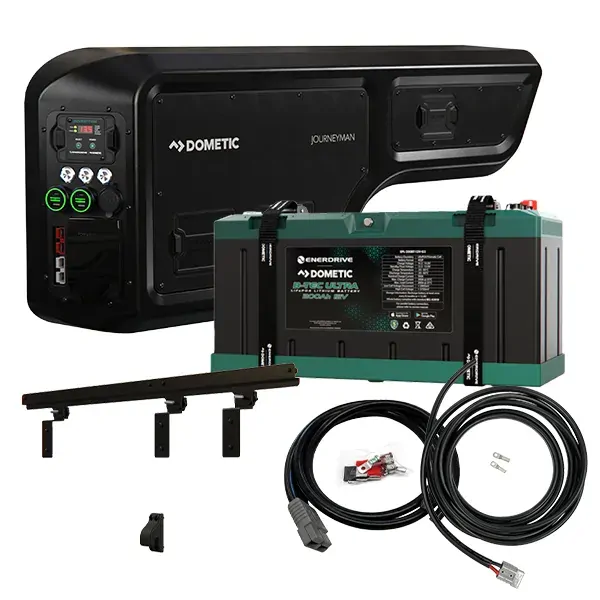

Dometic Journeyman Bundle inc 200Ah Battery, Wiring kit & Ranger/Amarok Tub Mounting

SKU: RangerKit-2600 Learn More»
Dometic Journeyman Bundle inc 200Ah Battery, Wiring kit & Ranger/Amarok Tub Mounting
Free Shipping
Free Shipping
$6,450
In Stock1-2 Days Dispatch

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Recommended Accessories

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Silver

$229

Enerdrive 190W Mono Crystalline Fixed Solar Panel, Black

$219

Click '+' to show more accessories
Go to: Product Details
Go to: Specifications

Dometic Journeyman Bundle inc 200Ah Battery, Wiring kit & Ranger/Amarok Tub Mounting

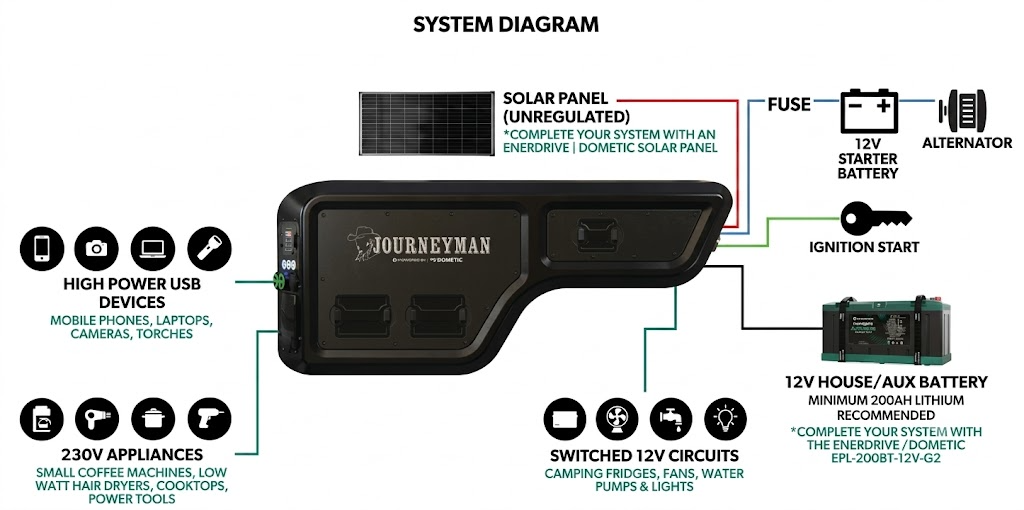

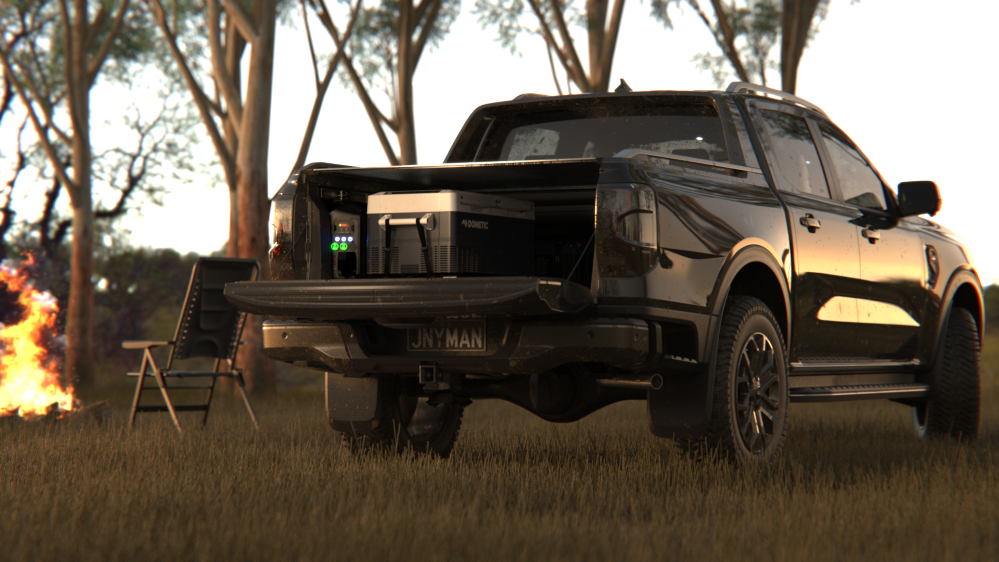

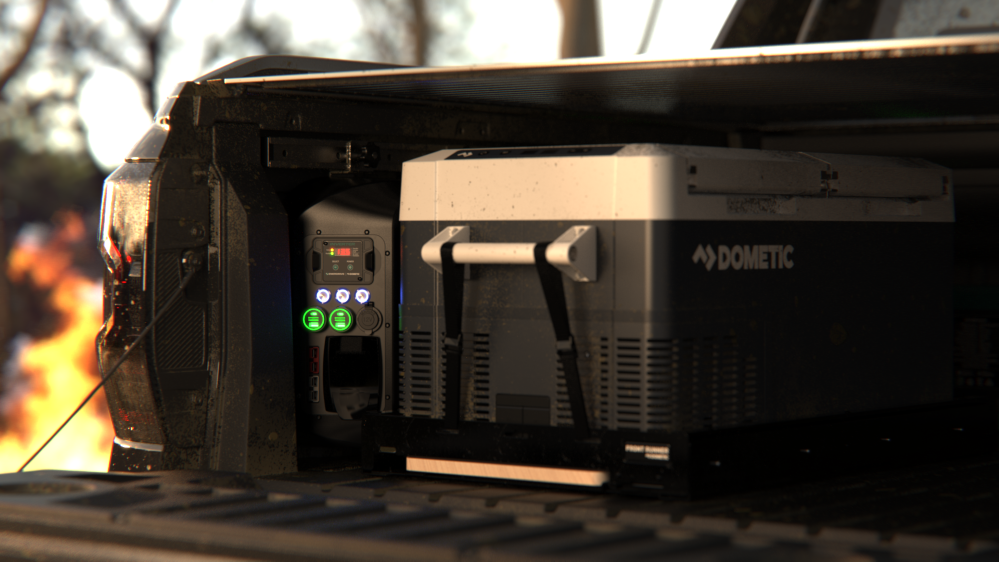

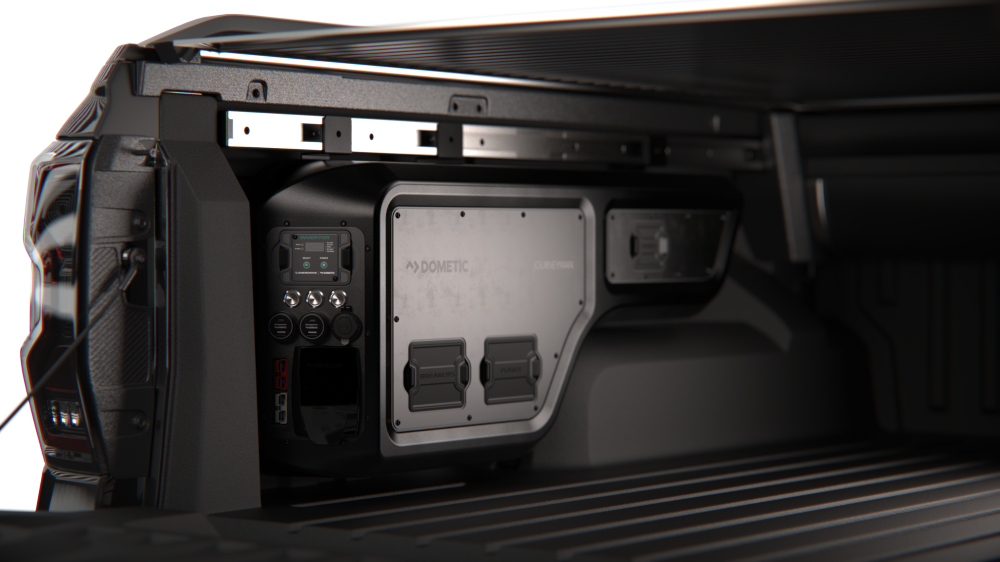

Tailor-made for 2022+ Next-Gen Ford Ranger and VW Amarok tubs (without rails), this pre-wired off-grid power system contours perfectly to your vehicle's left-hand wheel arch. Eliminating the need for bulky, universal battery boxes, it maximises your tray space while delivering a factory-integrated solution. Anchored by a massive 200Ah B-TEC Ultra Lithium Battery, it centralises power generation to provide reliable, high-output energy for demanding off-grid loads like air compressors, portable refrigeration, and induction cooktops.



Includes:



Dometic Journeyman Power System:



Specifications:



Battery & Power

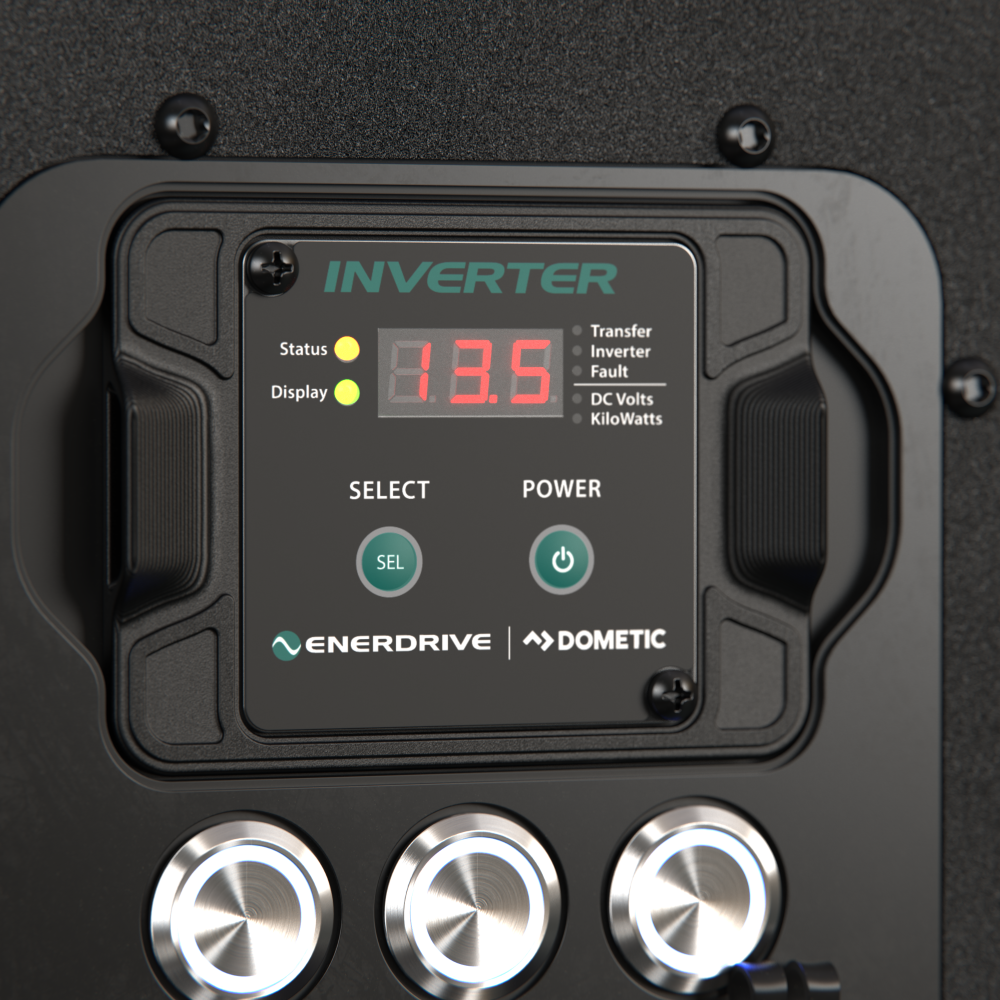

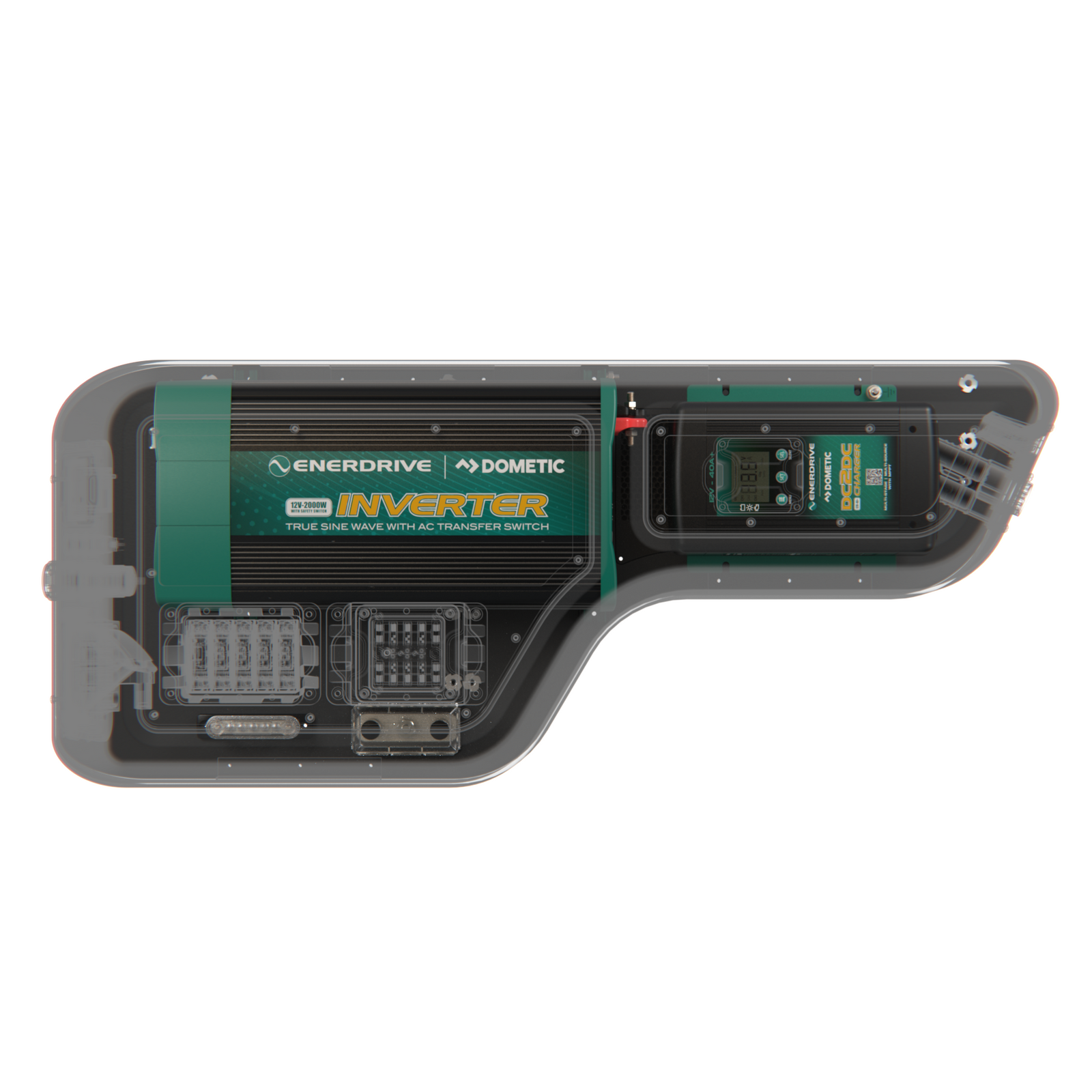

  • Inverter: 2000W 230V AC Transfer Inverter (EN1120S-X)
  • Battery Compatibility: Lithium Ready (Min. 200Ah recommended)
  • Monitoring: ePRO+ Battery Monitor
  • Circuit Protection: 200A Input Breaker, 50A Output Breaker
  • Low Battery Cutout: 60A DC Low-Voltage Disconnect
  • Wiring: Pre-wired 35mm² & 70mm² Cables



Charging & Input

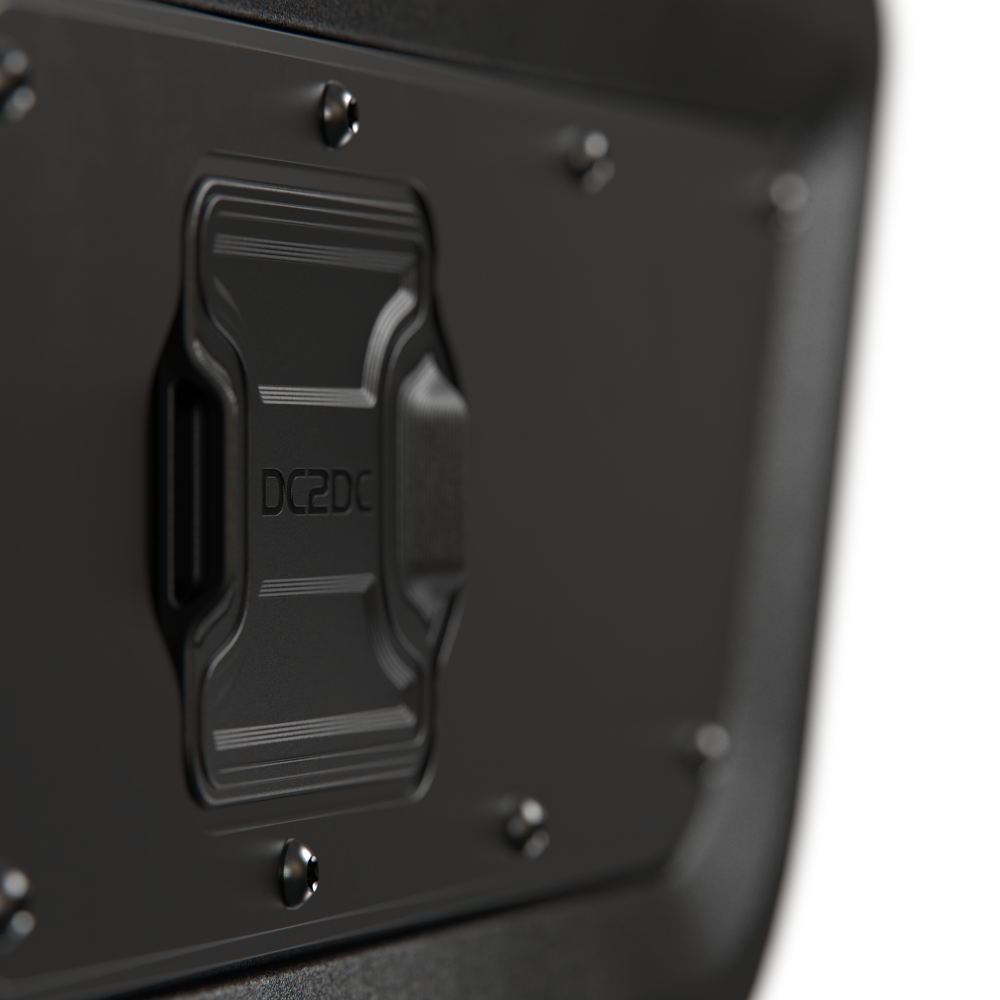

  • DC Battery Charger: 12V 40A+ DC2DC MPPT (EN3DC40+)
  • Solar Charge Input: Dual Inputs (Max 800W at 45VOC)
  • Ignition Input: Smart Alternator Compatible

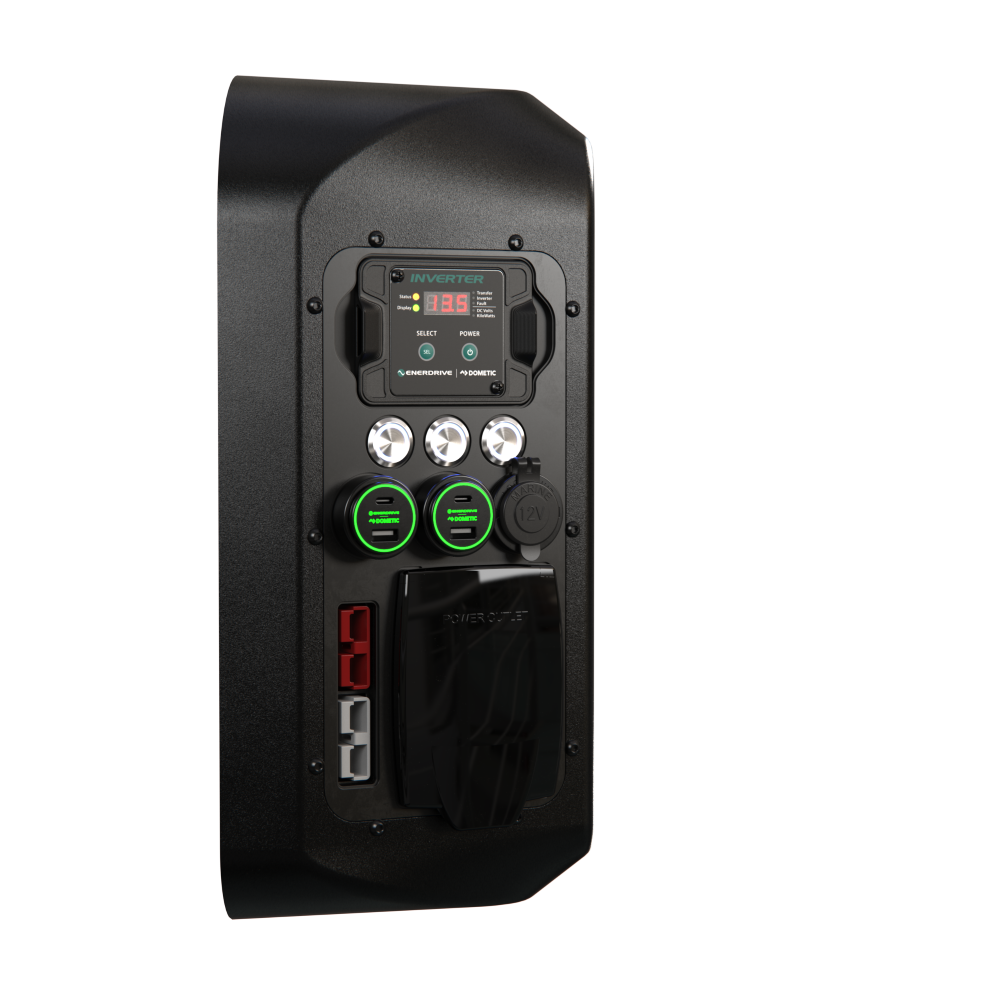

Outputs

  • 230V AC Power: 1 x RCD Protected Powerpoint

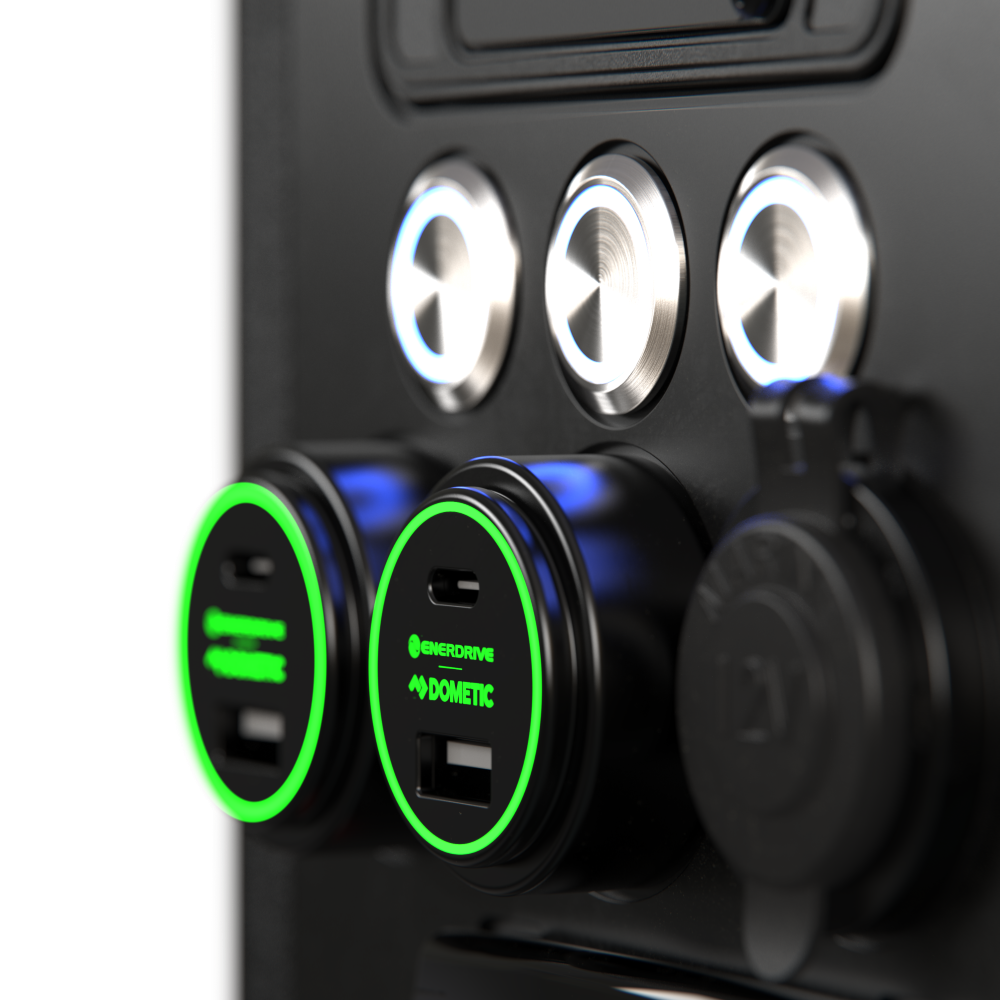

  • USB Output: 2 x Twin 100W USB-A & USB-C Sockets
  • 12V DC Power: 1 x 12V Cigarette Socket
  • Anderson Plugs: 1 x 50A Fridge Output, 1 x Front Output
  • Accessory Switches: 3 x 10A Pushbutton Switches



Environmental Operation & Build

  • Protection: Heavy-duty flap covers for dust/contact protection
  • Dimensions: 911 mm (L) x 165 mm (W) x 390 mm (H)
  • Weight: 20.0 kg



What's in the Box:

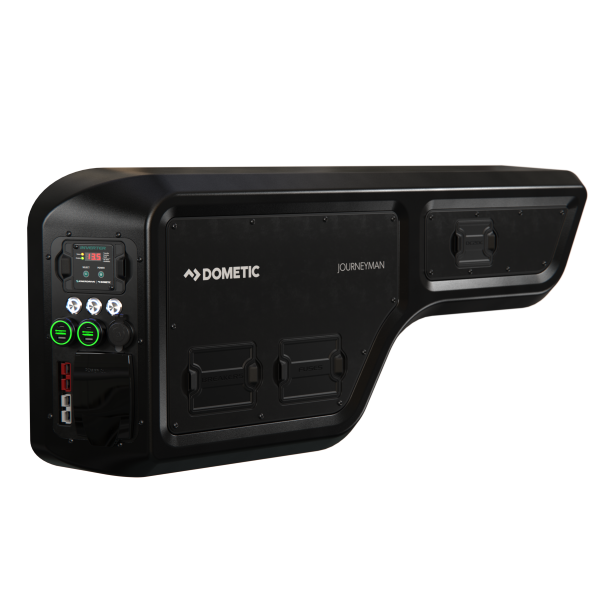

  • 1 x Dometic Journeyman System 40DC 2000X Power Board (Pre-assembled)

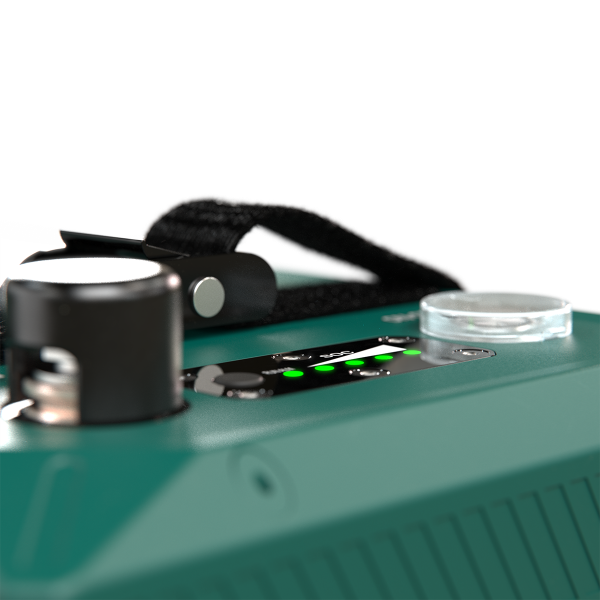

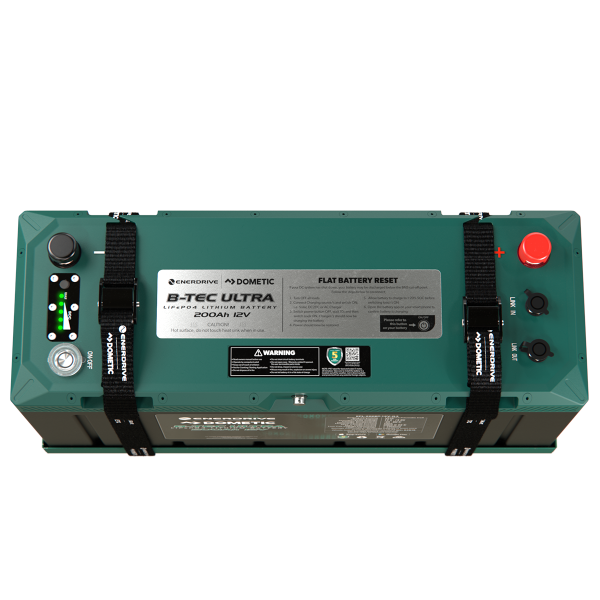

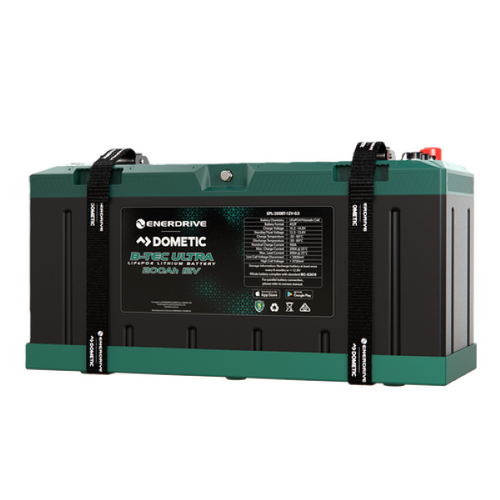

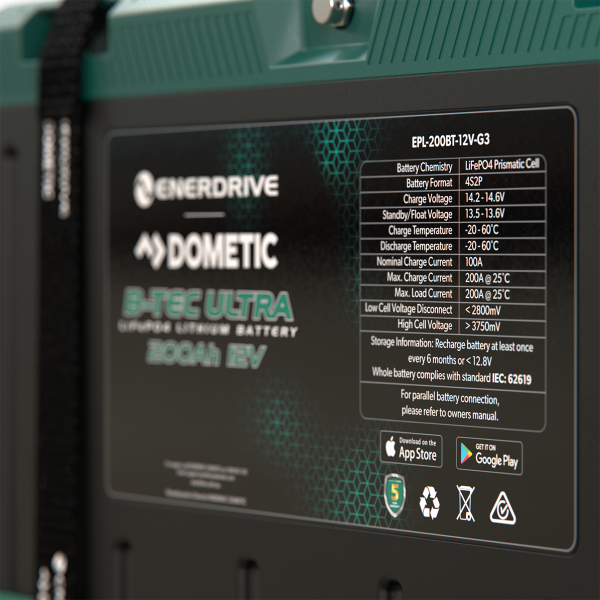

Enerdrive B-TEC Ultra 200Ah Lithium Battery:



Specifications:



Battery & Power

  • Chemistry: LiFePO4 (Lithium Iron Phosphate)
  • Nominal Voltage: 12.8 V
  • Nominal Capacity: 200 Ah
  • Energy Capacity: 2560 Wh



Charging & Input

  • Nominal Charge Current: 100 A
  • Maximum Charge Current: 200 A (at 25°C)
  • Charge Voltage: 14.2 V – 14.6 V
  • Standby Float Voltage: 13.5 V – 13.6 V
  • Low Cell Voltage Disconnect: < 2.80 V



Outputs

  • Continuous Discharge (Max Load Current): 200 A (at 25°C)
  • Peak Discharge Current: 800 A (for 5 seconds)
  • Series Configuration: Up to 4 batteries (scaling to 51.2 V)
  • Parallel Configuration: Up to 4 batteries
  • Terminals: M8 Positive (Red) & Negative (Black)



Performance

  • Cycle Life: > 6000 cycles (at 80% Depth of Discharge)
  • Communication Protocol: CAN/485 (via M12-6P Link In/Out ports)
  • Thermal Design: Aluminium heat sink for advanced cooling efficiency
  • High Cell Voltage Disconnect: > 3.75 V



Environmental Operation

  • IP Protection Rating: IP67
  • Charge/Discharge Temperature Range: -20°C to +60°C
  • Pressure Regulation: Automatic pressure relief valve

Dimensions & Weight

  • Dimensions: 485 mm (L) x 172 mm (W) x 245 mm (H)
  • Weight: 23 kg



What's in the Box:

  • 1 x Enerdrive B-TEC Ultra 200Ah Lithium Battery
  • 1 x Mounting Tray
  • 1 x Heavy-Duty Securing Strap Kit
  • 1 x Owner's Manual

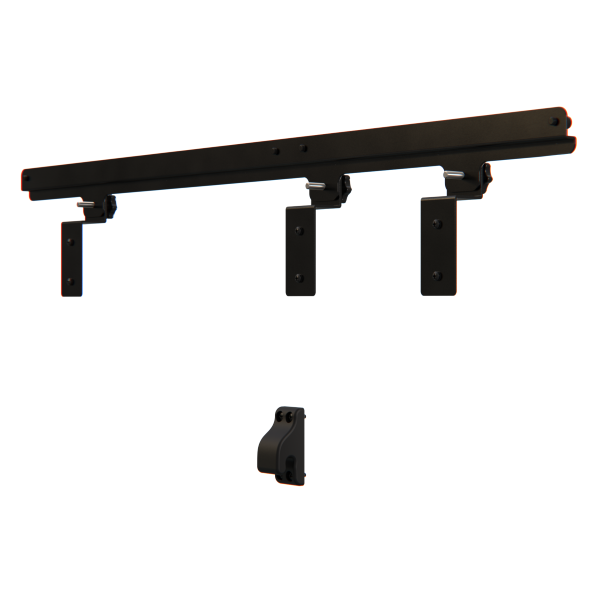

Dometic Journeyman Install Kit - 2022-on Next Gen Ranger/Amarok without Rails:



A installation kit for 2022-on Next Gen Ranger/Amarok without Rails

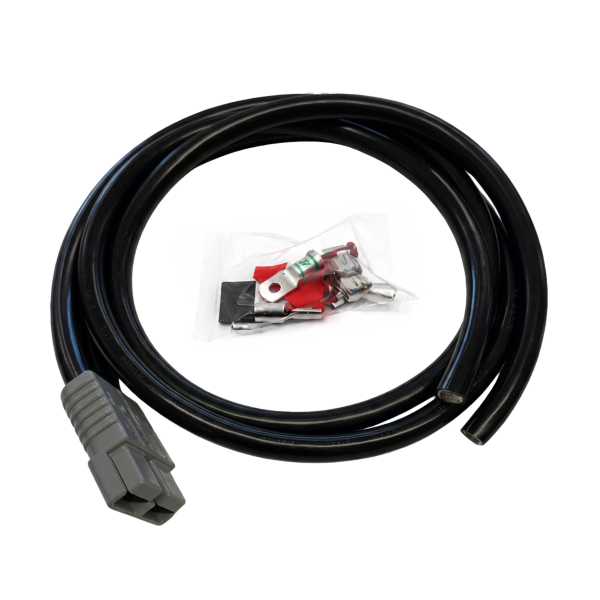

Dometic Journeyman Battery Cable Kit, 70mm2 x 2600mm inc AP175 & 8mm Lugs & Fuse:



Battery Cable Kit with 70mm2 x 2600mm inc AP175 & 8mm Lugs & Fuse for Dometic Journeyman.

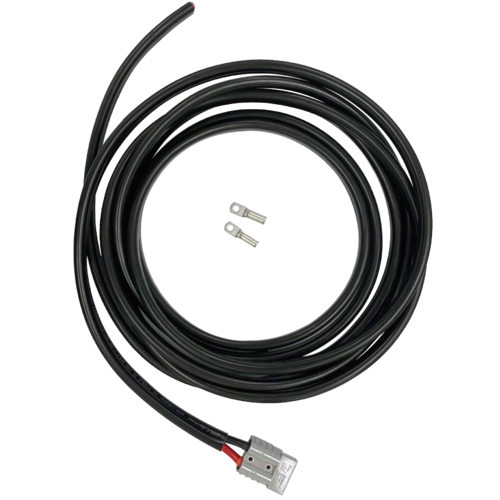

Anderson 50A Connector to DC2DC Charger Cable Kit:



Suitable for caravan/trailer DC2DC charger installations. The anderson connector is mounted at the tow hitch and the cable is run to the DC to DC Charger in the trailer/van



Includes:

  • 5500mm of 16mm2 TWIN Cable
  • 1 x 50A Grey Andersen Plug Connected to one end of cable
  • 2 x LUGS supplied loose (16-6mm eyelet)









Show More
Go to: Description
Go to: Q&A

Specifications

SKU RangerKit-2600

Brand Enerdrive

Product Category Power Systems

Battery Voltage 12V

Amp Hours (Ah) 200

Battery Length (mm) 485

Battery Width (mm) 172

Battery Height (mm) 232.5

Battery Weight (kg) 23

Output System Voltage 230V AC

Power System Dimensions (mm) 911 (L) x 165 (W) x 390 (H)

Power System Weight (kg) 20


Go to: Specification
Go to: Review

Q & A

  • Can I run solar through this?

    Yes, the DC2DC has an inbuilt MPPT Solar Regulator allowing you to run up to 800W at 45VOC.

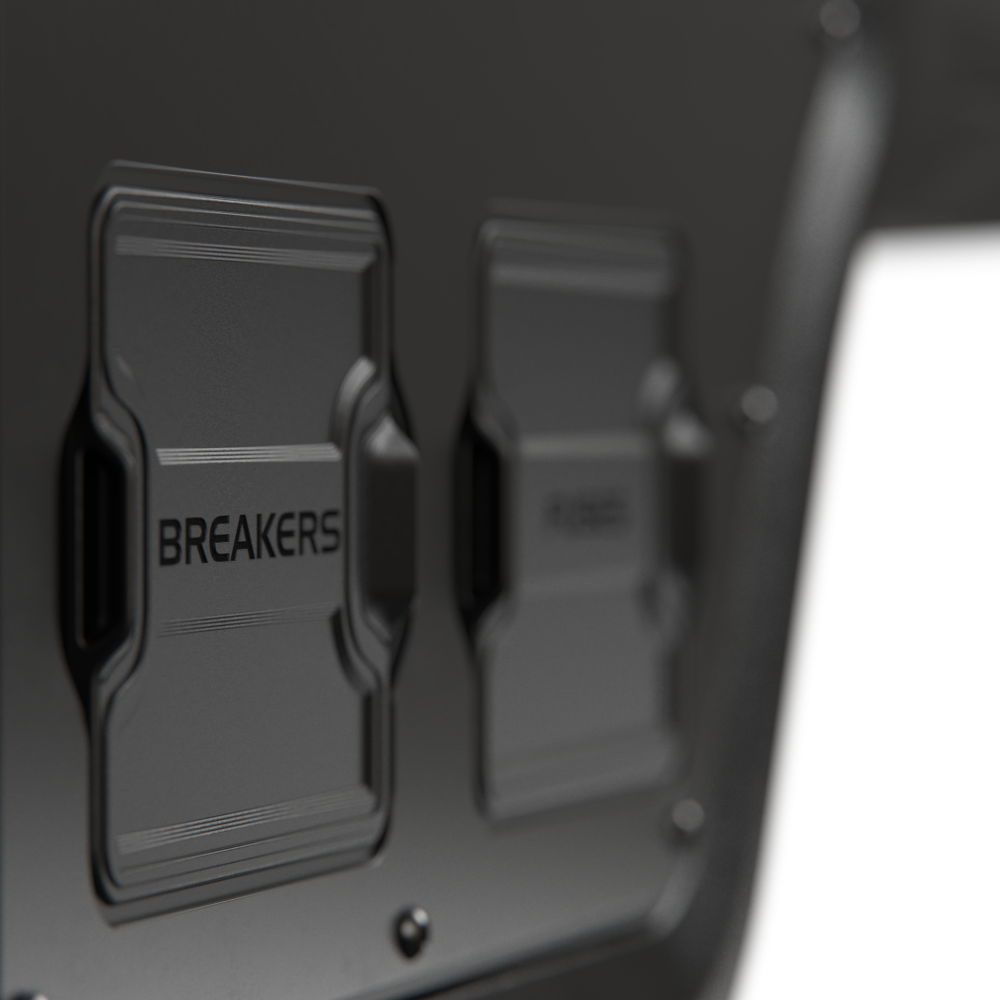

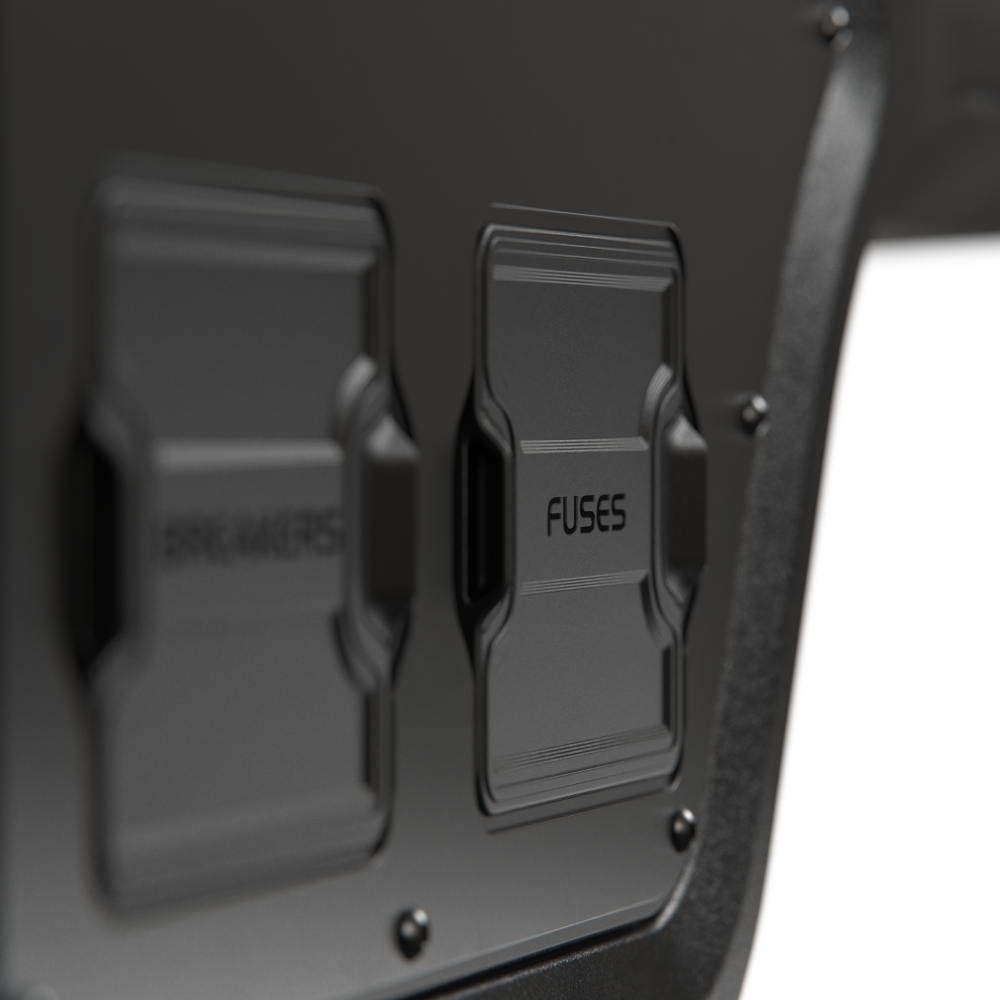

  • With the unit being completely sealed, how would I access the fuses and breakers?

    Dometic have conveniently place them on the side of the unit, covered by a sealed flap.

  • I am wanting to run one solar panel on my roof and another portable panel, can I do this?

    The Journeyman has two anderson inputs dedicated to solar, one at the rear and one at the front. As long as you don't exceed 800W at 45VOC you will be able to run two separate panels.

  • What are the switches on the front of the unit for?

    These will be dedicated to your 12V loads. These will be wired through the back of the unit and are limited to 10A. So perfect for fridge, lights, water pump etc.

  • What does the IP67 rating mean?

    IP67 is a rating of Ingress Protection. IP67 meaning it is dust-tight and can be submerged in fresh water 1 meter deep for 30 mins.

  • Does this battery include a battery tray?

    Yes, it will include a suitable battery tray.

  • Can this battery be mounted on its side?

    Unfortunately not, the battery can only be mounted upright.

  • What is the best way to store this battery?

    Dometic recommend:

    Always ensure the battery is recharged fully every 6 months to maintain performance and avoid deep discharge.

    Regularly check the battery SOC, at least once per month, to ensure that it does not fully discharge while in storage.

    Always store the battery in a location free of severe vibrations, impact, or compression, and protected from the direct sunlight and rain.

    The battery should be stored in a dry, clean, dark, and well-ventilated environment.

    The recommended storage temperature range is between 15 to 35 degrees celsius.

    Always ensure that the area you intend to store your B-TEC Ultra battery is free of harmful gases. flammable and explosive materials, and corrosive chemicals.

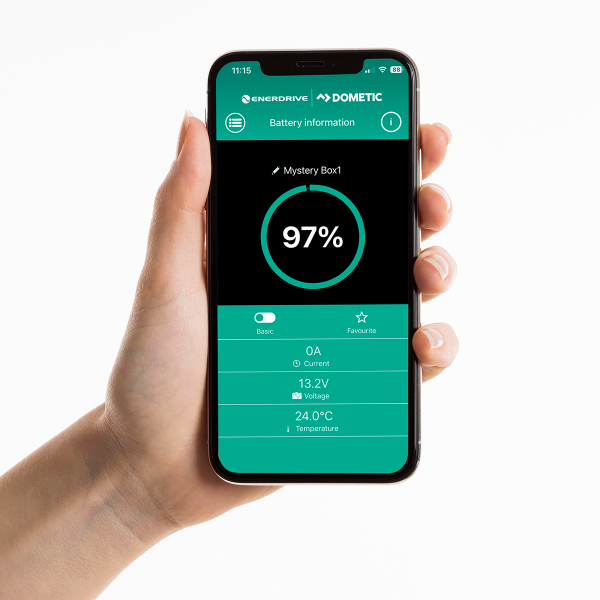

  • Can I monitor the battery through Bluetooth?

    Yes, the battery has Bluetooth so you can monitor from the Enerdrive App.
