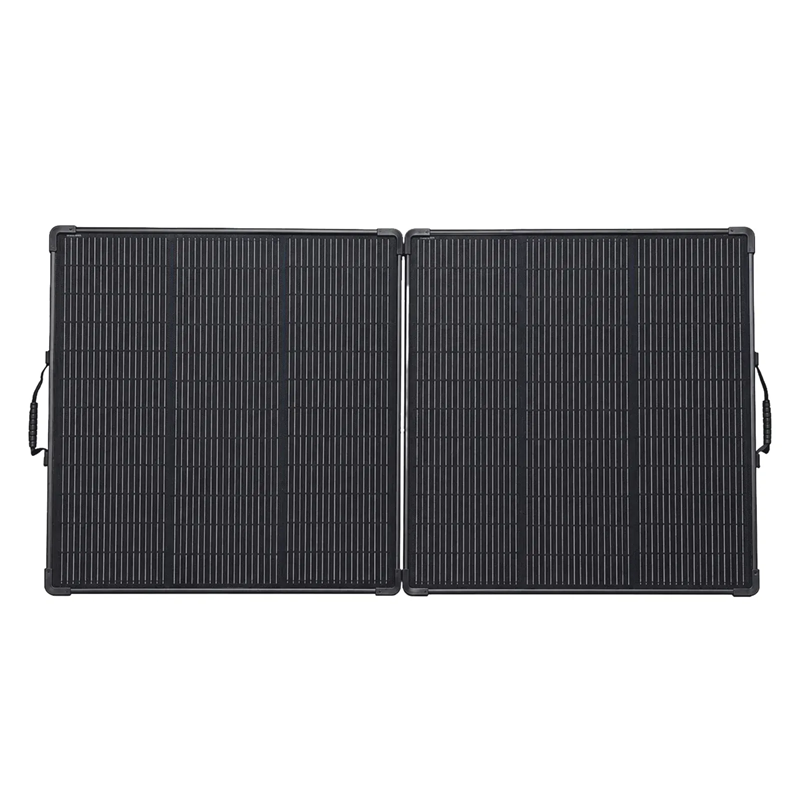

Exotronic 200W Fusion Ultra-Light Folding Solar Panel | No Controller

Exotronic 200W Fusion Ultra-Light Folding Solar Panel | No Controller

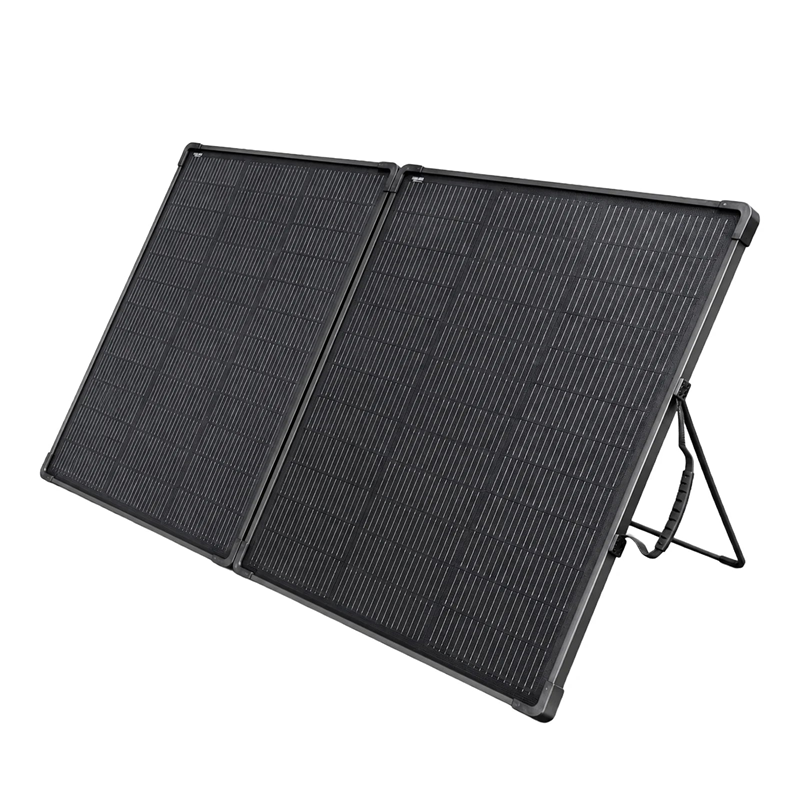

The Exotronic 200W Fusion Ultra-Light Folding Solar Panel combines advanced N-Type TOPCon solar cell technology with an ultra-lightweight folding design. It delivers dependable portable power for camping, touring and off-grid applications.

Featuring an impressive 25.6% cell efficiency, the panel captures more energy from available sunlight than many conventional monocrystalline and PERC solar panels. This helps maximise charging performance throughout the day.

Designed for efficient and transportable solar power, the Fusion Portable Series is ideal for caravans, RVs, camper trailers, 4WDs, boats and remote off-grid applications. Its compact folding construction makes it easy to carry, set up and store.

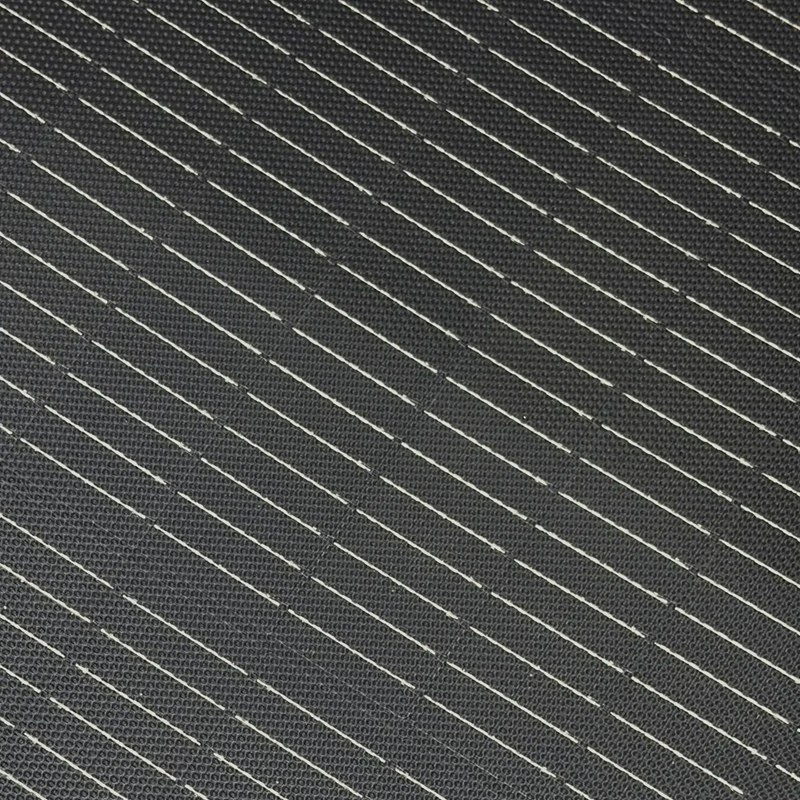

The Fusion Portable Series uses advanced N-Type TOPCon (Tunnel Oxide Passivated Contact) solar cells. Compared with conventional P-Type monocrystalline and PERC solar panels, TOPCon technology delivers higher efficiency, improved low-light performance and lower long-term degradation.

The Exotronic Fusion Portable Series features an ultra-light reinforced backplate that provides additional structural support behind the solar cells while keeping the overall panel weight to a minimum.

This reinforced backplate helps minimise cell flex during transport, setup and everyday use. By reducing movement and stress across the cells, it helps minimise the risk of micro-cracks, one of the leading causes of reduced output, accelerated degradation and premature failure in portable solar panels.

The added structural support also improves resistance to heat-related stress. During repeated heating and cooling in harsh Australian conditions, the reinforced backplate helps protect the solar cells from cracking and long-term degradation, providing greater reliability throughout the life of the panel.

The Exotronic 200W Fusion Ultra-Light Folding Solar Panel provides flexible charging wherever mains power is unavailable. It is suitable for short camping trips, extended off-grid travel and emergency backup power.

Ideal for:

• Charging lithium and AGM batteries in caravans and RVs
• Portable solar systems for camper trailers and 4WD touring
• Camping and overlanding power systems
• Charging compatible portable power stations
• Marine and boating applications
• Remote worksites and off-grid camps
• Emergency backup power

Construction benefits include:

• Ultra-lightweight construction weighing only 5.9 kg
• Durable ETFE surface with excellent UV resistance

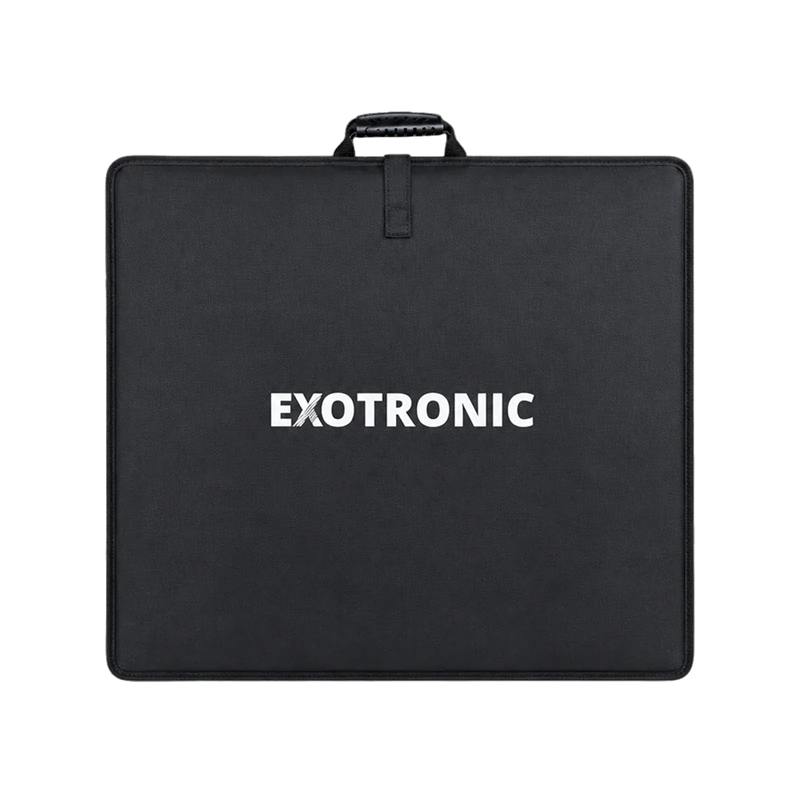

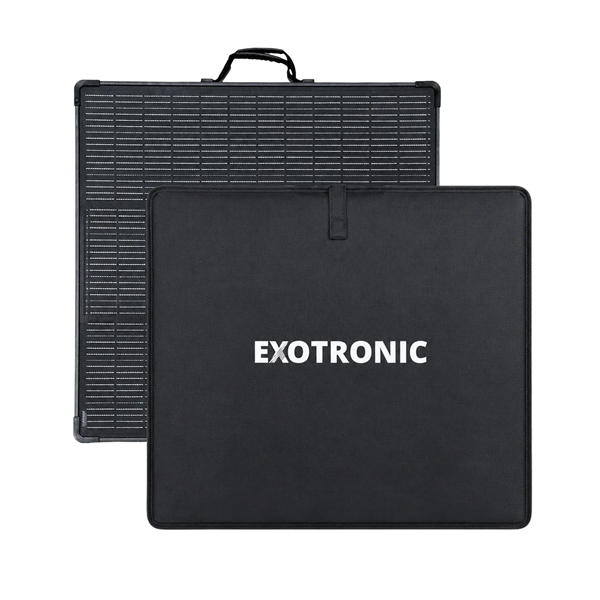

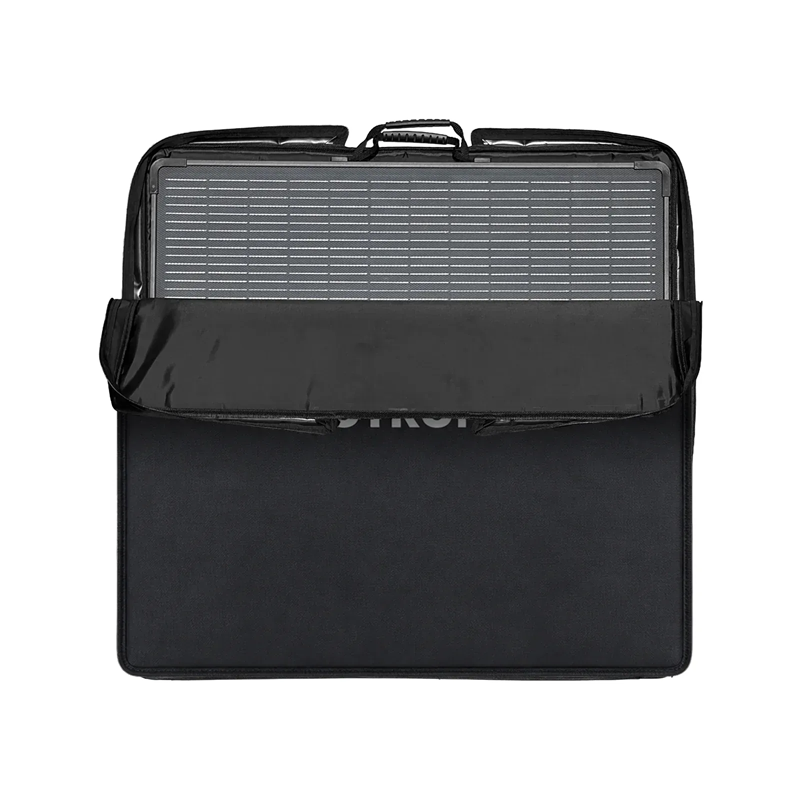

• Folding design for compact transport and storage

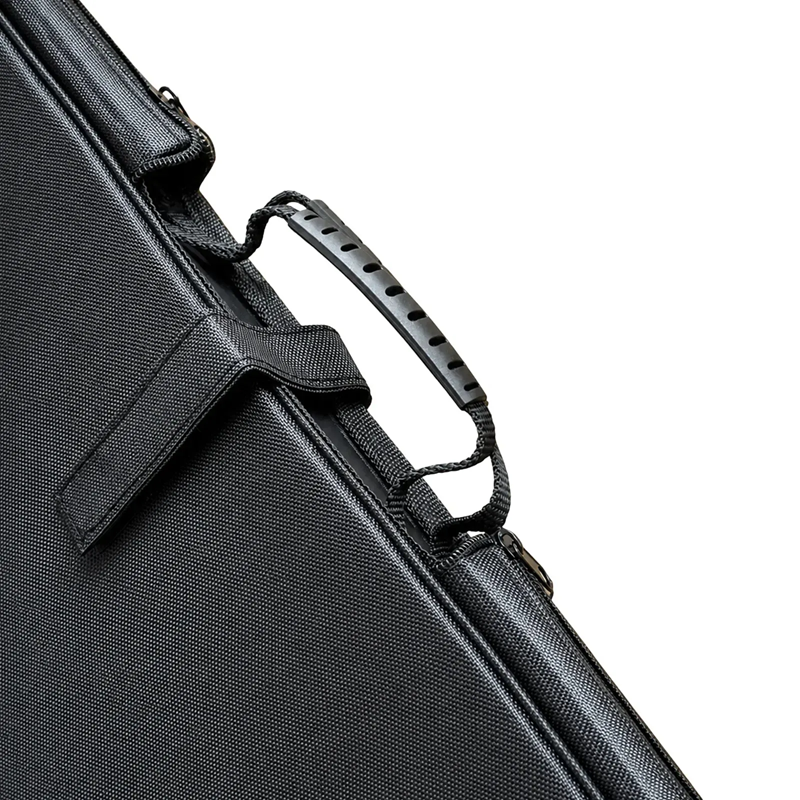

• Easy to carry, position and deploy
• Designed for Australian outdoor conditions

Specifications:

• Power: 200 W

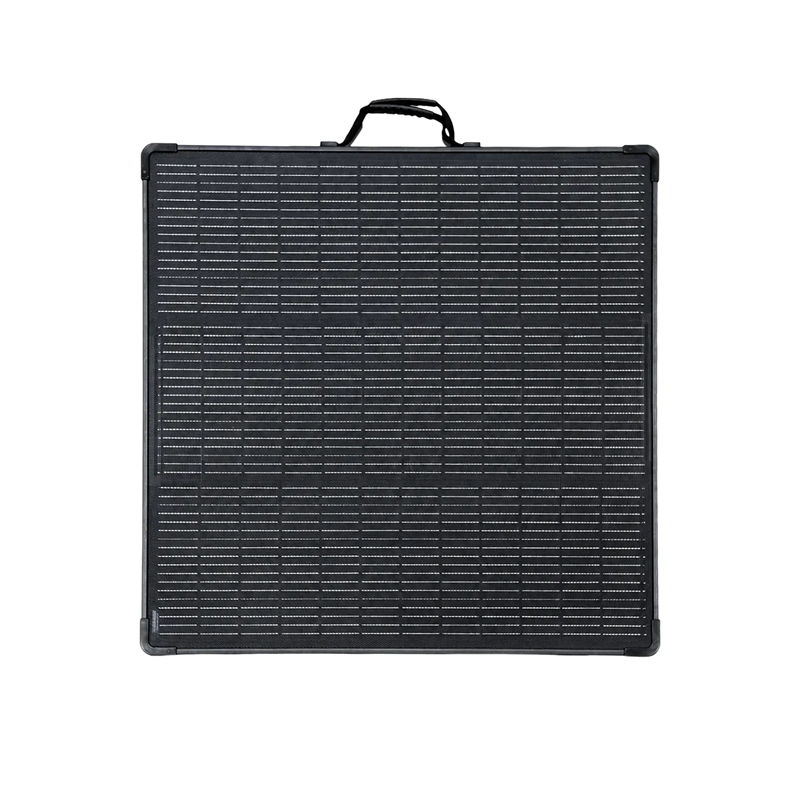

• Dimensions (mm) Folded: 690 x 670 x 40
• Dimensions (mm) Unfolded: 690 x 1340 x 17
• Weight: 5.9 kg
• Vmp: 21.24 V
• Imp: 9.42 A
• Voc: 25.2 V
• Isc: 9.96 A
• NMOT: 41°C +/-3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Voc: 0.05%/°C
• Operating Temperature: -40 - +85°C
• Maximum System Voltage: 1000VDC
• Maximum Fuse Rated Current: 15A
