Exotronic 200W Portable Folding Solar Panel
Q & A | SKU: Exo-FP-200 Learn More»
CALCULATE SHIPPING:
Accessories List:
Description

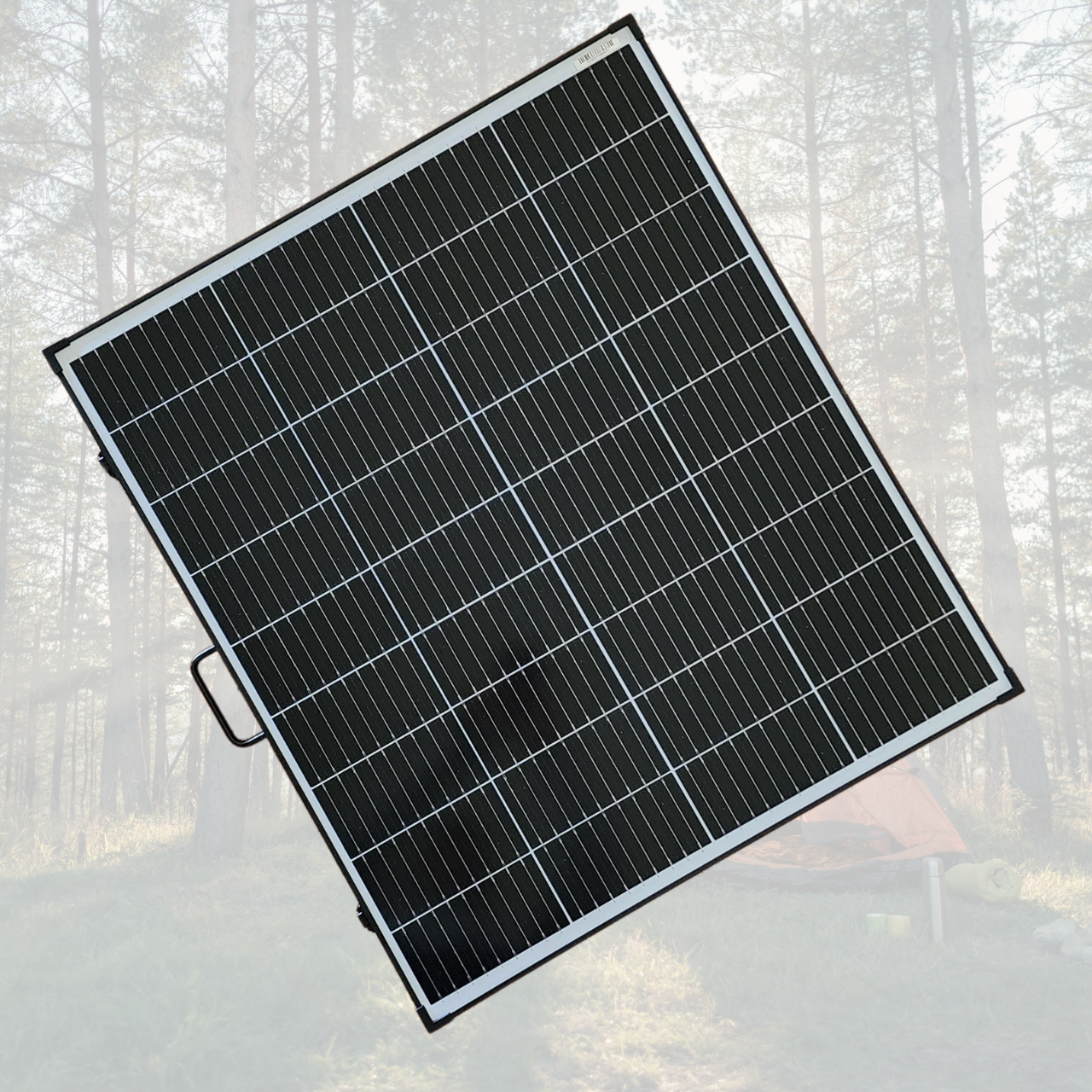

Exotronic 200W Portable Folding Solar Panel
When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution. The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.
Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.
Each folded section is wired independently, so if one side is shaded the other side will still operate.
These modules include bumpers on the corners and fold-away legs,
Also included is an array of premium quality cables to suit any situation:
- 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
- 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
- Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)
The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.
Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.
The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
Specifications:
- Operating Temperature: -40 - +85C
- Maximum System Voltage: 1000VDC
- Maximum Fuse Rated Current: 15A
- Front: 3.2mm Tempered Glass
- FrameB: lack Anodized Aluminium Alloy
- Junction Box: IP65/IP67
- Connectors: MC4 Compatible
- Vmp (V): 19.8
- Imp (A): 10.12
- Voc (V): 24.10
- Isc (A): 10.5
- Module Efficiency (%): 19.3
- Dimensions (mm) Folded: 775 x 675 x 40
- Dimensions (mm) Unfolded: 775 x 1350 x 19
- Weight (kg): 11.2
Specifications
SKU Exo-FP-200
Brand Exotronic
Product Category Portable Solar Panels
Watts (W) 200
Solar Panel Cell Type Monocrystalline
Solar Panel Type Folding Solar Panels
Dimensions (open) 775 x 1350 x 19 mm
Weight 11.2 Kg
Dimensions (closed) 775 x 675 x 40 mm
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 5 Years
