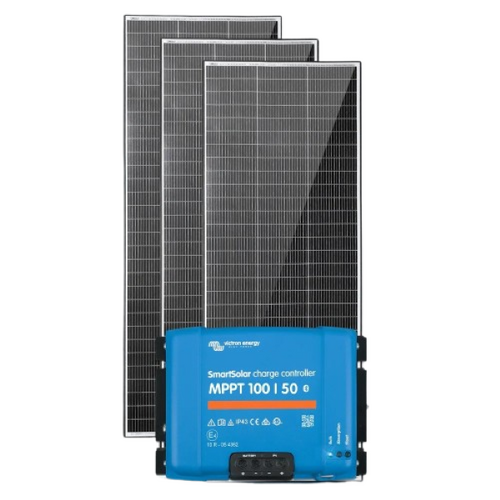

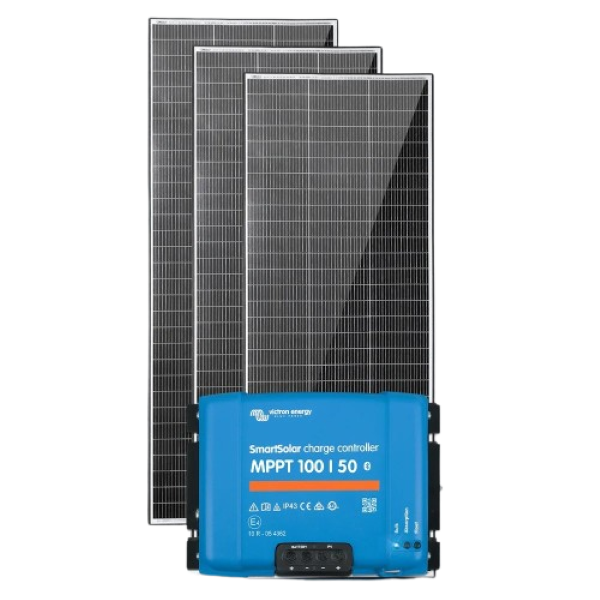

Exotronic 3x 250w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle

Exotronic 3x 250w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle

Bundle Includes:

• Exotronic 250W Fusion Fixed Solar Panel with Shade Resistant, Exo-SP-TCN-250
• Victron SmartSolar MPPT 100/50 Charge Controller, SCC110050210

The Exotronic 3x 250W Fusion Series Bundle combines three advanced N-Type TOPCon solar panels with the Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller, delivering a high-performance, reliable energy solution for demanding off-grid and mobile applications. Engineered for Australian conditions, this bundle provides exceptional power density, intelligent charge management, and robust durability, making it an ideal choice for caravan solar systems, marine solar panels, RV solar kits, tiny homes, and industrial remote power setups.

By integrating premium components, this bundle solves common off-grid power challenges: inconsistent energy harvest, inefficient battery charging, and system reliability in harsh environments. Unlike generic-grade kits, the Exotronic Fusion panels feature 25.2% cell efficiency and superior low-light performance, while the Victron MPPT controller maximises energy yield and protects your battery investment. This reduces the risk of underpowered systems, premature battery failure, and downtime during critical adventures or remote operations.

This bundle includes everything needed for a professional installation: three Exotronic 250W Fusion Series panels, the Victron SmartSolar MPPT 100/50 controller, five mounting bracket kits for secure panel attachment, and a Fix15 adhesive sealant to ensure weatherproof cable entries. The included mounting hardware and sealant reduce the need for additional purchases and simplify the setup process, saving time and ensuring a reliable, long-lasting installation.

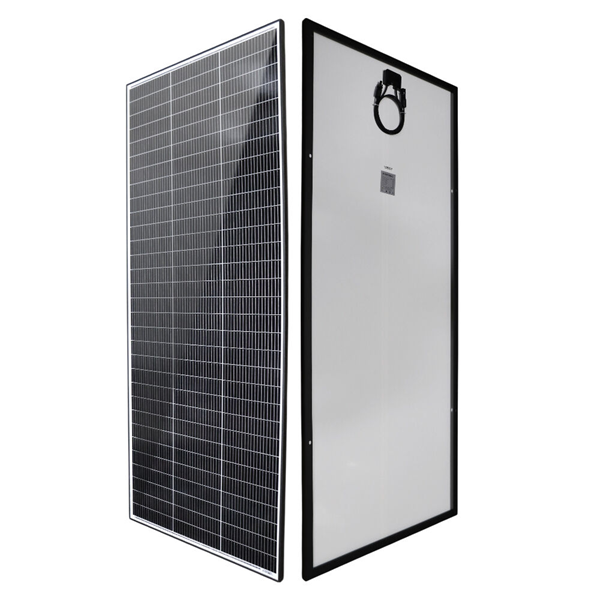

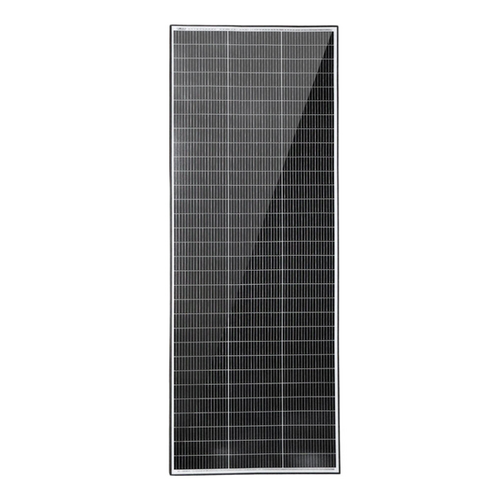

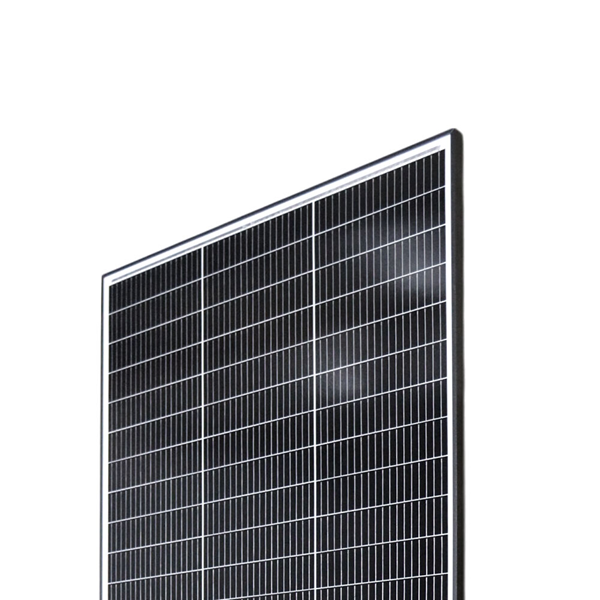

Exotronic 250W Fusion Series TOPCon Solar Panels (3 Included)

Each panel leverages N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, representing a significant leap over conventional PERC and standard monocrystalline cells. With an 18-busbar design, these panels minimise resistive losses and hot spots, ensuring consistent output even in partial shading or low-light conditions typical of mobile and off-grid environments. The compact 1715x670x25mm footprint and lightweight 11.2 kg construction simplify installation on vehicle roofs, decks, or limited mounting spaces.

• 25.2% cell efficiency maximises energy density in a compact form factor
• N-Type cells reduce degradation over time, extending panel lifespan
• Excellent low-light and shading response for reliable performance in variable weather
• 18-busbar layout enhances current flow and prevents hot spots
• Robust 25 mm anodised aluminium frame with salt mist and ammonia resistance, ideal for coastal and marine use

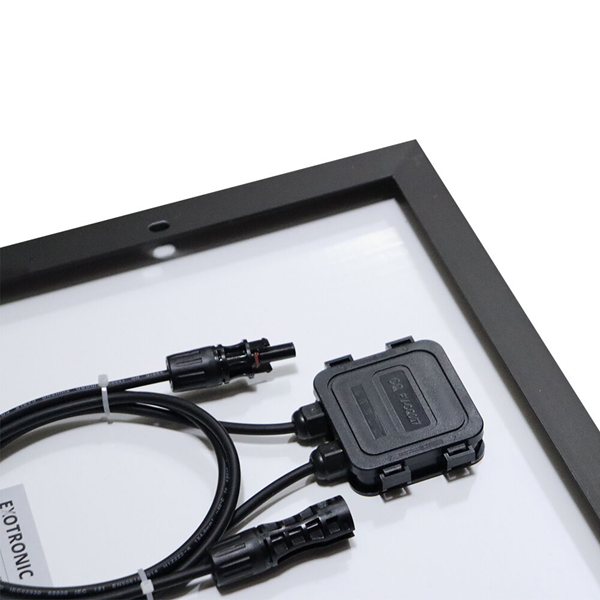

• IP65 junction box with fully potted connections prevents moisture ingress
• MC4 compatible connectors and 800 mm fly leads for straightforward wiring

Specifications:

• Power: 250 W
• Dimensions: 1715 × 670 × 25 mm
• Weight: 11.2 kg
• Vmp: 18.6 V
• Imp: 13.44 A
• Voc: 21.7 V
• Isc: 14.7 A
• NMOT: 41°C ±3°C
• Temperature Coefficient of Pmax: -0.37%/°C
• Temperature Coefficient of Voc: -0.29%/°C
• Temperature Coefficient of Isc: 0.05%/°C
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1000 VDC
• Maximum Fuse Rated Current: 15 A
• Front: 3.2 mm Tempered Glass
• Frame: Black Anodized Aluminium Alloy
• Junction Box: IP65
• Connectors: MC4 Compatible

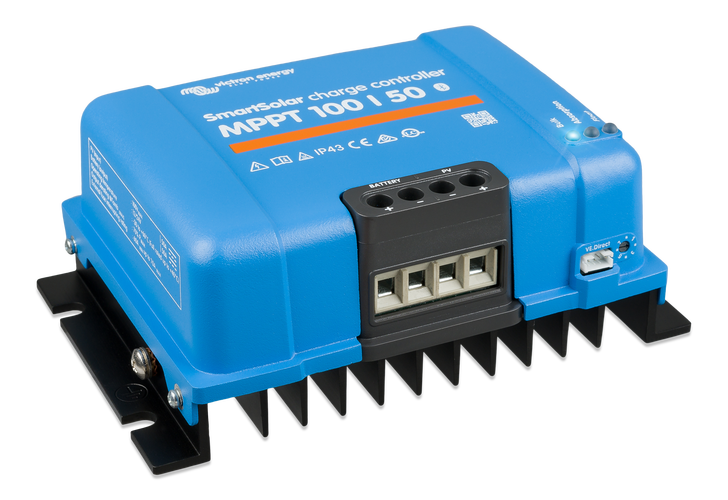

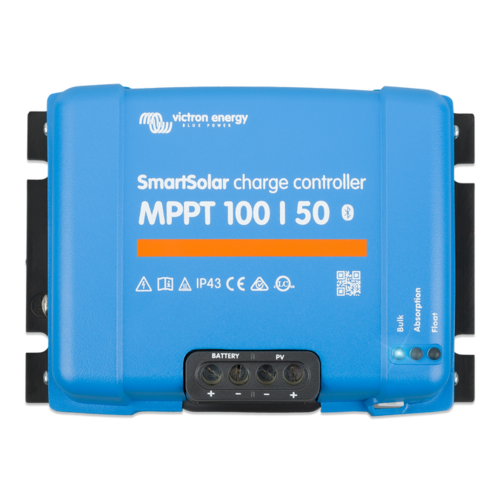

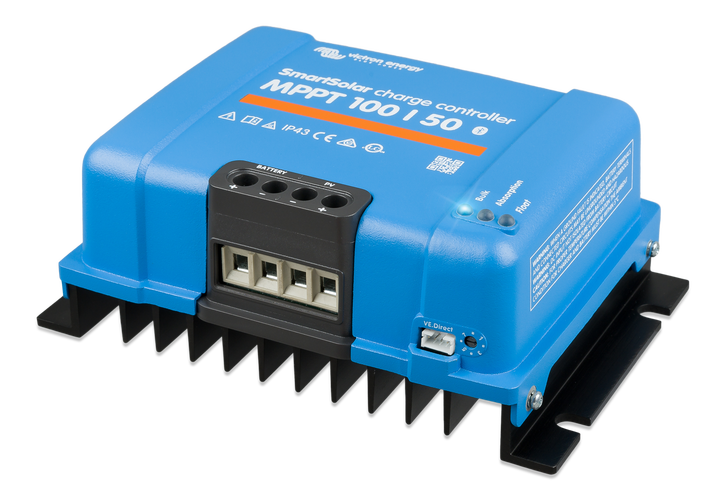

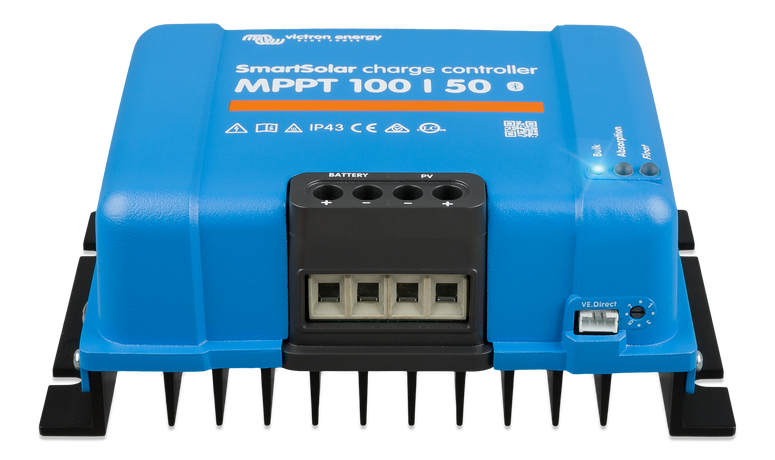

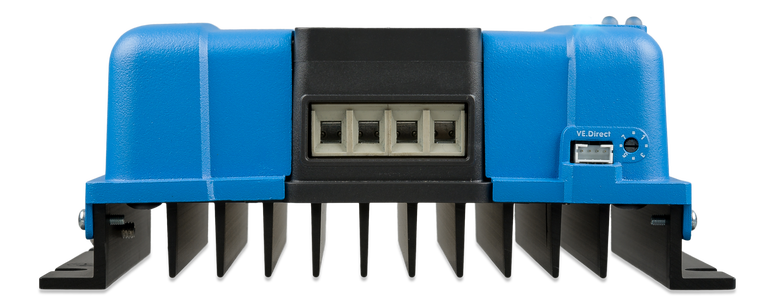

Victron SmartSolar MPPT 100/50 Bluetooth Charge Controller

The Victron SmartSolar MPPT 100/50 is a premium charge controller that extracts up to 30% more energy compared to traditional PWM controllers. Its ultra-fast MPPT algorithm adapts to changing light conditions, ensuring your batteries receive optimal charge. Integrated Bluetooth enables wireless monitoring and configuration via the VictronConnect app, giving you real-time insight into system performance and battery health. This controller supports both 12V and 24V battery banks, with a maximum PV open circuit voltage of 100V and rated charge current of 50A, making it perfectly matched to the three 250W panels.

• Ultra-fast MPPT technology maximises solar harvest in all conditions
• Built-in Bluetooth for wireless monitoring and smart control
• Efficiency exceeding 98% minimises energy losses
• Multi-stage adaptive charge algorithm extends battery life
• Comprehensive electronic protection against reverse polarity, short circuit, and over-temperature
• VE.Direct communication port for integration with GX devices and data logging
• Stores 46 days of trends data for performance analysis

Specifications:

• Battery voltage 12/24V Auto Select
• Rated charge current 50A
• Nominal PV power, 12V 1a,b) 770W
• Nominal PV power, 24V 1a,b) 1400W
• Maximum PV open circuit voltage 100V
• Max. PV short circuit current 2) 60A
• Maximum efficiency 98%
• Self-consumption 12V: 30 mA 24V: 20 mA
• Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
• Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
• Charge algorithm multi-stage adaptive
• Temperature compensation -16 mV / °C resp. -32 mV / °C
• Protection
  • PV reverse polarity
  • Output short circuit
  • Over-temperature
• Operating temperature -30 to +60°C (full rated output up to 40°C)
• Humidity 95%, non-condensing
• Colour Blue (RAL 5012)
• Power terminals 16 mm² / AWG6
• Protection category IP43 (electronic components), IP22 (connection area)
• Weight 1.3 kg
• Dimensions (d x w x h) 70 x 186 x 130 mm
