Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
SKU: Exo-Vic-4x200-100-50-00 Learn More»

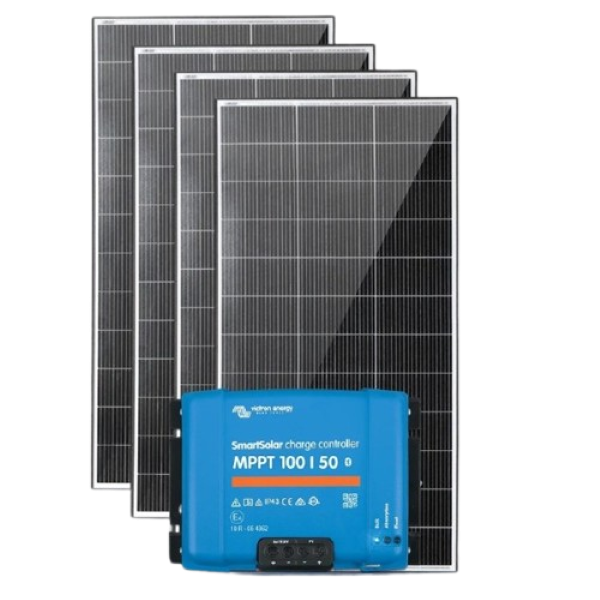

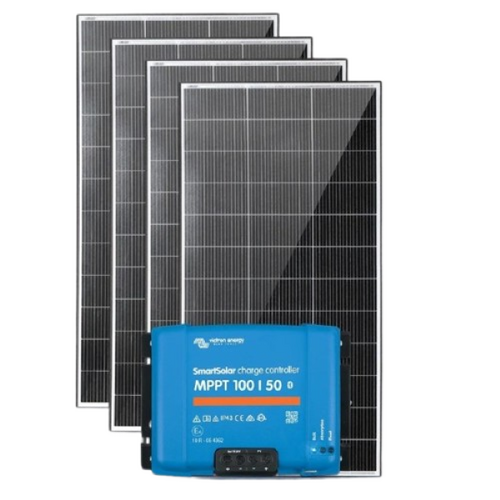

Exotronic 4x 200w Solar Panel & Victron SmartSolar MPPT 100/50 Bundle
Bundle Includes:

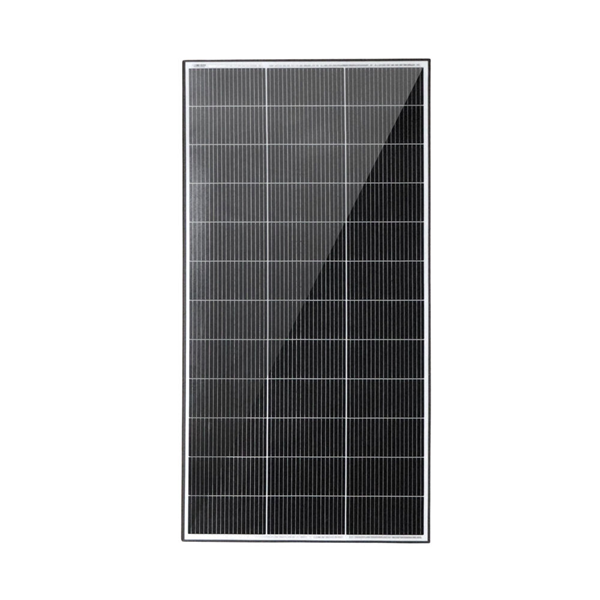

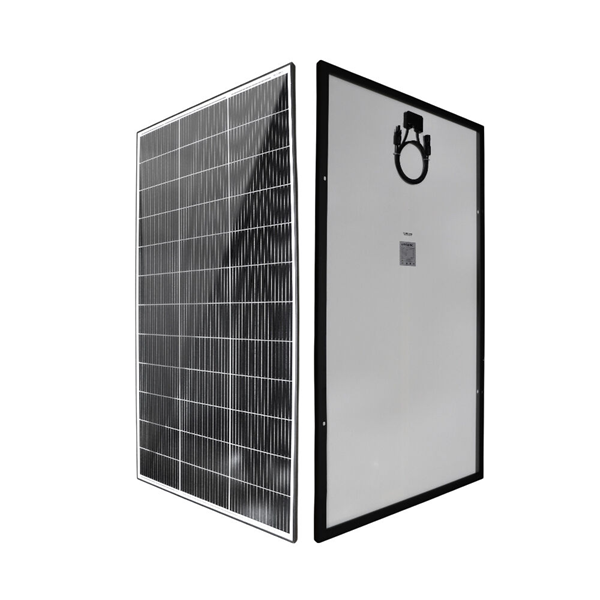

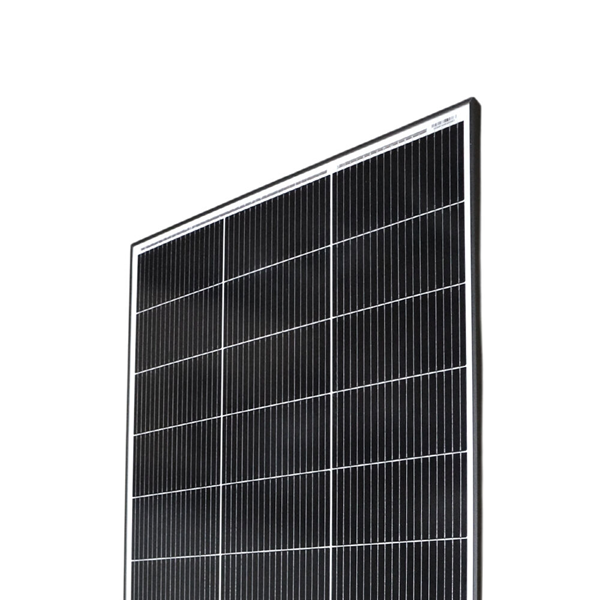

- Exotronic 200W Fusion Fixed Solar Panel, Exo-SP-TCN-200
- Victron SmartSolar MPPT 100/50 Charge Controller, SCC110050210
The Exotronic 4x 200W Solar Panel & Victron SmartSolar MPPT 100/50 Bundle delivers a powerful, integrated energy solution for large off-grid and mobile applications. Combining four high-efficiency N-Type TOPCon solar panels with the precision of a Victron SmartSolar MPPT 100/50 Bluetooth charge controller, this bundle is engineered for caravans, RVs, marine vessels, tiny homes, and industrial setups where reliable, high-yield solar power is essential.

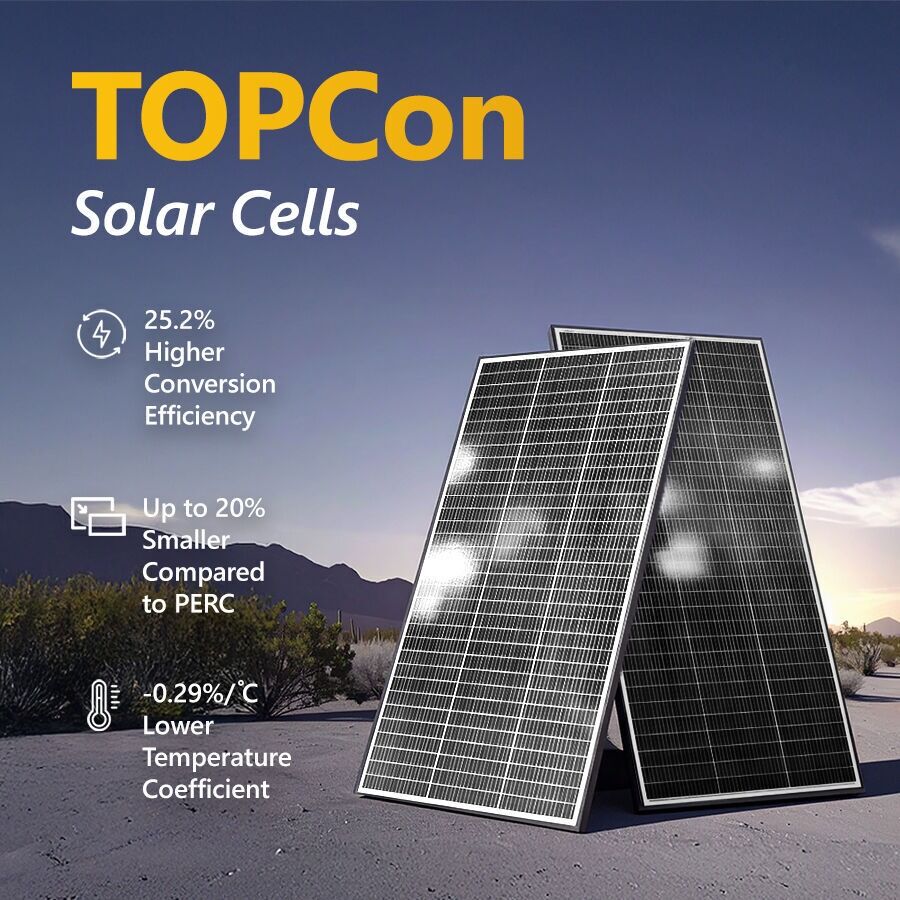

Each Exotronic 200W Fusion Series panel features advanced TOPCon (Tunnel Oxide Passivated Contact) cell technology, achieving a 25.2% cell efficiency that outperforms conventional monocrystalline and PERC panels. This means more energy from a compact footprint, making it ideal for roof-mounted installations with limited space. The panels are built to withstand harsh Australian conditions, with a robust anodised aluminium frame and high-transmissivity tempered glass that resists impact and environmental degradation.
The included Victron SmartSolar MPPT 100/50 charge controller maximises energy harvest with ultra-fast Maximum Power Point Tracking, delivering up to 30% more efficiency than traditional PWM controllers. Its built-in Bluetooth connectivity allows real-time monitoring and configuration via the VictronConnect app, giving you complete control over your system's performance and battery health.
Key Features:
- 800W total solar capacity from four 200W panels, suitable for 12V, 24V, or 48V battery banks
- 25.2% cell efficiency with N-Type TOPCon technology for superior low-light and high-temperature performance
- Victron SmartSolar MPPT 100/50 with Bluetooth for intelligent charging and remote system management
- Comprehensive protection including PV reverse polarity, output short circuit, and over-temperature safeguards
- Complete installation kit with four mounting bracket sets and two tubes of Fix15 adhesive sealant
- Durable construction rated for wind loads up to 2400 Pa and snow loads up to 5400 Pa
Specifications
- Power: 200 W

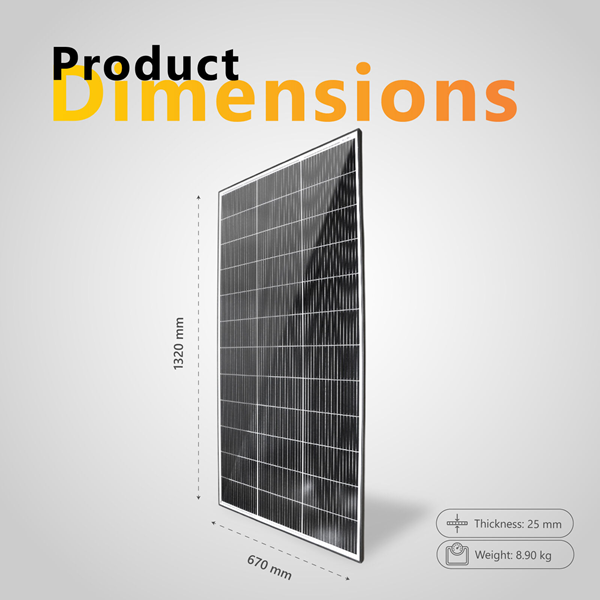

- Dimensions: 1320 × 670 × 25 mm
- Weight: 8.9 kg
- Vmp: 18.0 V
- Imp: 11.11 A
- Voc: 21.0 V
- Isc: 12.1 A
- NMOT: 41°C ±3°C
- Temperature Coefficient of Pmax: -0.37%/°C
- Temperature Coefficient of Voc: -0.29%/°C
- Temperature Coefficient of Isc: 0.05%/°C
- Operating Temperature: -40°C to +85°C
- Maximum System Voltage: 1000 VDC
- Maximum Fuse Rated Current: 15 A
- Front: 3.2 mm Tempered Glass
- Frame: Black Anodized Aluminium Alloy

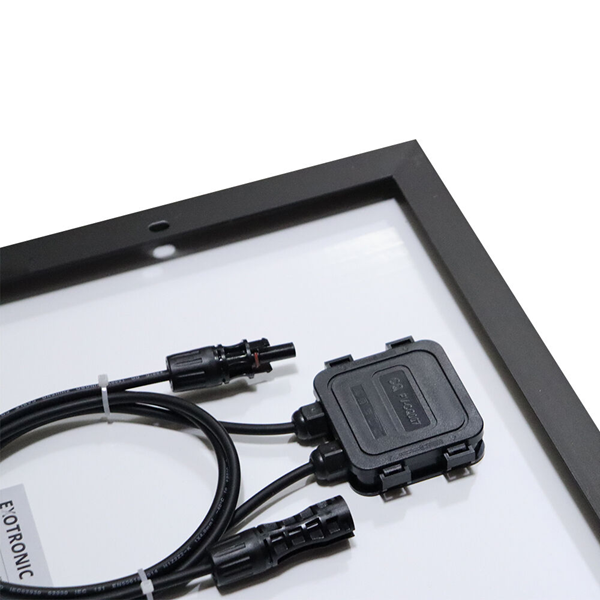

- Junction Box: IP65
- Connectors: MC4 Compatible

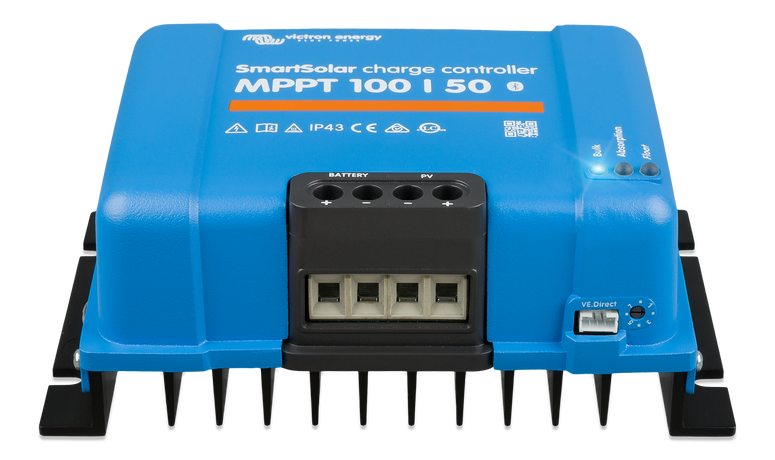

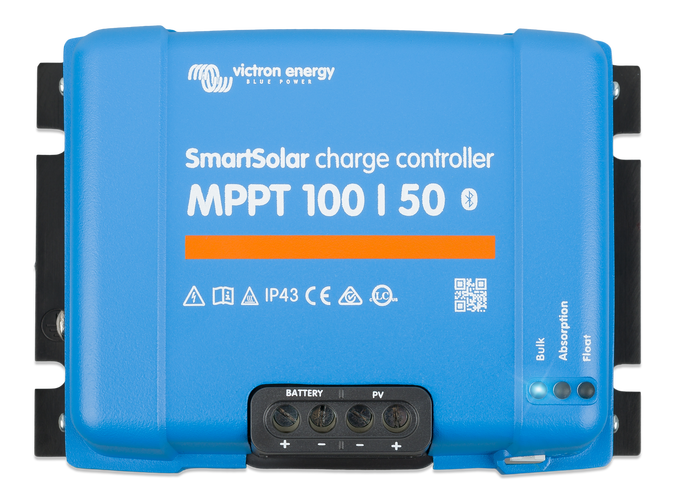

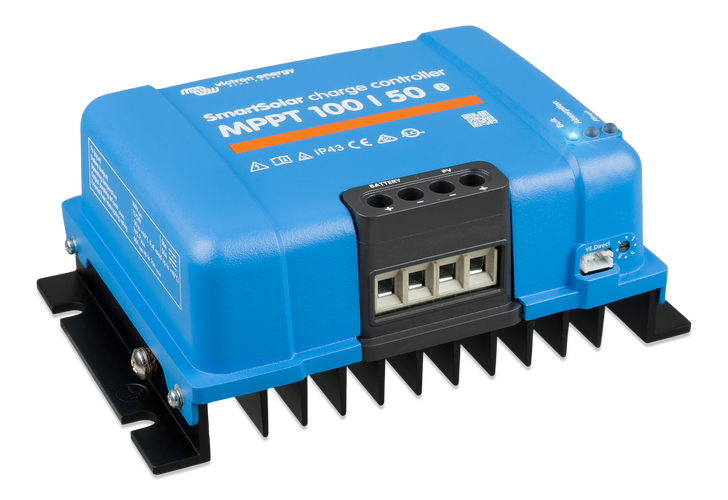

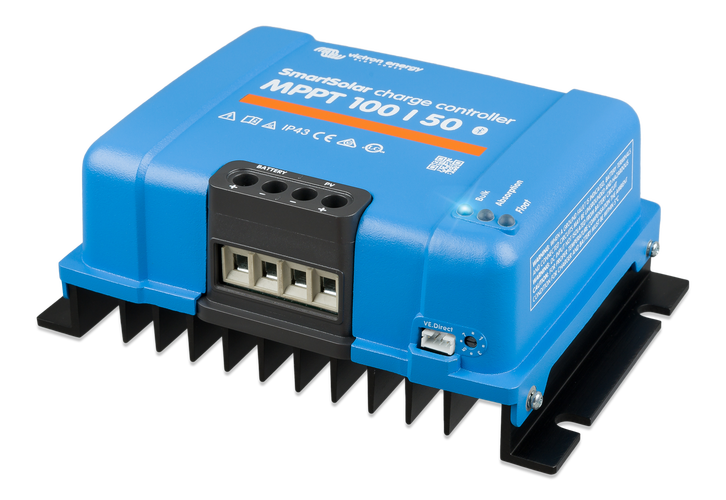

Victron SmartSolar MPPT 100/50: Intelligent Charge Management

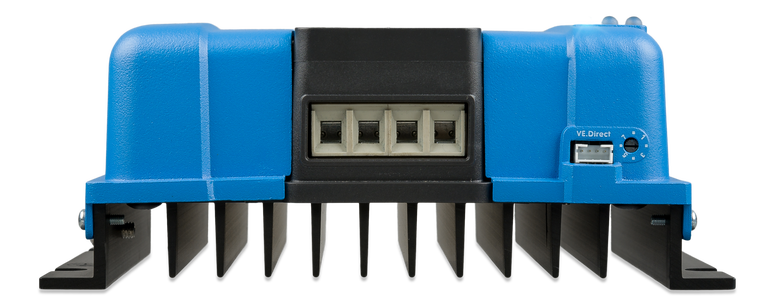

The Victron SmartSolar MPPT 100/50 is a premium charge controller that automatically detects 12V or 24V battery systems and adjusts charging parameters for optimal battery life. Its multi-stage adaptive charge algorithm, combined with temperature compensation, prevents overcharging and extends battery lifespan. The integrated VE.Direct port allows connection to a GX device for advanced system monitoring, while the IP43-rated electronics ensure reliability in dusty or damp environments.
Specifications:
- Battery voltage 12/24V Auto Select
- Rated charge current 50A
- Nominal PV power, 12V 1a,b) 770W
- Nominal PV power, 24V 1a,b) 1400W
- Maximum PV open circuit voltage 100V
- Max. PV short circuit current 2) 60A
- Maximum efficiency 98%
- Self-consumption 12V: 30 mA 24V: 20 mA
- Charge voltage 'absorption' Default setting: 14,4V / 28,8V (adjustable)
- Charge voltage 'float' Default setting: 13.8V / 27.6V (adjustable)
- Charge algorithm multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Protection
- PV reverse polarity
- Output short circuit
- Over-temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Colour Blue (RAL 5012)
- Power terminals 16 mm² / AWG6
- Protection category IP43 (electronic components), IP22 (connection area)
- Weight 1.3 kg
- Dimensions (d x w x h) 70 x 186 x 130 mm
Specifications
SKU Exo-Vic-4x200-100-50-00
Brand Exotronic
Product Category Solar Bundles
Watts (W) 800
Solar Panel Cell Type N-Type
Solar Panel Type Fixed Solar Panels
Short Circuit Current Isc(A) 12.1
Operating Temperature Range -40°C to 85°C
Max Power Voltage Vm(V) 18.0
Weight (kg) 8.9 (per Solar) | 1.3 (Charge Controller)
IP Rating IP65 (Junction box)
Charge Voltage 14.4V / 28.8V (adjustable)
Dimensions 670 x 1320 x 25 (Solar Panel) | 70 x 186 x 130mm (Charge Controller)
Charge Current (A) 50
Connectors MC4 Compatible
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature
Max System Voltage (VDC) 1000VDC
Max Power Current Im(a) 11.11
Open Circuit Voltagevoc(v) 21.0
Solar Panel Frame Material Black Anodized Aluminium Alloy
