Jeep Wrangler JL 2 Door (2018-Current) Extreme Slimline II Roof Rack Kit - by Front Runner

Description

Jeep Wrangler JL 2 Door (2018-Current) Extreme Slimline II Roof Rack Kit - by Front Runner



Make your tough Jeep JL even tougher with this virtually indestructible Slimline II Roof Rack Kit. This rugged rack bolts directly onto the roll bars so that the Freedom Panels can be removed with the rack still in place and the hardtop on or off. There are over 55 accessories to customize your rack according to your sporting or adventure needs.

This Slimline II rack kit contains all the components needed to mount the Slimline II cargo carrying rack to a Jeep JL 2 door including the Slimline II Tray (1425mm x 1762mm), the Jeep Extreme Mounting System, and a Wind Deflector. Drilling is required for installation.

This rugged, sophisticated, high-performance, nearly indestructible rack system allows you to quickly remove the Freedom Panels and works with the hardtop roof on or with no roof at all.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab.

The Front Runner Jeep Extreme mounting system is secured to the roll bar with middle and rear brackets. This unobtrusive, high-performance, nearly indestructible mounting solution allows you to quickly remove the Freedom Panels and works with the hardtop or with no roof at all. Freedom Panels can be quickly and easily removed with rack in place. The cargo weight is evenly distributed across the roll bars and body of the jeep, placing zero weight or stress on the hardtop itself.

*Suitable for most Raised Air Intakes / Snorkels fitments. Confirm fitment with Air Intake / Snorkel fitment guide.
Note: This is not suitable for the Mojave Edition of the Jeep Gladiator.



Specifications:

• Materials: Black epoxy powder-coated T6 aluminium | High-strength steel
• Weight: 38.11kg



Consisting of:

• 1x FAJL005 - Jeep Wrangler JL 2- Door (2018-Curr) Foot Rails
• 1x FAJL006 - Jeep Wrangler JL 2-Door (2018-Curr) Inner Brackets
• 1x FAJL009 - Jeep Wrangler JL (18-Curr)Front Bar RRack Mount
• 1x RRSTJ09 - SLII Tray - 1425mm(W)X1762mm(L)

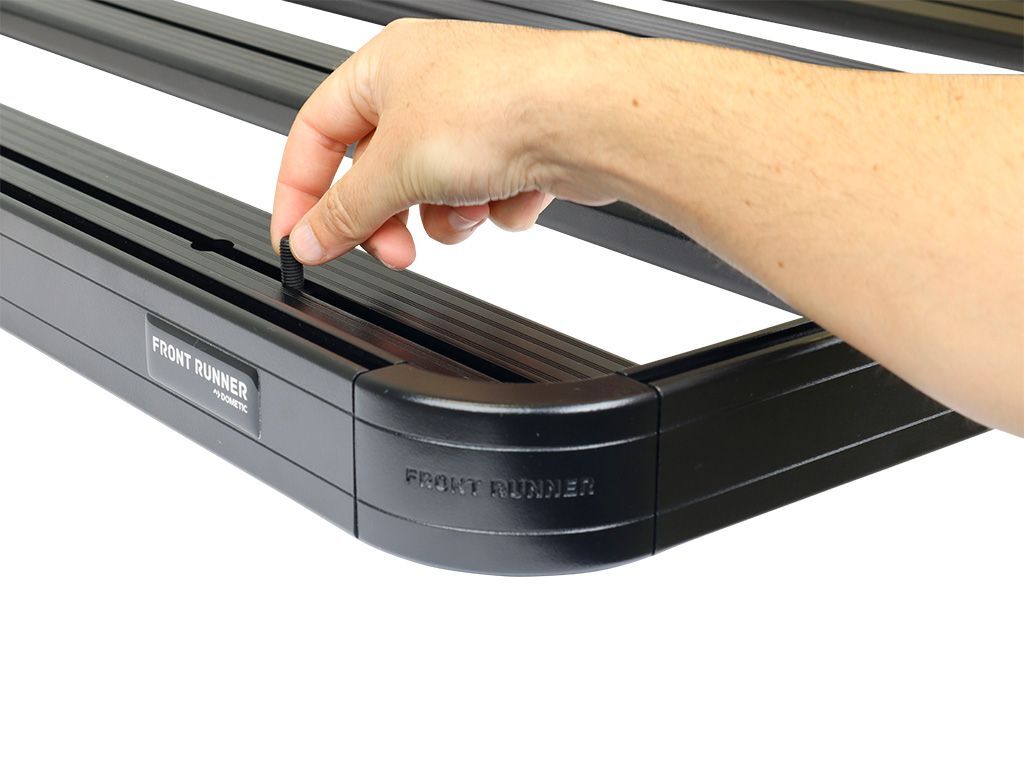

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicle roof.


Installation Guide for Inner Brackets and Foot Rail



Installation Guide for Front Bar Roof Mount



Installation Guide for Slimline II Tray Universal Assembly
