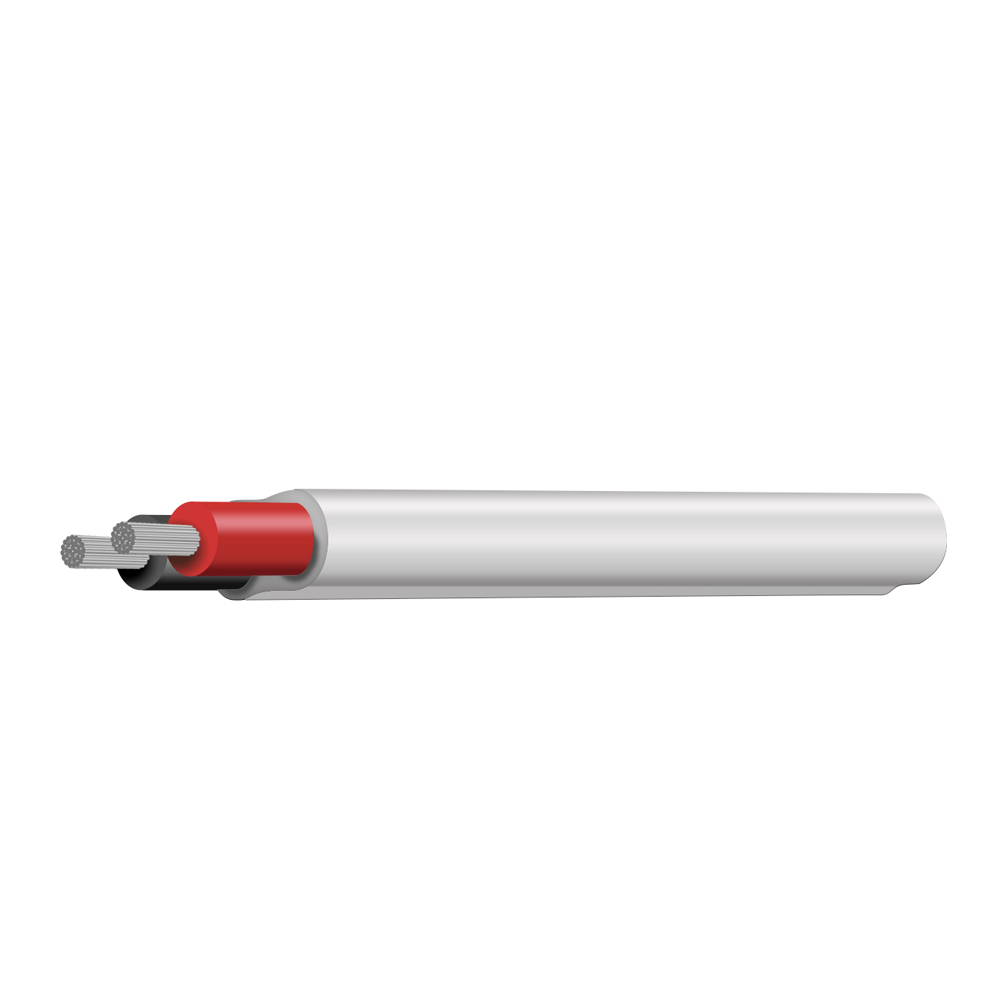

Marine DC Cable 100m Reel - Tinned 6mm White Twin Sheath 2-Core Flat MWS26503-WH-100
Q & A | SKU: 500-08188 Learn More»
Description
Marine DC Cable 100m Reel - Tinned 6mm White Twin Sheath 2-Core Flat MWS26503-WH-100
Applications: Marine Trailer Wiring, General Purpose Marine Wiring, Lights, Instrumentation
Conductor: TINNED COPPER WIRE (TCW) TO AS/NZS 1125
Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808
Colours: Red & Black
Sheath: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808
Sheath Colours: White
Packs: 100 metres
| **MM Industry Equivalent | Nominal Area (mm²) | CONDUCTOR NO/DIA (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | *AMP Rating JASO D609 at 30°C | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | Mass (kg/100m) |
| 6 | 4.5 | 57/0.32 | 0.6 | 0.8 | 38 | 4.15 | 5.7 x 9.6 | 14 |
Specifications
SKU 500-08188
Brand Coast to Coast
Product Category Electrical Accessories
