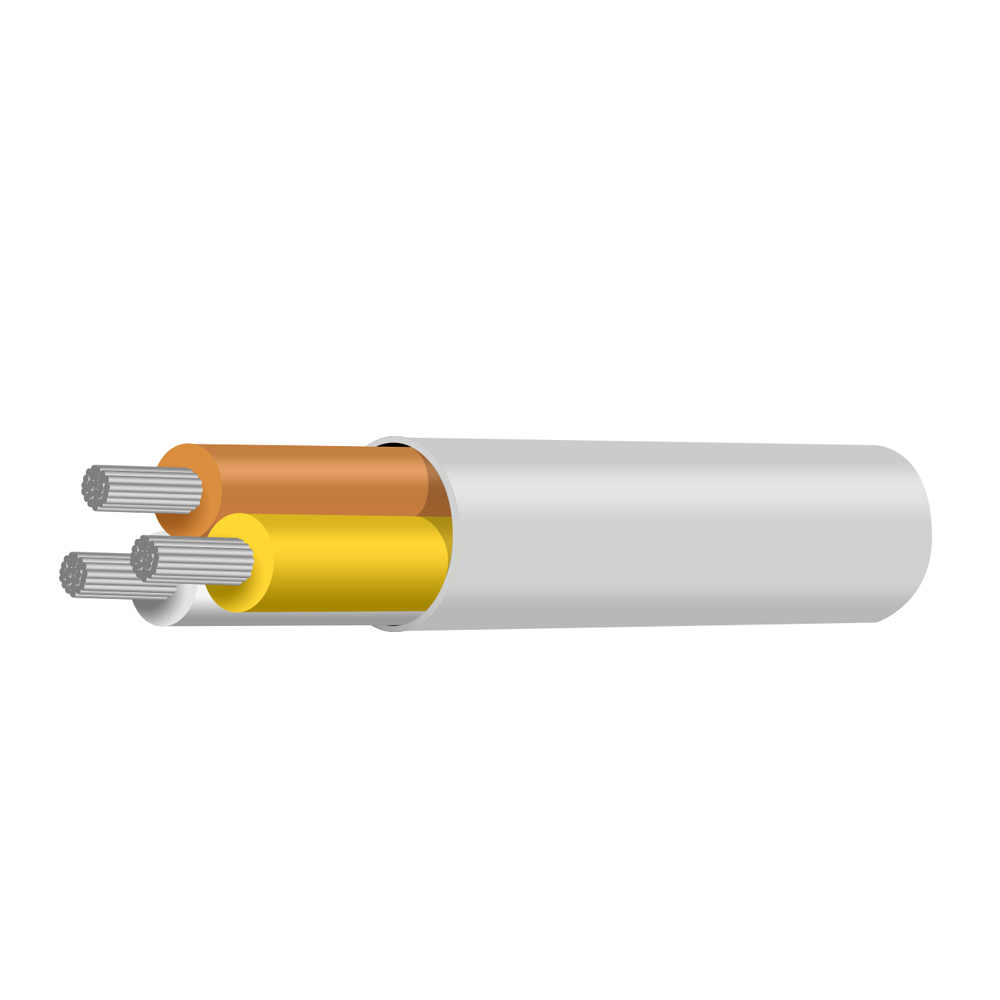

Marine DC Cable 50m Reel - Tinned 3-Core x 4mm White Multi-Core MTS32603-WH-50
Q & A | SKU: 500-08216 Learn More»
Description
Marine DC Cable 50m Reel - Tinned 3-Core x 4mm White Multi-Core MTS32603-WH-50
V90 PVC INSULATED
Application: Marine Trailer Wiring
Conductor: TINNED COPPER WIRE (TCW) to AS/NZS 1125
Insulation: RoHS Compliant
Core Colours: 3 Core: White, Yellow, Brown
5 Core: White, Yellow, Brown, Red, Green
7 Core: White, Yellow, Brown, Red, Green, Blue, Black
Sheath: RoHS Compliant 5V90 P.V.C. to AS/NZS 3808
Sheath Colour: White
Packs: 50, 100 metres
| NO. OF CORES | Nominal Area (mm²) | CONDUCTOR NO/DIA (mm) | Insulation Thickness (mm) | Sheath Thickness (mm) | *AMP Rating JASO D609 at 30°C | Electrical Resistance at 20°C (ohm/km) | Nominal O.D. (mm) | Mass (kg/100m) |
| 3 | 1.84 | 23/0.32 | 0.4 | 0.6 | 19 | 10.2 | 7.2 | 8.4 |
Specifications
SKU 500-08216
Brand Coast to Coast
Product Category Electrical Accessories
NOTE: see full product specifications & further product info in the Description section on this page.
