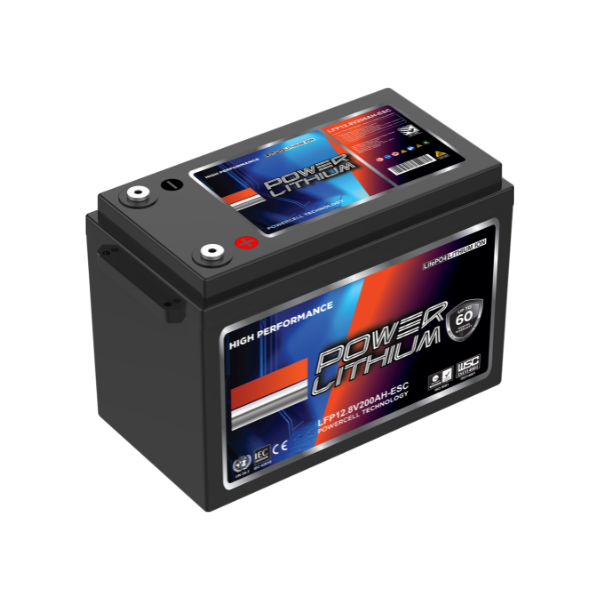

Power Lithium 12.8V 200Ah Deep Cycle Battery, Special Case

Power Lithium 12.8V 200Ah Deep Cycle Battery, Special Case

Features:

• Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
• Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacity.
• Wider Temperature Range: -20°C–60°C.
• Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

Typical Applications:

• Wheelchairs and scooters
• Solar/wind energy storage
• Back-up power for small UPS
• Golf trolleys & buggies
• Electric bikes
• Tools.

Specifications:

• Nominal Voltage: 12.8 V
• Nominal Capacity: 200 Ah
• Energy: 2560 Wh
• Internal Resistance (AC): ≤10 mΩ
• Cycle Life: ≥4000 cycles @ 0.5C, 100% DOD
• Months Self Discharge: <3%
• Efficiency of Charge: 100% @ 0.5C
• Efficiency of Discharge: 96–99% @ 0.5C
• Charge Voltage: 14.6 ± 0.2 V
• Charge Mode: 0.2C to 14.6 V, then 14.6 V; charge current to 0.02C (CC/CV)
• Charge Current: 60 A
• Max. Charge Current: 150 A
• Charge Cut-off Voltage: 14.6 V ± 0.2 V
• Rated Discharge Current: 60 A
• Max. Discharge Current: 150 A
• Maximum Pulse Discharge Current: 450 A < 30 s
• Discharge Cut-off Voltage: 10 V
• Charge Temperature: 0°C to 55°C @ 60 ± 25% relative humidity
• Discharge Temperature: −20°C to 60°C @ 60 ± 25% relative humidity
• Storage Temperature: −20°C to 45°C @ 60 ± 25% relative humidity
• IP Class: IP67
• Plastic Case: ABS
• Approx. Dimensions: 384 mm × 190 mm × 221 mm
• Approx. Weight: 18.5 kg
• Terminal:M8
• Parallel: Up to 4 units
