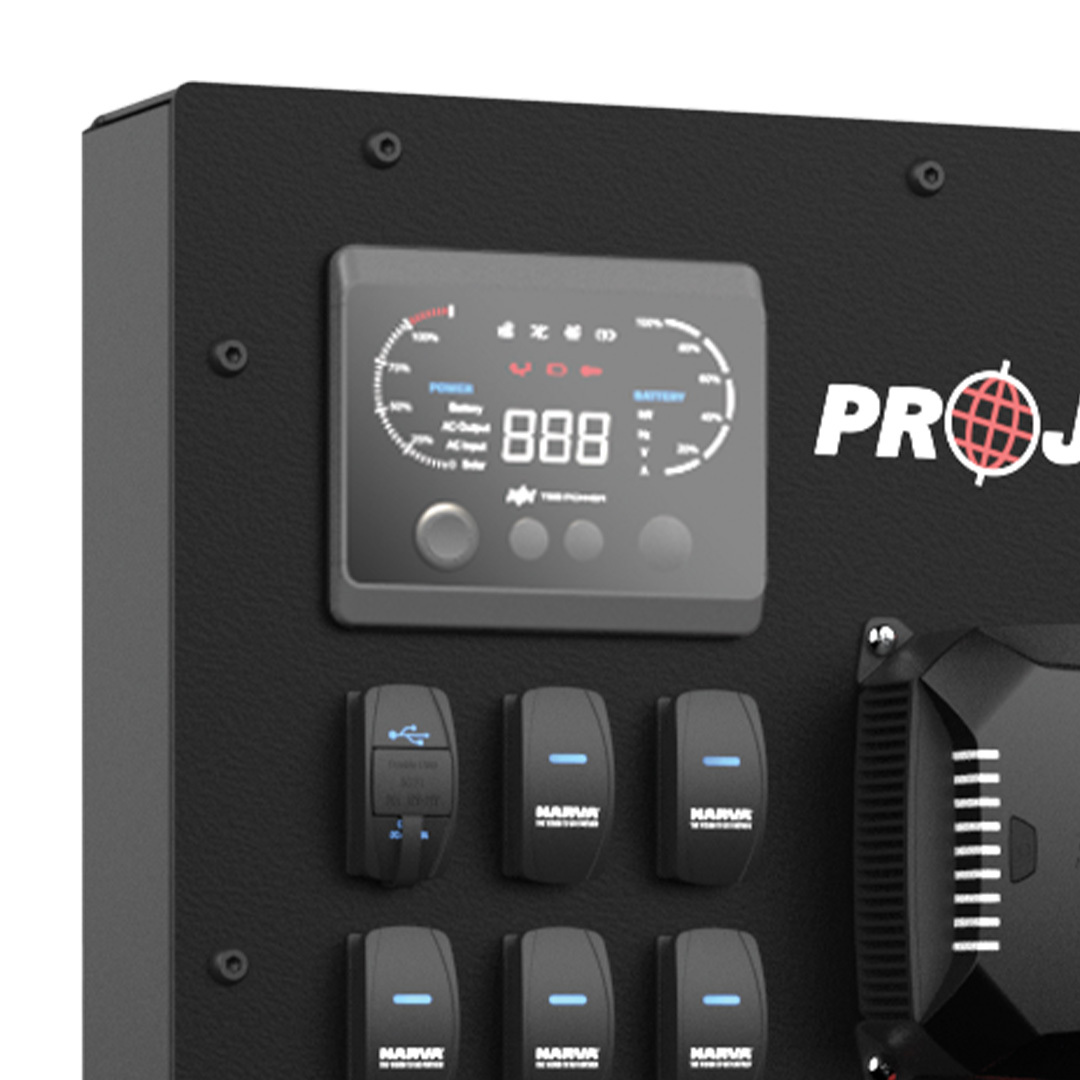

Projecta 12V 50A AC/DC Power Management Board with 2000W Inverter & 200Ah Lithium Battery

Description

Projecta 12V 50A AC/DC Power Management Board with 2000W Inverter & 200Ah Lithium Battery



Features:

• DC-DC CHARGER (IDC50X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications
• 2000W PURE SINE WAVE INVERTER (IP2000): Converts 12V power to 240V to allow the use of devices such as laptops through to
  coffee machines whilst off grid

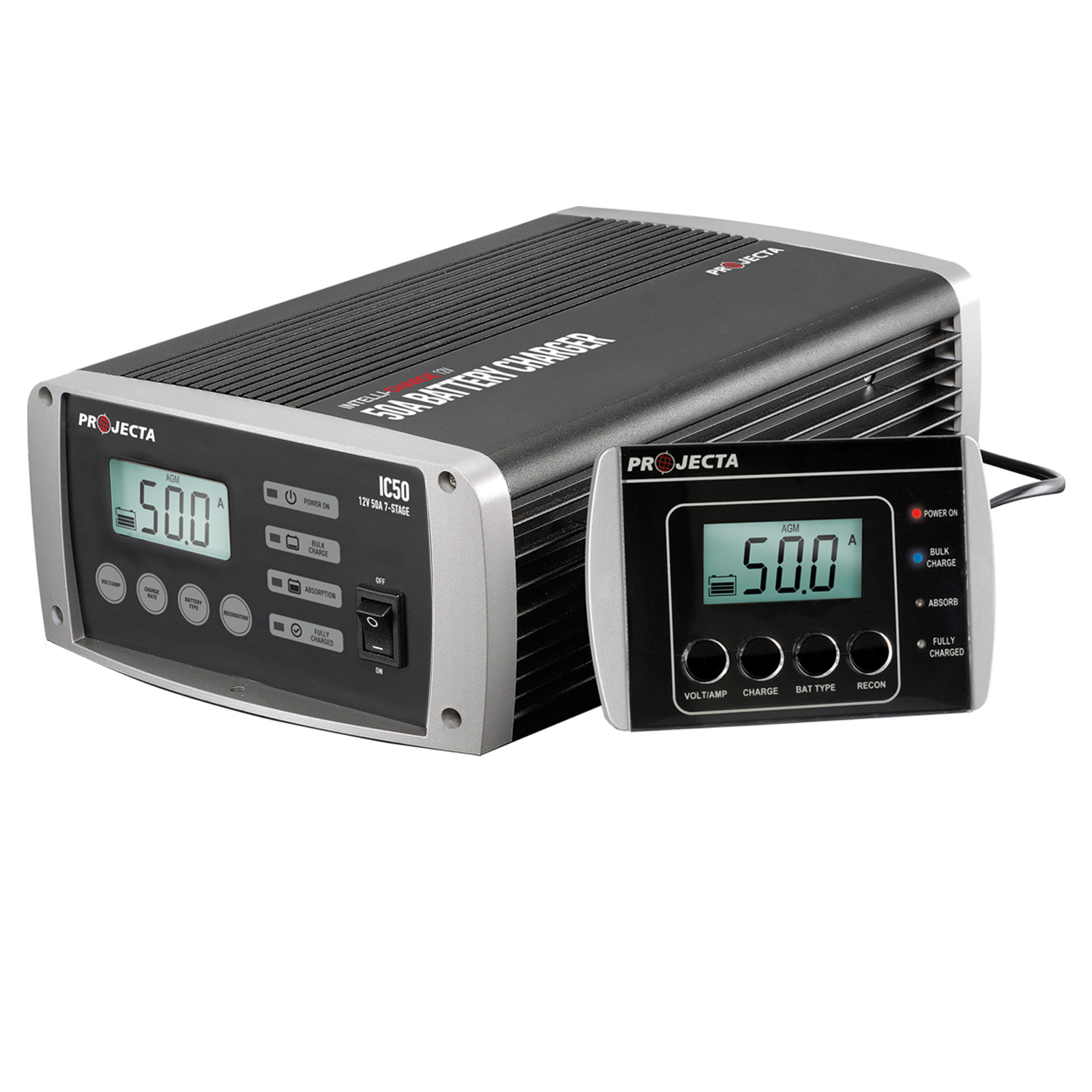

• 50A AC BATTERY CHARGER (IC50): A versatile charger capable of charging small batteries used in recreational equipment right up to large
  batteries found in houseboats
• BATTERY MONITOR (LBM-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status
• 200AH LITHIUM BATTERY 200Ah: lithium iron phosphate battery with built in current shunt and on-board communication for additional batteries to be wired in parallel

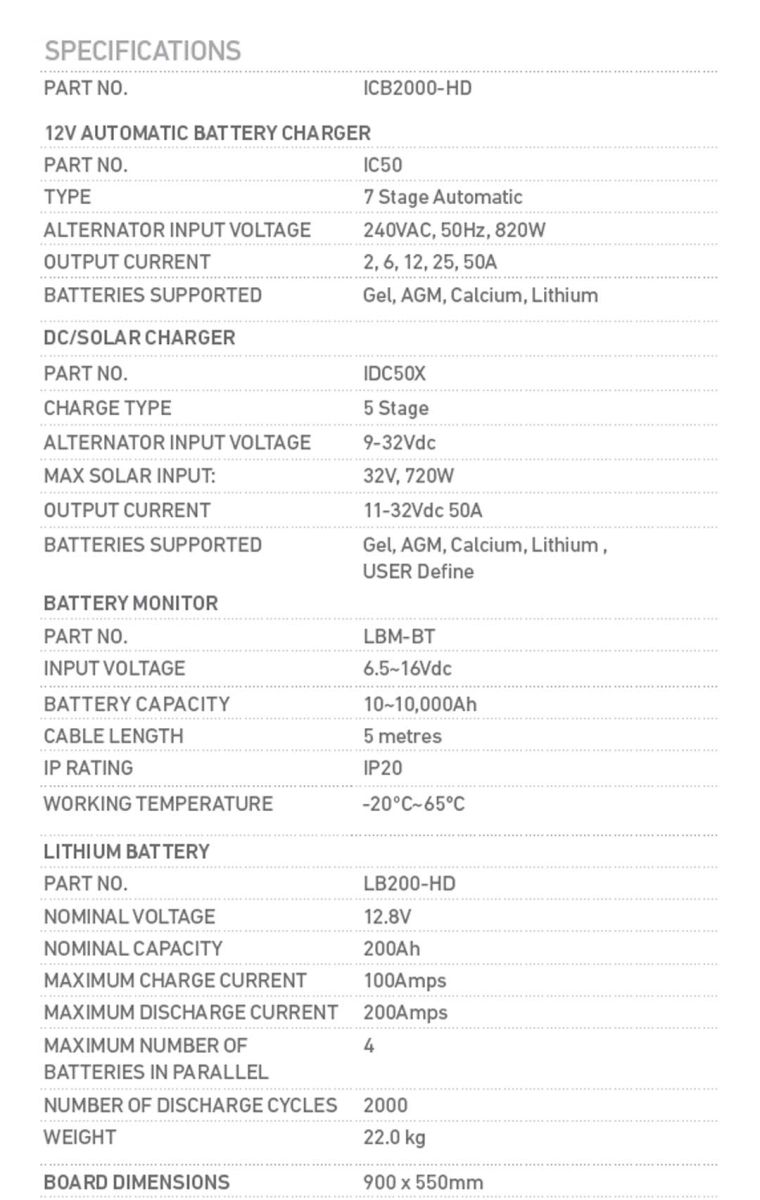

Specification:

12V Automatic Battery Charger:

• Type: 7 Stage Automatic
• Alternator Input Voltage: 240VAC, 50Hz, 820W
• Output Current: 2, 6, 12, 25, 50A
• Batteries Supported: Gel, AGM, Calcium, Lithium

DC-DC Charger:

• Charge Type: 5 Stage
• Input Voltage: 9-32Vdc
• Maximum Solar Input: 32V, 720W
• Output Current: 11-32Vdc 50A
• Batteries Supported: Gel, AGM, Calcium, Lithium

Battery Monitor:

• Input Voltage: 6.5~16Vdc
• Battery Capacity: 10~10,000Ah
• Cable Length: 5 Metres
• IP Rating: IP20
• Working Temperature: -20° ~ 65°C

Lithium Battery:

• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Maximum Charge Current: 100Amps
• Maximum Discharge Current: 200Amps
• Maximum Number of Batteries in Parallel: 4
• Number of Discharges Cycles: 2000
• Weight: 22kg

Board Dimensions: 900mm x 550mm
