Projecta 3000W Mobile Power System with 7inch Bluetooth Monitor & 400Ah Lithium Battery

Description

Projecta 3000W Mobile Power System with 7inch Bluetooth Monitor & 400Ah Lithium Battery



The 3000W powerhouse system, like the IG2-BT7, is full of features and has a 30Amp DCDC charger to charge on the road.

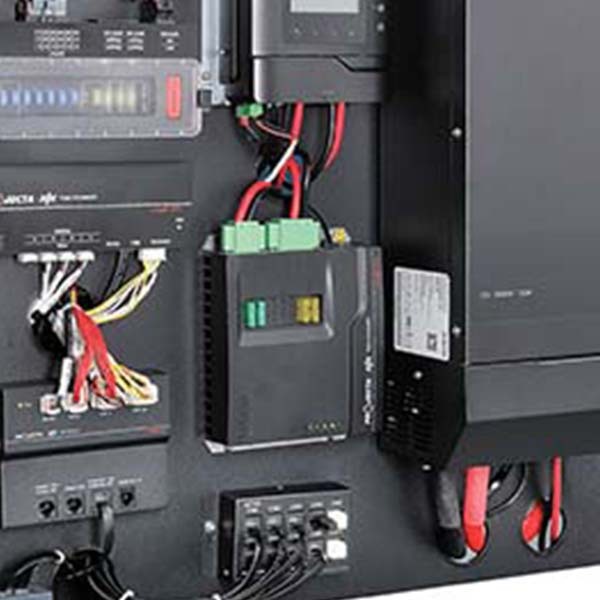

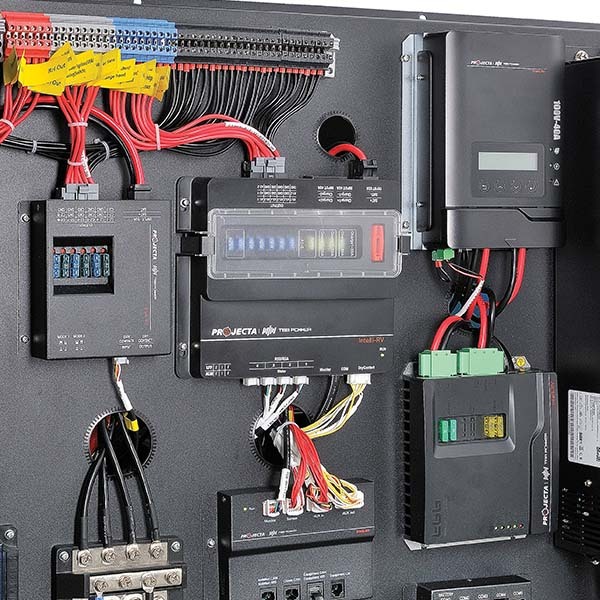

System Components:

• 7” Monitor with App
• 2KW/3KW Inverter/Charger with AC change over swtich
• MPPT Solar controller
• DC-DC Charger
• Controller Box
• Constant Output Module with 12 outputs
• Auxiliaries Controller with 9 outputs & Water Tank Measurement
• Lights Module with 6 outputs
• 200Ah/400Ah Lithium Battery
• Wireless Switch (Not supplied)
• 4 Water tank sensors (Not supplied)



Features:

• INVERTER & GRID POWER: 2000/3000W inverter with 120/180Amp charging, grid power booster and AC transfer switch. AS/NZS 3001 ready
• LITHIUM BATTERY: An advanced and powerful 200/400Ah lithium battery perfectly matched to the Intelli-Grid system provides the ultimate power for off gird requirements
• MULTIPLE CHARGING OPTIONS: 30/60A DC-DC charging and 40A MPPT solar charging for charging from vehicle or when sun is shining
• BLUETOOTH MONITOR: Bluetooth 7” Colour monitor showing SOC, full control of the RV, its water, lighting and hardware
• ADAPTABLE MODULES: Water and lighting modules are fitted to fully control your RV.
• 5 YEAR WARRANTY: Ensured durability with our 5 year warranty

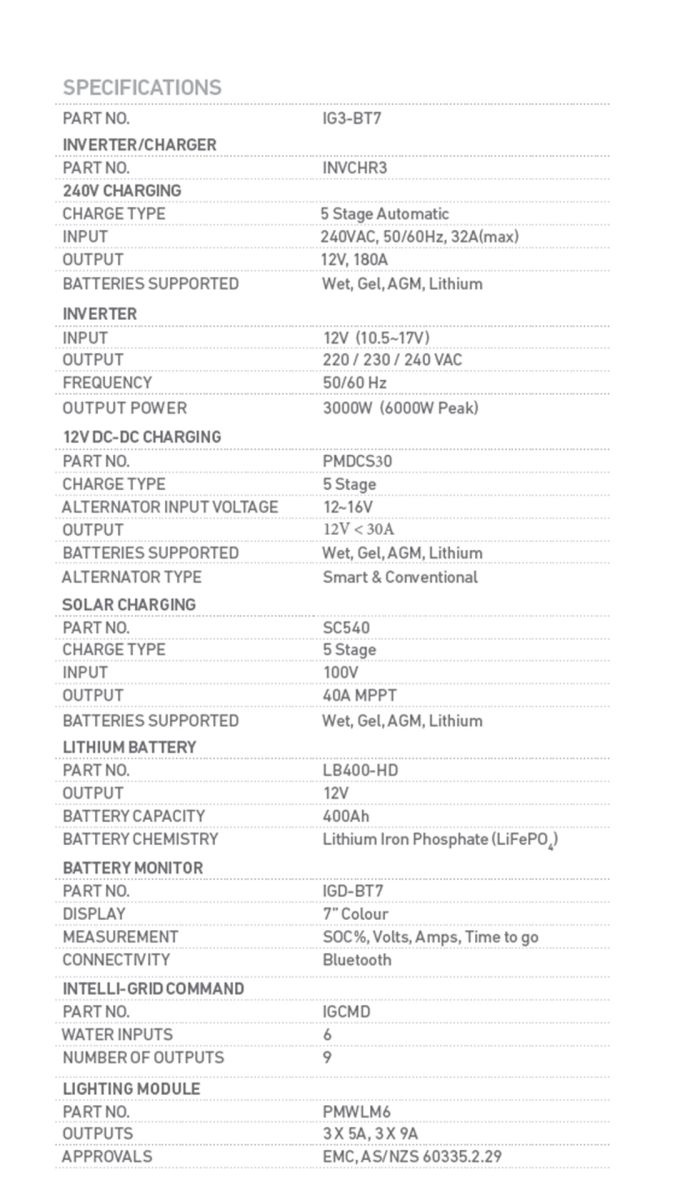

Specifications:

240V Charging:

• Charge Type: 5 Stage Automatic
• Input: 240VAC, 50/60Hz, 32A(max)
• Output: 12V, 180A
• Batteries Supported: Wet, Gel, AGM, Lithium

Inverter:

• Input: 12V (10.5~17V)
• Output: 220/230/240 VAC
• Frequency: 50/60Hz
• Output Power: 3000W (6000W Peak)

12 DC-DC Charging:

• Charge Type: 5 Stage
• Alternator Input Voltage: 12~16V
• Output: 12V, <30A
• Batteries Supported: Wet Gel, AGM<,Lithium
• Alternator Type: Smart & Conventional

Solar Charging:

• Charge Type: 5 Stage
• Input: 100V
• Output: 40A MPPT
• Batteries Supported: Wet, Gel, AGM, Lithium

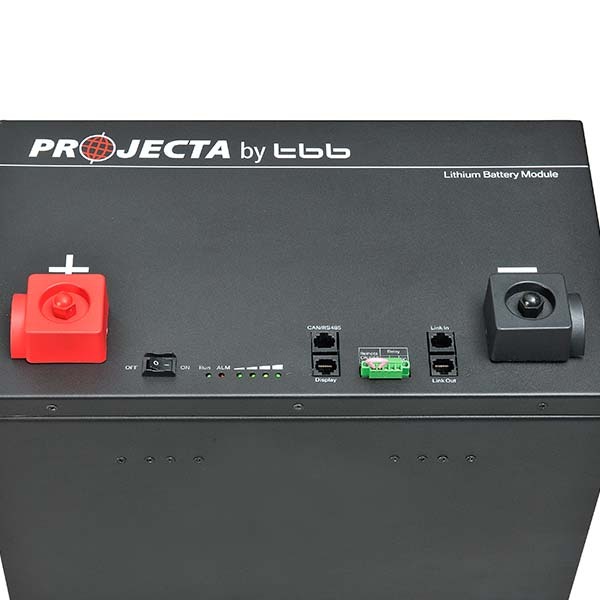

Lithium Battery:

• Output: 12V
• Battery Capacity: 400A hr
• Battery Chemistry: Lithium Phosphate (LiFePO₄)

Battery Monitor:

• Display: 7" Colour
• Measurement: SOC%, Volts, Amps, Time to go
• Connectivity: Bluetooth

Intelli-Grid Command:

• Water Inputs: 6
• Number of Outputs: 9

Lighting Module:

Outputs: 3x5A, 3x9A
