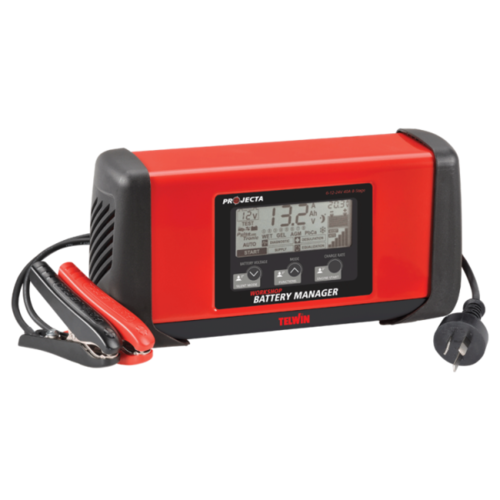

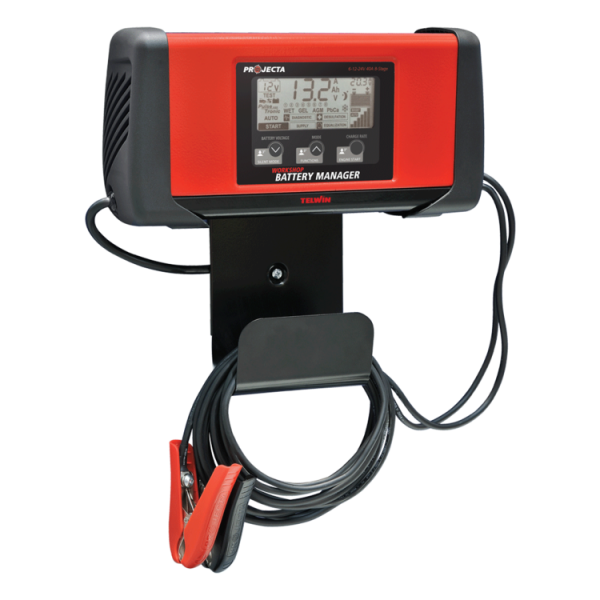

Projecta HDBM4000 6/12/24V Automatic 40 AMP 8 Stage Battery Manager

Description

Projecta HDBM4000 6/12/24V Automatic 40 AMP 8 Stage Battery Manager

The 8 stage charging process of the HDBM4000 ultimately delivers a more sophisticated and thorough charge, giving your batteries longer life & better performance in the long term. An advanced ‘Analysis’ process within the 8 stages tests the battery during the charging process and if a pass is detected will proceed to ‘Float’ mode. A fail however will result in a ‘Recondition’ charge to revive the battery. Once the battery is fully charged, the charger will continue to monitor the battery without the risk of overcharging.

Specifications:

• Output Current Rating 40.0 Amps
• Input 240V, 50Hz, 600W
• Output 3–40A at 6V; 3–40A at 12V; 3–20A at 24V
• Start Voltage 12V only 70A for 3 secs
• Approvals Electrical Satefy, EMC
• Charger Type 8 Stage Automatic
• Warranty 1 Year

Features:

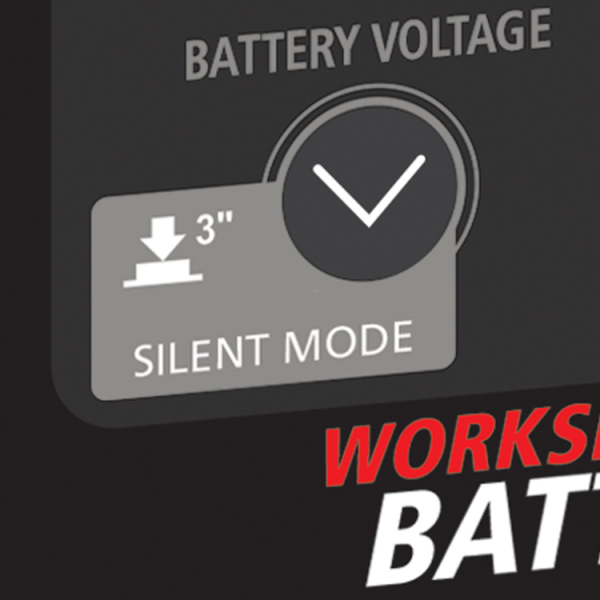

• Adjustable to suit 6, 12 or 24 Volt operation
• Charging options keep the operator in control
• Automatically turns charger off at set time

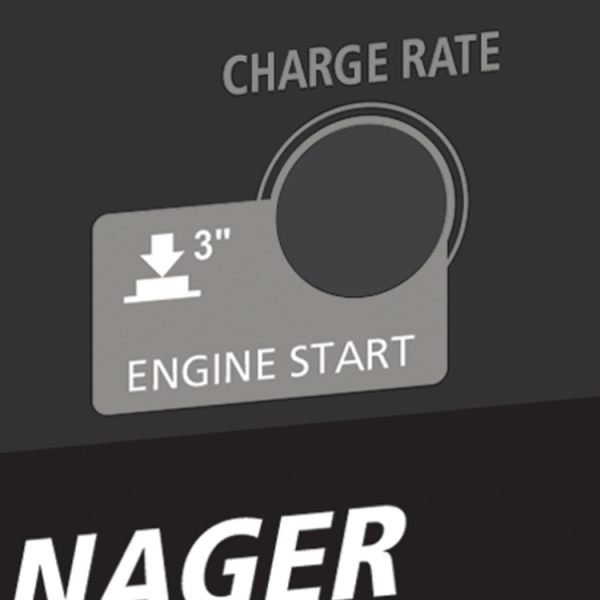

• Starts vehicle with a flat battery after a controlled 5 minute charge (subject to battery condition)

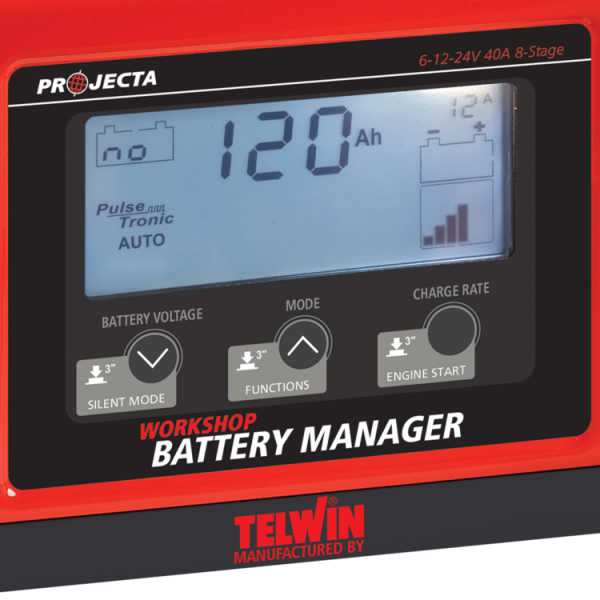

• Displays Volt and Amp readings for accurate charge status
• The Workshop charger range features multi-voltage operation, ideal for industrial environments where 6V, 12V or 24V batteries are often utilised
• Fully automatic and spark-free
• Automatic charging functionality, and depending on the level of sophistication required for the job at hand are available in either 2 stage (HDBC20 & HDBC35) or 8 stage (HDBM4000) options
