Renogy Battery Voltage Sensor with Battery Ring Terminals
Q & A | SKU: RVSCC Learn More»
Description

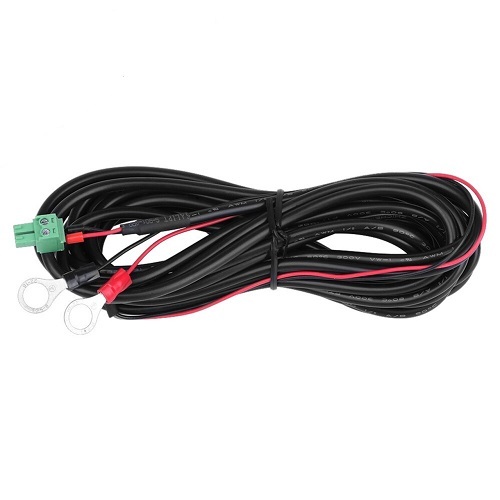

Renogy Battery Voltage Sensor with Battery Ring Terminals
The Battery Voltage Sensor provides users with more accurate battery charging giving you peace of mind that the charge controller is operating as effectively as it should. On certain applications with long line runs, there can be a difference between the voltage measured at an MPPT/PWM solar charger’s terminals and that measured at the battery terminals. The BVS is the perfect solution by providing a more accurate battery voltage to the controller and allowing it to adjust the charging stage more precisely resulting in overall extension of your battery life. Featuring a housing connector that easily connects to most of our Flagship MPPT and PWM charge controllers, the BVS Sensor is a simple yet effective plug and play solution for your system.
Features:

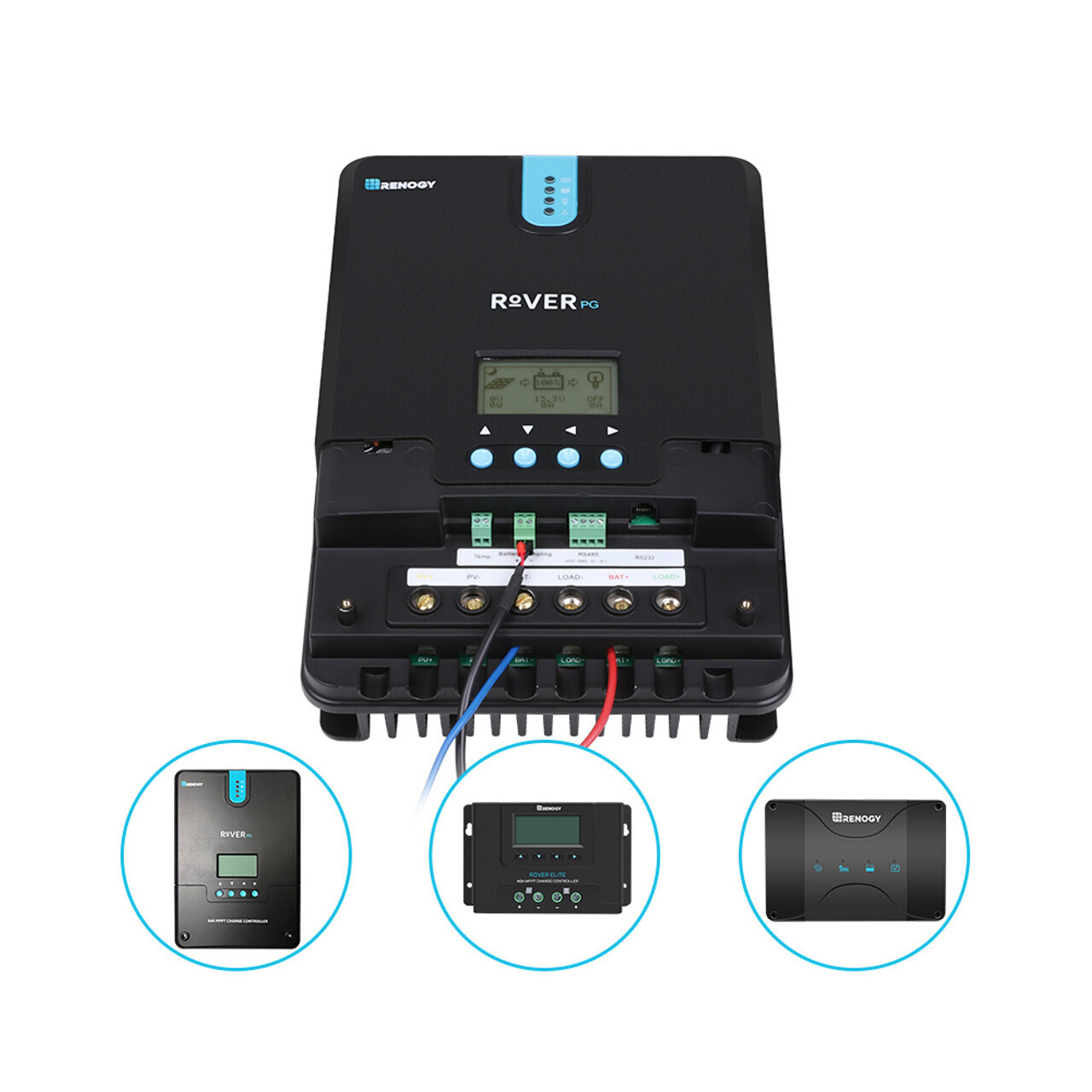

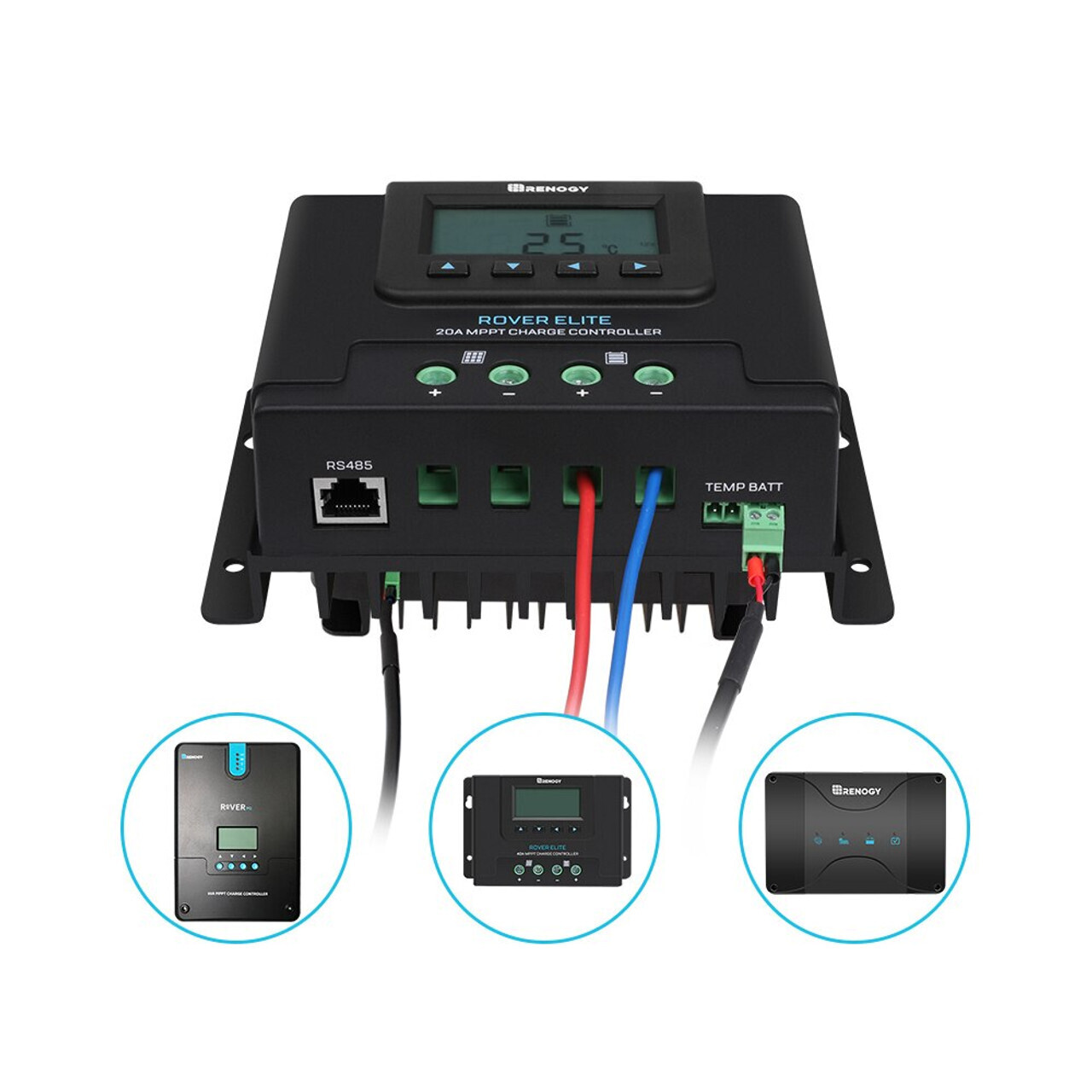

- Compatible with Renogy Rover Li 60A/100A and Rover Elite 20A/40A charge controllers as well as the 50A DC-DC MPPT Battery Charger.
- Works with 12V/24V/36V/ and 48V battery banks.

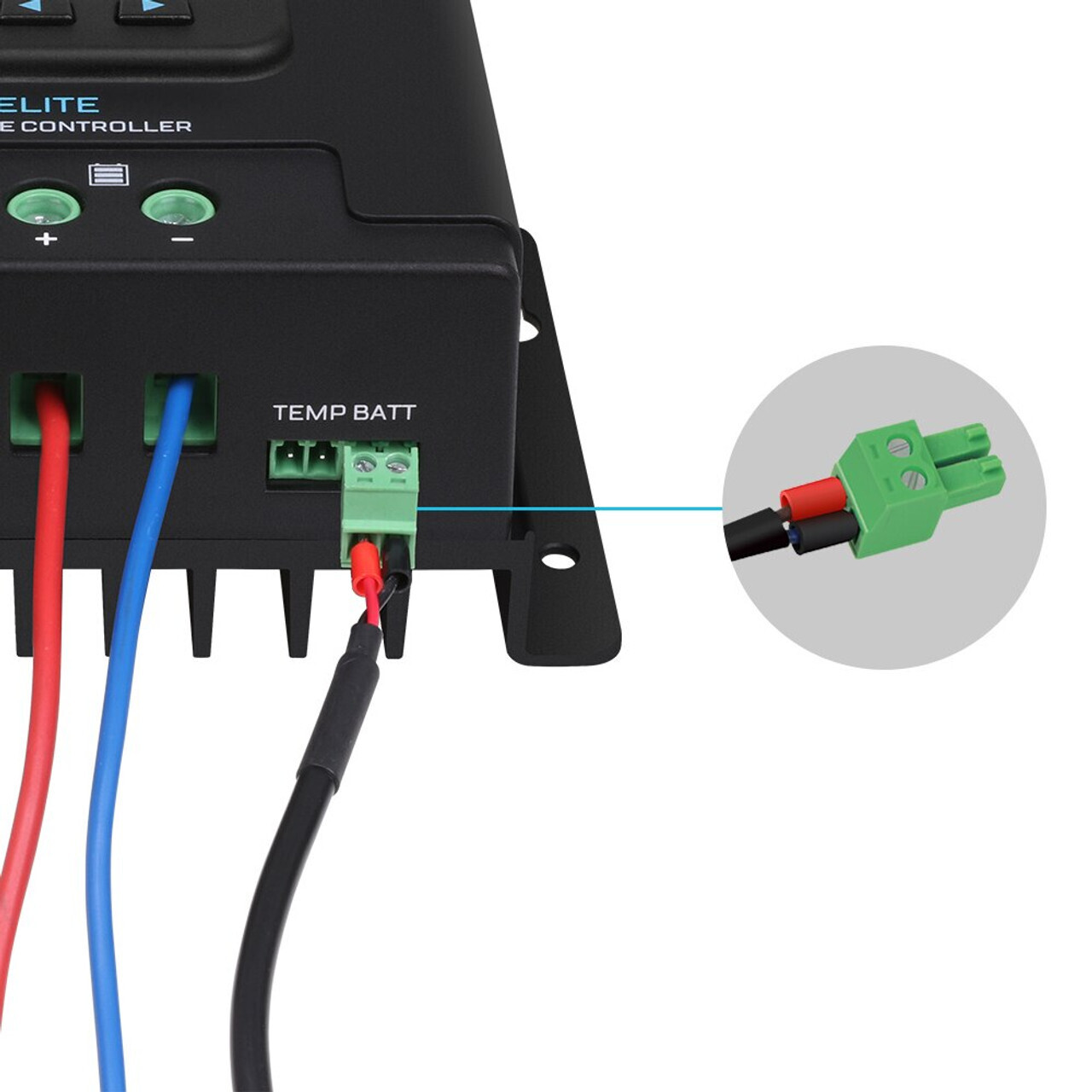

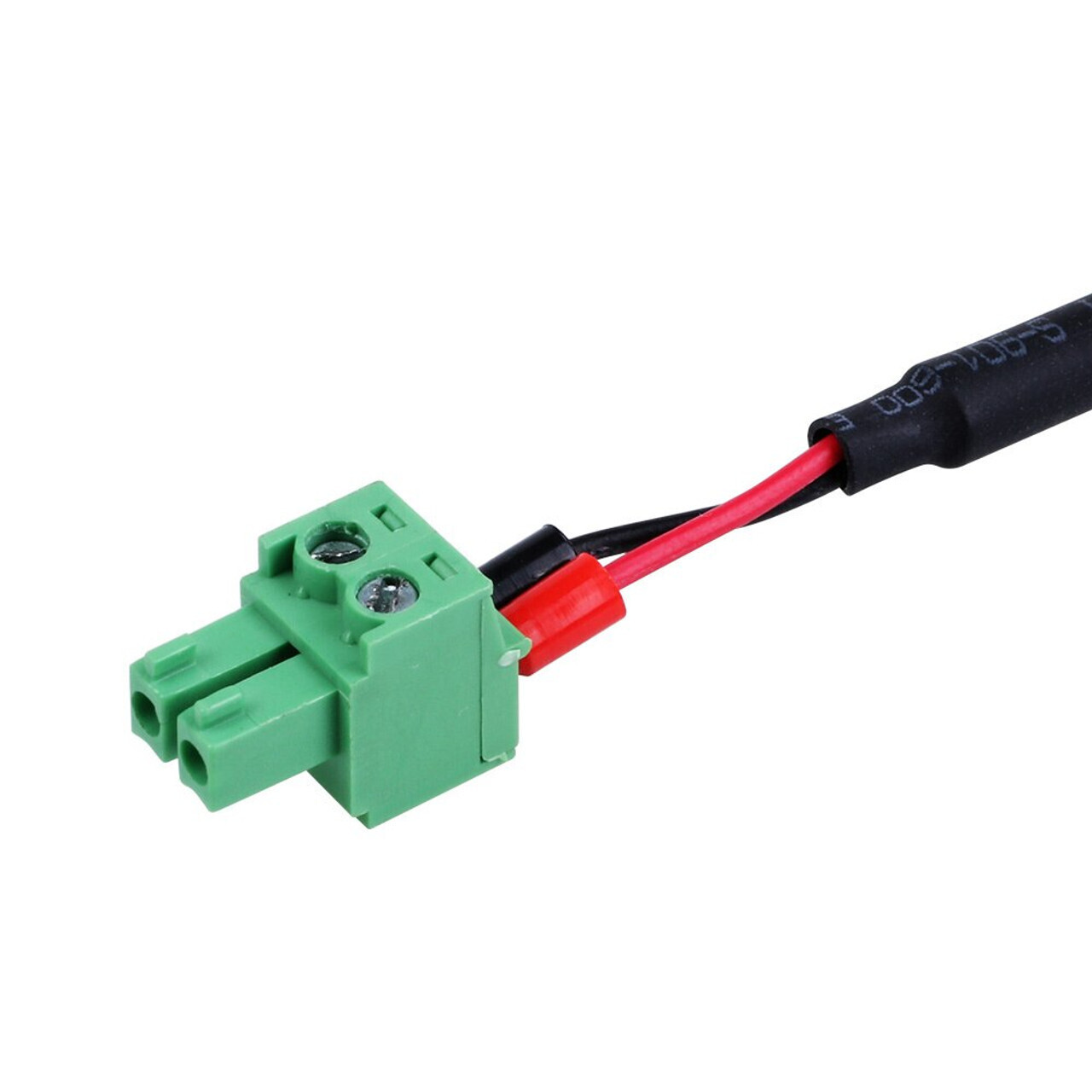

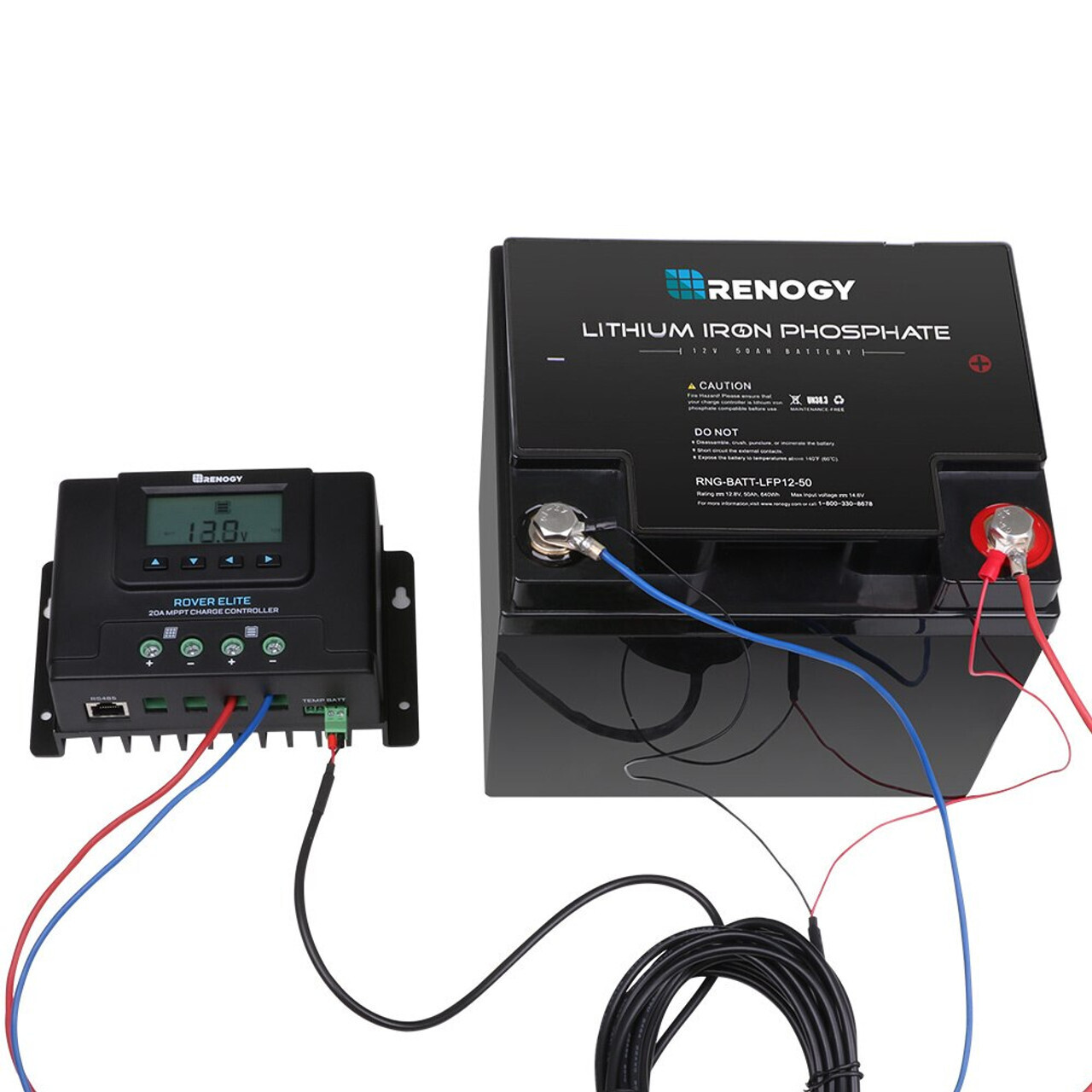

- Simple Installation – Plug in the connector to your charge controller, connect the ring terminals to your battery bank, and you’re ready to go!
- Accurate Voltage Sensing increasing overall battery performance and health
- ROHS and UL compliant.
Specifications:
- Nominal Voltage: 12V/24V/36V/48V Battery Banks

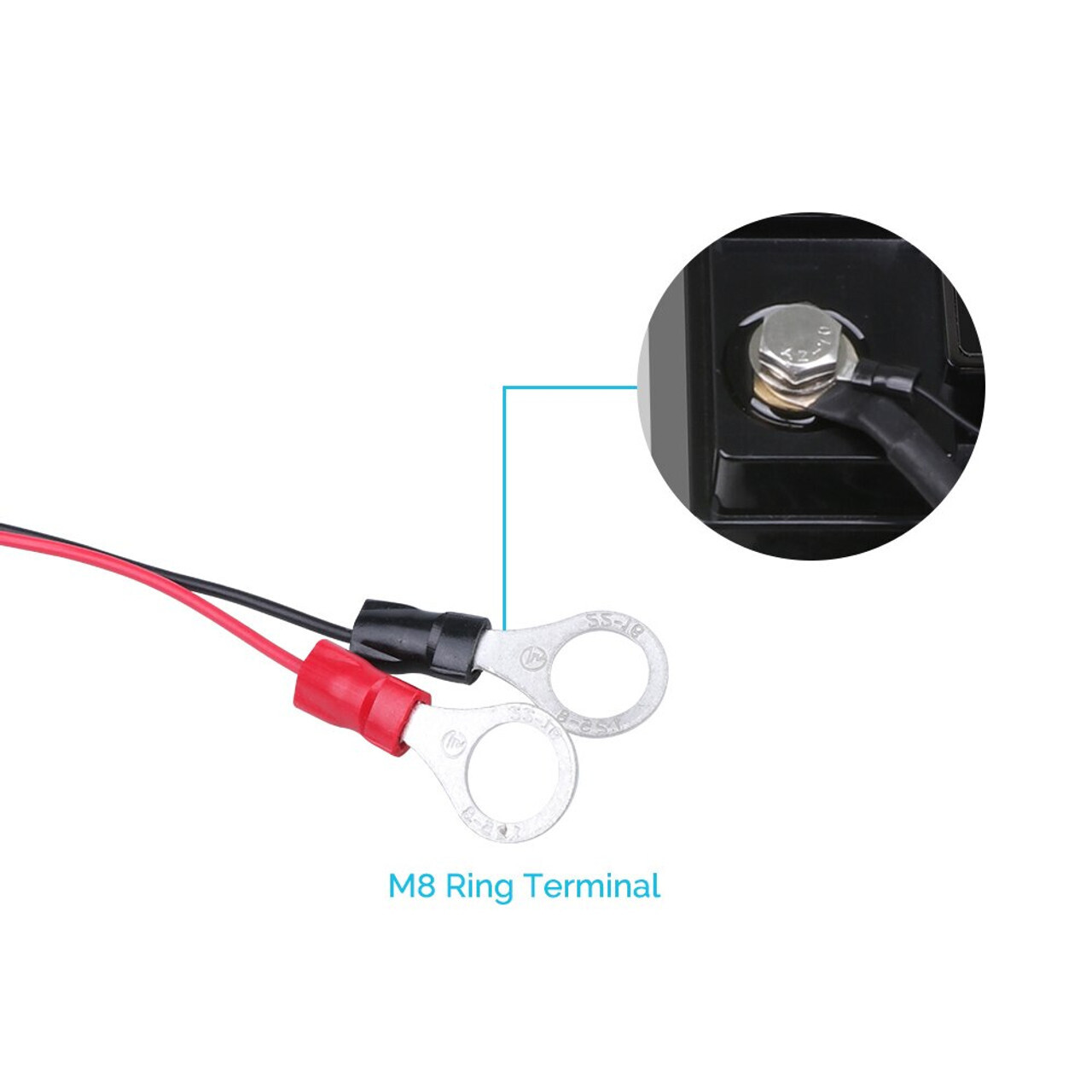

- Terminals: M8 (Approx. 5/16") Ring Terminal
- Weight: 0.2kg

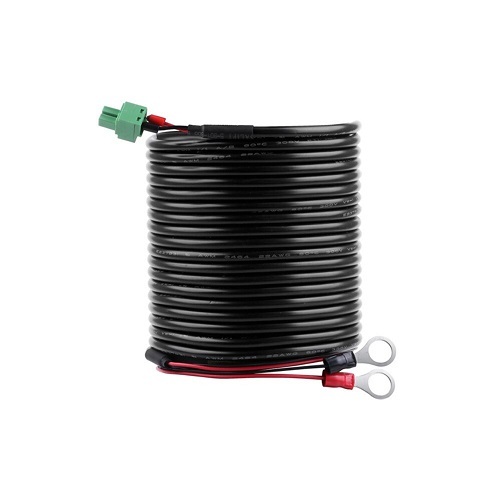

- Length: 5m
Specifications
SKU RVSCC
Brand Renogy
GTIN 00810009718635
Product Category Electrical Accessories
Length 5m
Weight (kg) 0.2000
NOTE: see full product specifications & further product info in the Description section on this page.
Warranty
Warranty Period: 1 Year
Warranty Details: Please CLICK HERE for Warranty Information on this product
