Renogy Monitoring Screen for Rover Elite Series
Q & A | SKU: RMS-RVRE Learn More»
Description

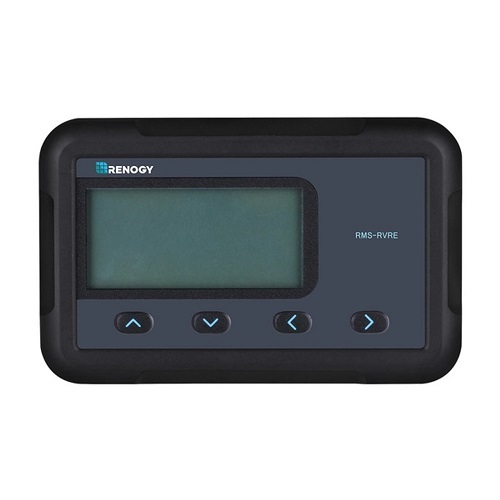

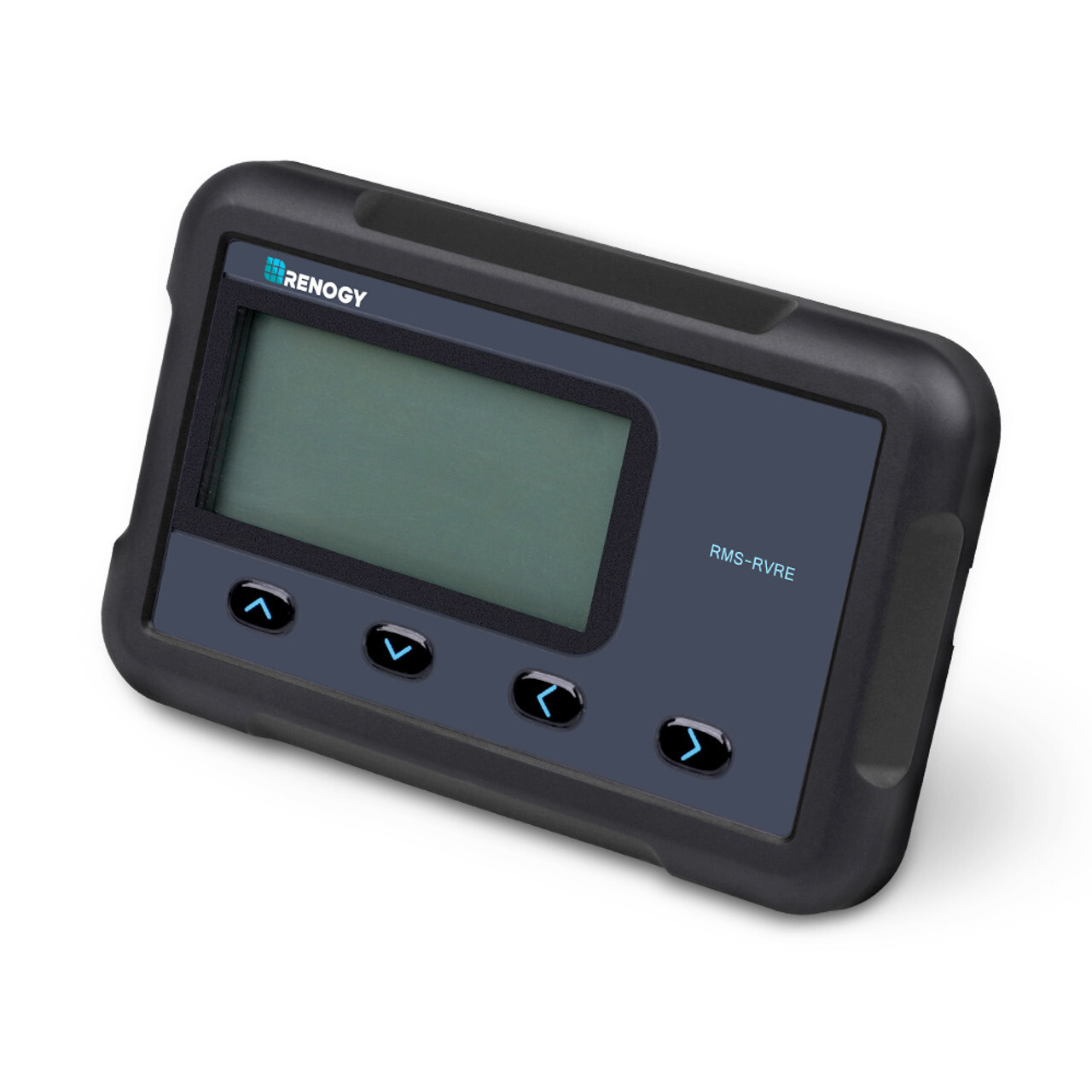

Renogy Monitoring Screen for Rover Elite Series
The RMS-RVRE is a high precision meter designed for Rover Elite charge controllers. Featuring a backlit display and flush-mountable, it is engineered for an aesthetically clean and professional look on RVs or camper walls. Utilize the 4-key input to easily navigate through your system information or modify quick parameters as well as identify any error codes. The RMS-RVRE is the perfect monitor companion to optimize any solar system!
Features:

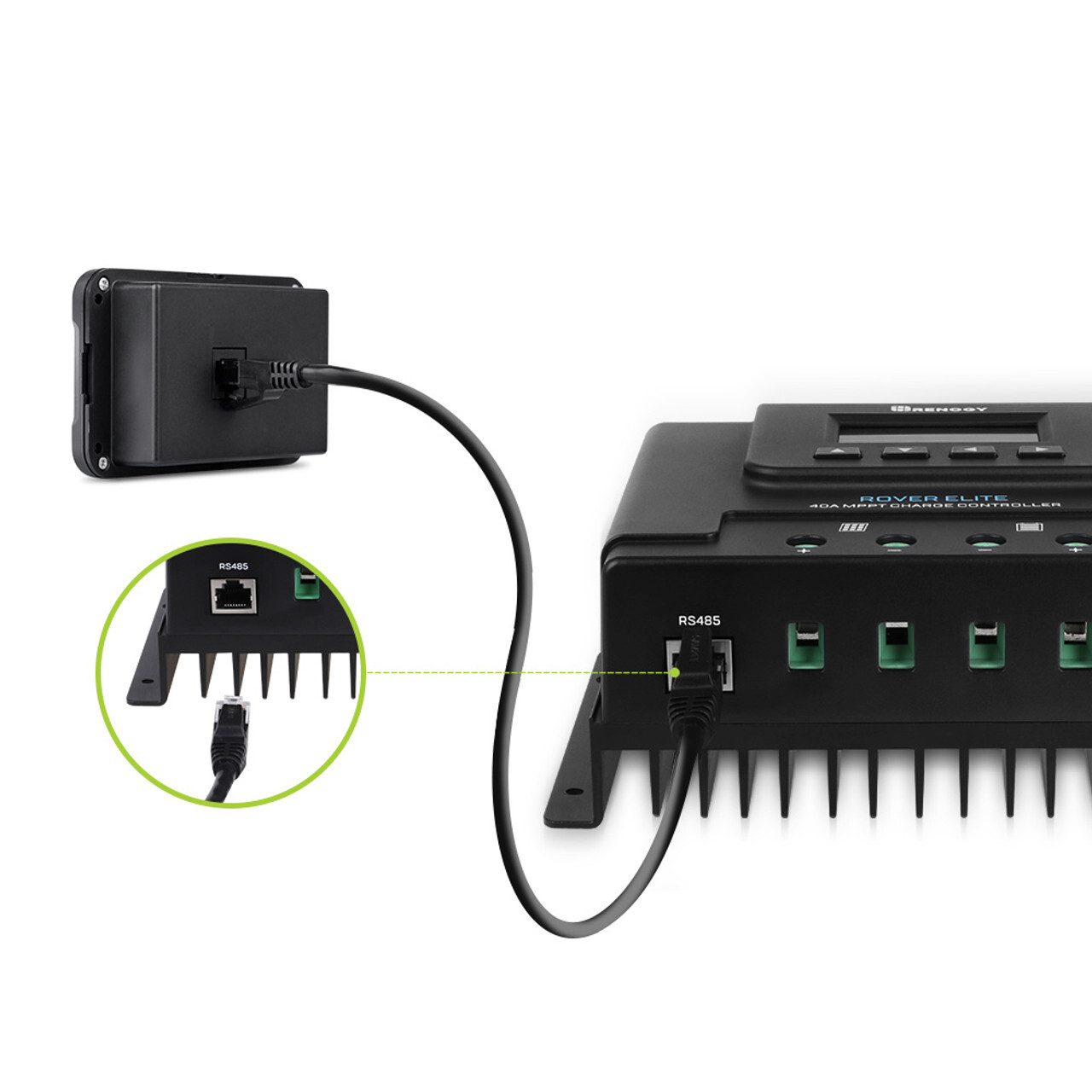

- Plug and Play: Simply connects the monitoring screen to the charge controller using an RJ45 communication cable for real-time monitoring.
- Accurate Readings: Obtains charge controller status directly from the Rover Elite for precise tracking and monitoring.

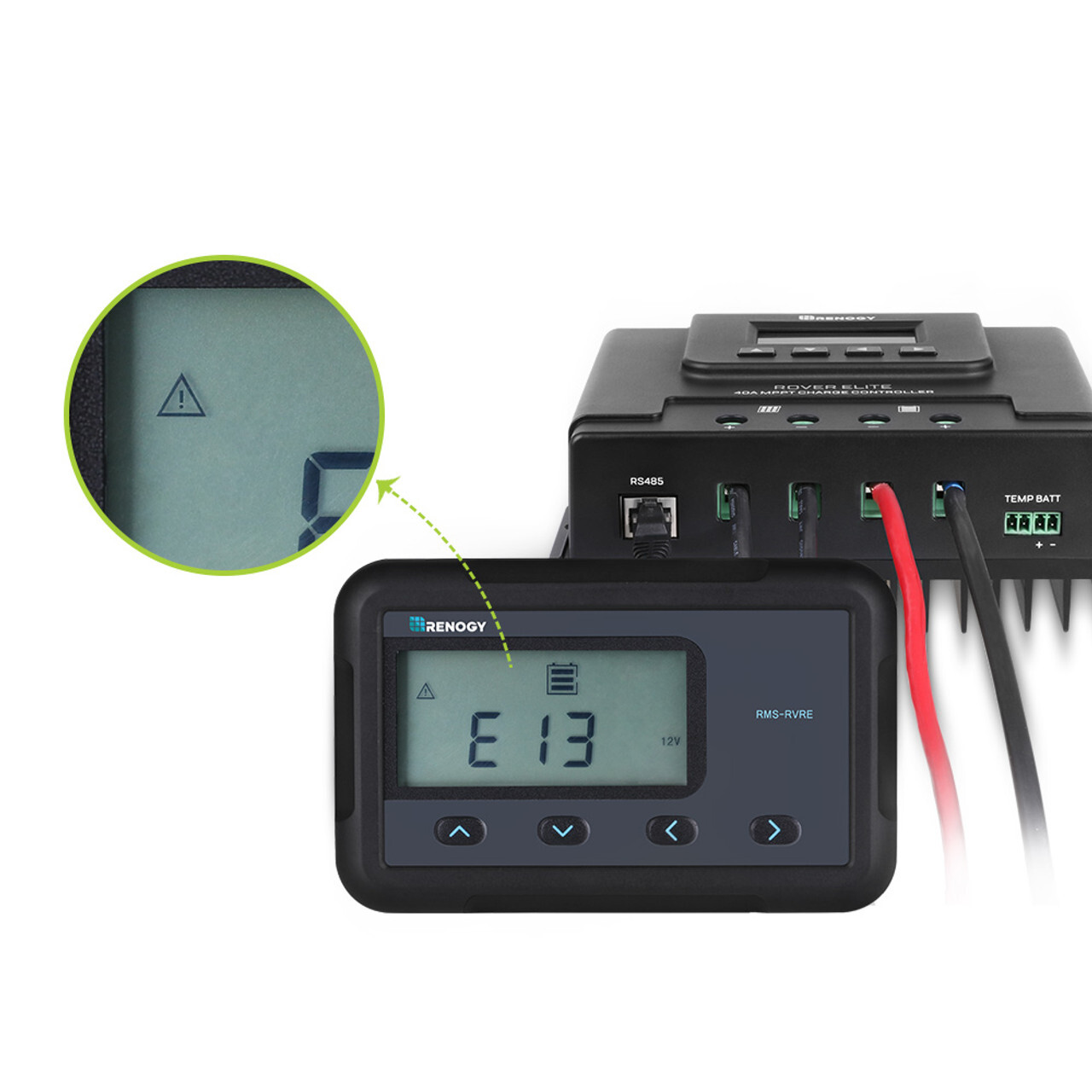

- Comprehensive Protection: Displays straightforward warning codes for the quick recognition of potential abnormal conditions and improper operation.

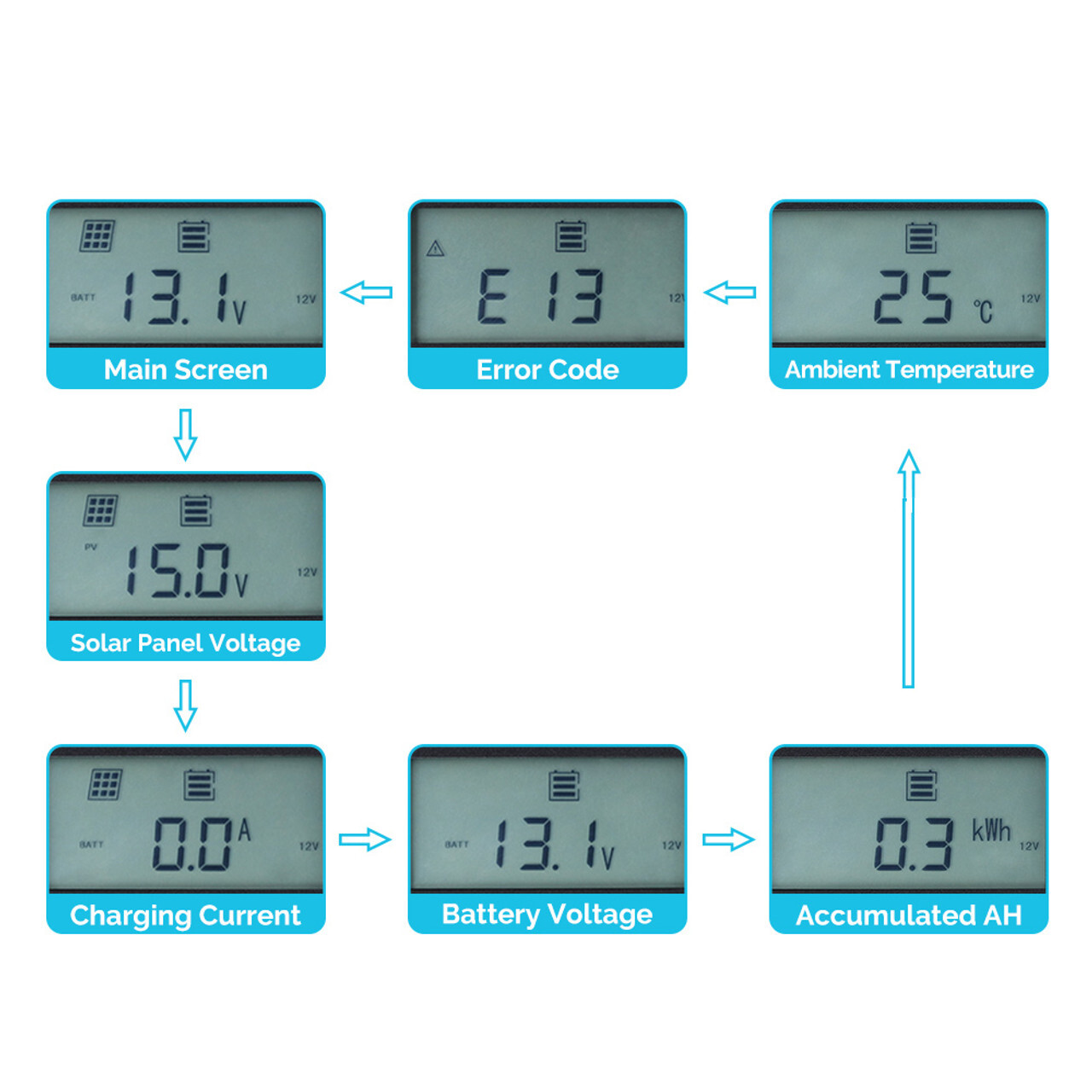

- Easy Operation: Shows detailed system information at the push of a button without the need of system configuration and calibration.
Specifications:
- Supply Voltage: 5VDC
- Communication Port: RJ45 (RS485 Protocol)
- Supply Current: 30mA
- Display: Backlit LCD
- Power Consumption: <1W
- User Interface: 4 Front Panel Menu Buttons
- Operating Temperature Range: -20°C~45°C
- Mounting System: Wall Mount
- Voltage Accuracy: ±0.1V

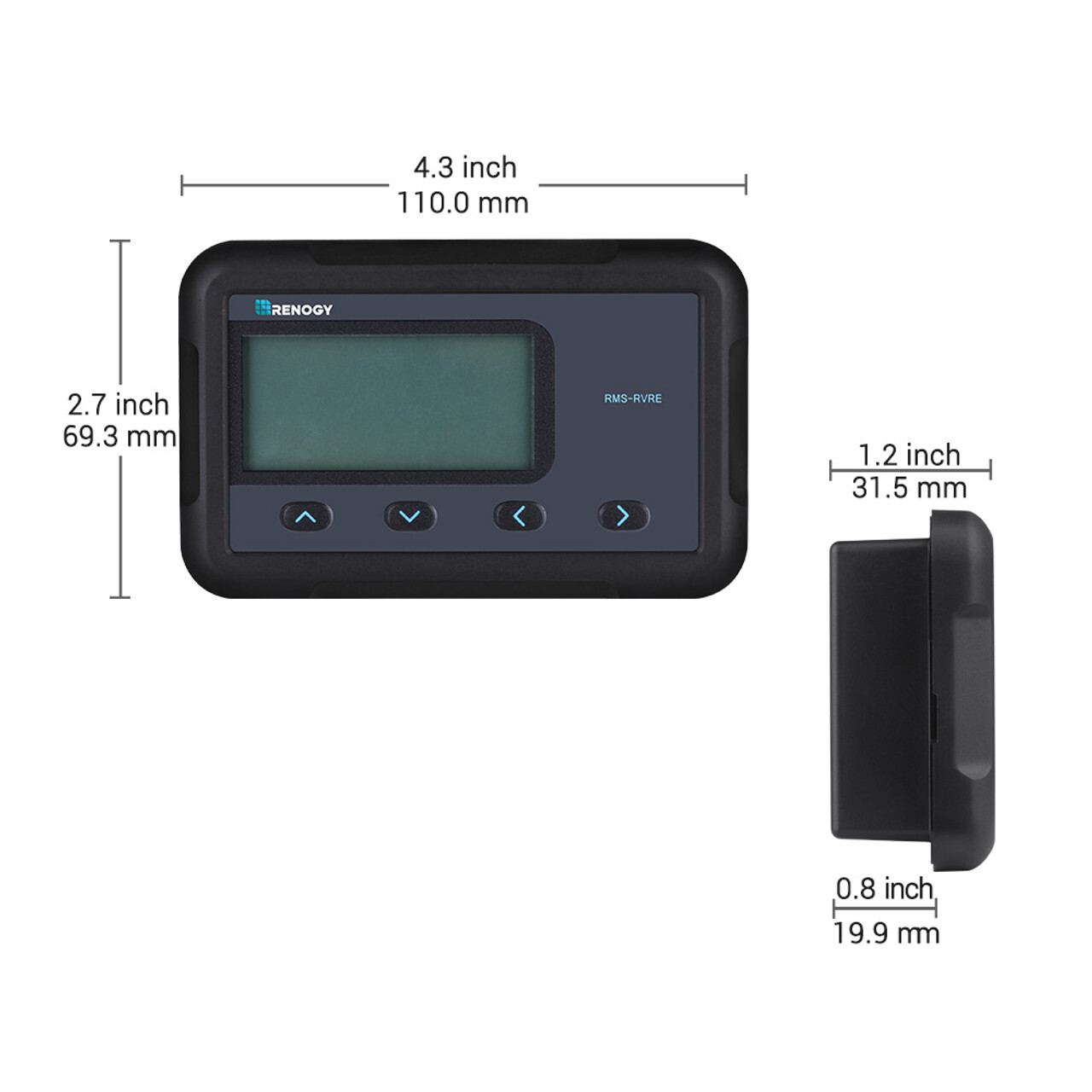

- Dimension: 70 x 110 x 31.8 mm
- Current Accuracy: ±0.1A
- Weight: 0.14 lbs / 62 g
- Wire Length: 16.4ft / 5m
- Mounting Screw: M2.9x13mm
.png)
Specifications
SKU RMS-RVRE
Brand Renogy
GTIN 00810009715283
Product Category Electrical Accessories
Supply Current 30mA
Operating temperature range -20°C~45°C
Dimensions 70 x 110 x 31.8 mm
Weight (kg) 0.062
NOTE: see full product specifications & further product info in the Description section on this page.
