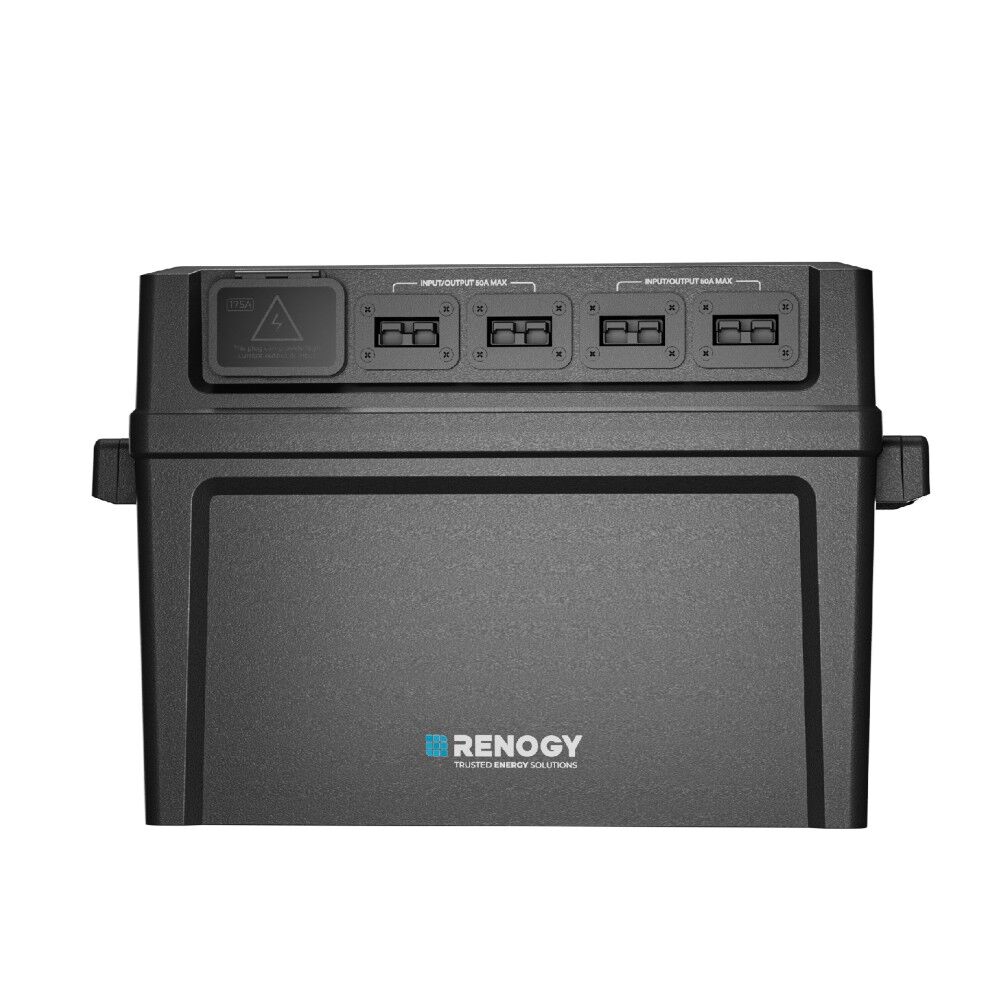

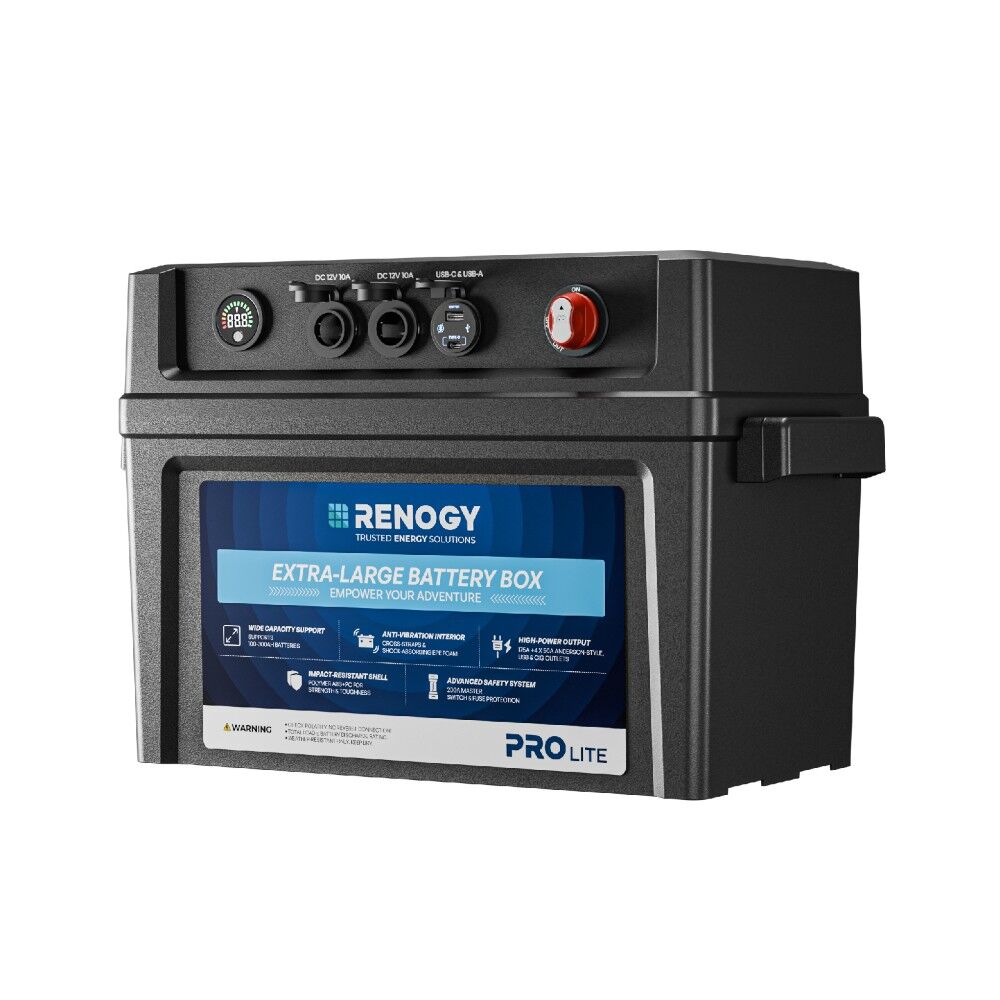

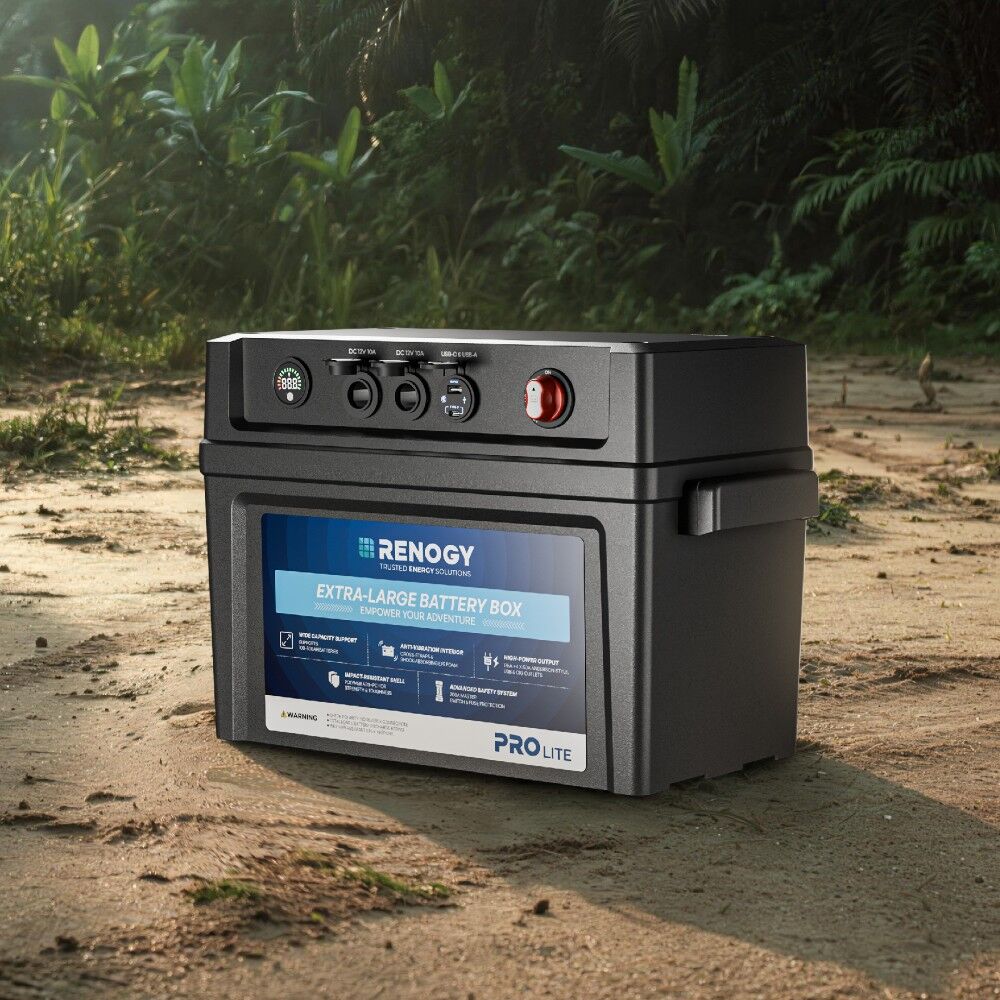

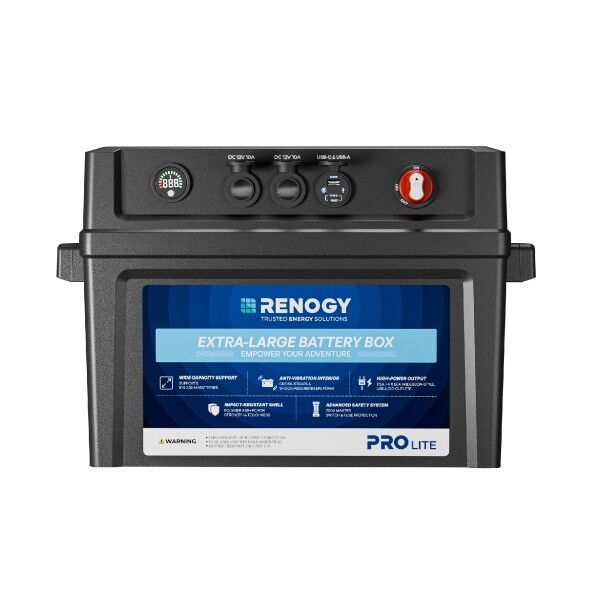

Renogy XL Smart Battery Box
The Renogy Extra-Large Battery Box delivers flexible, high-power energy storage for camping, 4WD, and off-grid adventures. It fits 100Ah–300Ah deep cycle batteries and protects them with a rugged, impact-resistant shell and anti-vibration interior.
Equipped with pre-installed ports, including dual USB, CIG, a 175A Anderson connector, and four 50A Anderson connectors, it powers multiple devices reliably. A built-in 200A master switch and 50A auto-reset fuses ensure safe operation. The integrated display shows real-time voltage while the plug-and-play design allows quick and hassle-free setup anywhere.
Features:
- Fits 100–300Ah deep cycle batteries up to 339 x 185 x 248mm with extra-large capacity
- Provides high power via 175A and 50A Anderson-style ports, plus USB and CIG sockets
- Built-in 200A master switch and auto-reset fuses protect battery and devices
- Integrated display shows real-time voltage and system status
- Impact-resistant shell with anti-vibration interior for rugged conditions
- Pre-installed ports and plug-and-play design for quick setup
Specifications:
- Compatible System Voltage: 12V DC
- Materials: PC + ABS
- Suitable Battery Types: Deep Cycle Batteries (Lithium, AGM, Calcium, Wet, Gel)
- Max. Battery Dimensions: 339 x 185 x 248mm
- Ports" 1 x 175A + 4 x 50A Anderson-Style Ports, Dual USB&CIG
- Continuous Current: Total 135A
- Ratings: 200A Master Switch, 2 x 50A Auto-Reset Breakers (Anderson-Style Plugs), 1 x 30A Blade Fuse (USB and CIG Ports)
- Display: Voltage Display Screen
- Dimensions: 500 x 250 x 330mm
- Weight: 4.1kg
- Operating Temperature: -20°C to 65°C
- Storage Temperature: Within 7 days: -30°C to 65°C
- Long-term: -20°C to 50°C
- Operating Humidity: 0% to 95%, RH, no condensation
The compatibility of the battery box is 12V 100ah-300ah lithium battery, including Mini series, pro series and core series.
Compatible products:
- RBT12100LFP-M
- RBT12200LFP-M
- RBT12300LFP-M
- RBT12200LFP-B
- RBT12300LFPSH
- RBT12100LFP-TM-BT
- RBT12100LFP-BT
- RBT12200LFP-BT
Specifications
SKU ROA05PB
Brand Renogy
GTIN 840315262478
Product Category Battery Boxes
Operating Temperature -20°C to 65°C
Dimensions 500 x 250 x 330 mm
Compatible With Standard 12V 100Ah / Renogy 12.8V 300Ah PROLite (PLU 720803) / Renogy 100Ah PROLite (PLU 698903)/ Renogy battery series (excluding slimline)
Material Superior ABS+PC polymer compound
Weight (kg) 4.1
Storage Temperature -30°C to 65°C
Operating Humidity 0% to 95% RH, No Condensation
Continuous Current 135A
Connectors 4 x 50A and 1 x 175A Anderson-style connectors (with protective caps)
Switch 200A
