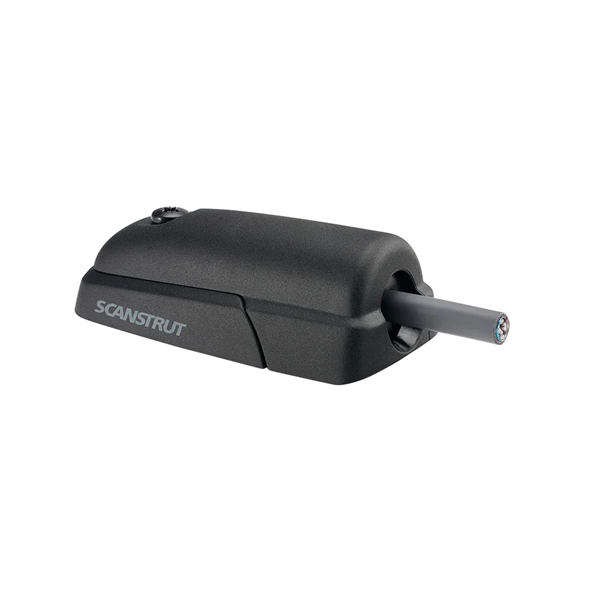

Scanstrut Starlink Compatible Horizontal Cable Seal, 2-8mm / 16mm, Black

Scanstrut Starlink Compatible Horizontal Cable Seal, 2-8mm / 16mm, Black

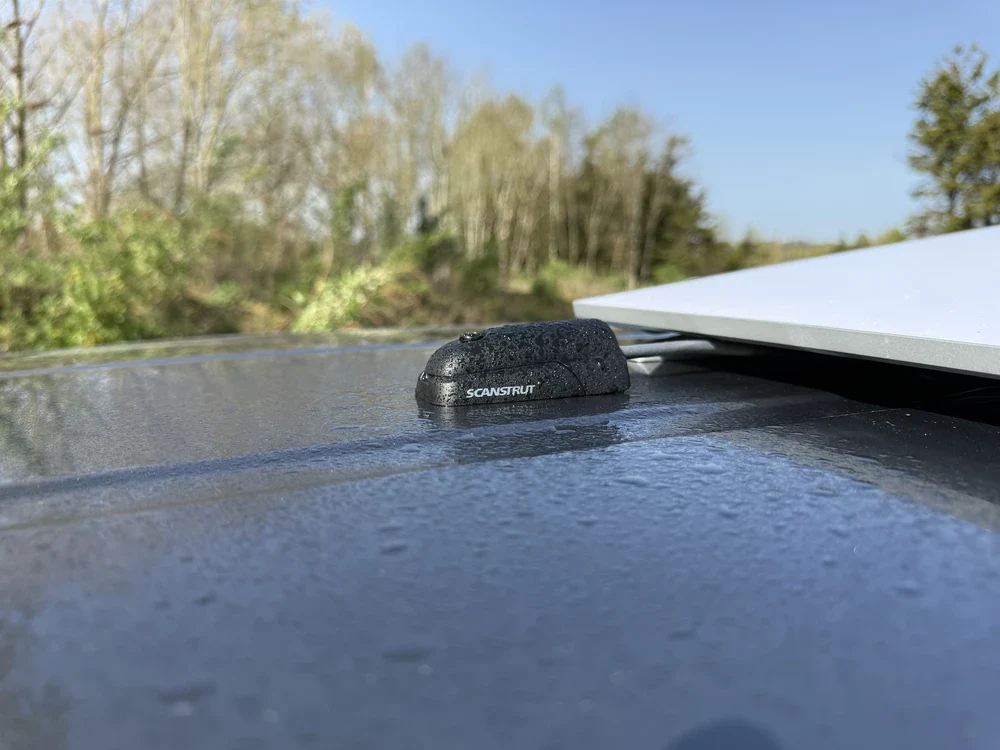

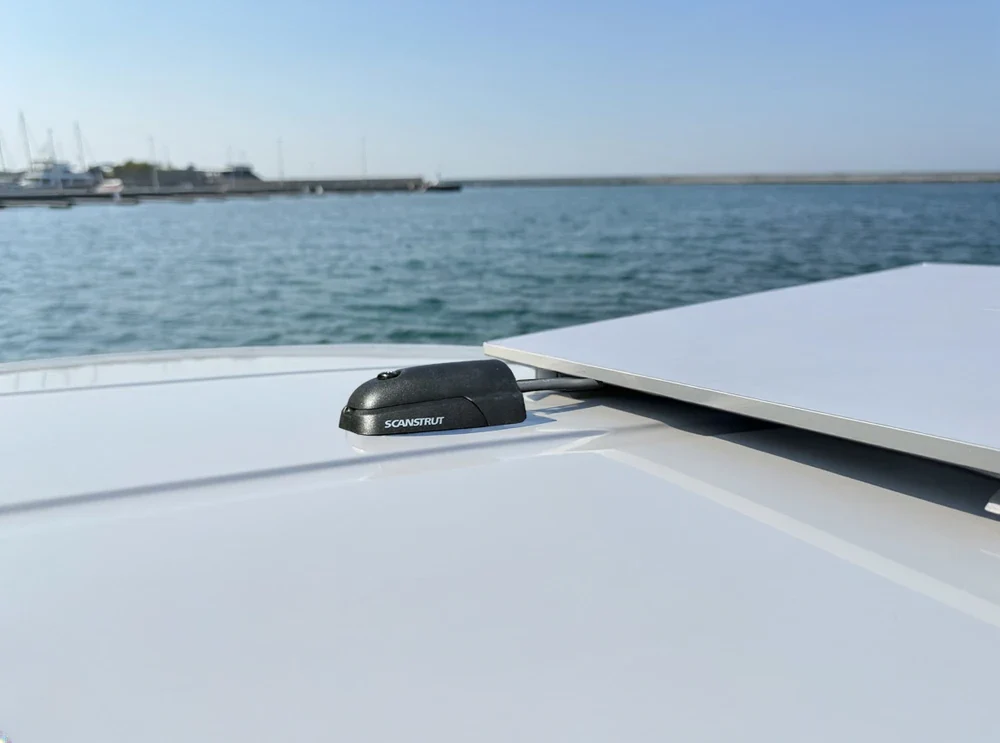

The Scanstrut DS-HSL-01 provides a premium, low-profile cable routing solution specifically designed for installing satellite internet, NMEA networking, and marine electronics. Whether you are mounting equipment on a caravan roof, 4WD canopy, or marine vessel, creating a watertight entry point is critical. This horizontal cable seal eliminates the risk of water ingress while maintaining a sleek, professional finish.

Install Starlink and Networking Cables Without Cutting Connectors

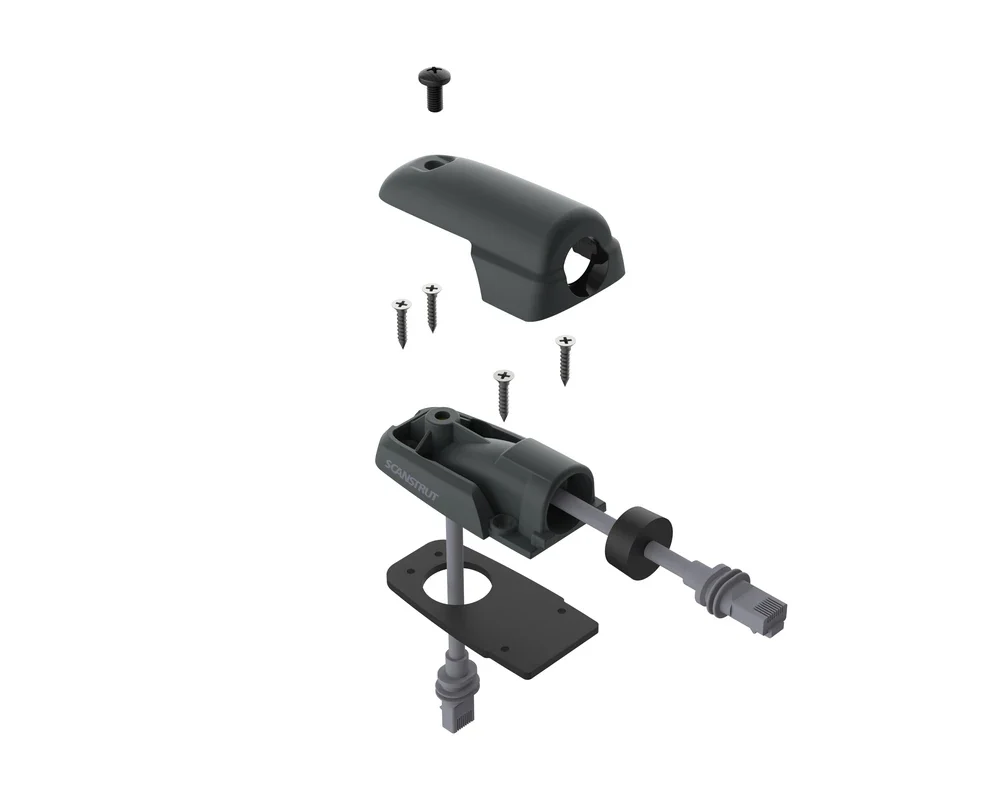

One of the biggest challenges when installing modern satellite internet systems like Starlink Performance (Gen 3), Standard (Gen 3), or Mini is routing the proprietary cables without damaging them. Standard cable glands often require you to cut the cable, feed it through, and re-terminate the end. This product solves that problem entirely. It features an innovative split bung design that allows cables with attached connectors (up to 16mm in diameter) to pass straight through the seal. You can easily route your cables safely, saving time and removing the risk of poorly re-crimped connections.

Eliminate the Risks of Roof Leaks

When drilling into the roof of a caravan, camper trailer, or boat, the structural integrity and weatherproofing of the surface are immediately compromised. Inferior or poorly sealed cable entries can lead to slow water leaks, which often result in costly damage, including timber rot, mould growth, and electrical faults. This horizontal cable seal mitigates those risks by providing a mechanically compressed, IP68-rated seal. By using a specialised base gasket rather than relying on standard liquid adhesives or sealants, it delivers a consistent, dependable barrier against water ingress that will not dry out, crack, or degrade under the intense Australian sun.

Marine-Grade Durability for Australian Conditions

Built to withstand harsh environments, this high-impact plastic housing offers exceptional UV stability and durability. It achieves an IP68 waterproof rating, ensuring your vehicle or vessel remains completely protected from heavy rain, saltwater spray, and dust. Unlike standard cable entries that rely on messy silicone sealants that degrade over time, the Scanstrut seal utilises a precision-engineered base gasket for a secure, long-lasting watertight barrier.

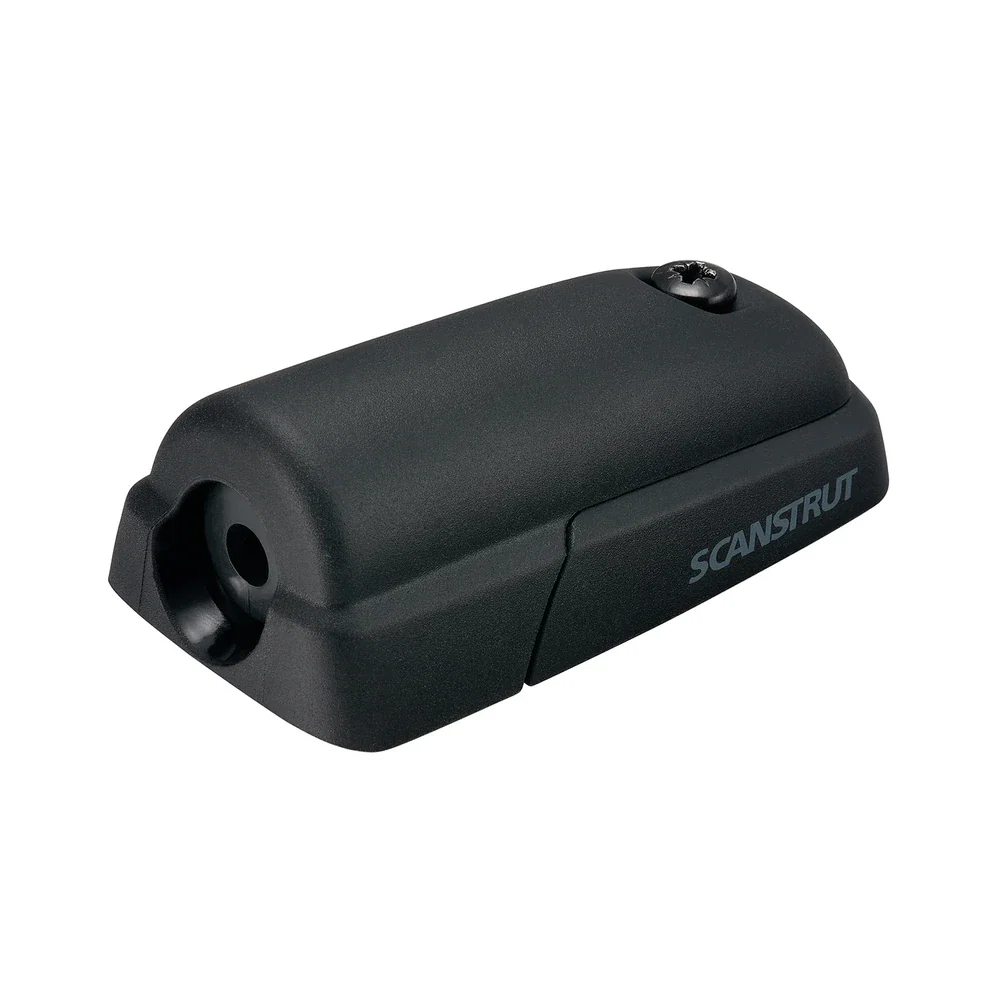

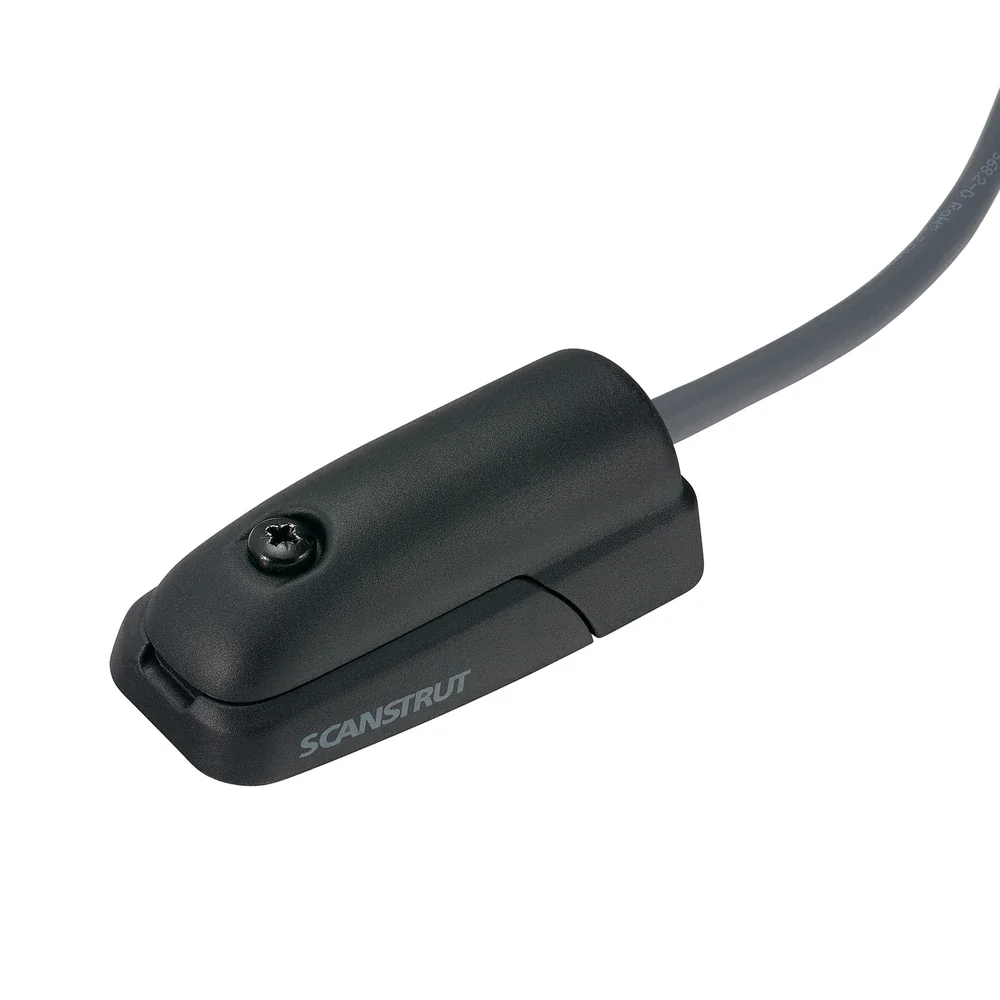

Low-Profile Horizontal Design

Keeping your roof clear of snag hazards is essential, especially in off-grid travel or marine applications. The horizontal cable entry design directs the wire parallel to the mounting surface. At just 29mm high, the low-profile construction reduces the chance of catching on branches or rigging. Captive nuts integrated into the base make for a fast, reliable installation and allow for easy dismantling if you ever need to upgrade your wiring.

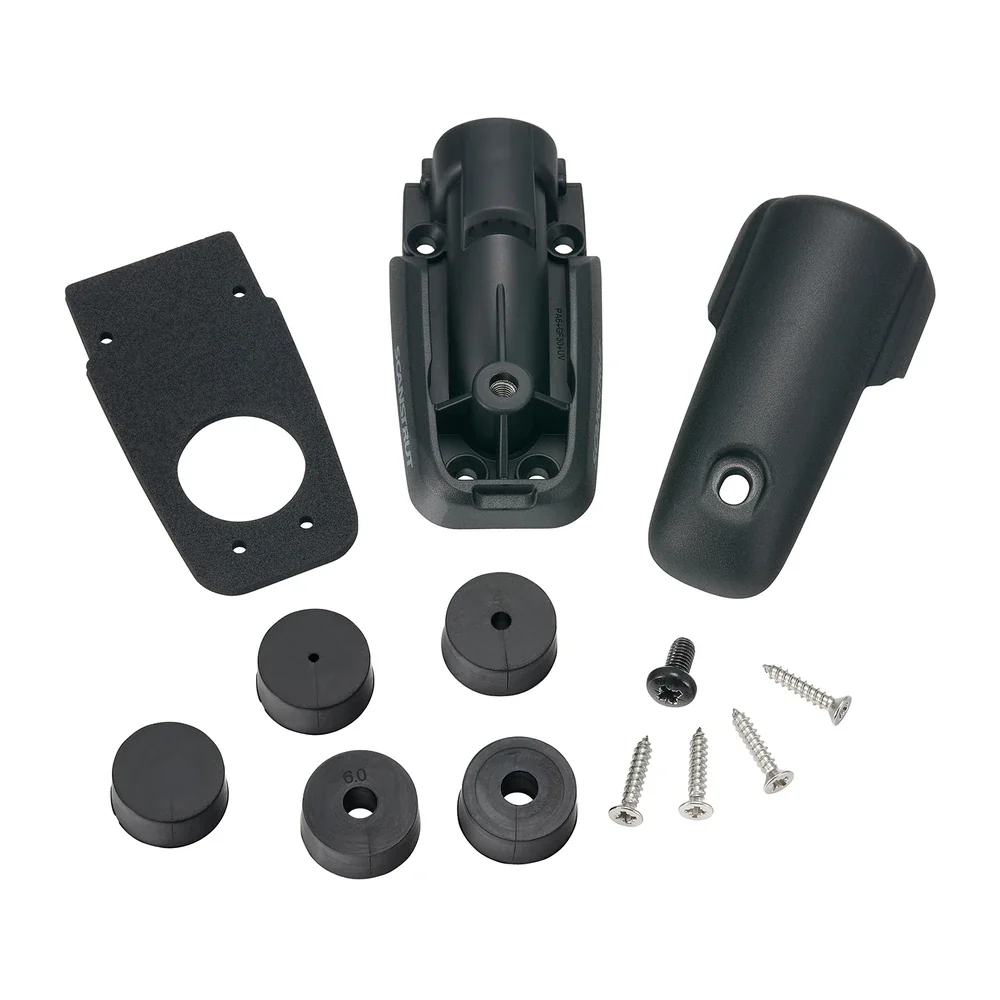

Versatile Sizing with Customisable Split Bungs

Every installation is unique, which is why this system includes a comprehensive selection of split bungs. The kit covers cable diameters ranging from 2mm up to 8mm, with specific inserts for 2-3mm, 4-5mm, 6-7mm, and 7-8mm sizes. Additionally, a blank self-drill bung is provided, allowing installers to drill a custom hole for uniquely sized marine or automotive wiring. Because the bungs are split down the middle, they wrap cleanly around the wire, accommodating bulky connectors up to 16mm in diameter without a second thought.

Key Features:

• Fits cable diameters from 2mm to 8mm and connectors up to 16mm
• Compatible with Starlink Gen 3, Starlink Mini, NMEA, and RJ45 cables
• IP68 waterproof rating provides dependable protection against water and dust
• Split bung system allows installation without cutting or re-terminating connectors
• Includes multiple pre-drilled bungs and one blank self-drill bung for custom sizes
• High-impact, UV-stable black plastic housing built for harsh outdoor environments
• Clean installation process requiring no messy liquid sealants
• Low-profile 29mm height reduces snag hazards on vehicle roofs and boat decks

Upgrade Your Off-Grid Connectivity

Ensure your satellite and networking equipment is installed safely and securely. Add the Scanstrut Black Horizontal Cable Seal to your cart today for a professional, watertight finish on your next rooftop installation.

Specifications:

• Material: High Impact Plastic
• Height: 29 mm
• Length: 88 mm
• Colour: Black
• Cable Compatibility: Starlink Performance (Gen 3), Starlink Enterprise (Gen 3), Standard (Gen 3), Mini, NMEA cables, RJ45 cables
• Cable Range: 2-8 mm
• Max Connector Size : 16 mm
• Waterproof Rating: IP68

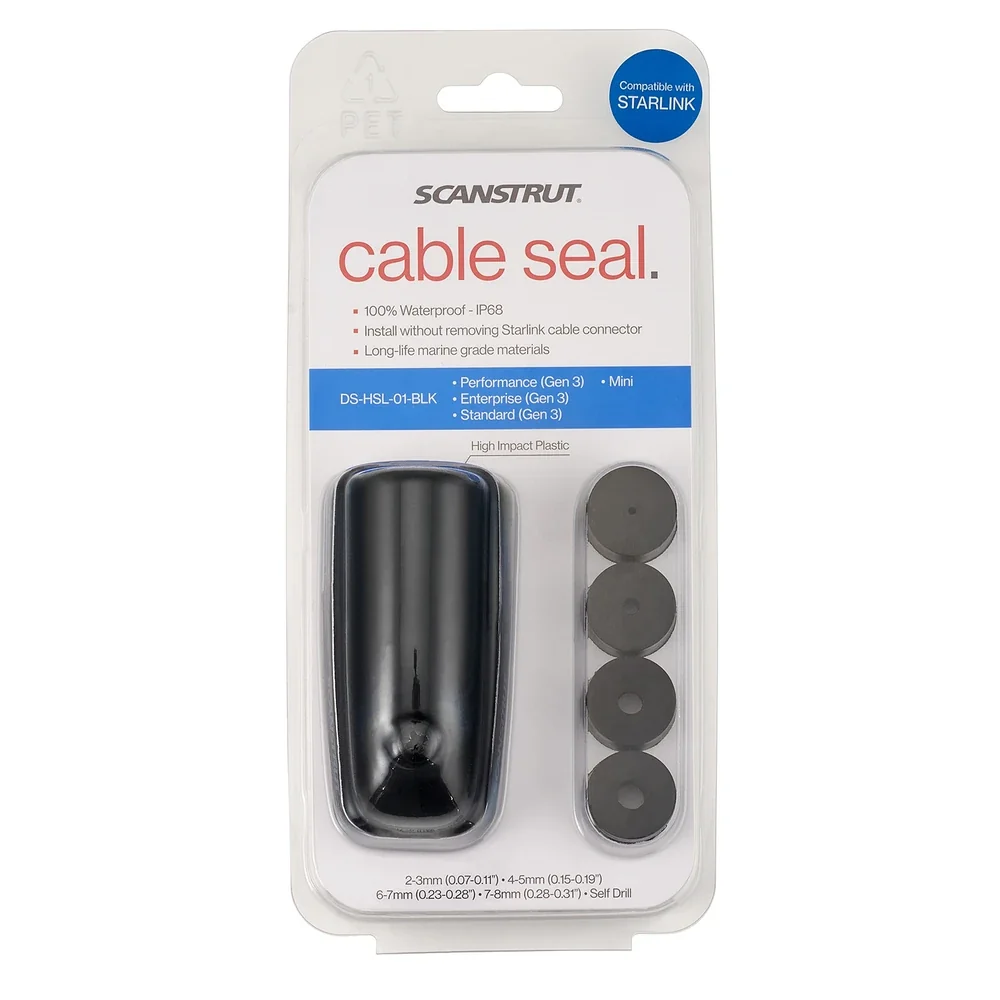

• Bungs:
  • 2-3 mm
  • 4-5 mm
  • 6-7 mm
  • 7-8 mm
  • 1 x Self Drill
