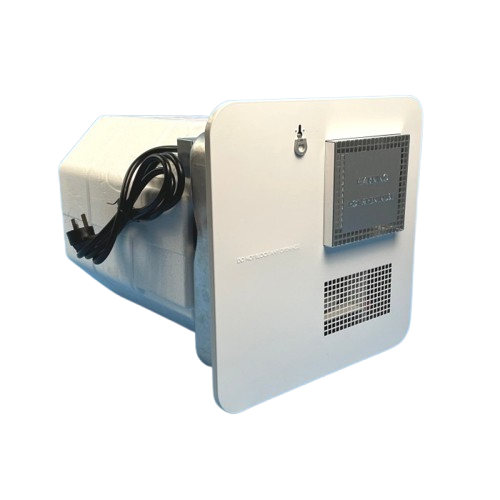

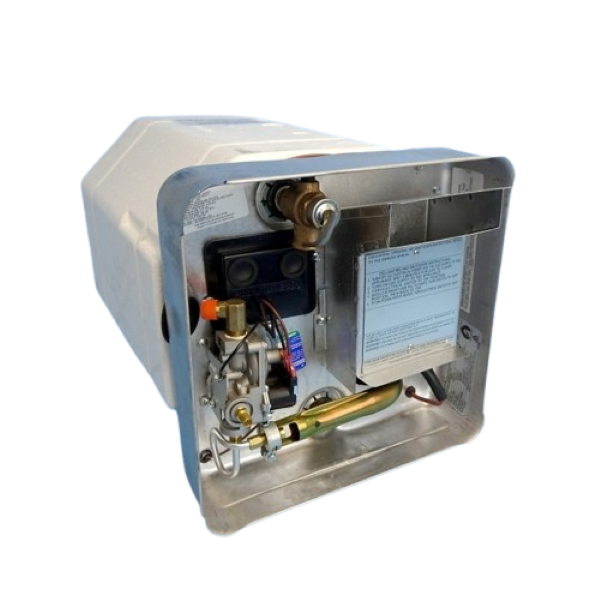

Suburban SW4DERA Hot Water System - 15.1L Capacity - 12V/240V/LPG, White

Suburban SW4DERA Hot Water System - 15.1L Capacity - 12V/240V/LPG, White

This Suburban is a Gas/Electric water heater and has been WaterMark certified for the Australian market. The Suburban range of water heaters include Gas, 240V & Gas/Electric models and offer manual or 12V ignition. Manufactured in the USA featuring a steel tank with porcelain lining for an extended life and copolymer insulation jacket for superior heat retention.

These hot water systems fit under a seat or in the back of a cupboard, with a door and access from the outside of the RV.

Features:

• All Suburban RV hot water systems have a porcelain-lined, high tensile steel tank which are pressure tested twice for assurance of tank integrity and a long life.
• All Suburban RV hot water systems have an anode rod which absorbs corrosive action in the hot water. It is located on the bottom of the hot water system under the main burner; you simply unscrew this to drain the tank of water. If the rod is mostly eaten away, replace it with a new one.
• Easy access, foam tank insulation and high recovery rate.
• Direct spark ignition for gas and an electric element.
• Spare parts are available.

Specifications:

• Capacity: 15.1 L
• Maximum / Minimum Working Pressure: 700 kPa / 150 kPa
• Heating Source: Universal Gas or 240 V
• Ignition Type: 12 V
• Recovery: 40 L/hr, 45° rise
• Dimensions (mm): (H) 320 x (W) 320 x (D) 450 (plus pipe connections at rear)
• Includes door - Overall Dimensions 380 mm x 380 mm
• 240 V - 50 Hz AC, 1,440 W - 6 A
• WaterMark Certified
• Gas inlet: 3/8 inch SAE
• Gas consumption: 8.7 MJ/h
• Cold water inlet: 1/2 inch female BSP
• Hot water outlet: 1/2 inch female BSP
• Anode thread: 3/4 inch female NPT
