BMPRO MiniBoost 12V 20A DC-DC Battery Charger
Free Shipping

BMPRO MiniBoost 12V 20A DC-DC Battery Charger

Q & A |    SKU: BMPMB1220 Learn More»

$412
In Stock1-2 Days Dispatch
Take an EXTRA $10 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»

Description

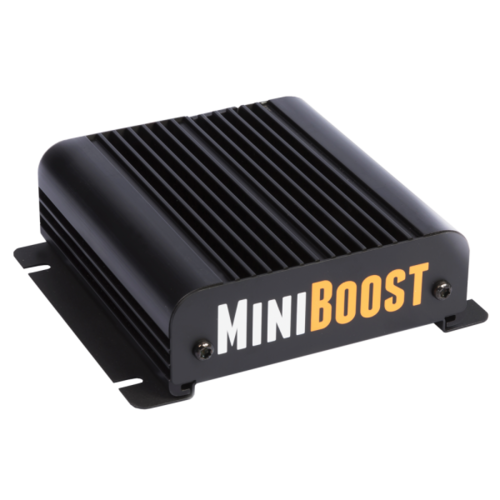

BMPRO MiniBoost 20A 12V DC to DC Battery Charger



The BMPRO MiniBoost is a compact DC-DC charger /booster for RVs. It is specially designed to work with BMPRO’s BatteryPlus35 and J35 systems. The MiniBoost DC to DC charger provides a 2-stage charging profile. It delivers an efficient and controlled current until the auxiliary battery is charged. Miniboost functions when wired directly to most 12V Lead Acid batteries.



Dometic Harrier Operation Manual

*Please Note: The MiniBoost is not a power supply and must be connected to a battery.



The table below illustrates the compatibility of the different BMPRO products and if any prerequisites apply to a combination

Please CLICK HERE to view more information



Specifications

SKU BMPMB1220

Brand BMPRO

GTIN 799439885516

Product Category Battery Chargers

voltage 12V

Output Current Rating (Amps) 8

Weight (kg) 1.8

Dimensions 157 x 131 x 39 (LxWxH) mm


NOTE: see full product specifications & further product info in the section on this page.

Warranty

Warranty Period: 2 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Delivery

  • We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
  • Small Items are sent with Australia Post via regular post.
  • Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
  • Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
  • Items are fully insured during the freight process.
  • Unfortunately we cannot deliver to PO Boxes.
  • For further details on our Delivery Process you can visit our Delivery Page HERE.

Reviews

Be The First To Review This Product!

Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.

Write a product review

Q & A


  • Can the MiniBoost Battery Charger be connected directly to the battery?

    Yes, it can be connected directly to the battery. All loads are required to be fused though.

  • Is it necessary to install the relay as suggested in the product manual?

    Yes. The vehicle battery will be drained and the secondary battery might be overcharged if the vehicle remains connected.

  • Is it possible to connect the MiniBoost Battery Charger to a solar panel?

    No, unfortunately not. Please refer to the MiniBoostPro to be able to connect to a solar panel.

  • Can the MiniBoost be used without a J35 or BP35?

    The MiniBoost can be connected directly to a battery or via the auxiliary input to battery management systems. It might also function with other charging system or with a Genius and ST series.

  • Is it possible to install the MiniBoost in the back of a 4WD, somewhere other than under the bonnet?

    The MiniBoost is not waterproof and will not function above 50�C so it can only be placed where there is adequate ventilation and it is protected from dust and water.

  • Can the MiniBoost charge multiple batteries that have been installed in parallel?

    Yes, it is capable of charging multiple batteries in parallel.

  • What is involved in the installation of the relay?

    The relay needs to be installed in the car and the MiniBoost should be installed as close as possible to the main battery. This ensures optimal charging performance. It is recommended that the installation be performed by a qualified technician.

  • How is the MiniBoost wired to a 12V lead acid battery?

    There are four connections on the MiniBoost:

    • Connect orange to the positive battery terminal
    • Connect white to the negative battery terminal
    • On the battery to be charged:
    • Connect red to the positive battery terminal
    • Connect black to the negative battery terminal
  • How does the MiniBoost connect to the BatteryPlus35 and J35 systems?

    The MiniBoost connects to the BatteryPlus35 or J35 via the auxiliary input and will provide a low current output. This output is provided until the connection of a valid battery is detected, otherwise if it does not detect a battery it will shut down.

  • How is the wiring of the MiniBoost protected?

    The MiniBoost has reverse voltage, short-circuit and reverse connection protection for the purpose of protecting the wiring.
