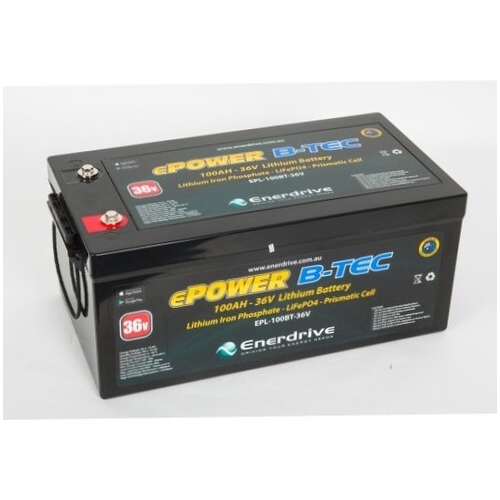

Enerdrive B-TEC 36V 100Ah Lithium Battery

Specifications

SKU EPL-100BT-36V

Brand Enerdrive

GTIN 9342616019672

Product Category Batteries

Battery Voltage 36V

Amp Hours (ah) 100

Battery Length (mm) 519

Battery Width (mm) 273

Battery Height (mm) 222

Battery Weight (kg) 37.7

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC 43.20 ̴ 43.80V

Standby (Float) Voltage 40.5 ̴ 41.40V

Maximum Charge Current 50A @ 25°C for 30mins

Recommended Charge Current for Max Life ≤33A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 33.00 ̴ 43.80V

Maximum Discharge Current 100A @ 25°C ± 5°C for 30mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤33.60V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥38.4V

Discharge Over Current 110A for 30s – 450A for 1s

Protection Reset Time 5s Auto Release

Over Current Release Method Disconnect Load

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

NOTE: see full product specifications & further product info in the Description section on this page.

Warranty

Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Delivery

• We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
• Small Items are sent with Australia Post via regular post.
• Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
• Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
• Items are fully insured during the freight process.
• Unfortunately we cannot deliver to PO Boxes.
• For further details on our Delivery Process you can visit our Delivery Page HERE.

Reviews

Be The First To Review This Product!

Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.

Write a product review

Q & A

• I am looking at an Enerdrive lithium battery to install in my Camper - does it need to be installed in a ventilated area?

  You don't need to worry about the area being especially ventilated as the batteries do not vent. In terms of other install tips:

  1. Keep the battery upright, do not mount it on its side.
  2. Enerdrive recommends keep the battery in a cool dry area to improve longevity.
• What size battery do I need for my caravan?

  Great question! Your deep cycle battery for your caravan will be a minimum of 100 Amp Hours (Ah).

  The average size for a Caravan is 200Ah. Usually, 2 x 100Ah connected in Parallel. However, if your budget allows to upgrade to a Lithium battery you can get a lot more power for the size of the battery. For example, a 200Ah lithium battery can be equivalent to up to 360 Ah of an AGM battery.

  To work out exactly what size you require you need to first look at the load you are planning on drawing. The load should be calculated in Amps per hour, or Amp Hours (Ah). Batteries are rated in Amp Hours (Ah) as well.

  So, if you are drawing a 50Ah per day, a 100Ah AGM battery can provide power for about 1 day as you do not want to draw more than 50% from your battery. However, it is not always easy to find what each appliance draws. Some popular examples are following:

  • 150L 12V Fridge = 2.5 Amps per hour (2.5Ah) - runs for 24 hours a day
  • 12V Water Pump = 3.5 Amps per hour (3.5Ah) - only runs for 1 hour a day
  • Phone Charger = 0.5 Amps per hour (0.5Ah) - Maybe 4 hours per day
  • 12V Fan = 4 Amps per hour (4Ah) - Maybe 4 hours per day

  Then you will need to factor in how much charge you are putting in Daily. The charge comes in the way of Solar and in car charging via a DC to DC charger.

  Ideally you want enough charge input per day to cover the load drawn, then enough battery storage to last 2 - 3 days without charge.

• What is best - AGM or lithium battery?

  The answer is simple. Lithium is a better product than AGM.

  Lithium is lighter, more compact, and powerful, it will also last longer.

  However, a lithium battery will cost more, because it is a highly sort after product. Almost everything that has a battery nowadays will have a lithium battery. Mobile phone, Electric Car, Electric Bike and Skateboard just to name a few.

  There are situations where you can get away with an AGM battery. If you only need about 100ah (most 4 x 4 set ups), you can purchase 1 x 100ah battery and a battery box and away you go.

  However, once you start getting into the larger amperages (200+) it really makes more sense to turn to lithium.

• How do I charge my caravan battery?

  There are three ways to charge your caravan Battery. Either:

  • AC to DC - This is using a traditional battery charger that plugs into mains power.
  • DC to DC - This is a battery charger connected between the start battery of your tow vehicle and the Caravan Battery. This will charge the battery whilst driving.
  • Solar - Solar panels on your roof can be connected to a solar charge controller then to your Caravan Battery.
• How much solar do I need to keep my caravan battery charged?

  Ideally, you want use as much solar as you can fit on the roof. Extra portable solar panels are also good idea if you want to park your van in the shade and run a portable panel from a lead in the sun - please see our solar range here.

  Solar is cheap relative to the rest of your system, and it provides so much of your power when you are camping off grid.

  However, the solar required depends on the load. Please feel free to contact our team for any specific questions on your battery - 1800 787 278!

• Can I series connect B-TEC batteries to achieve higher voltage?

  No. Enerdrive oers higher voltage Lithium solutions - contact us for details.

• Can I use an Inverter with my B-TEC battery?

  Yes. Refer to Section 4 of the manual for more detail.

• Can I install the B-TEC battery in a wet area?

  No. Due to the construction of the B-TEC cases the batteries must be installed in a dry environment to protect against moisture ingress.

• Can I parallel B-TEC batteries?

  The short answer is yes. The long answer is - make sure the link cables are of the same size or greater than your load/charging requirements and no more than 4 batteries in parallel.

  With low to medium current draw installations (the vast majority of applications) you may never see an issue and your storage capacity will be greatly increased - I.E. 2 x 200 Amp = 400 Amp capacity. When installing, fully charge the batteries separately - then let sit for 30 minutes before connecting together. When connecting in parallel - take the positive from Battery 1, and the negative from Battery 2 to your system as per the diagram below.



  The Smart Phone App will only show the information from one battery at a time - not both. This is another advantage of a separate Battery Monitor - it will show the total system environment.

  *Note: Slight variance of State of Charge or Amps may occur between the batteries in parallel however these should not vary by more than 5%. It is recommend that annually the batteries be disconnected and individually charged allowing them to sit at a fully charged state for 12hrs each before connecting back together.

• Can I install the B-TEC battery on its side or end?

  No. Please note that the 12V 200Ah SLIM B-TEC Battery features a wider range of acceptable mounting orientations - please refer to the diagram below for guidance.
