Evakool 40 Litre Drawer Fridge/Freezer

SKU: DC40-DRW-AU Learn More»

Caravan Fridge / Freezer - Made in Australia!

In Stock1-2 Days Dispatch


Accessories List:



Evakool DC40-DRW-AU 40 Litre Fridge/Freezer Drawer- No Fridge Slide Required

590 (W) x 325 (H) x 830 (D)mm


Hit the road with confidence with EvaKool's Platinum 40L Drawer Fridge Freezer, designed for the Aussie adventurer. Keep your food and beverages icy cold, thanks to our world-renowned Secop compressor and superior refrigeration system. With features like internal LED lighting, an easy-to-read LED display, a compact design boasting a 48-can capacity, and a secure Anderson-style plug, this drawer fridge/freezer is your ideal travel companion. Made in Australia to endure the harsh heat, it offers easy cleaning and efficient storage for a seamless journey, whether it's a fun-filled beach day or a weekend with mates. Trust in EvaKool, and never worry about your favorite drinks going warm again.

So what's different between our new vs. old drawer fridge?

Evakool's new model has been updated and includes:
  • Globally recognised Secop compressor technology
  • Clear acrylic lids for compartments
  • Interior illumination provided by efficient LED
  • Exceptional refrigeration insulation for optimal cooling

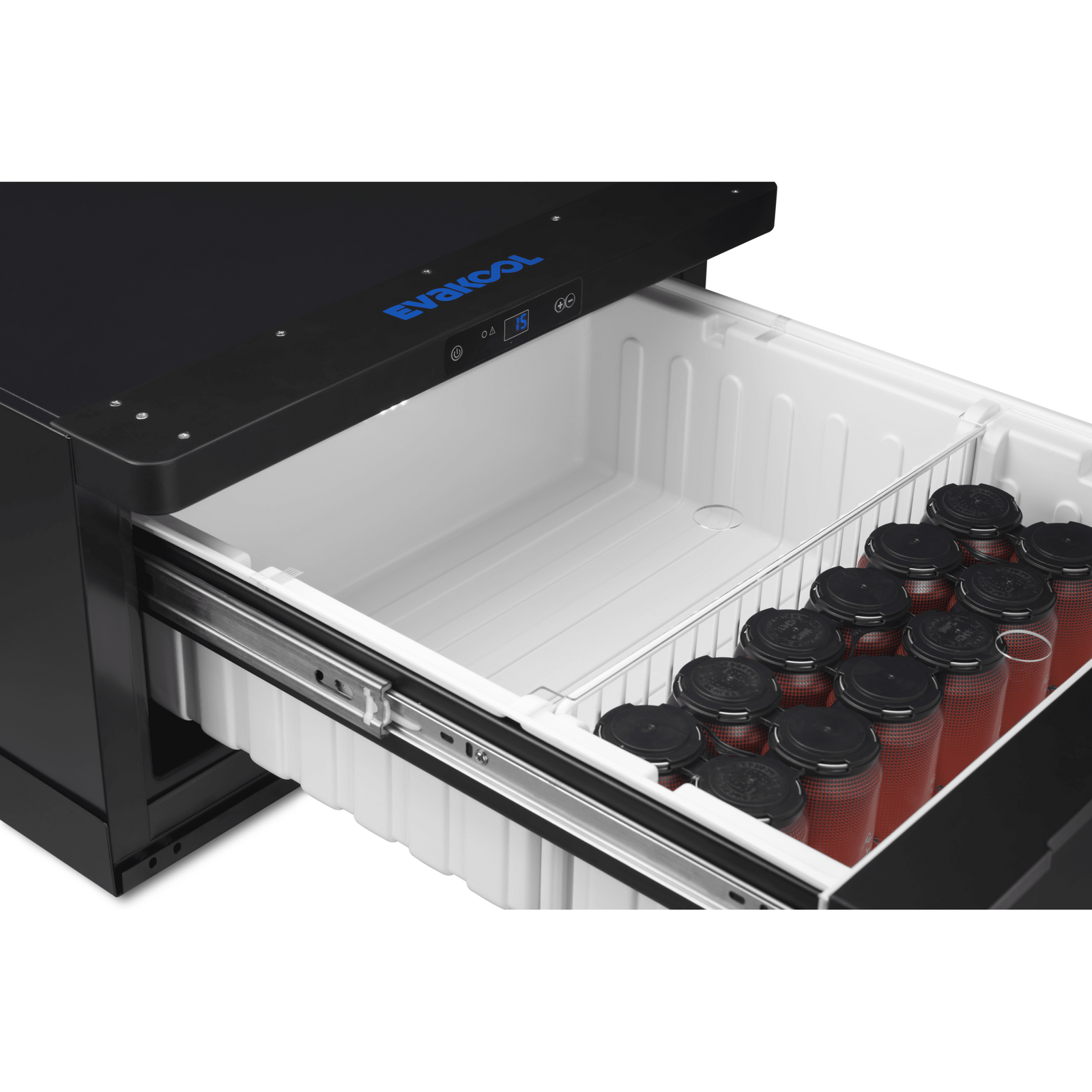

  • 40L Single Drawer design, adaptable as either Fridge or Freezer
  • Ample space with 48 Can Capacity per Drawer
  • Sturdy and sleek Metal Cabinet
  • LED Display and Control Panel: User-friendly and easily readable
  • Versatile Temperature Range: From -16°C to 10°C
  • Drawer Tub designed for simple removal and cleaning
  • Fully insulated enclosure for efficient cooling
  • No additional fridge slide necessary
  • Included: Heavy-duty floor plate style bracket for securing the drawer fridge. The locking mechanism negates the need for drilling or extra tie-downs!





  • Capacity (Litres): 40 (48 can capacity per drawer)
  • Dimensions: 326mm x 595mm x 836mm
  • Weight: 28 kg

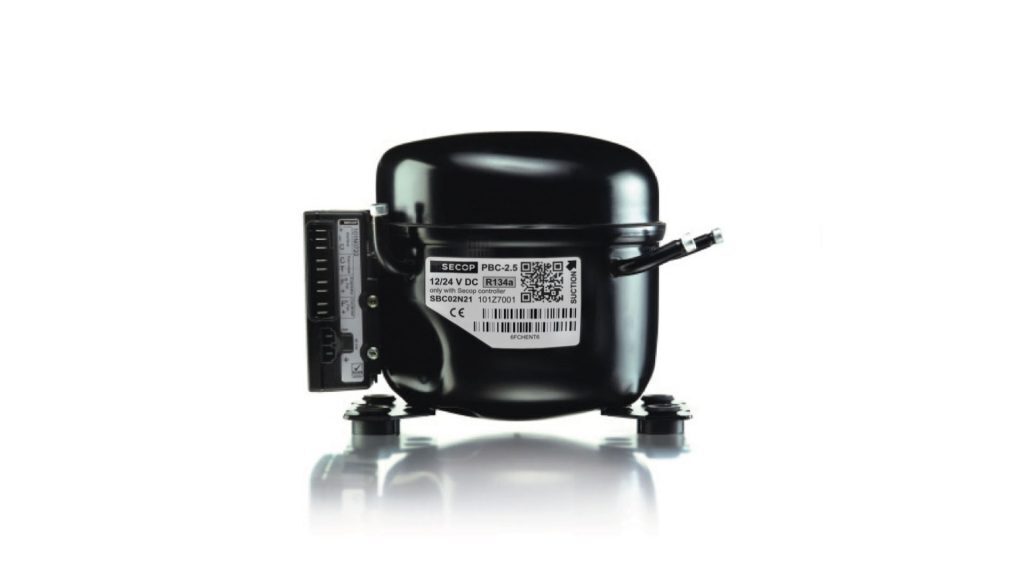

  • Compressor: SECOP PBC 2.5
  • Power: 45 Watts
  • Voltage: DC12/24
  • Refrigerant: R134a - 45 grams
  • Insulation: C-Pentane, totally CFC free

*This includes a heavy duty floor plate style bracket to secure the drawer fridge to a flat surface. The fridge locks into the bracket so you don't need to drill into the fridge / use any additional tie-downs!

Power Consumption:

The average power consumption of the DC40-DRW at 32ºC (measured over a 24 hour period) is as below:

  • Set on 2ºC - 1.2 A/Hr
  • Set on -16ºC - 2.4 A/Hr

Please note that power usage is dependant on various factors that include, but are not limited to: Ambinet Temperature, Required Fridge Temperature, Temperature of Fridge Contents, Compressor Speed, Ventilation of Fridge Motor Compartment.


Note: The DC40-DRW-SA is now called DC40-DRW-AU.

Show More



Brand Evakool

GTIN 9330263009610

Product Category RV Drawer Fridges

Fridge Voltage 12 / 24 V

Total Capacity (L) 40

Fridge Width (mm) 595

Fridge Height (mm) 326

Fridge Depth (mm) 836

Weight (kg) 28

NOTE: see full product specifications & further product info in the section on this page.

Q & A

  • Will this fridge drain my car battery?

    It all depends at which voltage level the fridge stops drawing power from your battery.

    For example, the Dometic CD-30 will cut off at 10.4V. You can connect a draw fridge to your start battery, but you will need to be conscious of battery drain while the car is not running, and the start battery is not being charged. Therefore, we always recommend connecting a DC fridge of any type, to an auxiliary battery.

    If you do intend to connect the draw fridge to your start battery, then it would be a good idea to invest in battery protection. Enerdrive have a range of Battery Guards in various Amp ratings. The battery guards can be programmed to disconnect the load (Fridge) at a pre-determined voltage.

  • When installing this fridge into our RV, how much space is required around the unit?

    We would recommend a buffering around the perimeter of the fridge of at least 100mm when storing inside an enclosure. Many portable fridge manufacturers will recommend up to around 200mm of buffering gap specifically around the fridge's vents for optimal performance.

    As always, please check the Product Manual for installation advice.

  • I’m wondering if this fridge, has a low voltage protection?

    Hi, great question!

    A compressor fridge as this draw fridge is, will not run if the battery voltage is too low. In this way, the fridge will not draw on the battery.

  • I’m looking for a draw fridge with auto select between 12V/24V, does this fridge have it?

    Yes, this fridge has an auto select.

  • What DC connection does the the new Evakool DC40-DRW-S 40 Litre Drawer Fridge/Freezer come with?

    The new 40L Draw fridge from Evakool comes fitted with an Anderson plug as standard. This is a secure 12V connection which allows for an easier installation. Cabling and fuse guides as per the product manual should still be adhered to when connecting to your battery system. The anderson plug does make for an easy connection to powering the fridge from a 240V source via a 240V mains power adapter


Write a product review

Great Fridge for your next adventure

4 February 2024

Great size and easy to install. Good internal size and easy to clean.

Eva cool draw fridge

2 February 2024

Excellent product kept our drinks cold in 39 degrees heat in the back of the ute

Ever cool draw fridge freezer

4 July 2023

Great product and great service

Evakool Purchase

29 June 2023

After a lot of research, we recently purchased an Evakool 40ltr slide fridge freezer from Caravan RV Camping. The delivery of the unit was prompt and arrived in good condition. The 40ltr unit is a great size, if you have the room to accommodate it. We only just fitted the fridge Freezer into the outside storage compartment of our caravan to complement our outside kitchen, fits like a glove and looks great.

View All Reviews


Warranty Period: 5 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product
