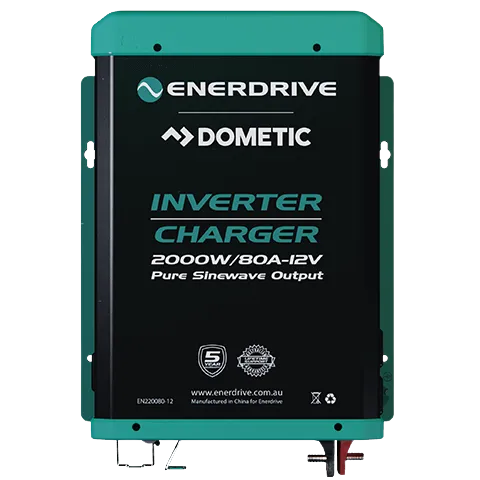

Enerdrive 2000W 80A-12V Inverter Charger
Q & A | SKU: EN220080-12 Learn More»
Description
Enerdrive 2000W 80A-12V Inverter Charger
With the state of the art, easy to use design, this product will offer you True Sinewave AC power for your RV, Marine, 4WD and remote power needs, whilst also recharging your battery automatically when 240V AC is available.
The Sinewave Inverter-Charger can run multiple 240V AC-powered appliances when you need AC power off-grid. The multi-stage battery charger offers charging profiles for multiple different types of batteries. The built-in transfer switch will automatically switch between 240V mains supply when available and battery power when 240V mains is not available.
Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.
The 12V 2000W/80A Inverter-Charger is suitable for appliances that use up to 2000W of power for operation, such as induction cooktops, microwaves, coffee machines and more. All ENERDRIVE | DOMETIC branded products are covered by our extensive 5 Year warranty.
Features:
- Seamless 16A AC Internal Transfer Switch
- AC RCD/Safety Switch with test button
- Remote Control Display Panel
- Regulated Pure Sine Wave Output
- Quiet Operation
- Compact Size for Easy Installation
- Variable settings offered for Gel, Flooded, AGM, and Lithium battery compatibility.
- Multi-stage charging ensures batteries are charged to their manufacturer’s recommendations.
- Lightweight compact design
- Built-in load sense to minimize battery drain
Specifications:
| AC Output Power | 2000W |
| AC Output Current | 8.7A |
| AC Output Voltage | 230VAC |
| AC Output Waveform | True Sinewave (<3% THD) |
| Nominal DC Input Voltage | 12.5Vdc |
| DC Input Voltage operating range | 10.5 - 16.5 VDC |
| Under Voltage Alarm | 11.0 / 12.5 VDC |
| Under Voltage Shutdown | 10.5 - 12.0 VDC |
| Over Voltage Shutdown | 16.5 - 16.0 VDC |
| Transfer Time | <30ms |
| Transfer Relay Rating | 16A |
| AC Input socket IEC-C20 | 16A Heavy Duty Connector |
| AC Output socket IEC-C19 | 16A Heavy Duty Connector |
| Conformance | LVD: EN/IEC 62040-1, IEC 61558-2-16 |
| Agency Markings | CE |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5 - 90% non-condensing |
| Operating Altitude | Up to 3000m above sea level |
| Weight | 8kg |
| Dimensions (W x H x D) | 307W x 441H x 108Dmm |
| Warranty | 5 Years |
Specifications
SKU EN220080-12
Brand Enerdrive
Product Category Power Inverter Chargers
Voltage 12V
Wattage (W) 2000
Operating temperature range 0°C to 40°C
Operating Altitude Up to 3000 meters above sea level
Storage temperature -20°C to 60°C
Humidity 5 - 90% non-condensing
Line transfer time <30ms
Weight (kg) 8
Dimensions 441 x 307 x 108mm
NOTE: see full product specifications & further product info in the Description section on this page.
