Renogy Pro 12V 3000W HF Inverter Charger
SKU: RIV1230PCH-24S Learn More»
Description

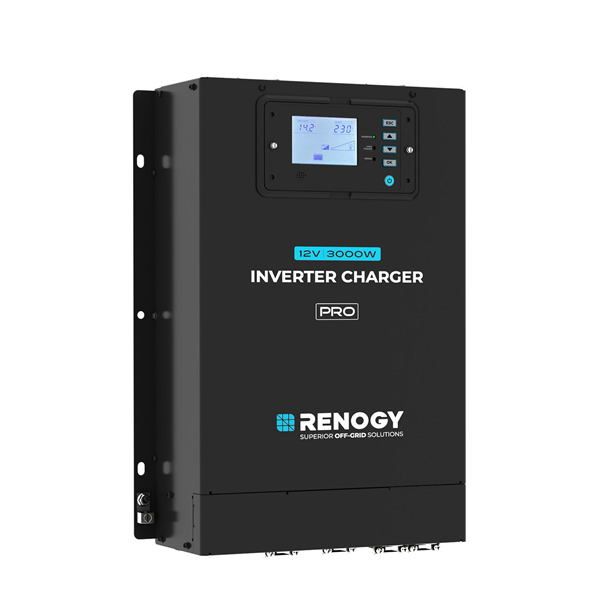

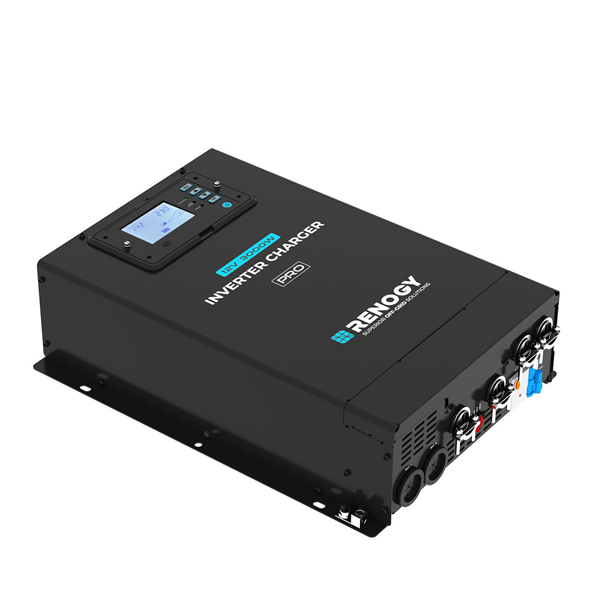

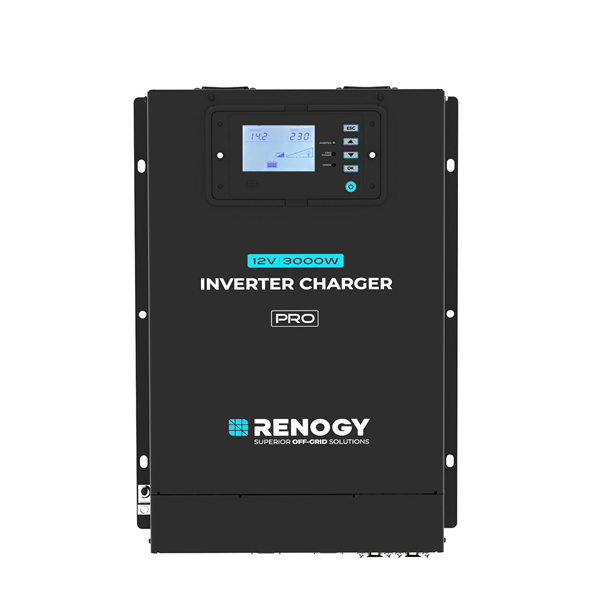

Renogy Pro 12V 3000W HF Inverter Charger
No Bulk, Just Pure Efficiency. Built for those who demand reliable power without compromise, this all-in-one inverter charger seamlessly combines charging and AC power conversion into a single, powerful solution. Its an all in one charging and power station so you can enjoy seamless battery charging and AC power conversion in a single device as well as providing reliable backup power you can trust to keep your home powered during outages without worry, ensuring safety and comfort for your family. The HF Inverter charger comes with internal RCD protection that detects leakage faults instantly, cuts off power automatically and restores with a simple switch flip.
Features & Benefits:

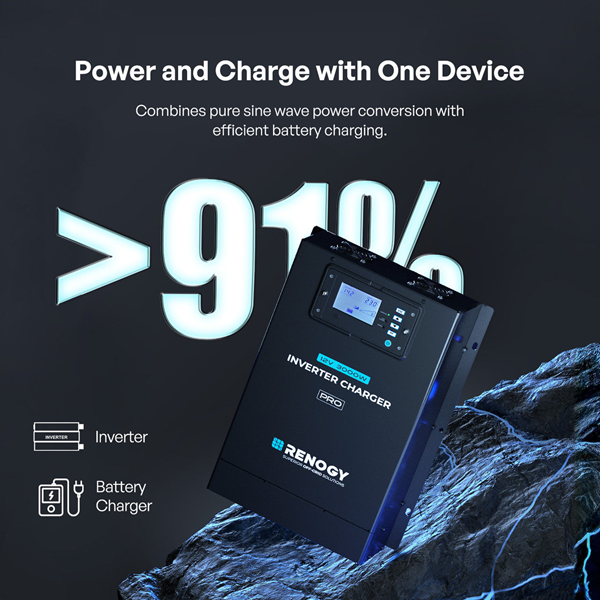

- Ultra-High Efficiency & Low Standby Draw. Delivers over 91% peak efficiency while drawing under 10 W in standby—conserving your battery power for when you need it most
- Rapid Power Switching. Ensures uninterrupted energy flow with a transfer time of just 10 ms, switching instantly between utility and battery power

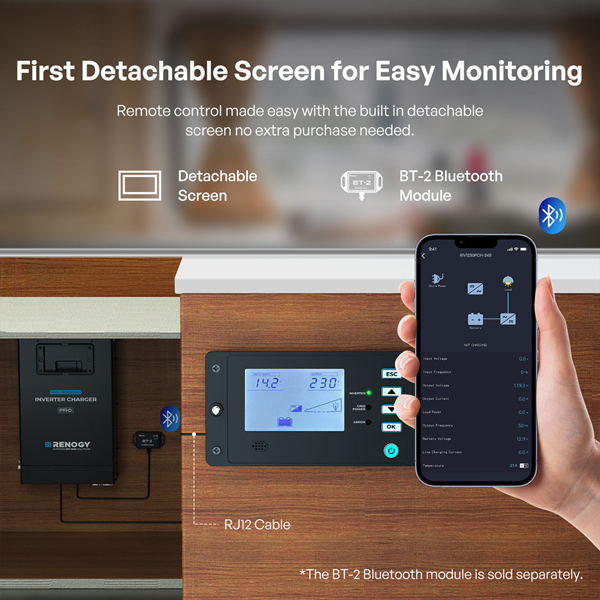

- Remote Monitoring & Control. Includes a detachable LCD panel for flexible placement. Remote monitoring is enabled via an optional BT-2 Bluetooth module
- Built-In RCD Protection. Internal leakage detection and safety shutdown eliminate the need for external protection modules—offering seamless and safe installation
- Lightweight & Compact. Weighs just 8.1 kg, making it easy to install even in tight spaces.

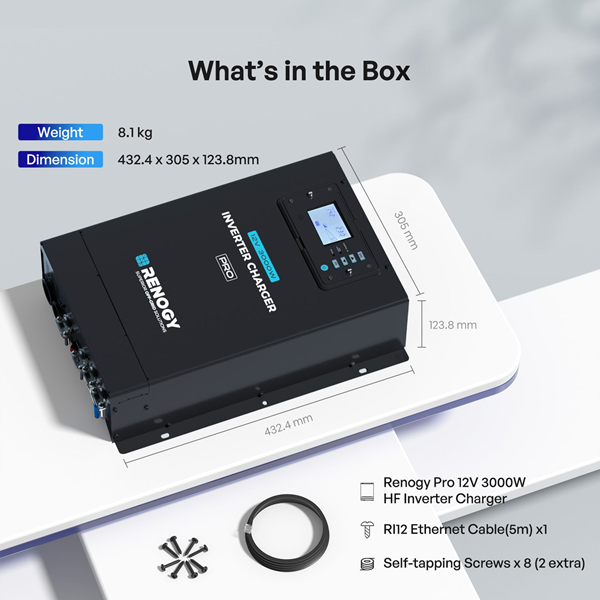

Includes:
- 1 x Pro-12V 3 kW HF Inverter Charger
- 8 x Self-tapping Screws (ST6.3 × 16 mm)
- 1 x RJ12 Ethernet Cable (5 m)
- 1 x User Manual
Specifications
SKU RIV1230PCH-24S
Brand Renogy
Product Category Power Inverter Chargers
Wattage (W) 3000

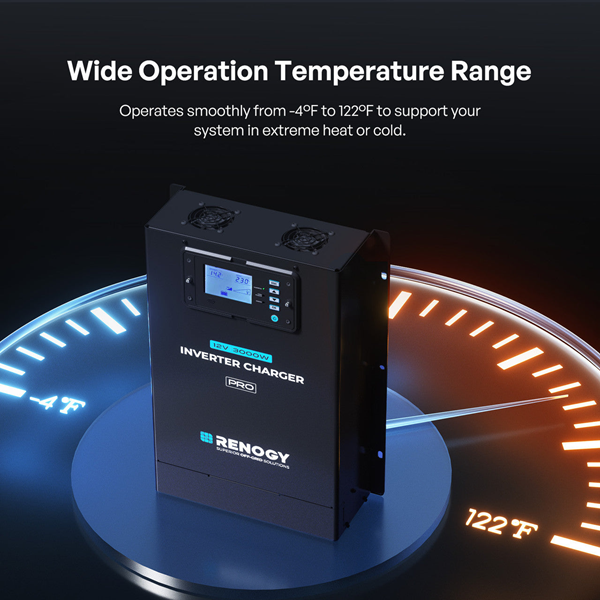

Operating temperature range -20°C - 50℃
Surge Power 6000W
Dimensions 432.4 x 305 x 123.8mm
Noise Level < 55 dB
Transfer Rating 16A
Transfer Time Max. 20 ms
Nominal Input Voltage 187-265VDC
Nominal Output Voltage 240VAC
Output Frequency (Nominal) 50/60 Hz ± 0.1Hz，default 50Hz
Input Voltage Range 10.5-15.5VDC
Output wave form Pure Sine Wave
Weight (kg) 8.1
Efficiency ＞91% peak
DC Input Voltage 12V
Continuous Power 3000W
Battery Types GEL, AGM, SLA, FLD, CAL, LI, USER
Storage Temperature -30 - 70°C
Humidity 0% to 95%, RH
Output Current 5-120A adjustable, 5A intervals
Q & A
-
Can I use 2 x 100Ah lithium-ion batteries with a 3000W inverter? I think I read somewhere that it requires 3 x 100 Ah batteries.
Yes, you can use two 100Ah lithium-ion batteries with a 3000W inverter, but be mindful of the current limitations of your batteries. Many 100Ah batteries come with a Battery Management System (BMS) that limits continuous discharge to around 100 amps. This means that two 100Ah batteries may provide a total of 200 amps, which would likely support around 2000W of power, but might not be enough to reliably run the full 3000W load. For maximum efficiency and to run 3000W continuously, 3 x 100Ah batteries would be ideal.
-
How do I attach the temperature sensor to the batteries?
The temperature sensor can typically be placed between the battery terminals or leads.
-
Anyone having trouble running a 1100 watt microwave with the 3000 watt unit with nothing else on?
Yes, our inverter charger can run an 1100W microwave without any issues. Please make sure that the wiring is of a heavy enough gauge to handle the load, as under-sized wires could cause voltage drops or overheating, especially under higher current draws.
-
Can I Bluetooth my phone to monitor the inverter? What APP do I need to download?
Yes, you can monitor the inverter via Bluetooth using your phone. To do so, download the "DC HOME" app, which is specifically designed for this purpose. It allows you to keep track of performance, battery status, and other key metrics.
