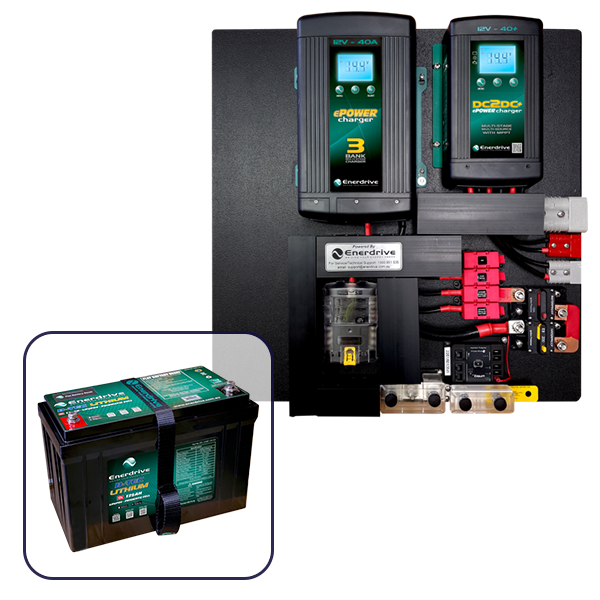

Enerdrive DIY 40A AC and 40 DC2DC Charging Board - Pre Wired, with 125Ah B-Tec Lithium Battery
SKU: K-DIY-BOARD-2 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Recommended Accessories

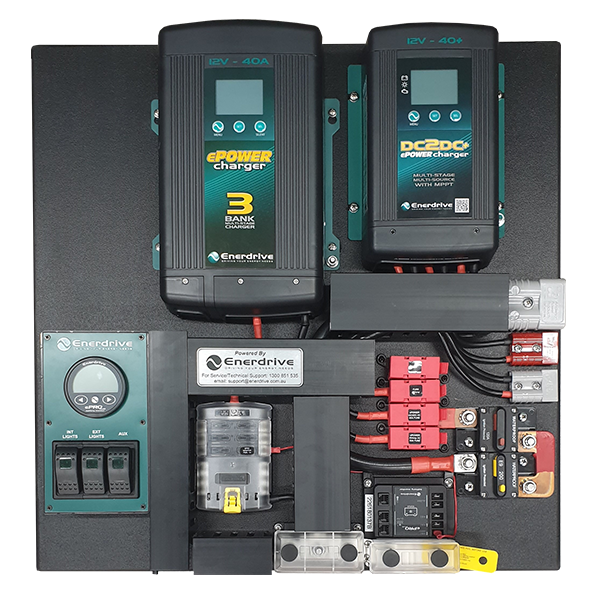

Enerdrive DIY 40A AC and 40A DC2DC Charging Board with Battery
Enerdrive DIY 40A AC and 40A DC2DC Charging Board with Battery is perfect for the DIY installer seeking a quality solution at a budget price! This system comprises of the:
- Enerdrive ePOWER B-TEC Ultra 200Ah Lithium Battery - EPL-200BT-12V-G3
- Enerdrive ePOWER 12V 40A DC to DC Battery Charger EN3DC40+
- Enerdrive ePOWER 12V 40A Battery Charger EN31240
- ePRO Plus 500A Battery Monitor with Remote Display EN55050
- 3 Stud Main Negative Bus Bar
- 40A Low Battery Cutout
- Main System Circuit Breaker 120A
- Inverter Circuit Breaker 200A
- ePOWER DC2DC 60A Output Fuse Connection
- ePOWER AC Charger 50A Output Fuse Connection
- 1 x 30A Load Output Fuse Connections
- Main 6 Circuit "Wedge" Fuse Block with Negative Bus and Cover
- 12mm Black Plastic Mounting Board. Water & Rot Resistance
- 175A Anderson Plug (Inverter)
- 50A Anderson Plug (Solar Input)
- 50A Anderson Plug (Vehicle Input)
|
Items Included |
eSYS-C | eSYS-D | eSYS-E | eSYS-F | eSYS-G | eSYS-H | eSYS-I | eSYS-J | K-DIY-Board-2 |
|
ePOWER AC 40Amp 230v Charger |
* |
* |
* |
* |
* |
|
|
|
* |
|
ePOWER AC 60Amp 230v Charger |
|
|
|
|
|
* |
* |
* |
|
|
ePOWER DC2DC 40+ Charger (Vehicle/Solar) |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Morningstar Tristar PWM-45A Solar Controller |
|
|
|
|
|
* |
* |
* |
|
|
ePRO Plus 500A Battery Monitor |
* |
|
* |
|
|
* |
|
* |
* |
|
with Remote Display |
|||||||||
|
Simarine Pico LCD WIFI Monitoring Screen |
|
* |
|
* |
* |
|
* |
|
|
|
Simarine SC303 300A Main Battery Shunt |
|
* |
|
* |
* |
|
* |
|
|
|
Simarine SCQ25T Individual Load/Charge Module |
|
* |
|
* |
* |
|
|
|
|
|
Simarine SCQ50 Individual Load/Charge Module |
|
* |
|
* |
* |
|
* |
|
|
|
3 Stud Main Negative Bus Bar |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
40A Low Battery Cutout |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
Main System Circuit Breaker 120A |
* |
* |
* |
* |
* |
|
|
|
* |
|
Main System Circuit Breaker 200A |
|
|
|
|
|
* |
* |
* |
|
|
Inverter Circuit Breaker 200A |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Solar Input Positive Circuit Breaker 40A |
|
* |
* |
* |
* |
* |
|
* |
|
|
Solar Input Positive Circuit Breaker 60A |
|
* |
* |
* |
* |
* |
* |
* |
|
|
ePOWER DC2DC 60A Output Fuse Connection |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
ePOWER AC Charger 50A Output Fuse Connection |
* |
* |
* |
* |
* |
|
|
|
* |
|
ePOWER AC Charger 70A Output Fuse Connection |
|
|
|
|
|
* |
* |
* |
|
|
1 x 30A Load Output Fuse Connections |
|
|
|
|
|
|
* |
|
* |
|
2 x 30A Load Output Fuse Connections |
|
|
|
* |
* |
* |
|
* |
|
|
50A Load Output Fuse Connection |
* |
|
|
|
|
|
* |
|
|
|
24hr Critical Load 4 Circuit "Wedge" Fuse Block |
|
* |
|
* |
* |
|
|
|
|
|
24hr Critical Load 8 Circuit "Wedge" Fuse Block |
|
|
* |
|
|
|
|
|
|
|
Main 6 Circuit "Wedge" Fuse Block |
|
|
|
|
|
* |
* |
|
* |
|
with Negative Bus and Cover |
|||||||||
|
Main 12 Circuit "Wedge" Fuse Block |
|
* |
* |
|
|
|
|
|
|
|
with Negative Bus and Cover |
|||||||||
|
ePOWER 2000W AC Transfer Inverter |
* |
|
|
* |
|
|
|
|
|
|
Battery Restart Switch (Lithium Batteries) |
* |
* |
* |
* |
* |
|
|
|
|
|
12mm Black Plastic Mounting Board. |
* |
* |
* |
* |
* |
* |
* |
* |
* |
|
Water & Rot Resistance |
|||||||||
|
175A Anderson Plug (Inverter) |
|
|
|
|
|
|
|
|
* |
|
50A Anderson Plug (Solar Input) |
|
|
|
|
|
|
|
|
* |
|
50A Anderson Plug (Vehicle Input) |
|
|
|
|
|
|
|
|
* |
|

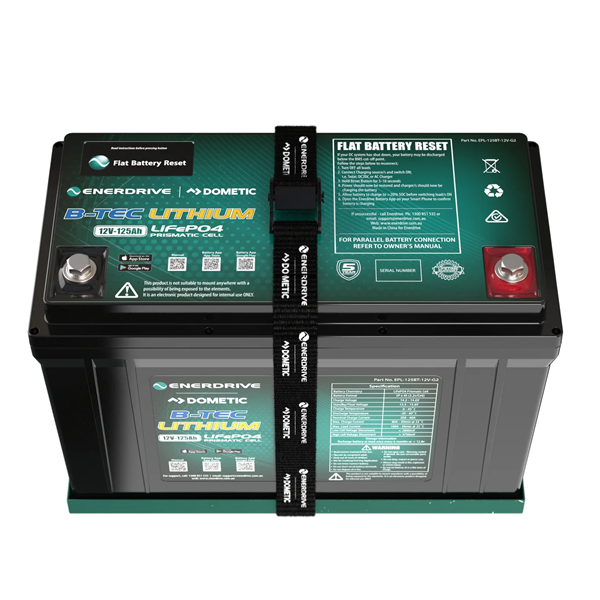

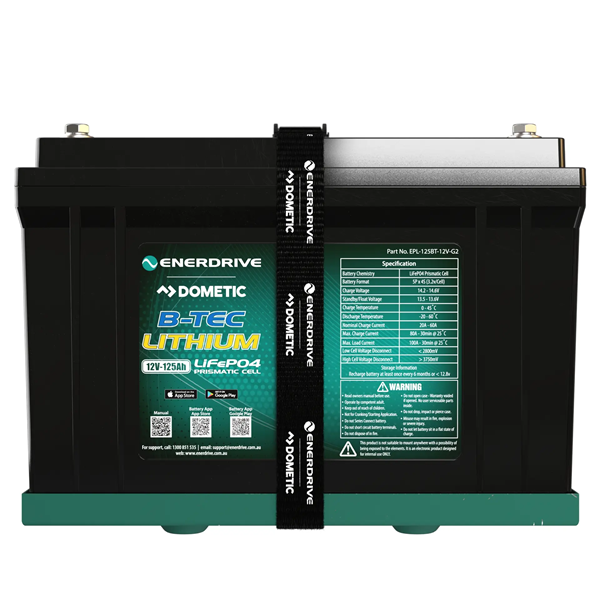

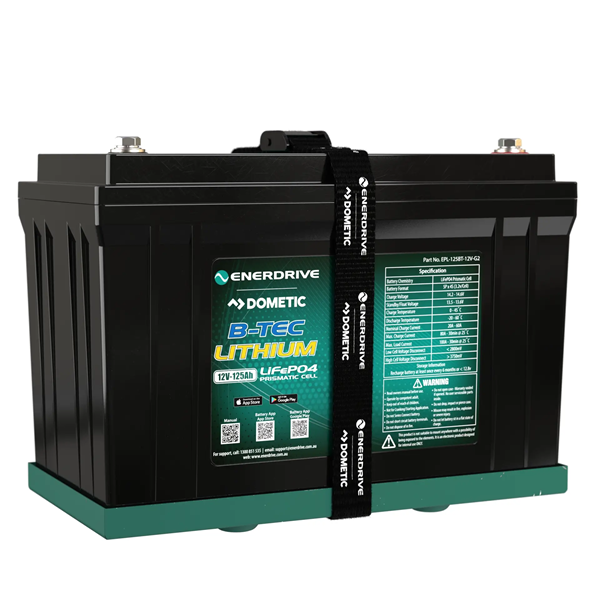

125Ah B-Tec Lithium Battery |
|
|
|
|
|
|
|
|
* |
|
200Ah B-Tec Lithium Battery |
* |
||||||||
|
Dimensions |
1185L x 380W x 130Dmm |
600L x 490W x 100Dmm |
600L x 490W x 100Dmm |
1185L x 380W x 130Dmm |
790L x 380W x 100Dmm |
1195L x 380W x 111Dmm |
1195L x 380W x 111Dmm |
920L x 380W x 111Dmm |
580L x 580W x 100Dmm |
|
Weight |
23kg |
14kg |
14kg |
23kg |
16kg |
17kg |
16.5kg |
17kg |
14kg |
|
(*) Indicates Standard Fitment |
|||||||||
PRO TIP: Common accessories to go with this canopy system are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.
Enerdrive ePOWER 12V 40A DC to DC Battery Charger:
Maximise your power input when caravaning offgrid with the Enerdrive 40A DC-DC charger, delivering over 40A when driving and handling up to 800W of solar when parked.
The Enerdrive 40amp DC2DC Battery Charger with combined Solar Regulator is designed to accept multiple voltage inputs allowing you to charge your batteries through your vehicles alternator or your caravans solar panels. This means you can take advantage of the vehicles alternator whilst moving and your solar panels while you are stationary. The Enerdrive ePOWER DC2DC+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller. With two inputs available, the main/house battery will be charged from either the engine while underway, or via the solar panels when stationary. The process to choose either engine or solar is fully automatic and both functions are controlled from within the unit itself without the need for external relays. Most other DC2DC chargers do not have this capability and a separate solar controller is needed.
EXPERT TIP: The Enerdrive 60Amp & 70Amp breakers are common accessories suitable for the Enerdrive EN3DC40+ 40A DC to DC charger. Additionally, the 3 pre-wired & fused charging cables are also a great addition, see manuals & drawings for further information. All the accessories are available in the Accessory List above as optional extras.
DC2DC Battery Charger 40A /12V
- Multiple charging inputs allow you accept voltage from your engine and solar panels and convert to 1 output to your battery bank.
- DC M6 screw terminals that will allow for large battery cable connection between all sources
- Includes a dedicated inbuilt Maximum Power Point (MPPT) solar regulator
- Ability to charge Lithium, Lead Crystal, GEL, AGM, Wet Cell and the ability to create a full custom profile
- Accepts 12V or 24V from your vehicle and a maximum solar input of 45V/800W
- Thermo controlled fan cooling allows 40A output up to 40+°C
- Fully programmable LCD display to show which source is charging the battery
In Vehicle & Marine Wiring Diagram
Towed Vehicle Wiring Diagram
Pre-Wired Cable Kits Diagram (input only)
Enerdrive ePOWER 40A Battery Charger:
The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.
As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.
The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).
40A Battery Charger Features:
- Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
- Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
- Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
- Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
- Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
- Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
- LED Display: Easy to use “set and select” menu along with scrolling charger status.
- Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
- Temperature Sensor: Battery temperature sensor included with 3 meter cable.
- 5 Year Warranty from an Australian company renowned for customer support
Enerdrive ePRO PLUS Battery Monitor:
The Enerdrive ePRO Plus Battery Monitor is our latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products.
This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO PLUS is compatible with lead based and Lithium batteries (LiFePO4).
The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO PLUS battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored.
The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.
The Enerdrive ePRO Plus Battery Monitor comes with a massive five year warranty.
Specifications
SKU K-DIY-BOARD-2
Brand Enerdrive
Board Configuration Option Without Accessories Box
Battery Option B-TEC 125Ah Lithium Battery
