Pre-Wired Victron Board A2, 50A MPPT Smart Solar & Cerbo GX

Description

Pre-Wired Victron Board A2 with 50A MPPT Smart Solar & Cerbo GX & GX Touch & Exotronic Lithum Battery

Unlock the full potential of your van with our state-of-the-art, pre-wired Victron Energy Power Board. This all-in-one solution is not only premium in quality but is designed to save you effort, time, and costs associated with a custom build.

Perfectly designed for wall or floor mounting, it can be conveniently placed under a van bed or bench seat for maximum space utilization.



Bundle Included:

• Pre-Wired Victron Board A2
• Free parallel cable between batteries (When purchasing battery bundle)
• Free 700mm battery cable - can be extended for a fee (When purchasing battery bundle)
• Free install and testing of Ferrite beads to GX to ensure minimal electrical interruption (When purchasing GX50/70 touch screen)
• Full testing and programming, for ease of installation (when purchasing Battery and GX touch screen bundles)

Optional configurations:

• 2 x Exotronic 200Ah Lithum Battery (Exo-Li-200-00)
• Victron GX Touch 50 (BPP900455050)
• Victron GX Touch 70 (BPP900455070)

Note: Please advise our team of your size and type of battery bank at time of checkout. This will allow correct programming of the Victron products

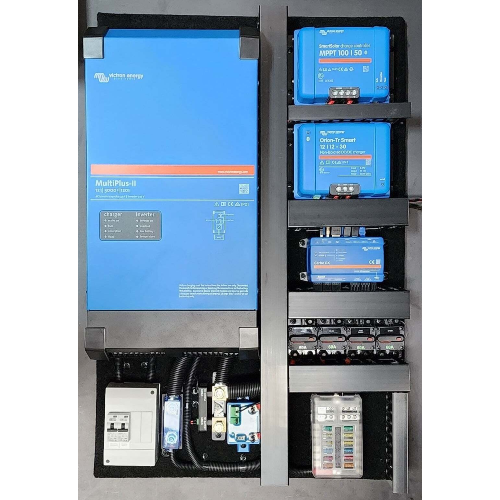

What is on the board A2?

Victron MultiPlus-II Inverter Charger 12/3000/120-32 - PMP122305010

• Power virtually any 10A appliance with the robust 3000VA inverter.
• 120A mains charger for rapid charging from the grid.
• Automatic transfer switch for seamless transition between off-grid and on-grid power, while also charging your batteries.
• Safety switch circuit protection for added security in both incoming and outgoing inverter circuits
• Also including Victron Digital Multi Control (Remote On/Off/Charger Only switch) and 9m of cable from the board to allow control of the inverter remotely

Victron SmartSolar MPPT 100/50 Charge Controller - SCC110050210

• Connect effortlessly to solar panels with a red Anderson connector for optimized solar energy harnessing. (Genuine red Anderson supplied)

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger - ORI121236140

• Compatible with smart alternators for seamless connection to the starter battery using a grey Anderson connector. (Genuine grey Anderson supplied)

Victron SmartShunt 500A/50mV - SHU050150050

• Stay informed with real-time data on your house battery's state of charge, current in/out, voltage, and set audible alarms for low levels.

Victron Cerbo GX - BPP900450100

• Exercise full control over your system with adjustable current limits, relays, tank levels and temperature sensors connectivity.
• Including 5m of cables for connectivity with GX Touch Display Screen (purchased separately).
• Ruuvi & Mopeka ready - Includes a pre-installed Bluetooth adapter so Ruuvi temperature sensors and Mopeka water and LPG tank levels can be connected (purchased separately)

Victron Smart Battery Protect 12/24V-65A - BPR065022000

• Disconnects the 12V loads when batteries low, the unit also has a switch port to allow you to optionally install a switch and disconnect all 12V loads when not using the system.

Fuse Block & Circuit Breakers

• Incorporates a 12 Blade Fuse Block with Exotronic circuit breakers and cables for enhanced protection and circuit management and oversized cables for low loss performance.

400A MEGA Fuse and 70mm2 Double Insulated Power Cable

• For high current capacity and safety, essential for the inverter.
