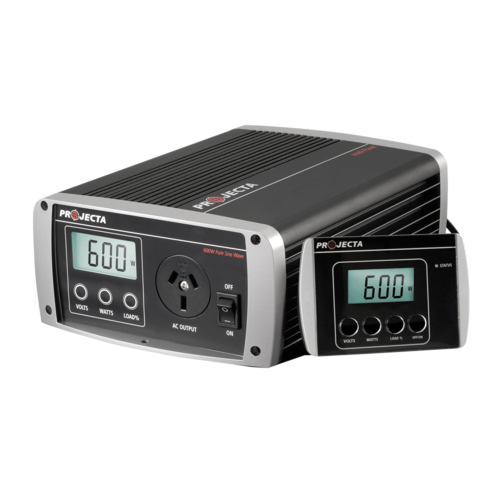

Projecta IP600 12V 600W Intelli-Wave Pure Sine Wave Inverter
SKU: IP600 Learn More»








Description
PROJECTA 600W POWER INVERTER PURE SINE WAVE. IP600
Jam packed with features and delivering class leading performance, the IP600 is the perfect addition for anyone looking for ultra clean power whilst in remote locations. Its rugged construction allows permanent installation making it ideal for camper trailers, 4WDs and work vehicles.
Features:

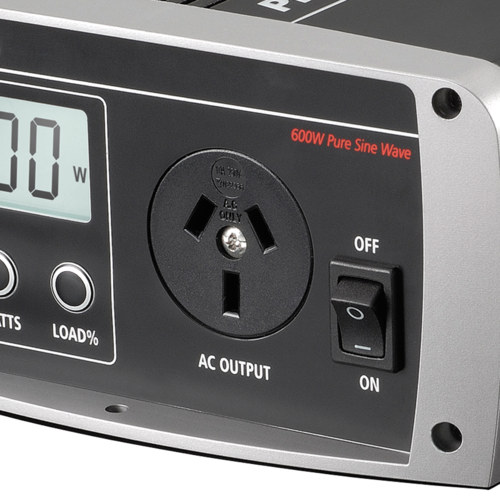

- Approved output socket - AS/NZ approved 240V sockets. Inverter designed to Australian standard AS4763

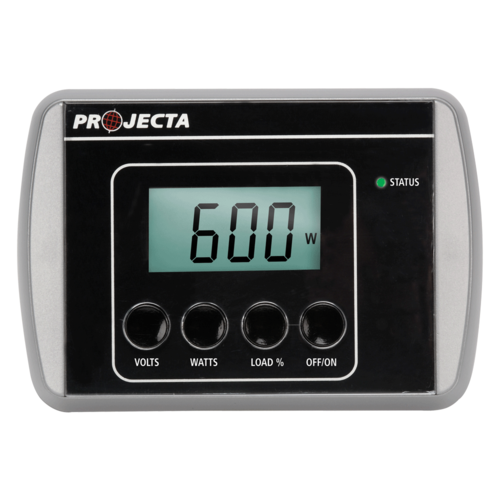

- Remote control - LCD display and remote control unit provide information on battery voltage, power usage and load capacity

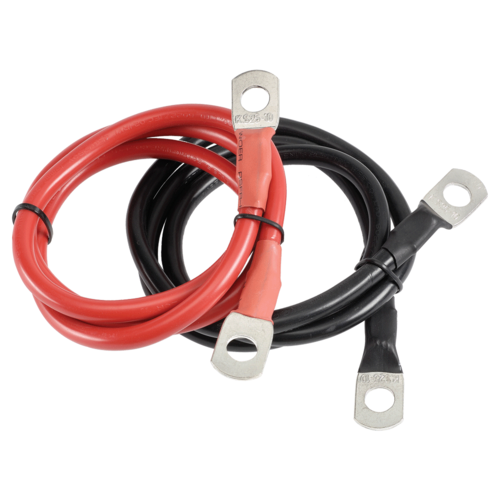

- Wiring kit - Battery lugs with 900mm 6mm2 battery cable
- Efficient design - Thermostatically controlled cooling fan

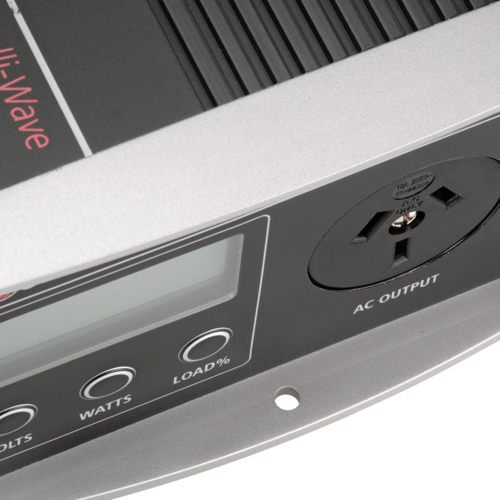

- Mounting flange - Convenient and robust mounting points
Specifications:
PART NO |
IP600 |
||

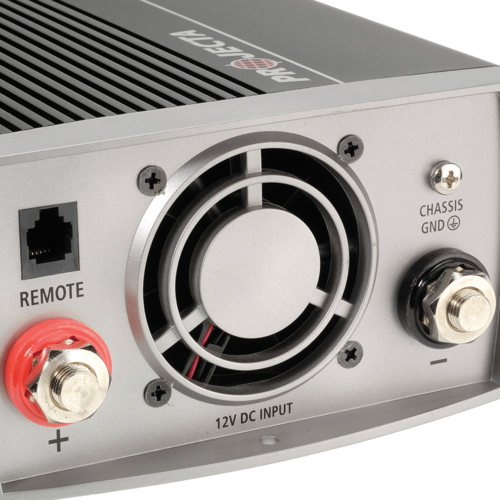

INPUT |
12V DC, 60A Max |
||
NO LOAD CURRENT DRAW |
0.65A |
||
OUTPUT |
240VAC, 50Hz (Pure Sine Wave) |
||
OUTPUT POWER |
600W Continuous (1200W Peak) |
||
INVERTER CLASSIFICATION |
Equipotentially Bonded (EPB) |
||
EFFICIENCY |
85–90% |
||
LOW BATTERY ALARM |
10.25 Volt |
||
SHUTDOWN |
9.75V (±0.2V) |
||
COOLING FAN |
Automatic temperature controlled |
||
THERMAL SHUTDOWN |
65°C (±5°C) |
||
FUSE |
110A (2 x 40A, 1 x 30A) |
||
IDEAL BATTERY SIZE |
50–130Ah |
||
MINIMUM BATTERY SIZE |
50Ah, 400CCA |
||
RUN TIME WITH 600W ON 50Ah BATTERY |
30 minutes |
||
RUN TIME WITH 100W GLOBE ON 50Ah BATTERY |
4 hours |
||
APPROVALS |
Electrical Safety, EMC |
Specifications
SKU IP600
Brand Projecta
GTIN 9315219966001
Product Category Power Inverters
Voltage 12V
Wattage (W) 600

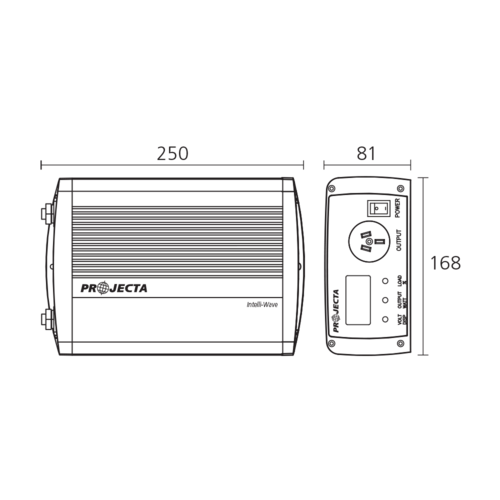

Dimensions 168 x 81 x 250mm (WxHxD)
Peak Power (W) 1200
Weight (kg) 2.2
NOTE: see full product specifications & further product info in the Description section on this page.
Q & A
-
Can I run an inverter from AGM or Gel batteries?
The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.
Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market. For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.
You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current). A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.
Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
