Renogy 600Ah Mini Lithium Epic Caravan Bundle w/ Solar

Description

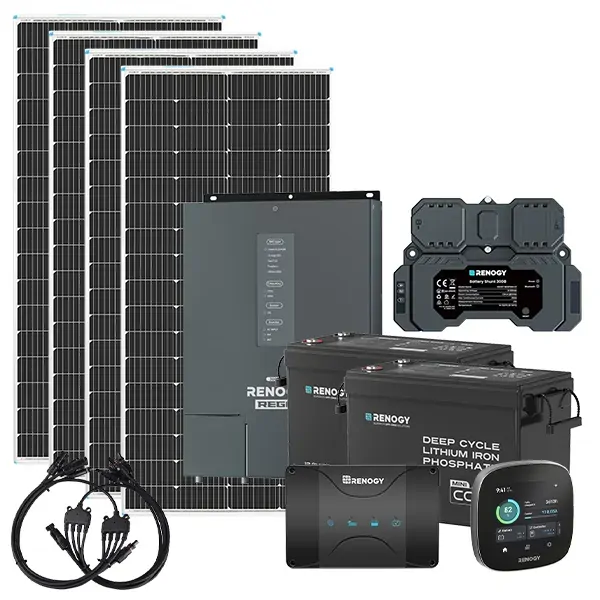

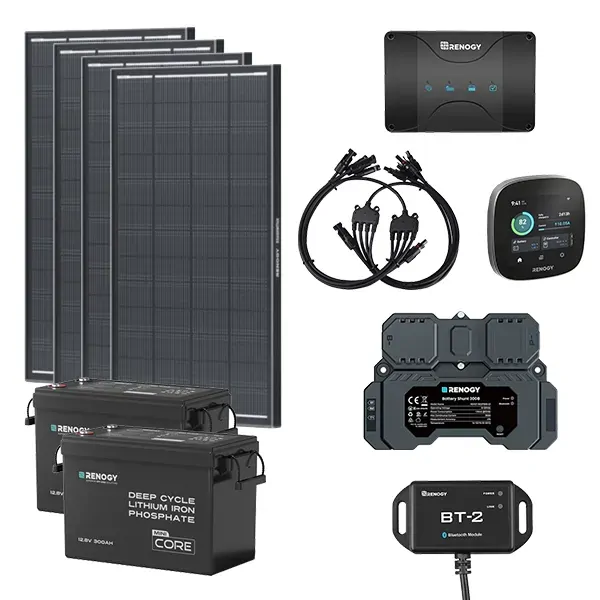

Renogy 600Ah Mini Lithium Epic Caravan Bundle w/ Solar

Bundle Includes:

• 2 x Renogy 12V 300Ah Core Mini Lithium Battery, RBT12300LFP-M
• Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT, RBC50D1S
• Renogy Pro 12V 3000W HF Inverter Charger, RIV1230PCH-24S
• Renogy Battery Shunt 300, RSHST-B02P300
• Renogy ONE Core, RSHGWSN-W02W
• 4 x Renogy 200W ShadowFlux Monocrystalline Fixed Solar Panel, RSP200DC-ASR
• Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair, RNG-CNCT-MC4BC
• Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port, RCM-BT2

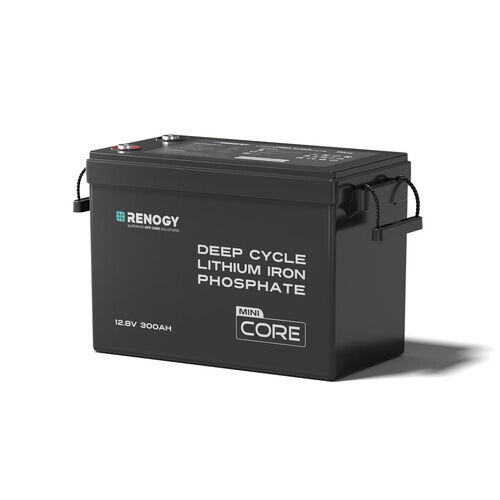

Renogy 12V 300Ah Core Mini Lithium Battery

Features:

• Lighter than ever at 55.1 lb. 57% lighter than 12V 200Ah lead-acid.
• Low-temperature protection (charge <32°F, discharge < -4°F).
• Compact design! 31% smaller than other 12V 300Ah LFP batteries.
• 5-year warranty. Certified by FCC, CE, ROHS, UKCA, and more.
• Grade-A prismatic LiFePO4 cells offer 5000+ cycles at 80% DOD.
• 3840Wh capacity. Max 4P4S, expandable to 61.44kWh.

Benefits:

• High Capacity. Light Weight. Mini Sized. You won't find a lighter 12V 300Ah Lithium Battery anywhere. Between its ultralightweight and compact design and low-temperature cut-off, this battery is perfect for both travel and home use.
• Lighter Than Ever, Easier to Carry. At only 55.1 lb/25 kg, this battery is easy for one person to carry. That's 9 lb/4 kg lighter than its counterparts. The lightweight, compact design makes handling and installation hassle-free.
• 31% Smaller Than Its Counterparts. This battery's compact and sleek design saves space, frees up room for easier connections and maintenance, and fits in various battery boxes, including 8D and 4D sizes.
• Simple. Powerful. Hassle-free. One 12v 300Ah Battery is three times more powerful than the old three-battery set up. Two simple cable connections saves time, money, and stress. Plus, one battery eliminates cell imbalance issues.
• Cold Weather Charging Protection. The built-in BMS with low-temperature cut-off means you don't have to hover around your lithium battery, manually shutting it down. Stay relaxed and cozy during winter travels while your battery handles itself, letting you focus on the adventure.
• Power Your RV Adventure. Two batteries provides 7680Wh of power. That's enough to run your fridge, microwave, coffee maker, and A/C unit for 24hrs+
• Up to 61.44kWh to Power any Adventure. Customize your power setup to fit your needs. Connect four batteries in series, four in parallel, or a mix of both to create a tailored power backup.

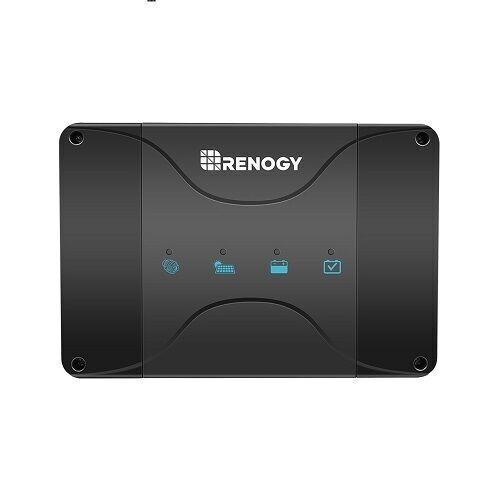

Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT

Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.

Features:

• Multi-Input Efficiency Charging: The Renogy DC-DC Battery Charger with unique dual charging options. This multi-stage, multi-input battery charger can charge the house battery from a starter battery linked to the car alternator or by utilizing solar panels connected directly to the unit. Both ways can be charged at the same time to minimize charging time. With up to 99% MPPT tracking efficiency and 94% convert efficiency, the charger can fully charge a 1kWh battery within 2 hrs with solar energy.

• Ingenious Structure Design: Removable side covers avoid contact between product terminals and the human body during transportation and daily use, which results in electrostatic damage, ensuring product stability and safety. The all-in-one NEG- terminal with partition design integrates the terminals for solar panels, the array starter battery, and the house battery, avoiding misconnection and making the simple installation.

• Diversified Smart Monitoring: The Renogy 50A DC-DC Battery Charger uses the Modbus protocol and allows it to be compatible with various monitoring devices, including the RMS-DCDC monitoring screen, DC Home App, and Renogy One integrated screen. Managing and monitoring your energy easily and remotely in any scenario and situation.

• Soft Start Circuit Design: The voltage at the input end of the Renogy 50A DC-DC battery charger will be rising gently, intending to avoid when the vehicle alternator starts, the instantaneous overvoltage which may cause damage to the battery charger or cause the starter battery to over-discharge and due to the vehicle can not start.

• Comprehensive Security Assurance: The Renogy DC-DC Battery Charger is multi-certified to CE, FCC, and PoHs. This high-quality battery charger has multiple intelligent protections including battery isolation, over-voltage protection, battery temperature protection, over-current protection, overheat protection, reverse current protection, solar panel and alternator reverse polarity protection, guaranteeing charging safety and protecting your batteries.

Specifications:

• System Voltage : 12VDC
• Battery Voltage Range : 9-16VDC
• Maximum Charging Current  : 50A
• Battery Type : SLD/AGM, GEL, FLD, LISER
• Service Battery Charging Mode: MPPT
• Charging Efficiency: Up to 97%
• Max. Solar Input Voltage: 50V
• Maximum Solar Input Power: 660W
• Alternator Input Voltage: Traditional Alternator: 13.2-16VDC | Smart Alternator (Euro 6): 12-16VDC
• Maximum Alternator Input Power: 660W
• Self-consumption: <30mA
• Communication Protocol: RS485
• Ground Type: Negative
• Terminal Size:M8*1.25 - 14mm
• Operating Temperature Range: -35℃ to 65℃
• Storage Temperature Range: -40℃ to 80℃
• Operating / Storage Humidity: 0%-95%, No Condensation
• Dimensions : 244mm x 146mm x  96mm
• Weight: 1.86 kg


Pack Included:

• 12V 50A DC-DC On-Board Battery Charger with MPPT
• Battery Temperature Sensor
• IGN Signal Wire
• RS485 Communication Cable

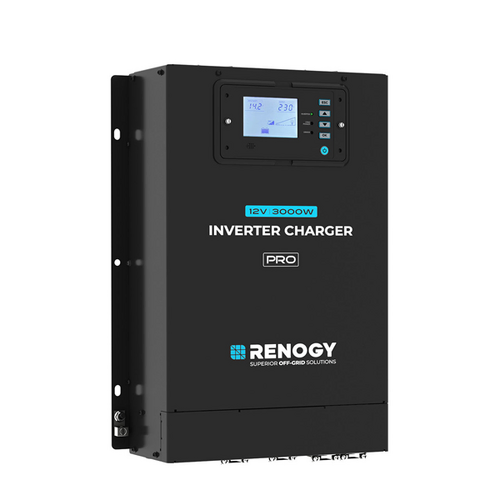

Renogy Pro 12V 3000W HF Inverter Charger

No Bulk, Just Pure Efficiency. Built for those who demand reliable power without compromise, this all-in-one inverter charger seamlessly combines charging and AC power conversion into a single, powerful solution. Its an all in one charging and power station so you can enjoy seamless battery charging and AC power conversion in a single device as well as providing reliable backup power you can trust to keep your home powered during outages without worry, ensuring safety and comfort for your family. The HF Inverter charger comes with internal RCD protection that detects leakage faults instantly, cuts off power automatically and restores with a simple switch flip.

Features & Benefits:

• Ultra-High Efficiency & Low Standby Draw. Delivers over 91% peak efficiency while drawing under 10 W in standby—conserving your battery power for when you need it most
• Rapid Power Switching. Ensures uninterrupted energy flow with a transfer time of just 10 ms, switching instantly between utility and battery power
• Remote Monitoring & Control. Includes a detachable LCD panel for flexible placement. Remote monitoring is enabled via an optional BT-2 Bluetooth module
• Built-In RCD Protection. Internal leakage detection and safety shutdown eliminate the need for external protection modules—offering seamless and safe installation
• Lightweight & Compact. Weighs just 8.1 kg, making it easy to install even in tight spaces.

Includes:

• 1 x Pro-12V 3 kW HF Inverter Charger
• 8 x Self-tapping Screws (ST6.3 × 16 mm)
• 1 x RJ12 Ethernet Cable (5 m)
• 1 x User Manual

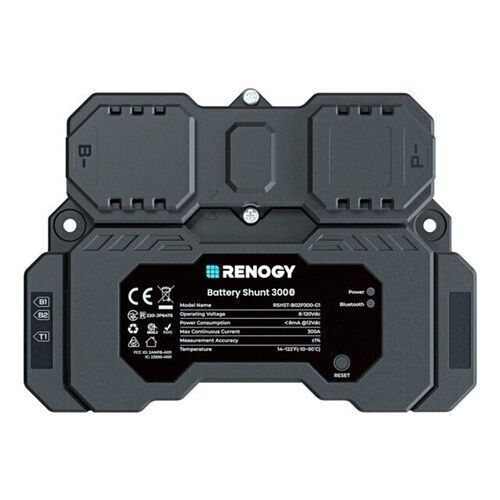

Renogy Battery Shunt 300

Track Battery Data Performance Over Time. In addition to real-time data monitoring, Battery Shunt 300 also helps record historical data via Renogy ONE Core and DC Home App, allowing you to make reasonable decisions about your entire power system.

Compatible With All Types of Batteries. The Battery Shunt 300 is compatible with all your starter battery and main batteries, including lead acid (AGM, GEL), lithium iron phosphate, lithium-ion and nickel-metal hybrid.

Certified Performance. The Battery Shunt 300 has undergone comprehensive testing to not only meet but also surpass exceptionally high standards of excellence.

Battery Temperature Sensor. Temperature sensors for batteries are indispensable for safety, longevity, efficiency, and data-driven decision-making in various applications.

Effortless Installation in 5 Minutes. It can be placed on top of the battery or securely mounted on the wall with screws. The connection points feature protective covers to effectively safeguard against any loosening caused by various movements.

Fast Connection in 4 Steps. When paired with Renogy ONE Core and DC Home, the Battery Shunt 300 provides a seamless real-time data display experience.

Quick Setup Involves Simple Operations to Get Started. The initial steps for a quick setup are designed to be user-friendly and straightforward, ensuring that users can get started with ease.

Features:

• Remote monitoring and control via Renogy ONE/DC Home App.
• Compatible with various batteries：Lead Acid, LFP, Li-ion, and Ni-MH.
• Displays State of Charge, temperature, and starter battery voltage.
• Records historical data and issues alerts via DC Home app.
• Not compatible with ONE M1 currently. Actual package may vary.

Specifications:

• Power Supply: 8 - 120 VDC
• Power Consumption: <0.1 W
• Communication: Bluetooth LE and BLE Mesh
• Max continuous current: 300A
• Max peak current: 500A(<10s)
• Current accuracy: ±1%
• Current Resolution: 0.01 A
• Battery Capacity: 1 - 6500Ah
• Voltage Input Range: 8 - 60V
• Voltage input resolution: 10 mV
• Temperature sensor range: -20~80℃
• Temperature sensor accuracy: ±1%
• Operating Temperature: -20 ℃ to 50 ℃
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 2000m above sea level
• Installation: mounted on the wall
• Battery connection: M10 bolts
• Weight: 260g
• Dimensions: 134 x 97 x 31 mm
• Warranty: 1 year
• Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC

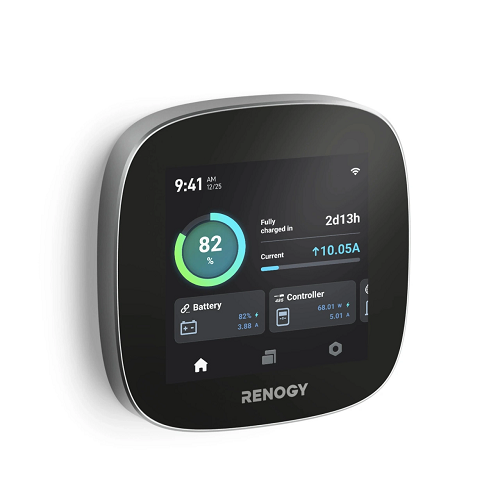

Renogy ONE Core

Energy efficiency at your fingertips. Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

Need leveling for more comfort? ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor. Highly accurate and responsive detection of changes in orientation and rotational movement.

Real-time RV leveling status. Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

Features:

• Cloud-based energy monitoring worldwide.
• 24/7 energy analysis on multiple devices.
• Built-in RV leveling sensor for stability and comfort.
• Connect smart accessories for home automation.

Specifications:

• Operating Voltage: 8-60 VDC (5 VDC for USB Type-C)
• Touch Screen: 4 inches (480 x 480p)
• Operating Temperature: -20℃ to 70℃
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 5000m above sea level
• Installation: Flush mount or place on a table
• Dimensions: 106 x 106 x 26.6 mm
• Weight: 128g

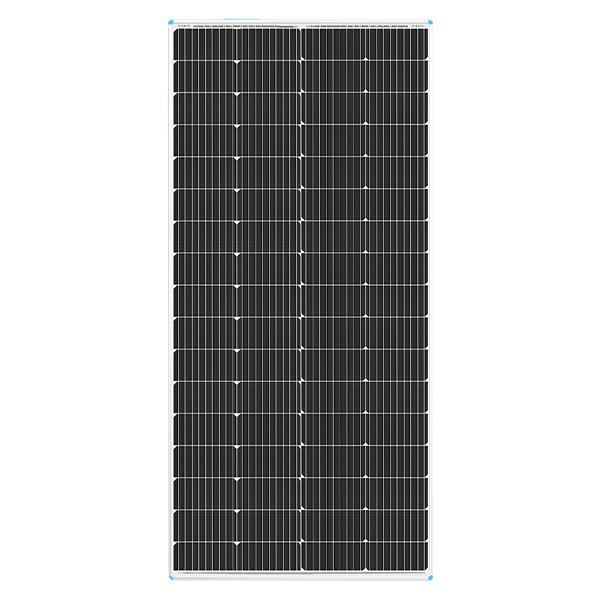

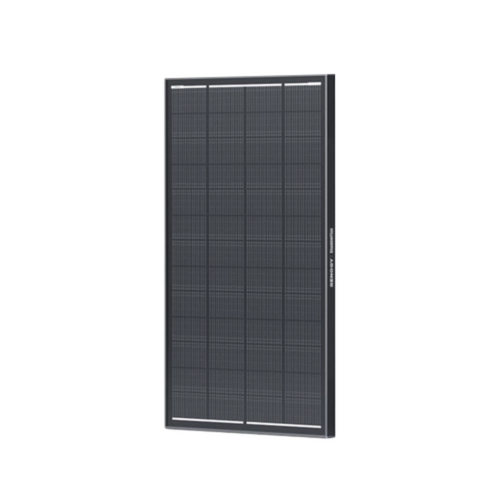

Renogy 200W ShadowFlux Monocrystalline Fixed Solar Panel

Revolutionize your solar setup with the market’s first N-Type solar panel, powered by advanced ShadowFlux anti-shading technology for stable, uninterrupted performance—day or night.

ShadowFlux cell-level anti-shading tech and N-Type high efficiency cell, proviedes you with higher module efficiency and more real power generation; Empowering the future with advanced N-Type solar cell and ShadowFlux module technology； ShadowFlux rigid solar panel is more stable, more durable, it provides a long-term stable and secure source of energy.

Innovative cell optimization minimizes energy loss, ensuring every cell operates at its full potential. From dappled shadows to snow-covered days, ShadowFlux technology guarantees maximum power output, eliminating concerns over shading or debris. It is engineered for high efficiency in a smaller footprint, these panels pack serious power without the bulk and delivers stable power output, this panel excels in varying sunlight angles or partially shaded environments.

Built with a 1.1mm thick aluminum alloy frame, this panel offers superior protection and longevity, even in extreme weather. It is designed to withstand heavy snow loads and strong winds, ShadowFlux ensures consistent, dependable energy in even the harshest of conditions and its advanced cell-level technology prevents performance dips from hotspots caused by dirt, shading, or physical damage.

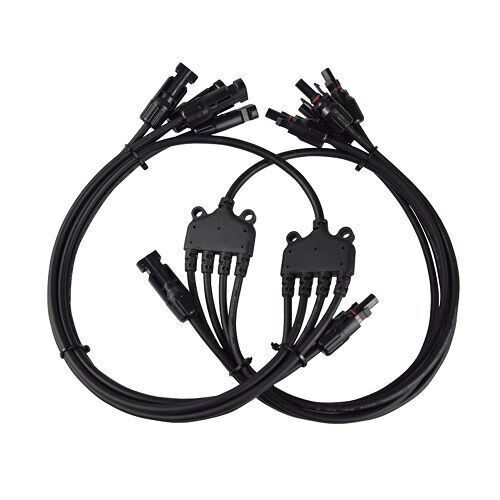

Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Features:

• Hard plastic
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Including one male to four female and one female to four male

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Test Voltage: 6500V (50HZ, 5Min)
• Wiring Size: Main: 10AWG; Branch: 12AWG
• Length: Overall: 3.5ft; Branch: 1.5ft
• Protection Degree: IP67
• Rated Current: 30A
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Temperature: -40°F to +194°F

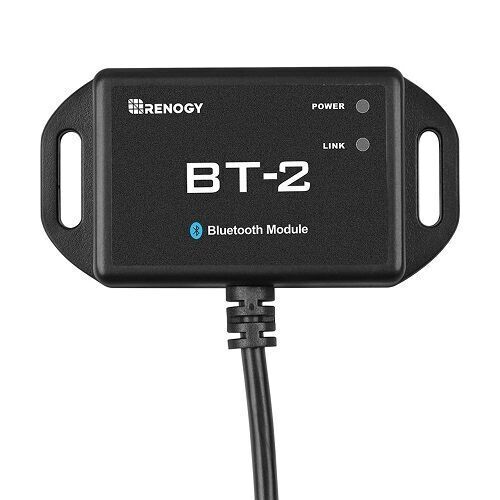

Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet.

Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).

Features:

• Precise Control Over Your Devices: Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger.
• Real-time Insight: Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.
• User-friendly: Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.
