Renogy One Vision 7" Bundle

Description

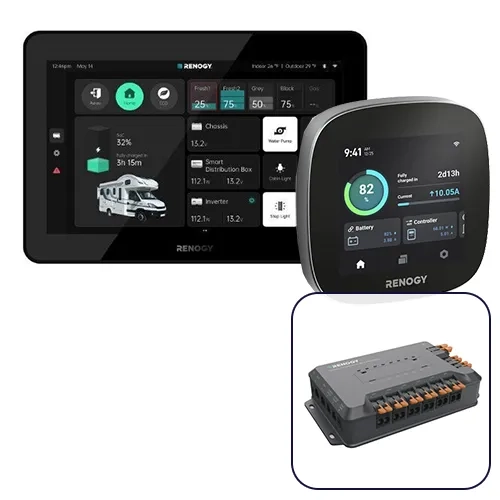

Renogy One Vision 7" Bundle

Bundle Includes:

• Renogy One Vision 7'' screen, RSHSN-W02W7
• Renogy ONE Core, RSHGWSN-W02W
• Renogy Smart Distribution Box PMS1280, RSHCB-C02P

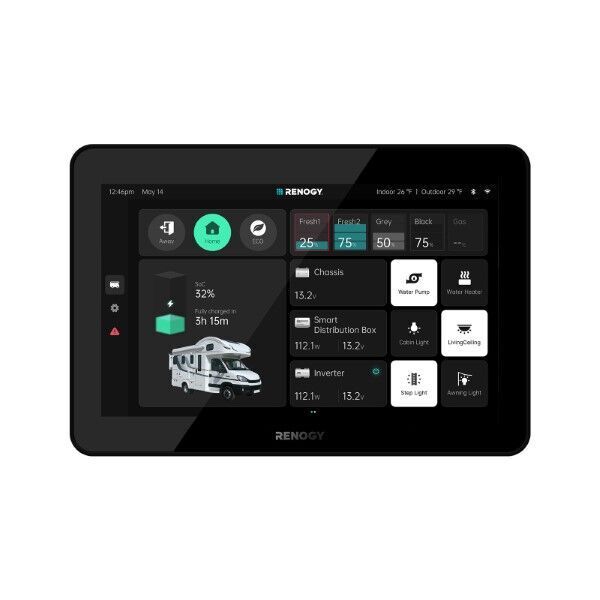

Renogy One Vision 7'' screen

Renogy ONE Vision is a centralized power management touch panel specially designed for recreational vehicles and campervans. When working in association with Renogy ONE Core and PMS1280 Distribution Box, ONE Vision visualizes power management and control, allowing you easily to control your power supply devices and appliances. In addition, ONE Vision provides custom scene automation, local troubleshooting solutions, and online troubleshooting support under your permissions, reducing system maintenance costs while enabling a worry-free off-grid journey.

Key Features:

• High System Reliability. Works constantly reliably at -4°F to 158°F (-20°C to 70°C).
• System-wide Power Management. ONE Vision allows you to control your whole power system by monitoring energy production and consumption and providing real-time alarms and troubleshooting tips. This information is essential for ensuring your power system is operating at its optimal efficiency.
• Self-Diagnosis with Online Troubleshooting. ONE Vision integrates local self-diagnosis and online troubleshooting. You can locate easy problems by yourself with the integrated alarms. Alternatively, you can seek for online troubleshooting support to ensure stable device operation.
• Personal Customization. ONE Vision allows you to customize system settings, including display language, alarms, and notification preferences, accommodating to personal requirements.
• Easy to Install. ONE Vision features a neat design and easy installation. With all included accessories and user manual, you can mount and install ONE Vision in an effort free manner.

What's In The Box:

• 1 x  Renogy One Vision 7
• 1 x Mounting Bracket
• 5 x Mounting Screw (1 Extra)
• 1 x Power Cable (5m)
• 1 x User Manual

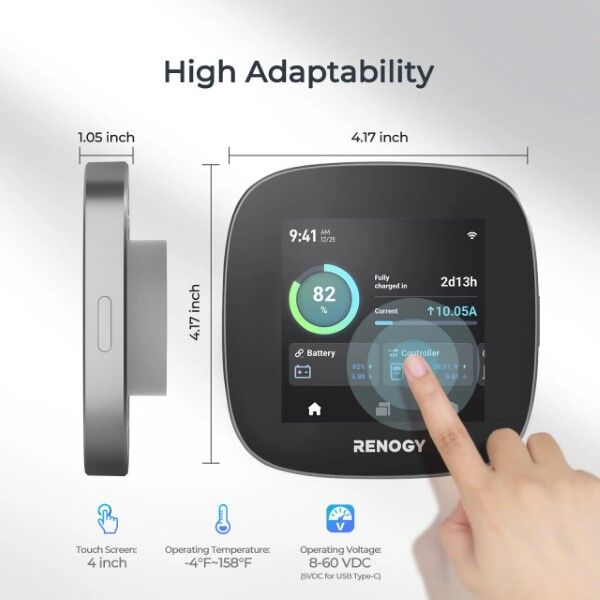

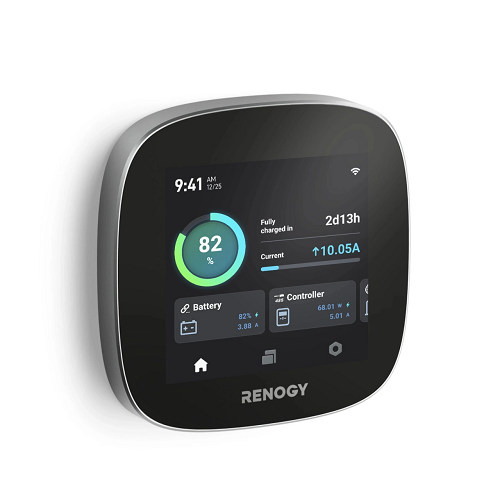

Renogy ONE Core

Simplify your off-grid setup! The Renogy ONE Core gives you centralized control of your solar system, letting you monitor power, manage devices, and optimise energy with ease.

Energy efficiency at your fingertips. Dedicated to off-gridders, Renogy ONE Core helps save money and reduce your carbon footprint by tracking energy generation and consumption.

Need leveling for more comfort? ONE Core assists you in adjusting your RV's position to achieve optimal stability, ensuring a comfortable and safe experience.

Built-in 6-axis leveling sensor. Highly accurate and responsive detection of changes in orientation and rotational movement.

Real-time RV leveling status. Instant and accurate updates about your vehicle's stability on both ONE Core Panel and DC Home App.

Features:

• Cloud-based energy monitoring worldwide.
• 24/7 energy analysis on multiple devices.
• Built-in RV leveling sensor for stability and comfort.
• Connect smart accessories for home automation.

Specifications:

• Operating Voltage: 8-60 VDC (5 VDC for USB Type-C)
• Touch Screen: 4 inches (480 x 480p)
• Operating Temperature: -20℃ to 70℃
• Operating Humidity: 0% to 95% RH
• Operating Altitude: Less than 5000m above sea level
• Installation: Flush mount or place on a table
• Dimensions: 106 x 106 x 26.6 mm
• Weight: 128g

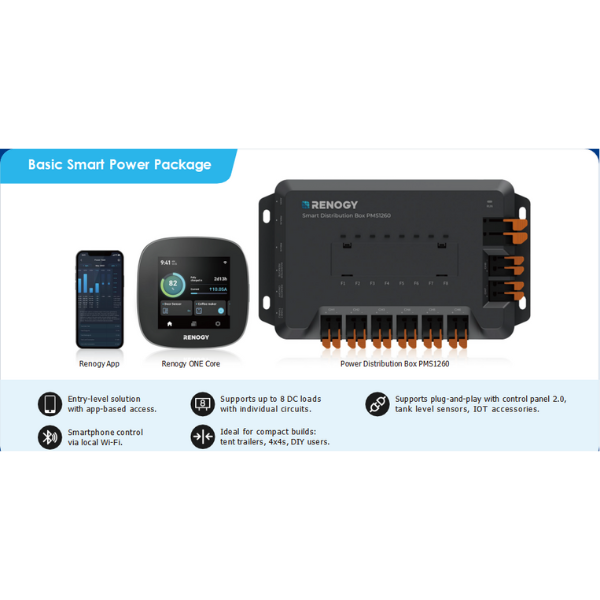

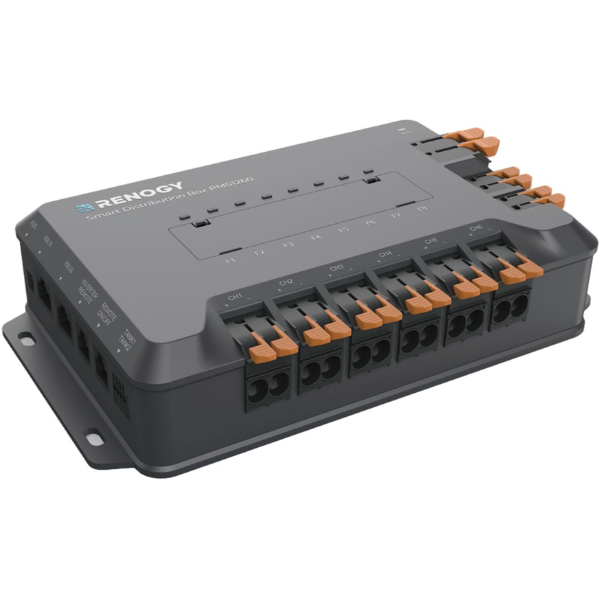

Renogy Smart Distribution Box PMS1280

Key Features:

• Comprehensive Management with Renogy ONE Core: Keep track of water tank levels, temperature, voltage, and other key metrics to stay on top of your system's performance.
• Robust Design for Automation & Safety: User-programmable functions, low-voltage cutouts, and high-voltage cut-ins ensure greater safety and control Handles up to BOA input current.
• Optimized Load Management: Automatic switching and load shedding maximize energy use and maintain system stability. Manages 72 DC loads with built-in current sensors and includes pre-fused outputs with blown fuse indicators for simple maintenance.
