Toyota Hilux (2015-Current) Slimsport Roof Rack 4WD Starter Kit - by Front Runner

Description

Toyota Hilux (2015-Current) Slimsport Roof Rack 4WD Starter Kit - by Front Runner



Pack Includes:

• Toyota Hilux (2022-current) Slimsport Roof Rack Kit - by Front Runner, KSTH005T
• Rack Handle Bracket for Slimsport Rack - by Front Runner, RRAC216
• Slimsport Side Mount Accessory Bracket / Small - by Front Runner, RRAC182
• Ratcheting Spade/Shovel & Paddle Mount - by Front Runner, RRAC024
• Quick Release Awning Mount Kit - by Front Runner, RRAC222



Toyota Hilux (2022-current) Slimsport Roof Rack Kit - by Front Runner



A roof rack frees up space in the load bay and cab of your double-cab, allowing you to load more gear for your adventures. The sleek, low-profile Slimsport Roof Rack is form-fit to complement the aesthetic of your Toyota Hilux and is compatible with over 55 accessories so you can kit up for any adventure.

Configure your Slimsport Rack to suit any adventure by adding the RACK ACCESSORIES or explore them later when a new adventure calls.

• This low-profile flat deck Slimsport rack has a load carrying area of 1386mm (54.6") L x 1147mm (45.2") W.
• The sleek side rails have integrated mounting feet. Mounting feet also have additional brace brackets for added strength.
• The high-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
• Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (sold separately).
• Easily add on the Slimsport Side Mount Accessory Bracket / Small – by Front Runner (sold separately) for all Front Runner side mount accessories.
• The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
• Need a lightbar? The optional lightbar fairing Toyota Hilux H48 DC (2022-Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount (sold separately).
• Fitment guide and all mounting hardware included.
• 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).

Note: Drilling required.
Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.



Consisting of:

• 1x KSTH002 - Toyota Hilux (2022-Curr) SlimSport Roof Rack Kit
• 1x RRAC244 - Toyota Hilux H48(2022-Curr)SsportRack Wind Fairing
• 1x RRAC971 - Protection Strip



Specifications:

• Material Used: Black epoxy powder - coated T6 aluminium \ High strength steel
• Assembled Rack Kit Dimensions: 1386mm  L x 1147mm W x 116mm  H
• Approximate Installed Weight: 24.352537kg



The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.



Installation Instructions for TOYOTA HILUX H48 DC (2022-CURRENT) SLIMSPORT ROOF RACK KIT



Installation Instructions for TOYOTA HILUX SLIMSPORT RACK WIND FAIRING



Installation Instructions for PROCTECTIVE STRIP



Rack Handle Bracket for Slimsport Rack - by Front Runner

Accessing the top of your Front Runner Slimsport roof rack is easy as ever when you attach a Rack Handle Bracket. The bracket is made of black power-coated steel, adding function without sacrificing aesthetics.



Features:

• A Handle Bracket for the Front Runner Slimsport rack.
• Eases access to the gear on your rack.
• Made from black powder-coated steel.
• Can be mounted on the left or right sides of the Slimsport rack.
• Includes installation hardware and fitment guide.
• For additional illumination, incorporate a LED Rock Light / 4.5W, recommended with Roof Rack Power Point (sold separately).



Consists of:

• 1 x Slimsport Rack Handle Bracket
• Installation Hardware
• Fitting Instructions



Specifications:

• Materials used: Black powder coated steel
• Product Dimensions: 260mm (L) x 94mm (W) x 60mm (H)
• Weight: 670g



Installation Instruction for Rack Handle Bracket For Slimsport Rack

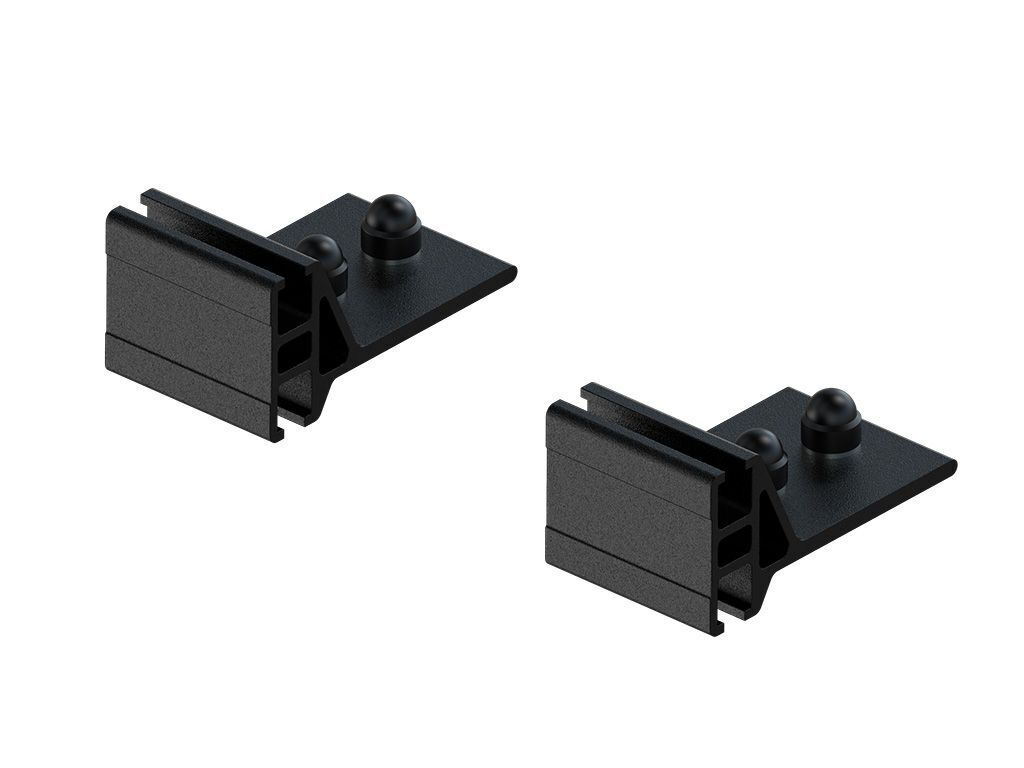

Slimsport Side Mount Accessory Bracket / Small - by Front Runner

• A pair of brackets that secure to the slats of your Front Runner Slimsport Rack.
• Mounts Front Runner side mount accessories such as:
• Quick Release Awning Mount Kit
• Ratcheting Spade/Shovel & Paddle Mount
• Installs in the T-slots of the Slimsport Rack and can be inversed to allow for standard or lower mount depending on roof clearance.
• Made from black powder coated 6063 T6 aluminum to match your rack accessories.
• Supplied with installation hardware and fitting instructions.



Note: This product is only compatible with the Front Runner Slimsport Rack Kits.

Consists of:

• 1 x Pair of Rack Accessory Mounting Brackets
• Installation Hardware
• Fitting Instructions

Materials used: Black powder coated aluminum

Product Dimensions: 101mm (L) x 60mm (W) x 50mm (H)(Per Single Bracket)

Weight: 0.37kg



Installation Instructions for RRAC182

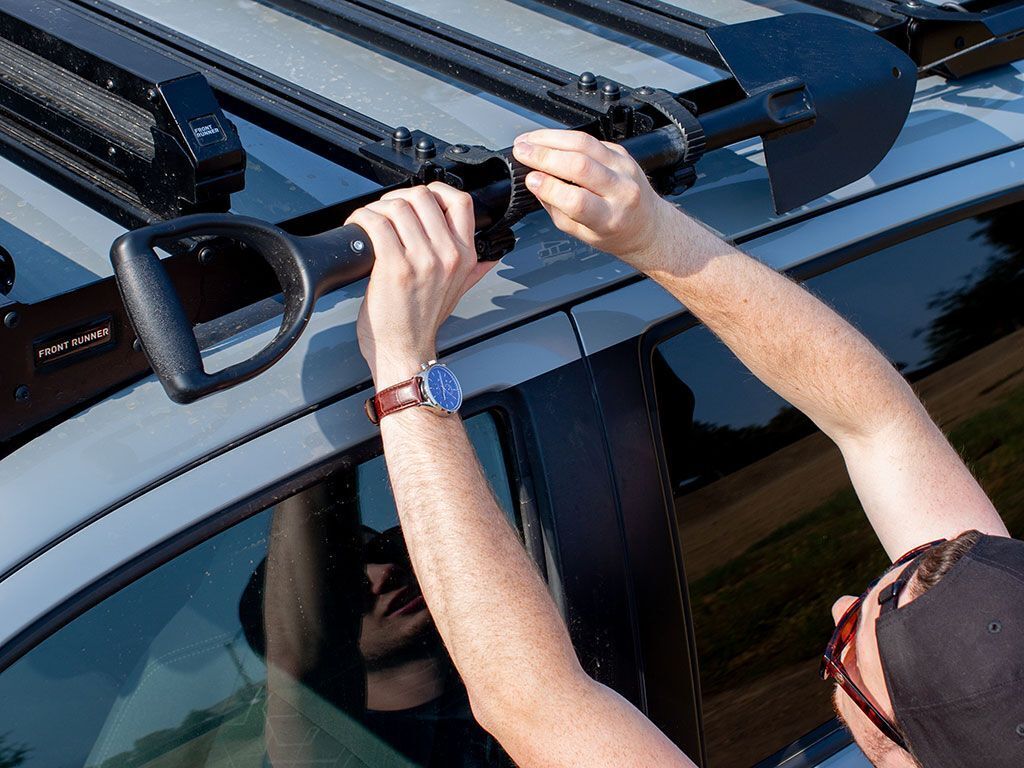

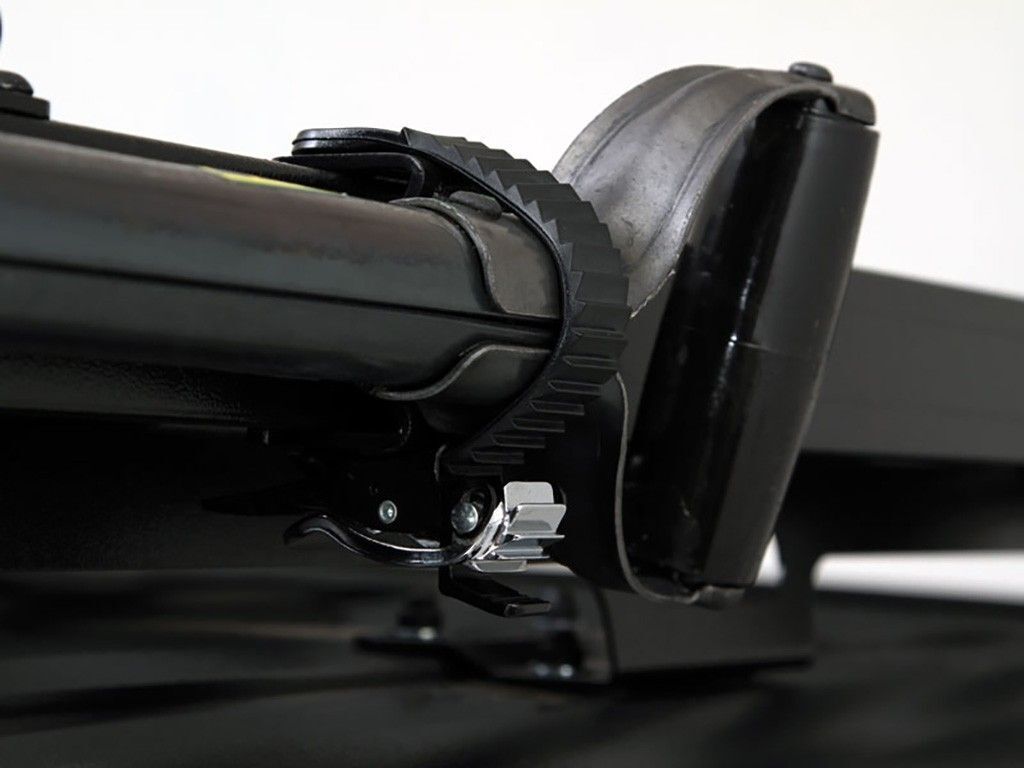

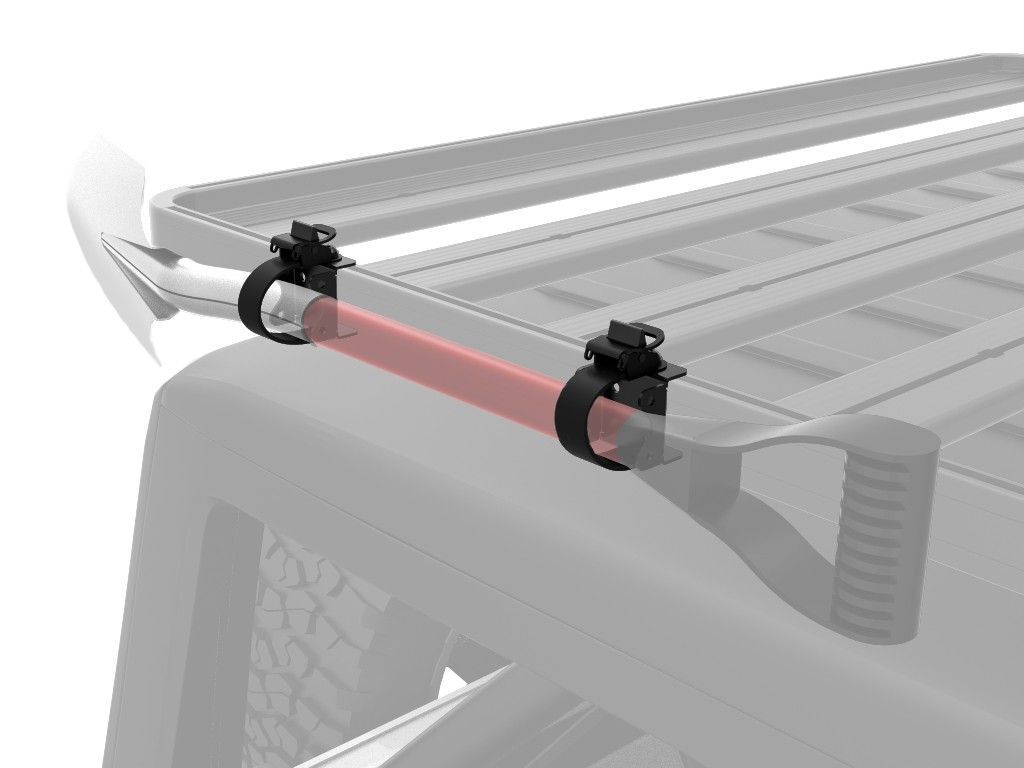

Ratcheting Spade/Shovel & Paddle Mount - by Front Runner

• Mount a spade/shovel or similar gear up and out of the way on the side of a Front Runner Roof Rack.
• These brackets install along the Slimline II Roof Rack Tray side rails in minutes. No drilling required.
• Can accommodate most shovel sizes and is adjustable to fit gear 1/2" (12mm) to 2" (50mm) in diameter.

Consists of:

• 2x Spade/Shovel Bracket
• 2x Ratchet buckle
• 2x Ladder Strap
• 1x Nut and bolt kit


Specifications:

• Materials used: 1.8mm (0.07") Black powder coated 3CR12 stainless steel.
• Product Dimensions: L 120mm (4.72") x W 90mm (3.54") x H 65mm (2.55")
• Weight : 0.6kg (1.322lbs)

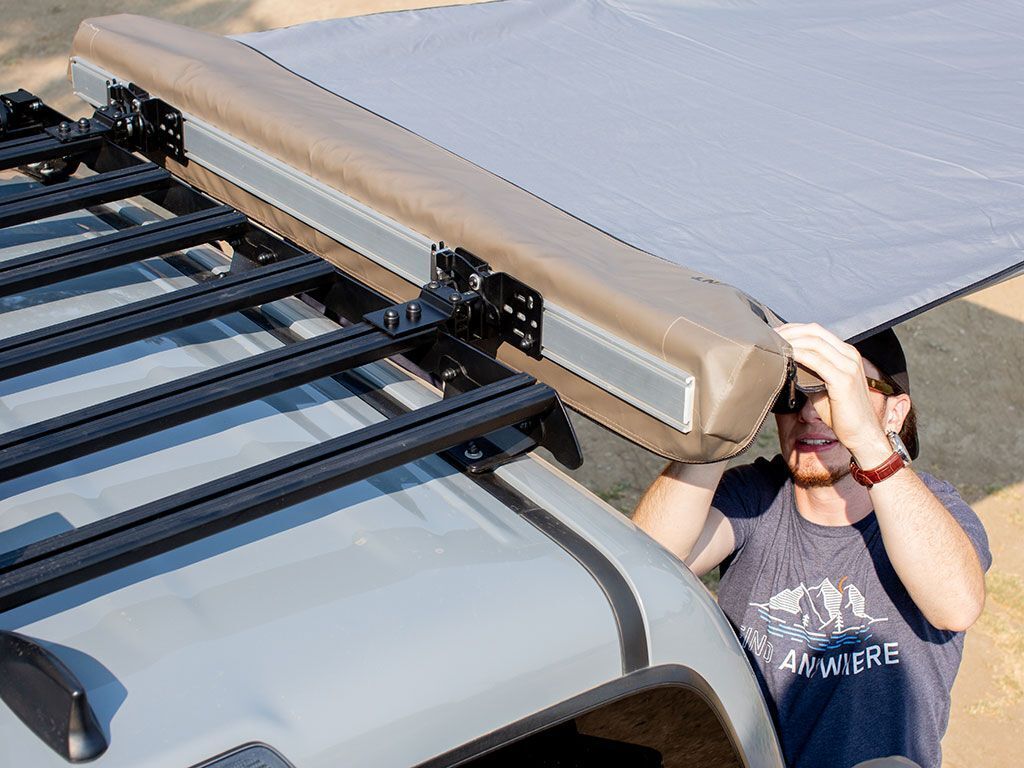

Quick Release Awning Mount Kit - by Front Runner

• Once these brackets are installed on a Front Runner Rack, no additional tools are needed to remove or refit the awning.
• Simply release the 2 latches and lift the awning away in seconds.
• No more wrenching in tight spaces during the “off-season” or time-consuming weekday removal of the awning.
• This strong and "rattle-free" mounting system is built off-road tough for use with Front Runner Racks.
• Works with all Front Runner Awnings and other popular awning brands like Eezi-Awn, Oz Tent, etc.
• 2 low profile base brackets are bolted to a Front Runner Rack while 2 self-aligning bushes are secured to the awnings mounting channel using the supplied fasteners.
• Safely secured in place using 2 latches with built-in safety catch. For added peace of mind, lock your latches in place using Rack Accessory Lock / Small.
• The brackets are small, unobtrusive and can be left on the roof rack when the awning is not mounted.
• No awning modification required.
• Removed awnings can be stored using the wall mount brackets supplied.
• Supplied with all required mounting hardware.
• Fitting instructions are included.
• Weight limit: 20kg (44.1lbs).

Note: Not suitable for 270 degree awnings.



Consists of:

• 1 x Pair of Quick Release Awning Brackets
• Installation Hardware
• Fitting Instructions



Specifications:

• Materials used:
  • Black powder coated Steel
• Product Dimensions: (Per assembled bracket): 161.5mm(6.4") L x 103mm (4.1") W x 100mm (3.9") H
• Weight: 2kg (4.4lbs)
• Weight Limit: 20kg (44.1lbs)
