Victron Orion XS 12/12-50A DC-DC Charger Bundle, with BMV-712 & Temperature Sensor
SKU: BDL011 Learn More»
Description

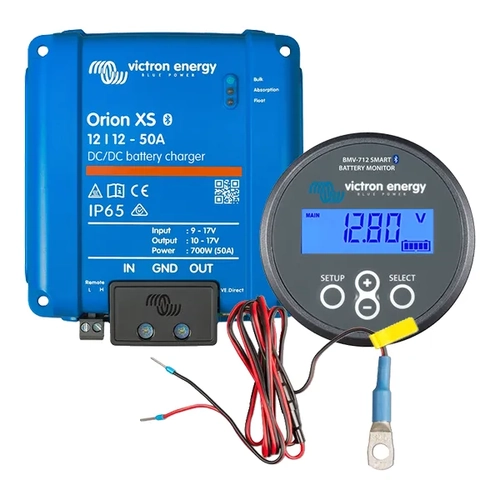

Victron Orion XS 12/12-50A DC-DC Charger Bundle, with BMV-712 & Temperature Sensor
Experience off-grid exploration with the Victron Orion-Tr Smart 12/12-30A DC-DC Charger Bundle, featuring the BMV-712 Smart Battery Monitor and Temperature Sensor.
Pack Includes:
- Victron Orion XS 12/12-50A DC-DC battery charger - ORI121217050
- Victron Battery Monitor BMV-712 Smart - BAM030712000R
- Victron Temperature Sensor for BMV-702/712 - ASS000100000
Victron Orion-Tr Smart 12/12-30A (360W) DC-DC Charger
The Orion XS, engineered from the ground up, redefines DC-DC battery-to-battery charging. Ideal for dual battery systems charged by an intelligent alternator.
This device not only ensures top-tier performance but also guarantees the safety of your system.
Stay in charge with configurable input and output currents and rest assured that your Orion XS will run at full capacity up to 40°C. The 98,5% efficient aluminium circuit board technology means less heat, without the need for fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.
.png)

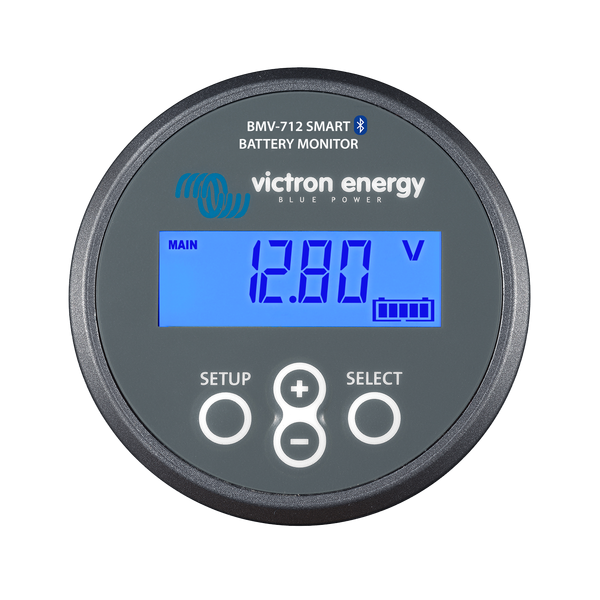

Victron Battery Monitor BMV-712 Smart
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. The BMV-712 Smart battery monitor provides comprehensive real-time information about your battery bank's status. Monitor essential data such as voltage, current, capacity, and state of charge, allowing you to make informed decisions and optimise battery usage.

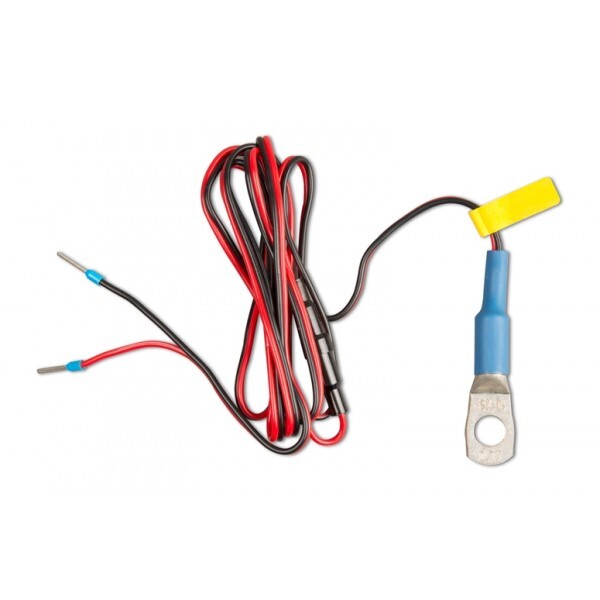

Victron Temperature Sensor for BMV-702/712
The Victron Temperature Sensor for BMV-702/712 provides precise temperature monitoring for enhanced battery management.
Specifications
SKU BDL011
Brand Victron
Product Category Battery Chargers
Output Current Rating (Amps) 18
Input Voltage 6,5 - 70 VDC (Battery Monitor)
Operating temperature range -20°C to 60 °C (DC/DC Charger)
Battery Capacity 1 - 9999 Ah (Battery Monitor)
Output System Voltage 12V (DC/DC Charger)
Dimensions Front: 63 mm diameter | Front bezel: 69 x 69 mm | Body diameter: 52 mm | Body depth: 31 mm (Battery Monitor) | 137.3 x 123.1 x 40mm (L x W x H) (DC/DC
Temperature Range -20 +50°C (Battery Monitor)
Operating Range (temp) -40 +50°C (-40 - 120°F) (Battery Monitor)
Weight (kg) 1.3
DC Input Voltage 9-17V (DC/DC Charger)
Charger Voltage 12V
Voltage (V) ± 0,01V (Battery Monitor)
Protection Battery reverse polarity (fuse, not user accessible), PV reverse polarity, Output short circuit and Over temperature (Charge Controller)
