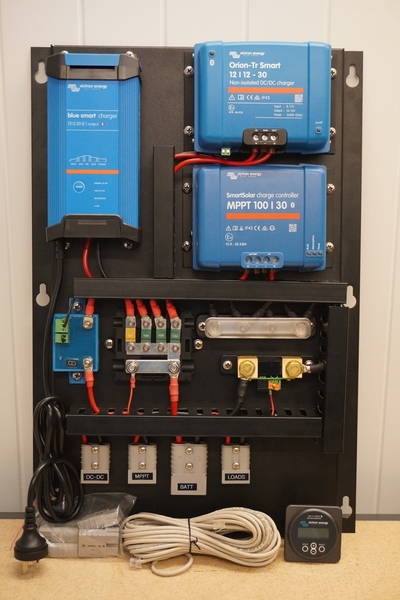

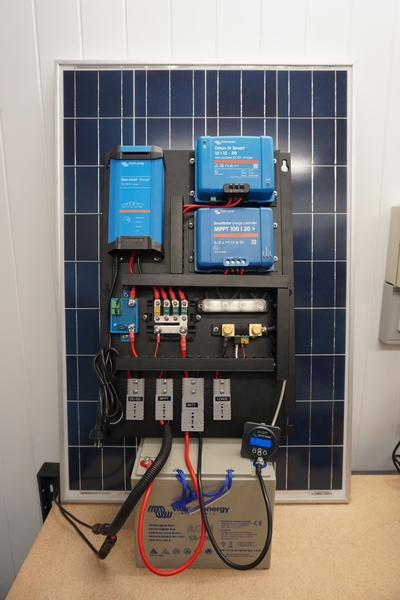

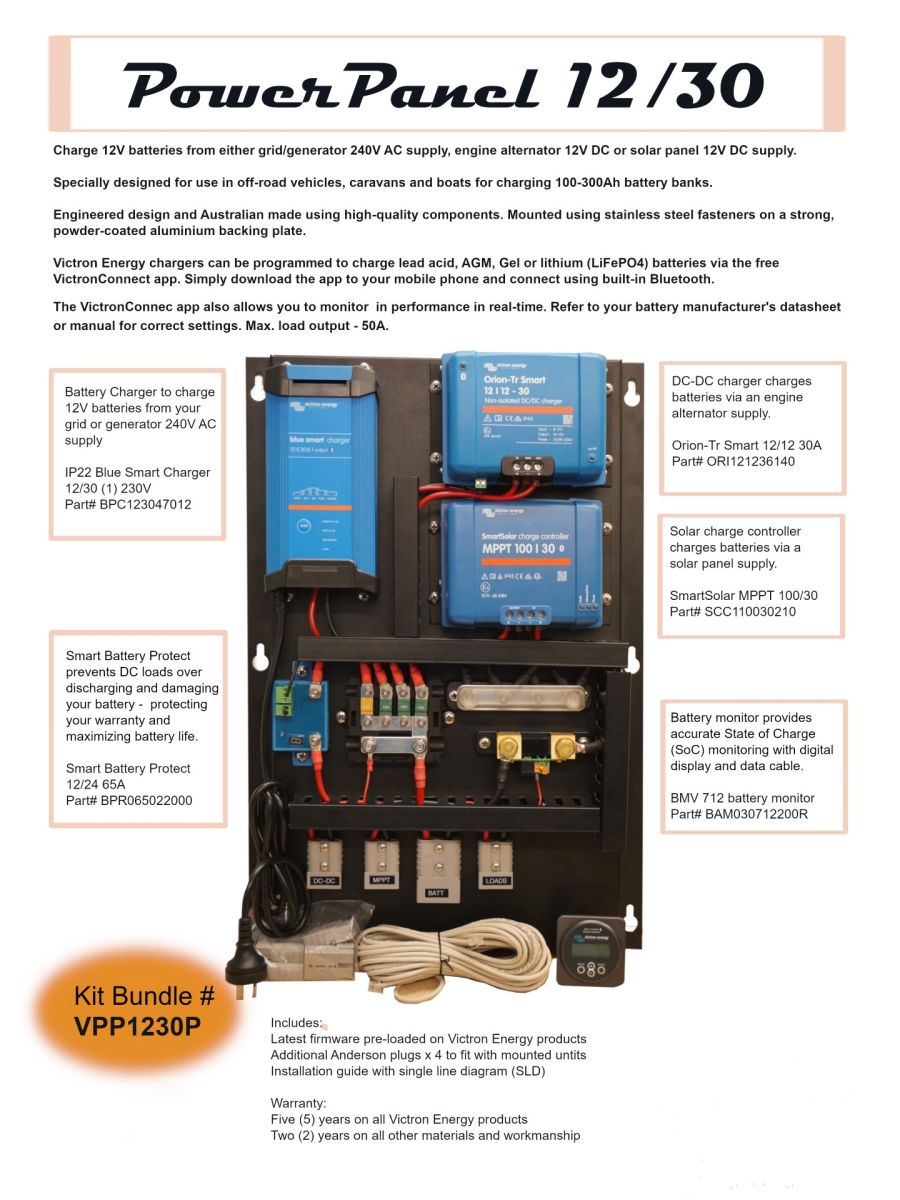

Victron Pre-Wired Power Panel with 30A DC, AC, and Solar Charger
SKU: VPP1230P Learn More»






Description
Victron Pre-Wired Power Panel with 30A DC, AC, and Solar Charger
Includes:
- Victron Blue IP22 Smart Charger 12/30, 1 Output, BPC123047012
- Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger, ORI121236140.
- Victron Battery Monitor BMV-712 Smart Black, BAM030712200R
- Victron Smart Battery Protect 12/24V-65A, BPR065022000
- Victron Busbar 150A 4Pole & Cover, VBB115040020
- Victron SmartSolar MPPT 100/30 Charge Controller, SCC110030210

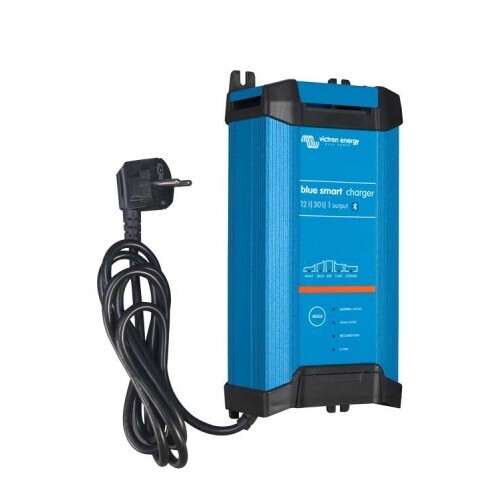

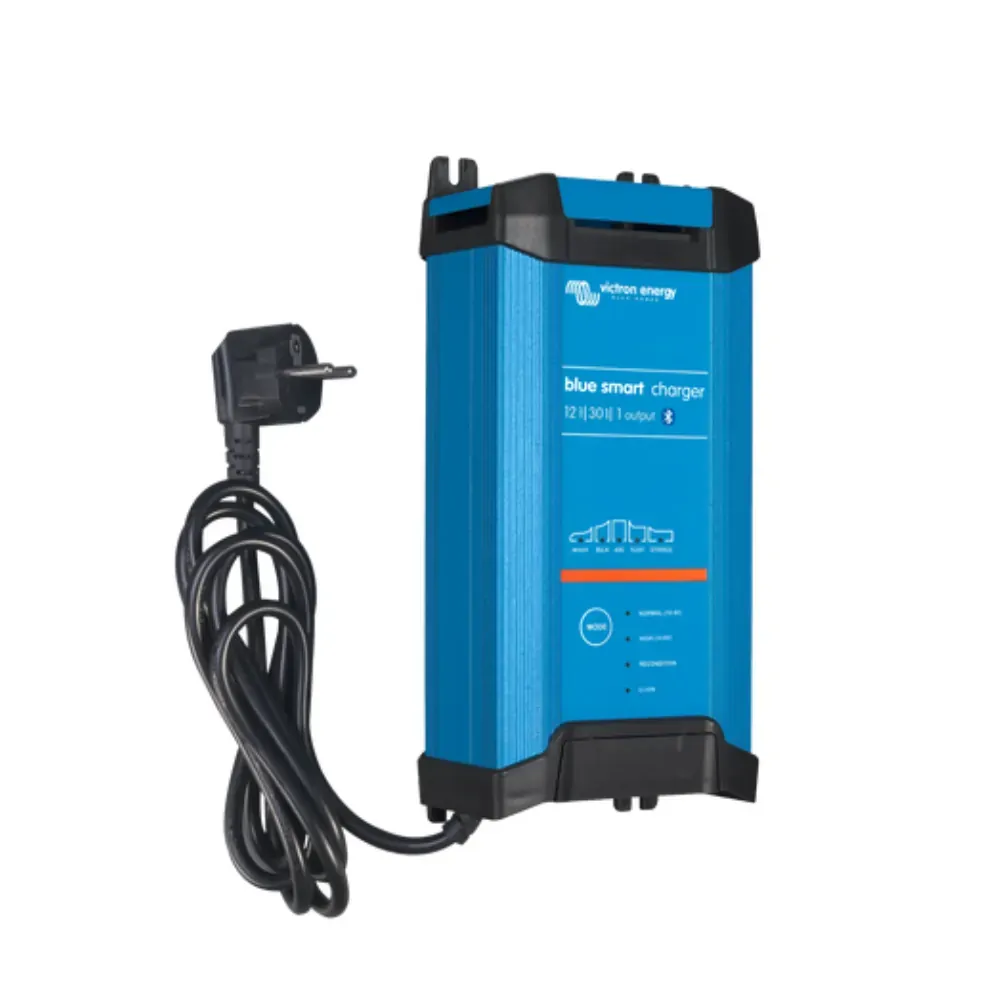

Victron Blue IP22 Smart Charger 12/30, 1 Output
The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans. The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.
The Blue Smart IP22 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.
Please note: The Blue Smart IP22 Charger is supplied with an Australian plug. Victron are an International company and the image shown is based on the Victron generic worldwide product.

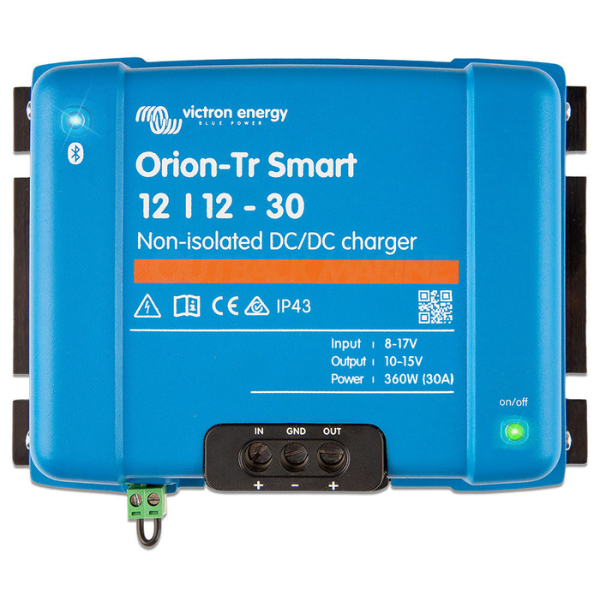

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead-acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

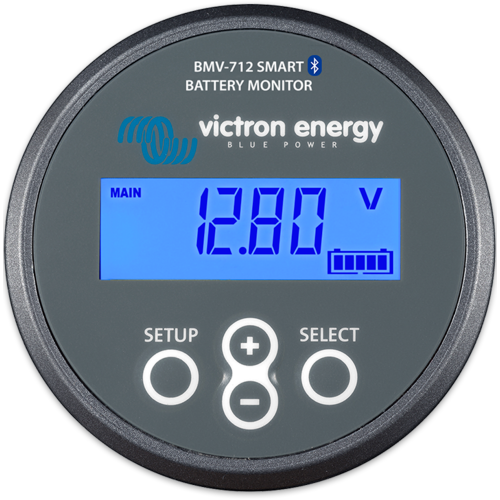

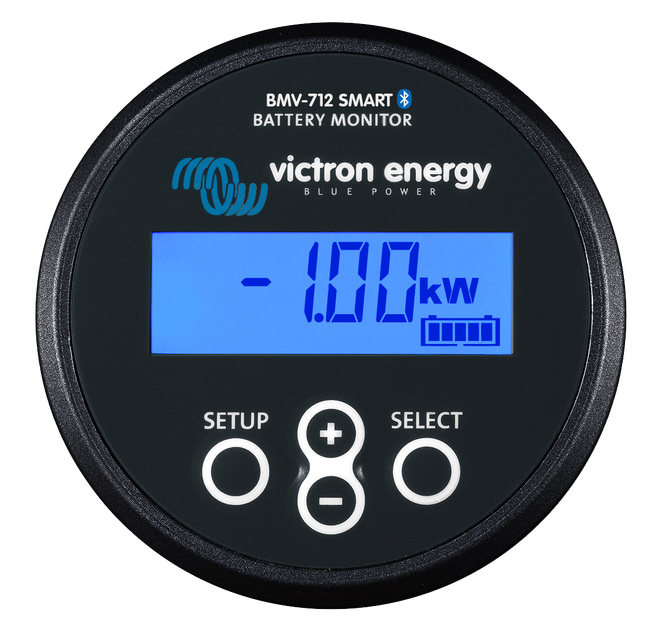

Victron Battery Monitor BMV-712 Smart Black
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.

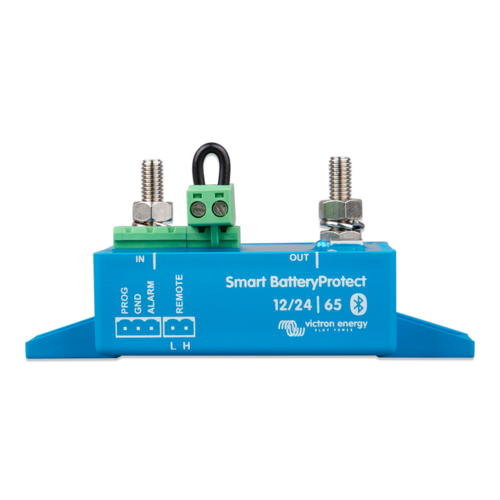

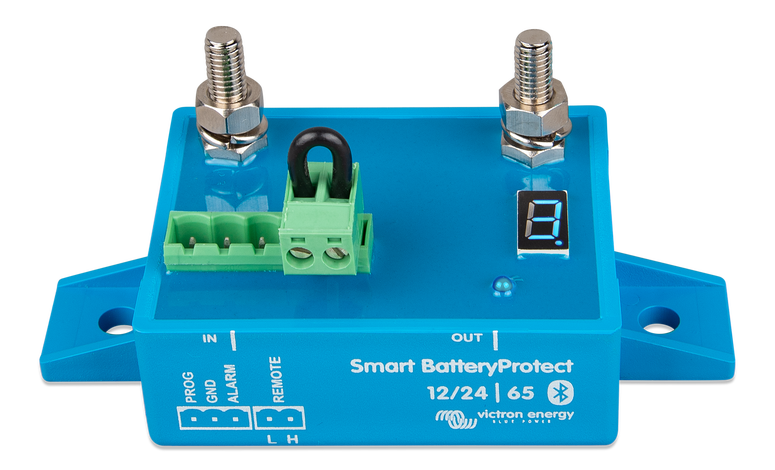

Victron Smart Battery Protect 12/24V-65A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is not designed for reverse currents from charging sources.
Victron Busbar 150A 4Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

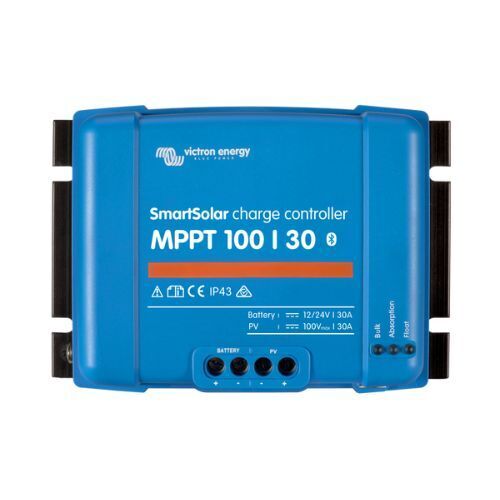

Victron SmartSolar MPPT 100/30 Charge Controller
Solar charge controller:
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking:
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control:
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other devices via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.
Specifications
SKU VPP1230P
Brand Victron
Product Category Power Systems
Voltage 12V
Short Circuit Current Isc(A) 60 (DC DC Charger)
Amps 30 (Solar Charge Controller)
Input Voltage 6,5 - 70 VDC (Battery Monitor) | 180 – 265 VAC (Smart Charger)
Operating temperature range -20 to +50°C (Smart Charger) | -20 to +55°C (DC DC Charger) | -40 +50°C (Battery Monitor) | -30 to +60°C (Solar Charge Controller)
Battery Capacity 1 - 9999 Ah (Battery Monitor)
DC Output Voltage 12,2V (DC DC Charger)
Charge Current 30 A (Smart Charger)
Battery Connection Screw terminals 13 mm² / AWG6 (Smart Charger)
No Load Power Consumption <80 mA (DC/DC Charger) | 0.5 W (Smart Charger)
Charger Voltage 12V (Smart Charger)
Efficiency 93% (Smart Charger) | 87% (DC DC Charger) | 98% (Solar Charge Controller)
DC Input Voltage 10-17V (DC DC Charger)
Protection category IP22 (Smart Charger)
Humidity Max 98% (Smart Charger) | Max. 95% non-condensing (DC DC Charger & Solar Charge Controller)
Standby Current Less than 1 mA (DC DC Charger)
Dimensions 108 x 65 x 235 mm (Smart Charger) | 130 x 186 x 80 mm (DC DC Charger) | 70 x 186 x 130mm (Solar Charge Controller)
Output System Voltage 12V
