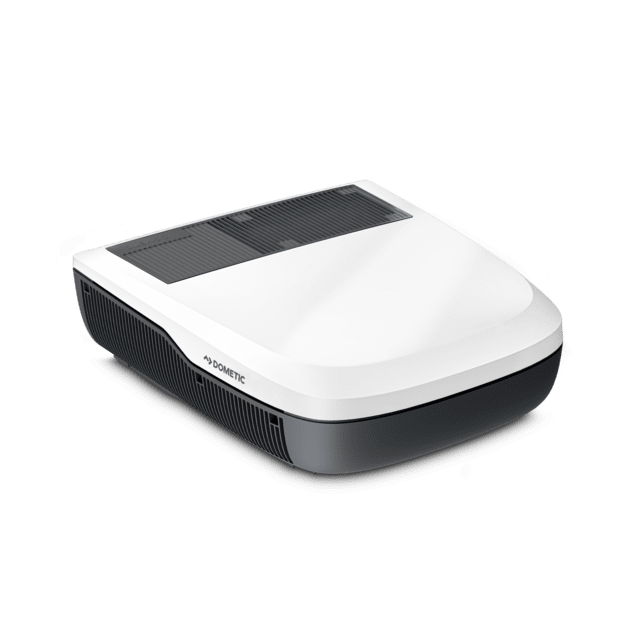

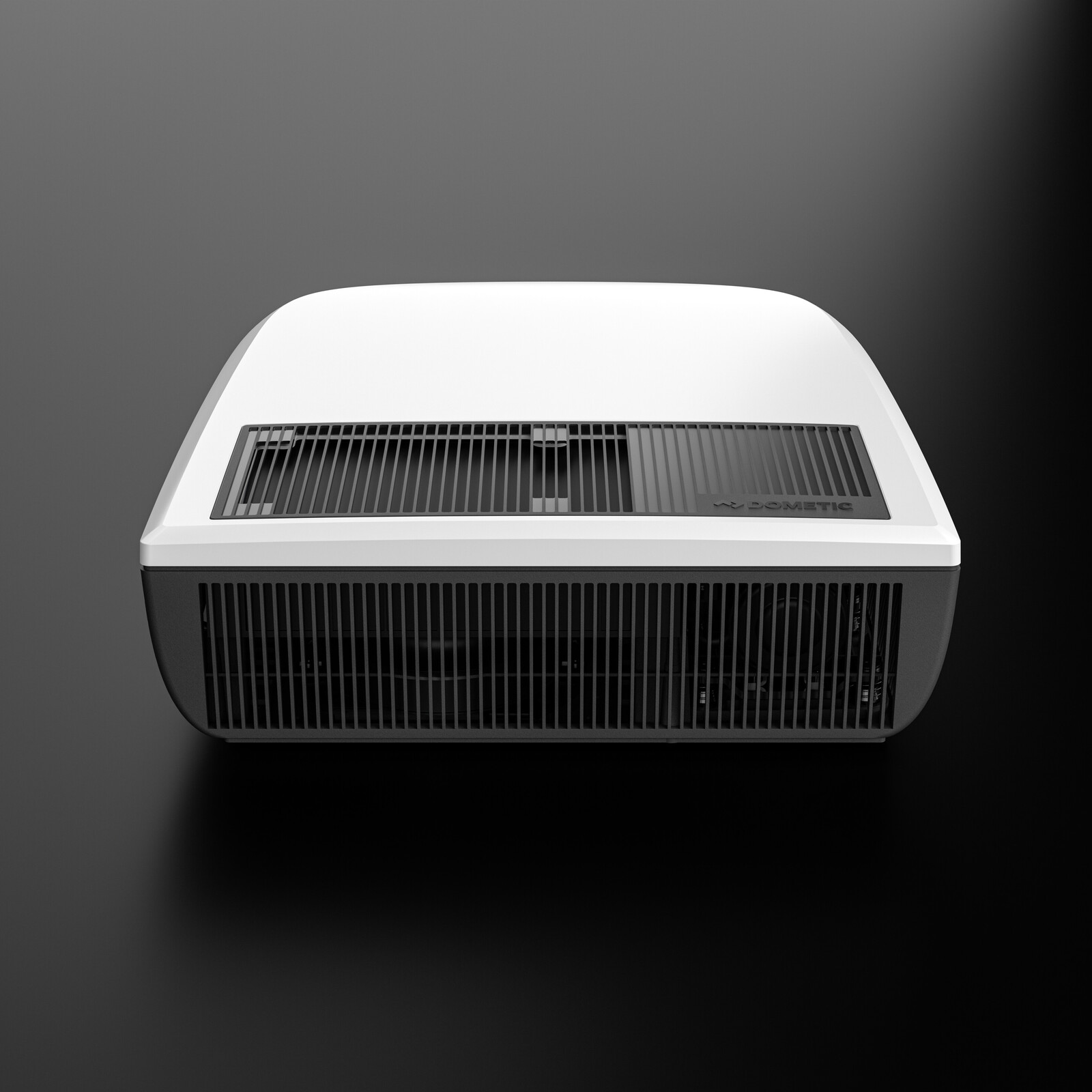

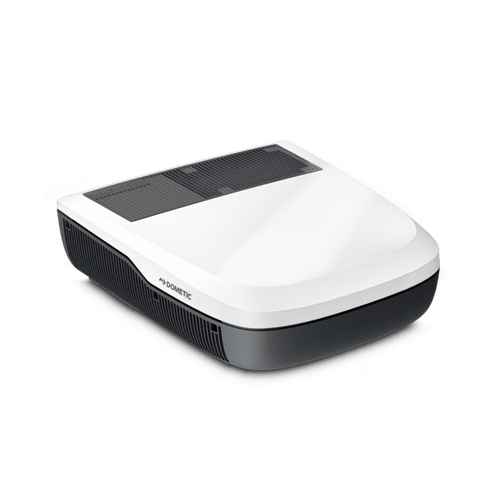

Dometic FreshJet 4 Series Essential Roof Top Air Conditioner with ADB

Specifications

SKU 9620001681-ADB

Brand Dometic

GTIN 6975399590132

Product Category RV Air Conditioners

Current draw 4.55A (Cooling) | 4.42A (Heating)

Refrigeration Technology Compressor

Heating Capacity (W) 1000

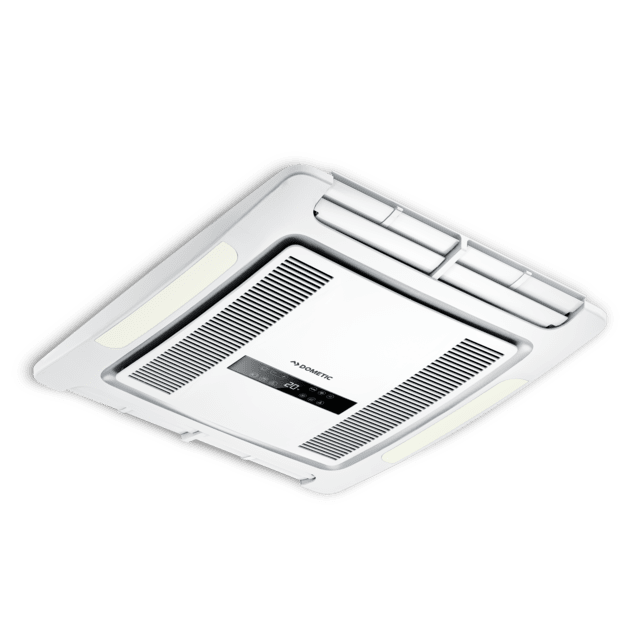

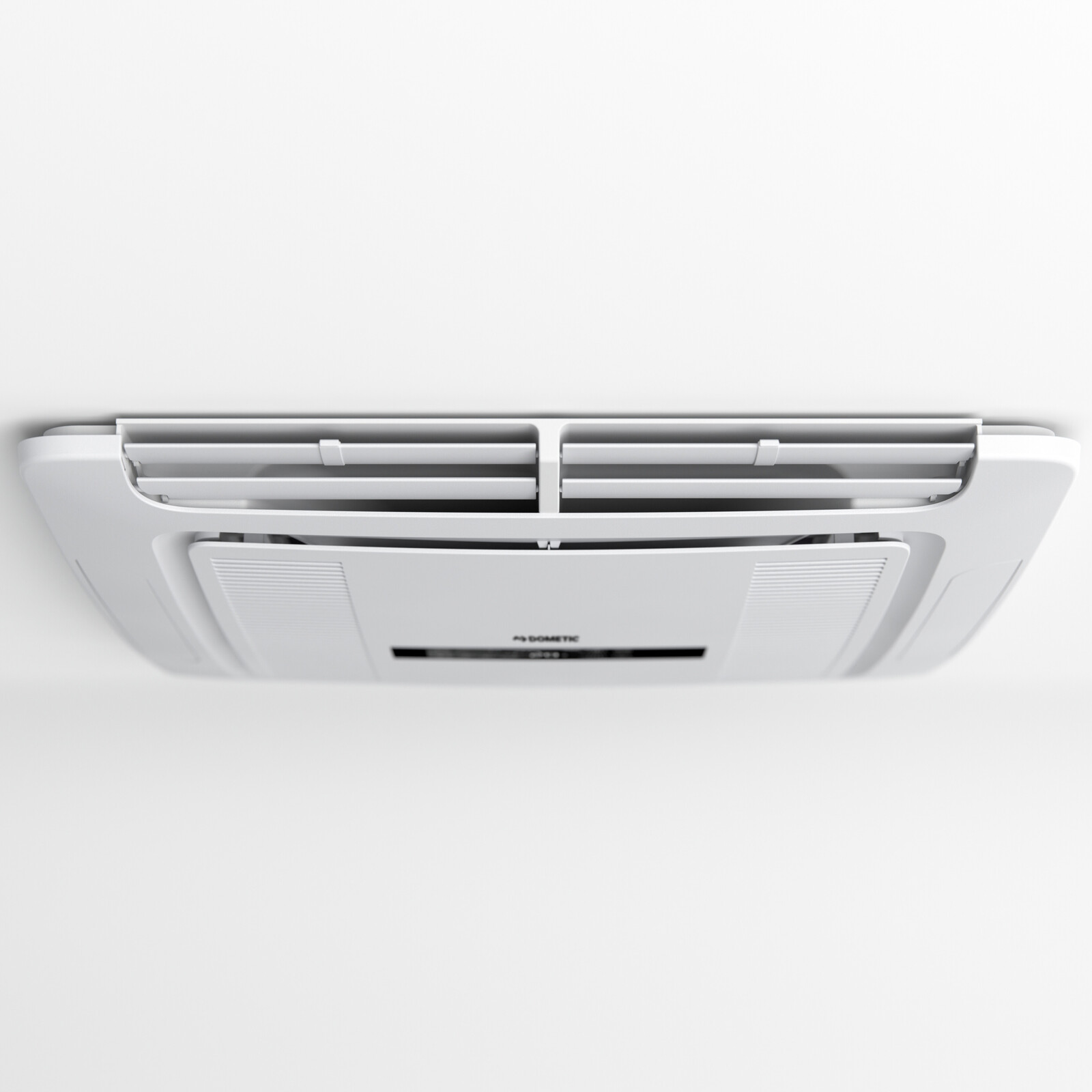

Dimensions (W x D x H) 702 x 752 x 225mm(Air Conditioner) | 18mm x 579mm x 48mm (ADB)

Average Power Consumption 1012W (Cooling) | 1005W (Heating)

Roof opening (W x D mm) 360 x 360mm or 400 x 400mm

Refrigerant Type R32

Cooling Capacity (W) 2200

Dimensions 702 x 752 x 225mm

Air Flow 428m³/h

Number of Blower Speeds 4

Weight (kg) 34

Best for Vehicle Length Up to 5m

NOTE: see full product specifications & further product info in the Description section on this page.

Warranty

Warranty Period: 3 Years

Warranty Details: Please CLICK HERE for Warranty Information on this product

Delivery

• We ship Australia-wide with national road express freight companies such as Star Track, TNT and Toll.
• Small Items are sent with Australia Post via regular post.
• Delivery times are generally 3-5 days from day of dispatch for major cities (sometimes quicker). Please allow longer for regional and remote areas.
• Once your item(s) have been dispatched, we will provide you freight tracking information so you can track your delivery to your door.
• Items are fully insured during the freight process.
• Unfortunately we cannot deliver to PO Boxes.
• For further details on our Delivery Process you can visit our Delivery Page HERE.

Reviews

Be The First To Review This Product!

Help other CARAVANRVCAMPING users shop smarter by writing reviews for products you have purchased.

Write a product review

Q & A

• Will this replace my existing Air Con?

  The Dometic Freshjet range utilises either a 360x360mm or 400x400mm cut out size, which will cover most existing Air Conditioners.

• Would I need to use an air purifier in the van when this is installed?

  No, the Dometic Freshjet range is the first of its kind to offer a inbuilt air purifier. This is called the ClearAir system, which will keep the van smelling fresh and clean while greatly reducing allergens, viruses, bacteria and pollutants.

• Does the Freshjet have a WIFI or Bluetooth feature?

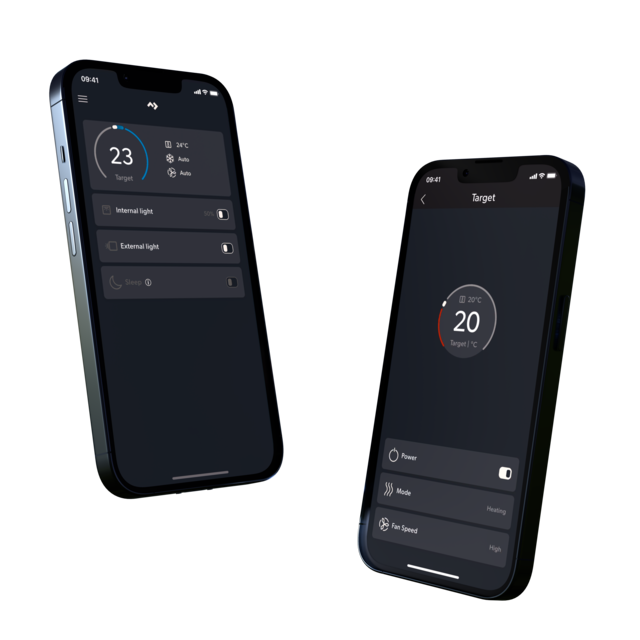

  The Freshjet range offers WIFI and Bluetooth, meaning you will be able to operate your AC from your phone.

• I have very limited room on the roof of my van due to solar panels and hatches. What is the smallest roof top air con you have available?

  Check out the new Fresh Jet 7 Series Lite. It packs a punch with 2.6kw cooling capacity for vans, buses and motorhomes up to 5m. It measures 752x 518 x 225.

• I have a van with a thicker roof, will I need anything else for install?

  The Freshjet range comes with ducting to suit up to 60mm roof thickness. If you roof exceeds this, you will require additional ducts which you can find in the accessories list.

• Does this AC come pre-gassed?

  The Freshjet range will come pre-gassed ready for install. This latest range of Dometic AC's are using a more sustainable R32 refrigerant.

• Why can't I activate the sleep function?

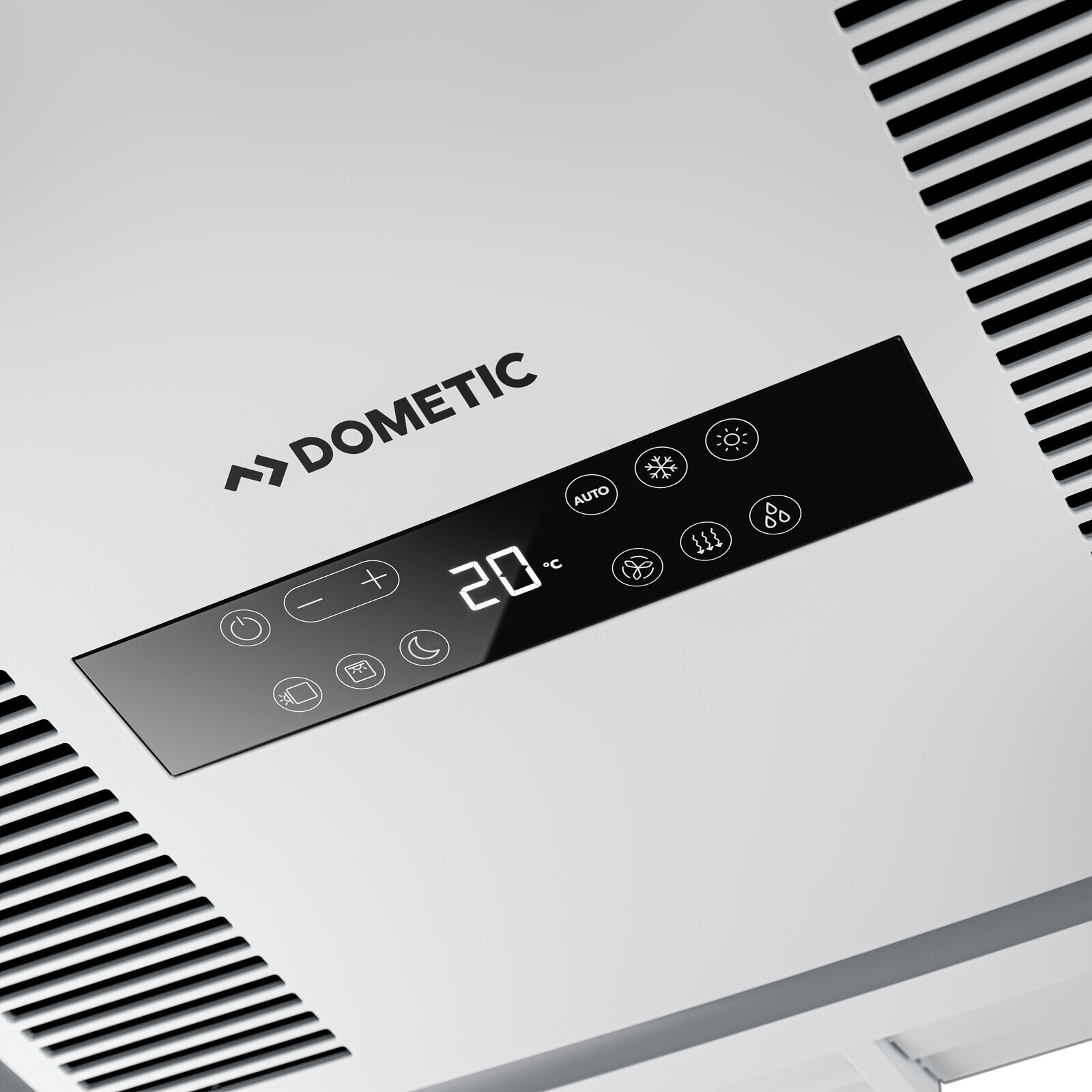

  The sleep function is only available when using the cooling or heating modes. Ensure you are in either one of these modes, then set your required temperature, press the moon button and the sleep function should be activated (the moon symbol will appear on the air distribution box display when it is activated).

• I intend to run my Caravan Air Conditioner from a Generator as we will be staying in unpowered locations and my battery bank is not big enough to run the AC for very long. What size Generator do you recommend running my Caravan AC?

  The answer is quite simple, and it just depends on the Caravan Aircon model you have. If you have one of the newer Caravan Aircon models that include inverter technology within the compressor (such as the Dometic FreshJet 7 Series Plus or Dometic FreshJet 7 Series Pro Aircon models), then a 2000w inverter generator will be fine.

  If you have an Aircon model that does not include inverter technology within the compressor (of which there are many new and old Aircon models on the market that do not have inverter tech), then we would recommend a minimum 2200-2400w inverter generator. This is because the Aircon models without inverter technology in the compressor require a bit more power on start up.

  Please note that the above sizing advice does not take into consideration any other appliances running and drawing power from the generator at the same time as the Aircon is running.

  As a general rule, depending on the above criteria of Aircon compressor type, most of our Caravan customers will opt for a generator of around 2000 to 3500 watts in size. There are other larger inverter generator models available from 4000 to 6500 watts in size, but these are less commonly used by caravan/RV owners.

  Popular Caravan Generator models include:

  • Dometic PGE121 2100w
  • Cromtech Outback 2400w
  • Briggs & Stratton P2400w
  • Yamaha EF220IS 2200w
  • Briggs & Stratton P3400w
  • Engel R3000IE 3500w
• Can I run my Caravan Air Conditioner from my Caravan Battery Bank?

  The short answer is yes, it is possible. However, there are a few extra important things to consider.

  The main thing is how long you will be able to run your Aircon for. Let us take one of the more popular and energy efficient Caravan Aircon models on the market: the Dometic FreshJet 7 Series Pro: The peak power draw is around 1400w to 1500w. So, you could use a quality 2000w+ inverter (note that Caravan Aircons are 240V) with say a 200ah lithium battery and you will get around 1-2 hours Aircon run time, before you must recharge the batteries again. Depending on how you recharge your batteries (DC to DC charger, solar, mains power etc.), this charging will take time.

  So once again; you can do it with certain batteries & inverters if you are aware of how that will affect your battery storage and charge loss... and knowing how to manage that system.

  You can get a larger lithium battery system to run your Aircon for longer, but obviously this will cost more, so that needs to be considered. It is certainly a big recent trend that our RV customers are installing quality lithium battery systems to run their Caravans/Motorhomes etc. However, running an Aircon unit can be one of the larger power drawing appliances in your van, so it pays to consider your power system's capabilities and how long you want to run the Aircon.

  If you are just pulling up for short stops (1-2hrs) and you are doing a lot of driving, you can run your Caravan Aircon from your lithium batteries for this short time. Many RV owners do this, and as new Caravan Aircon models become increasingly energy efficient and lithium battery advancements evolve to be cheaper, more powerful, and even lighter, then we will certainly see this trend increase. However, currently the popular and often cost-effective choice to run your Aircon if you do not have access to mains power (i.e., free camping) is to use a small inverter generator. You can get a quality 2000-2400w sized inverter generator from around $1,000-$1,500 and these will run many RV Aircon units for 7+ hours before having to refuel.

  So once again, you can use a battery system, but it is not always the most practical option. For more advice on Power Systems to run your Caravan/RV, feel free to give us a call on: 1800 787 278.

• I'm looking at buying one of your Caravan Air Conditioner models for my 20ft Caravan. What do I need to know about installation and set once I get the AC unit delivered?

  Hi there, fitting and Install instructions come with each Aircon unit, but it is advised a qualified installer (electrical contractor) undertakes the installation.

• What are the noise levels of your Caravan Air Conditioner units? I'm looking for a quiet model.

  This is a commonly asked question by Caravan/RV owners; however, it is unfortunate that Caravan Aircon manufacturers do not provide dBA ratings in their product model specifications.

  We can say that we only sell high quality Air Conditioners from premium brands in the RV industry. The only time we have encountered an issue with noise is when the install was not undertaken correctly which can cause a rattle. However, if you ensure the install is done properly, there will be no issues with any of our RV Aircon units being too noisy.

  One other piece of feedback we can provide, is that the two latest Dometic Aircon models (Harrier and Ibis4) have inverter technology within the compressor, meaning any vibration is minimised. Our customers and our internal testing suggest that when these models are operating at high cooling mode, the noise level is very, very low, making them arguably the quietest Aircon models in the market.

• Is the Freshjet 4 Series Essential Roof Top Air Conditioner the same size as the Harrier Lite?

  The dimensions of the Freshjet 4 Series come in much shorter at 752mm long, a little wider at 702mm and 225mm high. They are the same size as the new Freshjet Series 7 Lite.
