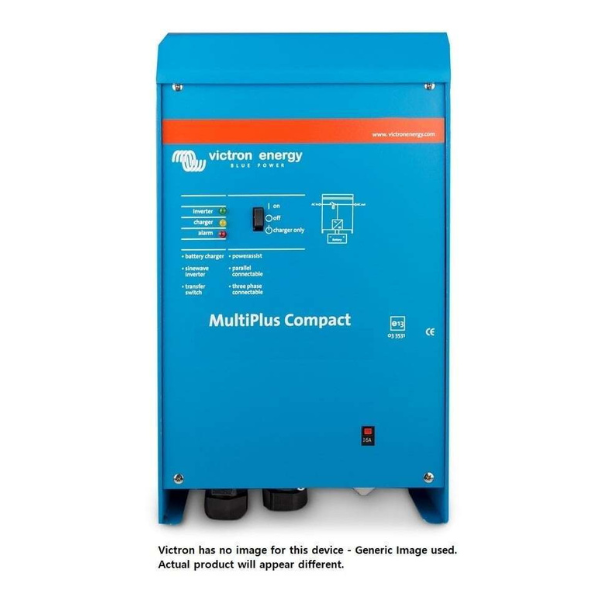

MultiPlus Compact 12/1200/50-16 230V VE.Bus
SKU: CMP122120000 Learn More»
MultiPlus Compact 12/1200/50-16 230V VE.Bus
Optimize Your Power with Seamless Integration and Smart Control
Discover the ultimate power solution with the Victron 12V 1200VA MultiPlus Inverter/Charger, designed for those who demand reliability and efficiency in their energy systems. Ideal for a wide range of applications, from off-grid homes to sophisticated marine setups, this inverter/charger ensures continuous power supply and smart energy management.

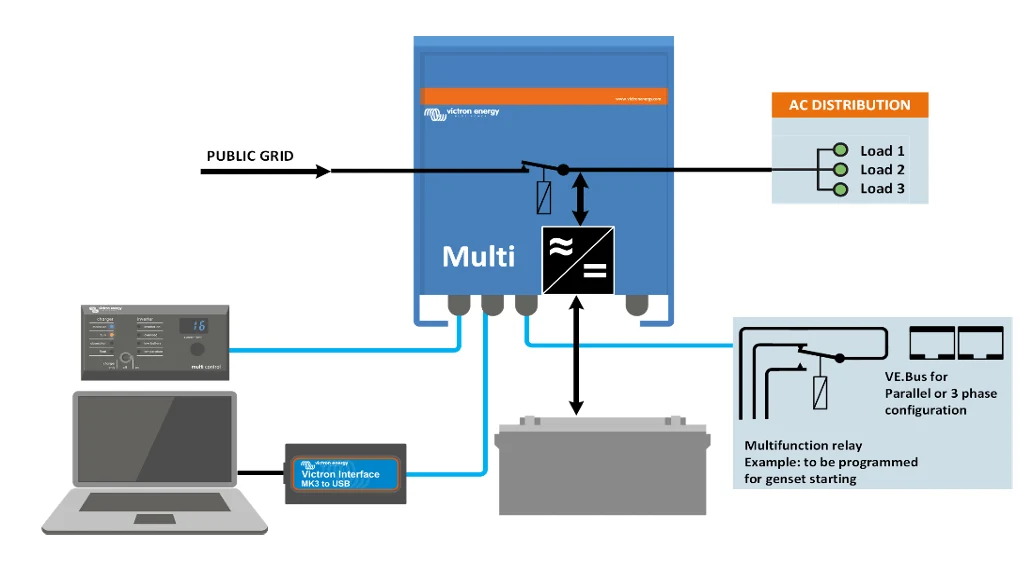

Dual AC Outputs for Uninterrupted Power and Energy Savings
The MultiPlus features two AC outputs for unparalleled flexibility. The main output provides no-break functionality, seamlessly taking over power supply in milliseconds during grid failure, ensuring no disruption to sensitive electronics. The second output activates with AC input, perfect for non-essential loads, preventing unnecessary battery discharge.
Expandable Power with Parallel Operation
Experience virtually unlimited power capabilities. The MultiPlus allows for parallel connection of up to six units, offering up to 25 kW / 30 kVA of output and impressive charging capacity. This feature is ideal for large-scale installations requiring substantial power without compromising on efficiency.
Advanced Three Phase Capability
For applications demanding three-phase power, configure three units for seamless three-phase output. Expand further with parallel connections for up to 75 kW / 90 kVA of inverter power, catering to the most demanding power needs with ease.
Intelligent Power Management with PowerControl and PowerAssist
Manage limited power sources smartly with PowerControl, setting maximum currents to prevent overloading of generators or shore supplies. PowerAssist enhances this by supplementing insufficient power with battery reserves, ensuring optimal power usage and battery charging.
Solar Energy Integration for Grid Independence
The MultiPlus excels in off-grid and grid-connected PV systems, maintaining AC power even during grid failures. Its compatibility with alternative energy systems makes it a cornerstone for sustainable energy solutions.
Advanced System Configuration and Monitoring
Configure your system quickly with DIP switches or advanced VE.Bus software for parallel and three-phase setups. For off-grid, grid-interactive, or self-consumption applications, specialized Assistants simplify setup, MK3 to USB Cable required (sold separately).
Comprehensive On-Site and Remote Monitoring Options
Stay informed and in control with multiple monitoring options, including the Multi Control Panel, Cerbo GX, Ekrano GX or remotely via smartphone (VE.Bus Smart Dongle required - sold separately), and VRM for easy system oversight and management from anywhere.
Remote System Access and Configuration
With an Ethernet-connected Cerbo GX or other GX devices, access and adjust your system settings remotely, ensuring your system is always optimized for your needs.
The Victron 12V 1200VA MultiPlus Inverter/Charger is more than just a power source; it's a versatile, efficient, and intelligent solution designed to meet the most demanding energy needs. Whether you're powering an off-grid home, a tiny house, or any application where reliable and integrated solar power is needed, the MultiPlus offers a seamless, powerful, and smart energy solution.
Specifications:
- Power Control: Yes
- Power Assist: Yes
- Transfer switch (A): 16
- Input voltage range (V DC): 9.5 – 17 V
- Output voltage: 230 VAC ± 2%; Frequency: 50 Hz ± 0.1%
- Peak power: 2400W
- Maximum efficiency: 93%
- AC Input: Input voltage range: 187–265 VAC; Input frequency: 45–65 Hz; Power factor: 1
- Charge voltage 'absorption' (V DC): 14.4
- Charge voltage 'float' (V DC): 13.8
- Storage mode (V DC): 13.2
- Charge current house battery: 50A
- Charge current starter battery: 4A
- Battery temperature sensor: Yes
- Programmable relay: Yes
- VE.Bus communication port: For parallel and three phase operation, remote monitoring and system integration
- Remote on-off: Yes
- Operating temperature range: -40 to +65°C (fan assisted cooling)
- Humidity (non-condensing): Max 95%
- Material & Colour: Aluminium, blue RAL 5012
- Protection category: IP21
- Battery connection: Battery cables of 1.5 metre
- 230 V AC connection: G-ST18i connector
- Weight: 10 kg

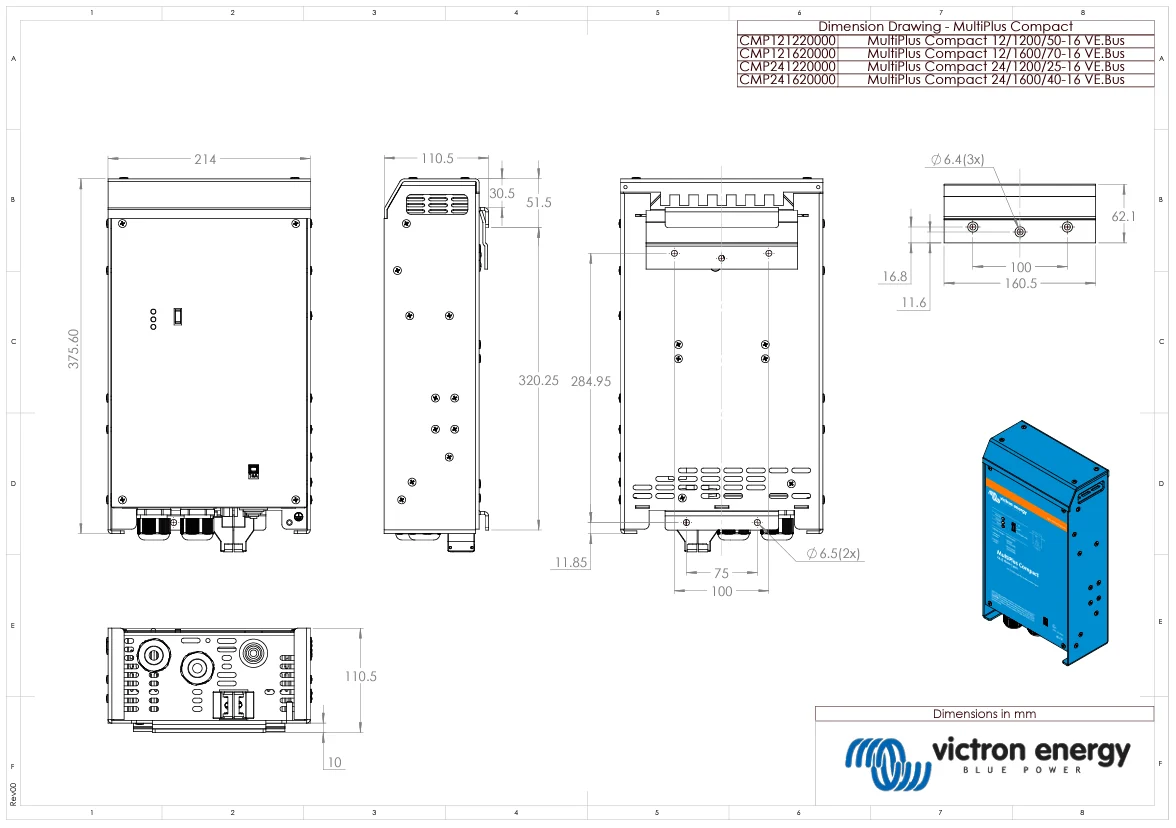

- Dimensions (H x W x D): 375 x 214 x 110 mm
Specifications
SKU CMP122120000
Brand Victron
Product Category Power Inverters
Battery Voltage 12V
Dimensions 375 x 214 x 110mm (H x W x D)
Peak Power (W) 2400
Continuous Power 1000W
Output Voltage 230V AC
Communication VE.Bus
Transfer Switch 16A
Battery Charger Output 50A
