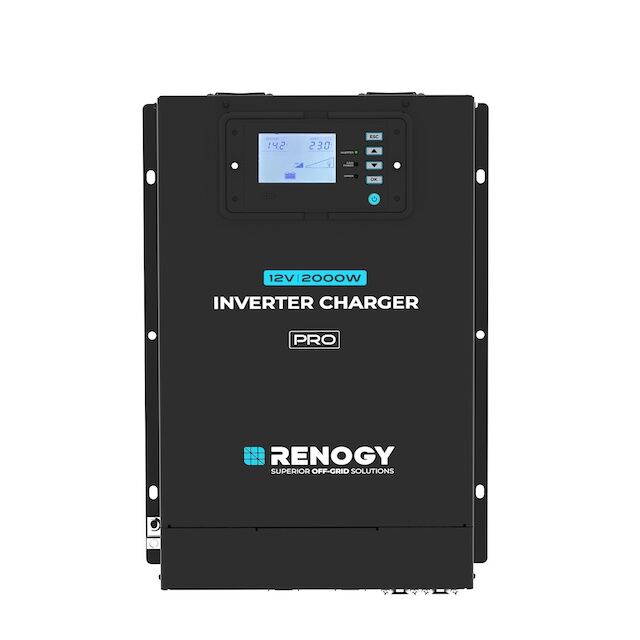

Renogy Pro 12V 2000W HF Inverter Charger
SKU: RIV1220PCH-24S Learn More»
Renogy Pro 12V 2000W HF Inverter Charger
The Renogy Pro 12V 2000W HF Inverter Charger delivers high efficiency and reliable power for off-grid and mobile applications. With over 91% inverter efficiency and standby power consumption under 10W, it helps extend battery life while minimizing energy waste. Its lightweight, compact design (7.5 kg) allows for easy installation in tight spaces such as RVs and small cabins.
The unit features an innovative detachable control panel for convenient system monitoring and supports remote access via the Renogy App when paired with the optional BT-2 Bluetooth Module (sold separately). Built-in RCD protection enhances user safety without the need for additional devices.
Compatible with a wide range of lithium and lead-acid batteries and supporting AC input, it offers a flexible and complete off-grid power solution. The inverter charger provides seamless switching between AC input and battery power within 20 milliseconds, ensuring uninterrupted operation of connected loads.
Features & Benefits:

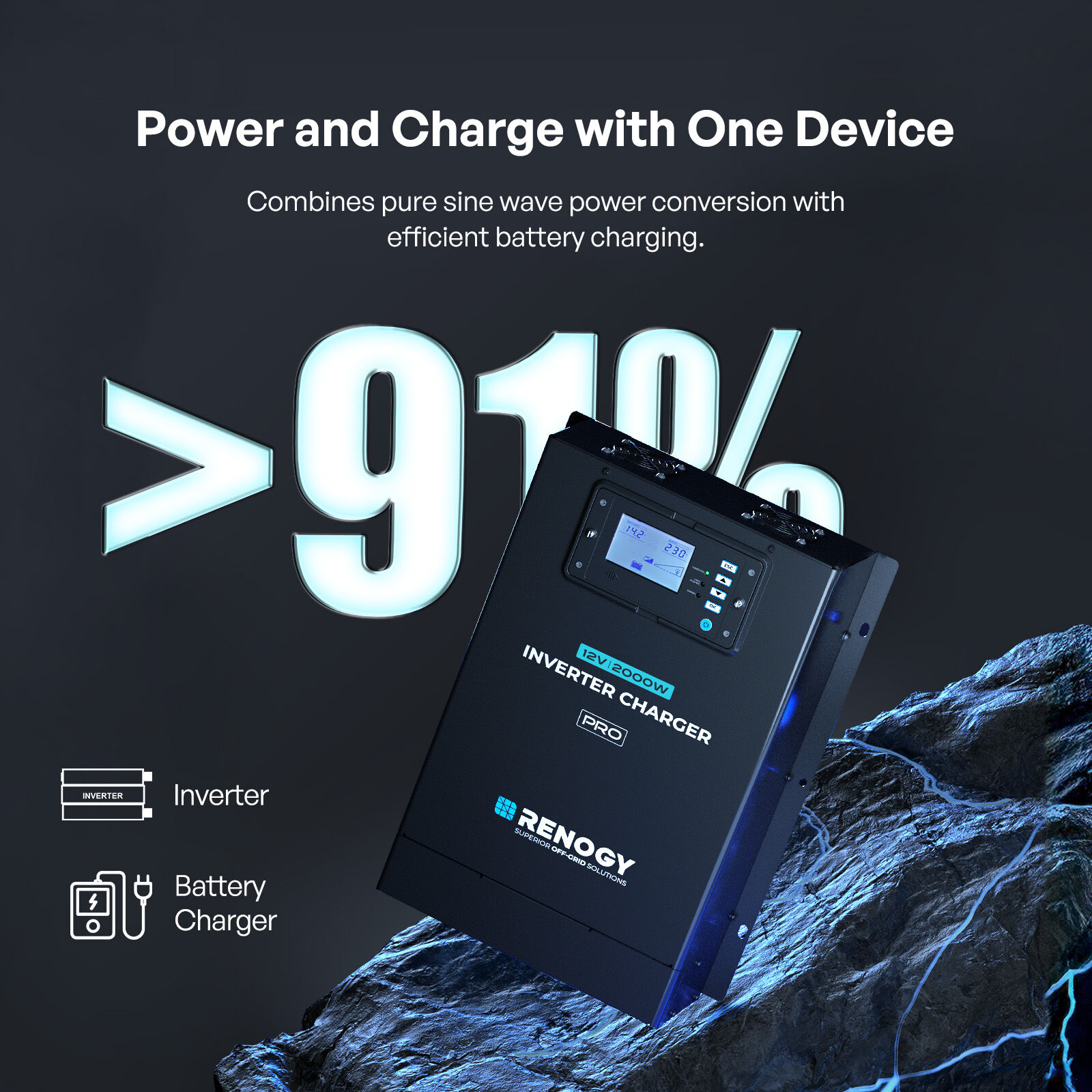

- High Efficiency with Ultra-Low Standby Power. Utilizes advanced high-frequency topology delivering over 91% inverter efficiency and standby power consumption under 10W, maximizing battery runtime and minimizing energy waste for extended off-grid use.
- Lightweight and Compact Design for Tight Spaces. Weighing only 7.5 kg with a compact footprint, this inverter charger fits easily in confined spaces like RVs and small cabins, offering versatile installation options.

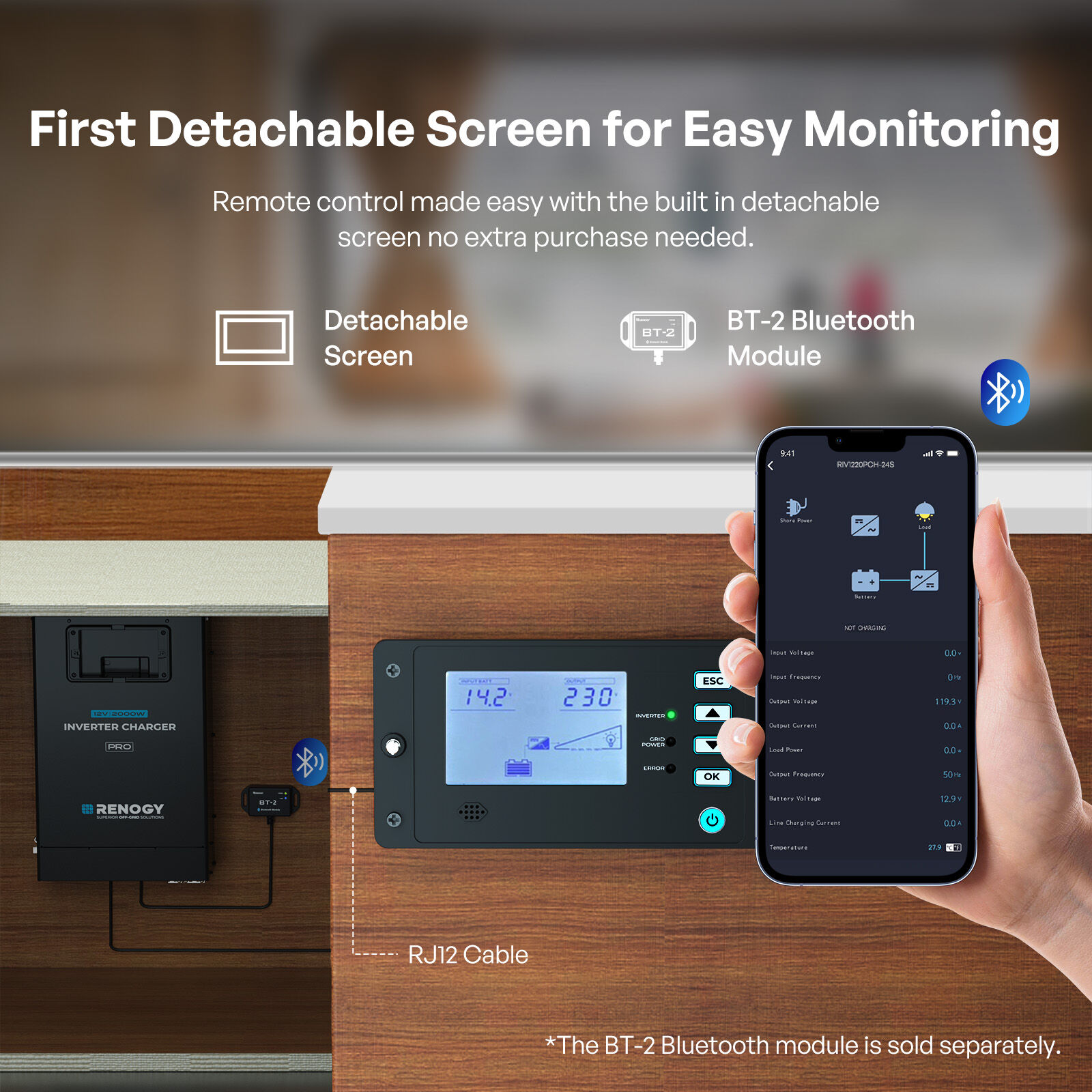

- Innovative Detachable Control Panel with Smart Monitoring. Equipped with a unique detachable control panel for flexible installation and quick status checks. Remote monitoring is enabled via the Renogy App when paired with the optional BT-2 Bluetooth Module (sold separately).

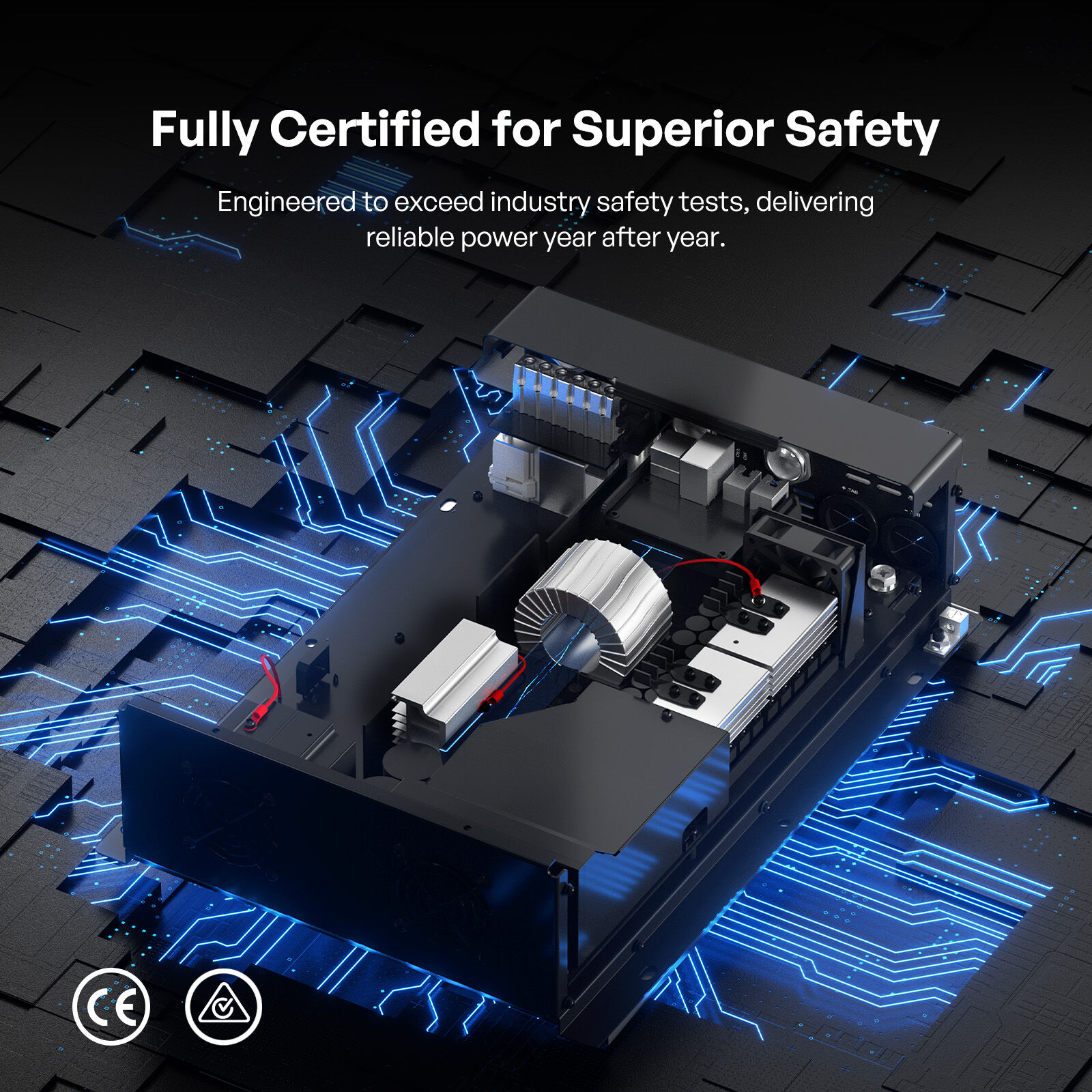

- Built-In RCD Protection for Enhanced Safety. Equipped with integrated Residual Current Device (RCD) protection, ensuring user safety and reliable operation without the need for additional external modules.
- Wide Compatibility with Batteries and AC Input. Works with a variety of lithium and lead-acid batteries, and supports AC input with seamless transfer to battery power in under 20ms for uninterrupted operation.

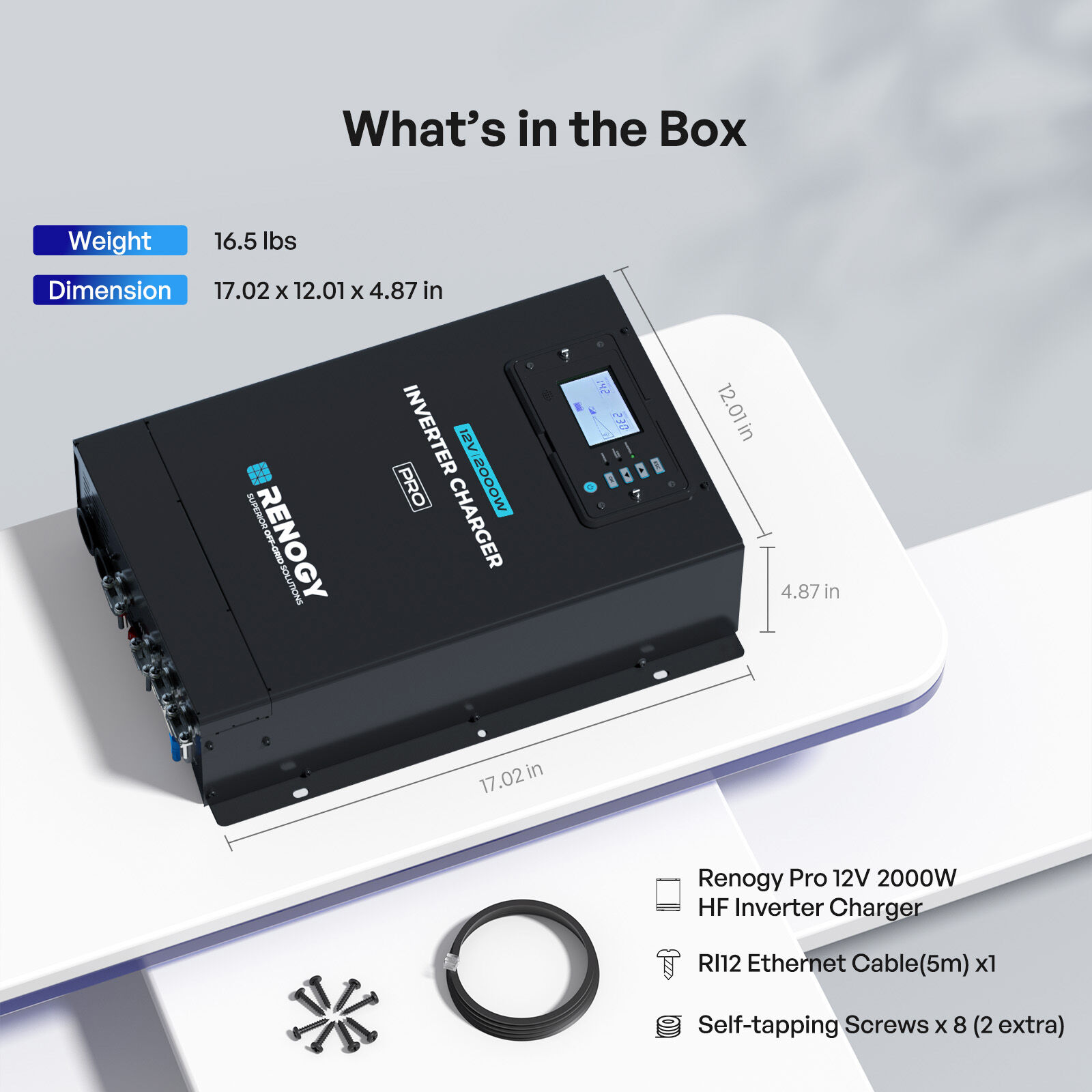

Includes:
- 1x Pro-12V 2KW HF Inverter Charger
- 8x Self-tapping ScrewsST6.3*16mm
- 1x RJ12 Ethernet Cable (5m)
- 1x User Manual
Specifications
SKU RIV1220PCH-24S
Brand Renogy
GTIN 840315234307
Product Category Power Inverter Chargers
Wattage (W) 2000

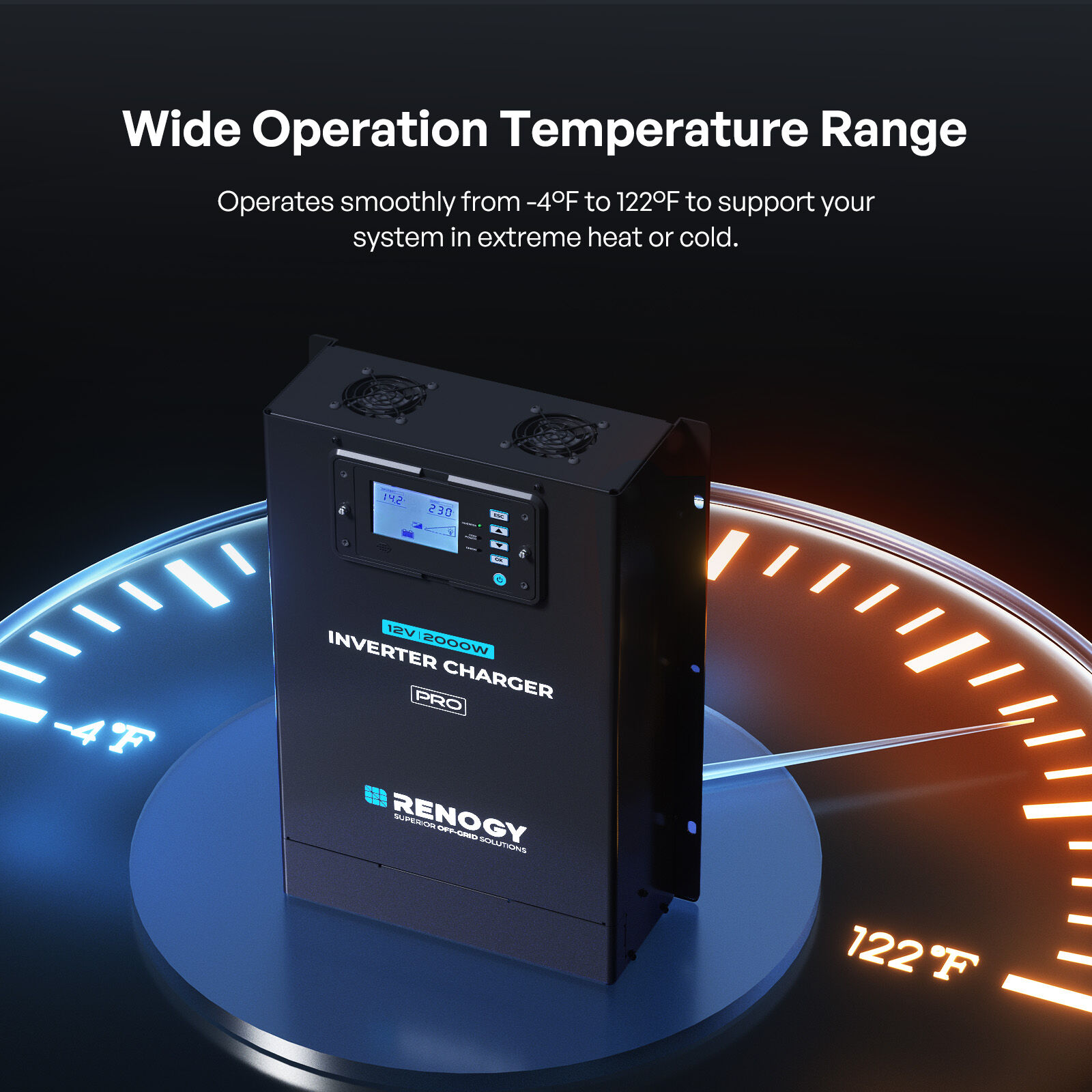

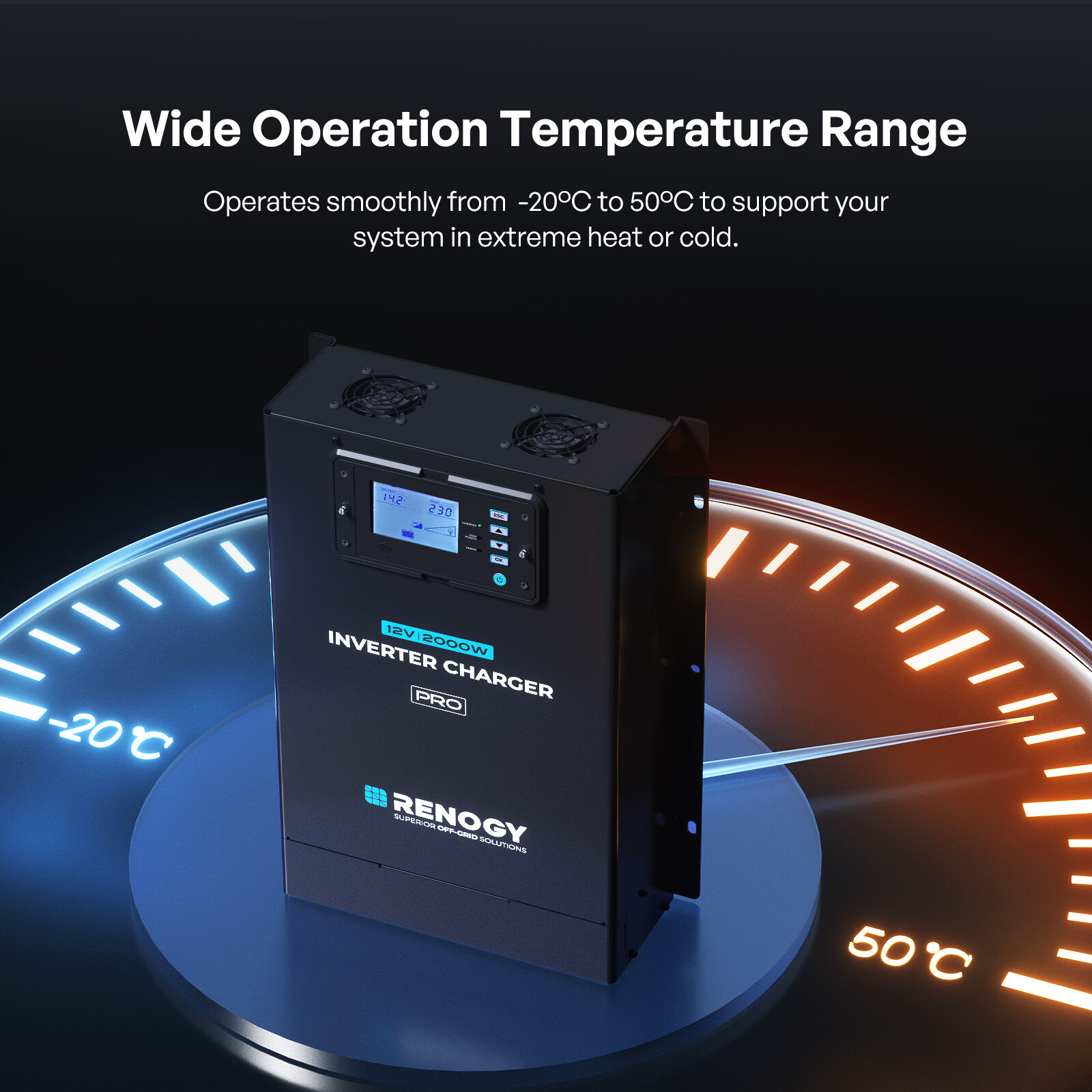

Operating temperature range -20°C - 50℃
Output wave form Pure Sine Wave
Dimensions 432.4 x 305 x 123.8mm
Noise Level < 55 dB
Transfer Rating 16A
Transfer Time Max. 20 ms
Nominal Input Voltage 187-265VDC
Nominal Output Voltage 240VAC
Output Frequency (Nominal) 50/60 Hz ± 0.1Hz，default 50Hz
Input Voltage Range 10.5-15.5VDC
Weight (kg) 8.1
Efficiency ＞91% peak
DC Input Voltage 12V
Continuous Power 2000W
Battery Types GEL, AGM, SLA, FLD, CAL, LI, USER
Storage Temperature -30 - 70°C
Humidity 0% to 95%, RH
Output Current 5-120A adjustable, 5A intervals
