Renogy REGO 3000W Inverter Charger
SKU: RIV1230RCH-24S Learn More»
Description

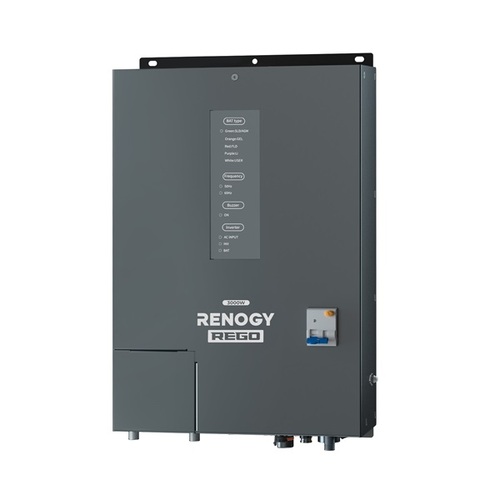

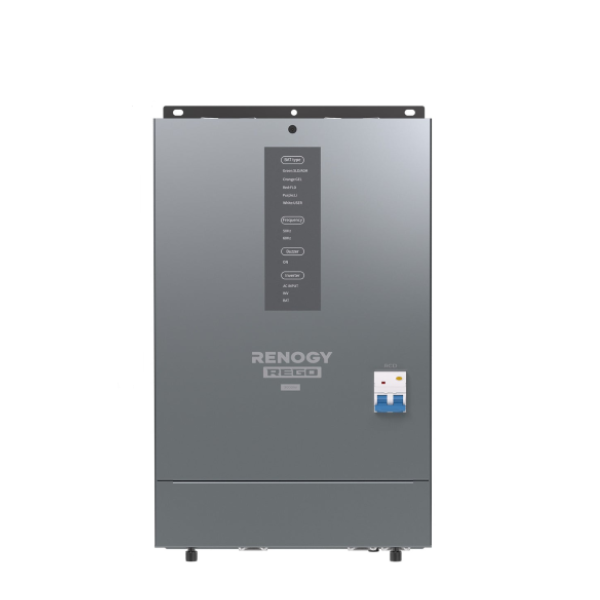

Renogy REGO 3000W Inverter Charger
The Renogy 3000W Pure Sine Wave Inverter Charger can be used for multiple applications when going off-grid. A power inverter is an electrical device that transforms the DC power stored in a battery bank into standard household AC power for a user's electronic needs. This device can also charge and maintain a battery bank when connected to shore power and now compatible with Lithium batteries. With a low transfer time, power remains uninterrupted when switching from solar to shore power. This creates clean and silent energy without having to worry about losing access to connected devices and appliances. The Renogy 3000W Pure Sine Wave Inverter Charger is a perfect back-up power source!
Features:

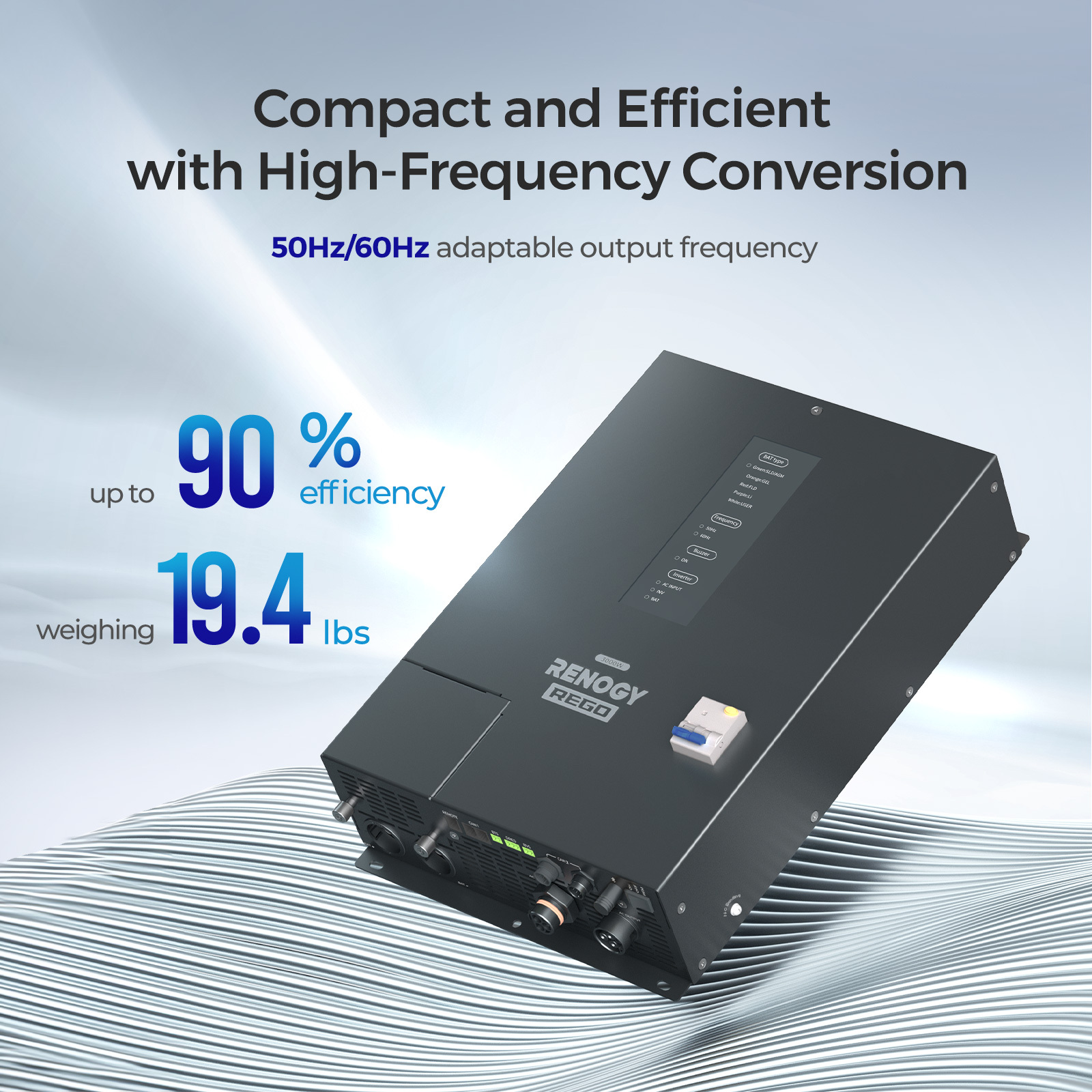

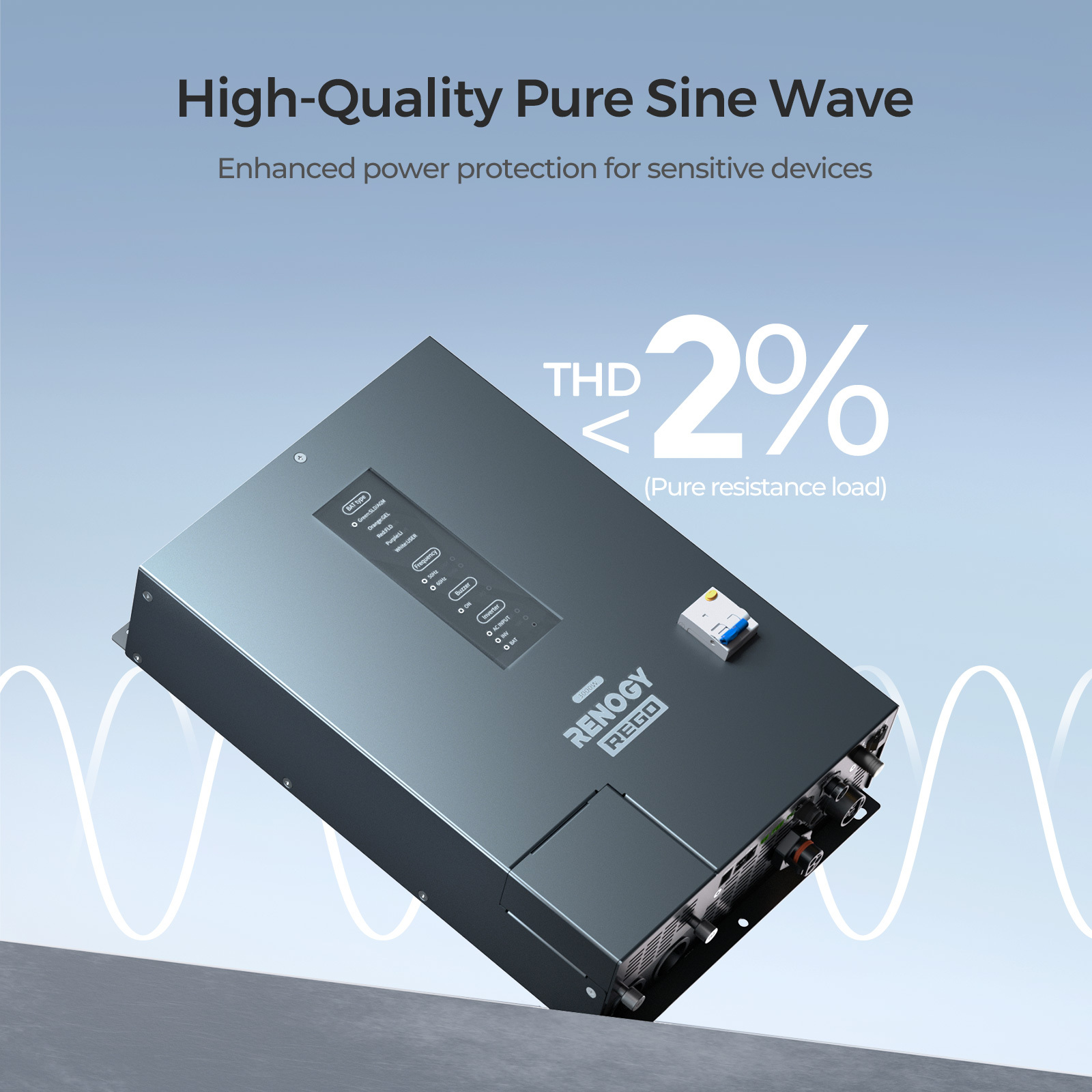

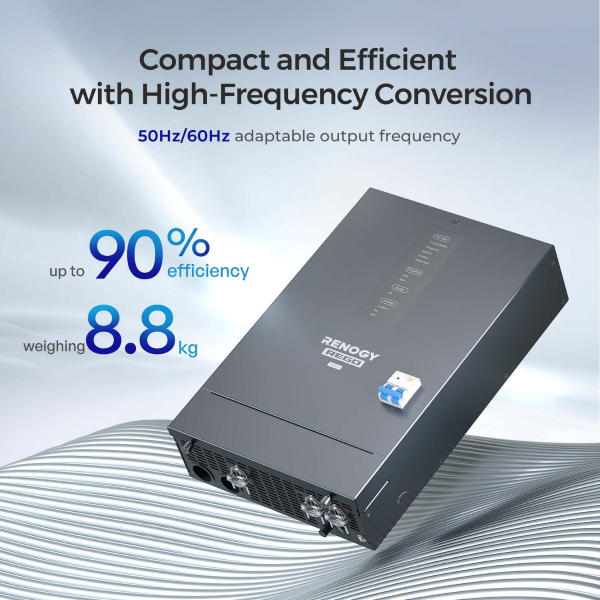

- High Performance & Efficient Design: Robust, sleek design with peak efficiency over 90% and high-quality waveform with minimal harmonic distortion.

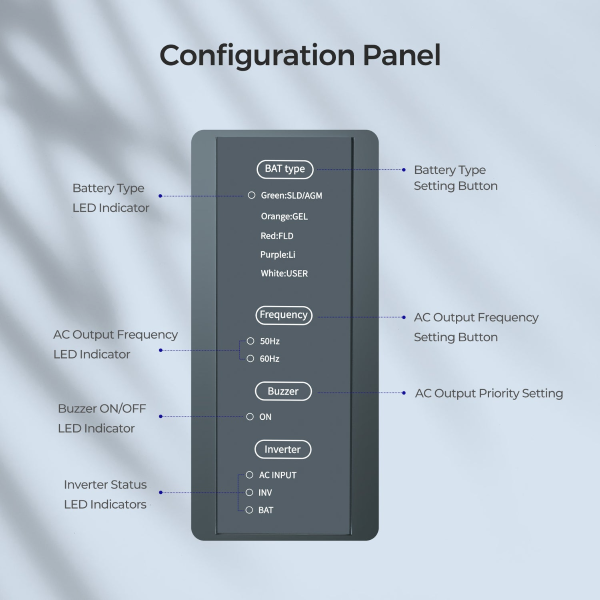

- Advanced Battery Charging & Compatibility: 4-stage battery charger with configurable charging current and 8 pre-set battery voltages, including Lithium, with a user-defined option.
- Automatic Generator Starter & RV-C Support: Features automatic generator start option and supports RV-C communication with over-the-air (OTA) software updates.

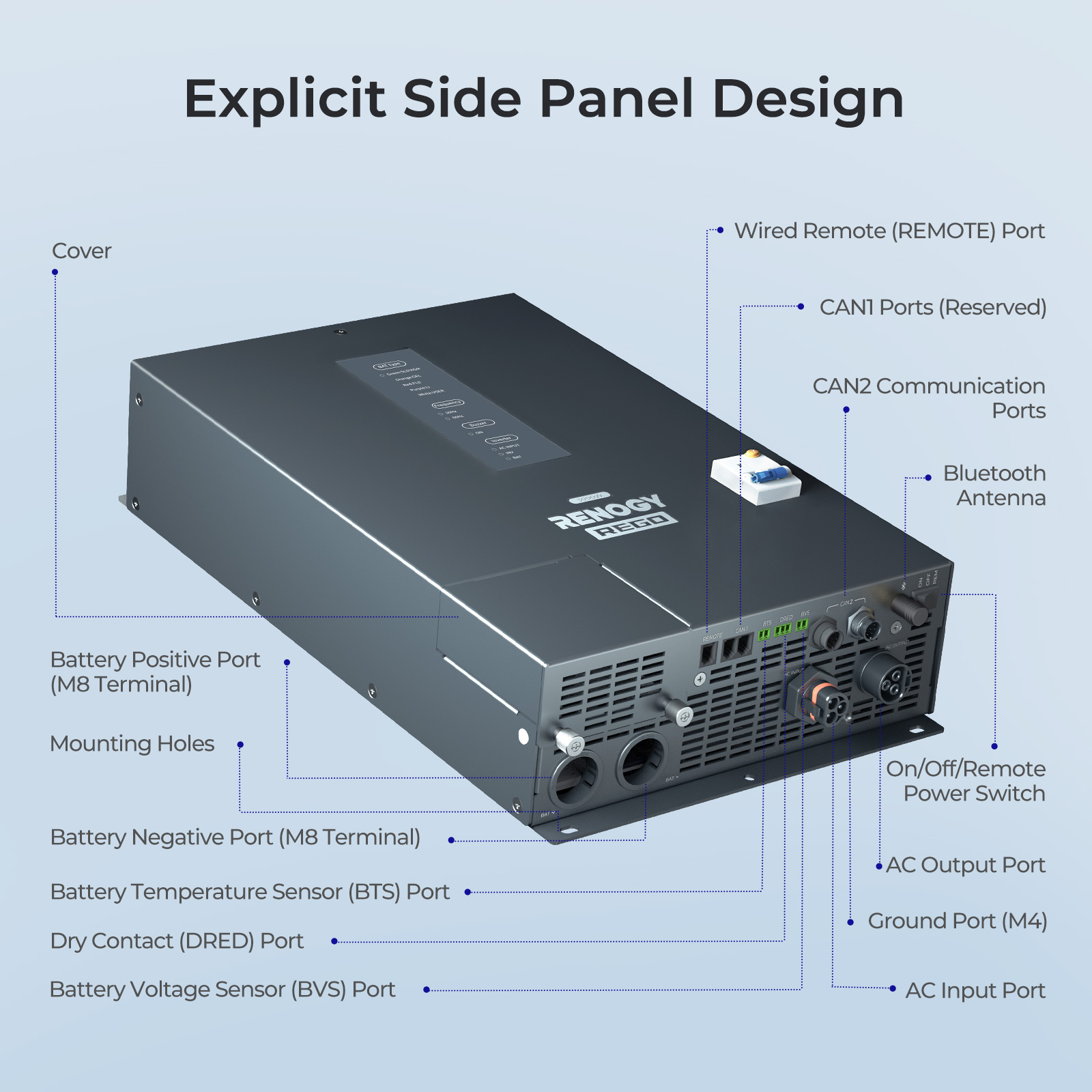

- Multiple Protections & Continuous Bypass: Equipped with multiple electronic protections and a built-in 16A AC transfer relay with 14A continuous bypass capability.
- Bluetooth Monitoring & Control: Built-in Bluetooth for easy connection to the DC HOME app, enabling monitoring and control from your smartphone.
Includes:
- 3000W 12V Pure Sine Wave HF Inverter Charger
- Remote Control
- 2 x Mounting Plate
- Dry Contact Relay Connector
- AC Output Connector
- AC Input Connector
- Inner Hexagon Sapnner
Specifications
SKU RIV1230RCH-24S
Brand Renogy
GTIN 840315229020
Product Category Power Inverter Chargers
Wattage (W) 3000
Operating temperature range -20°C to 45°C
Input Frequency Range 45~65Hz

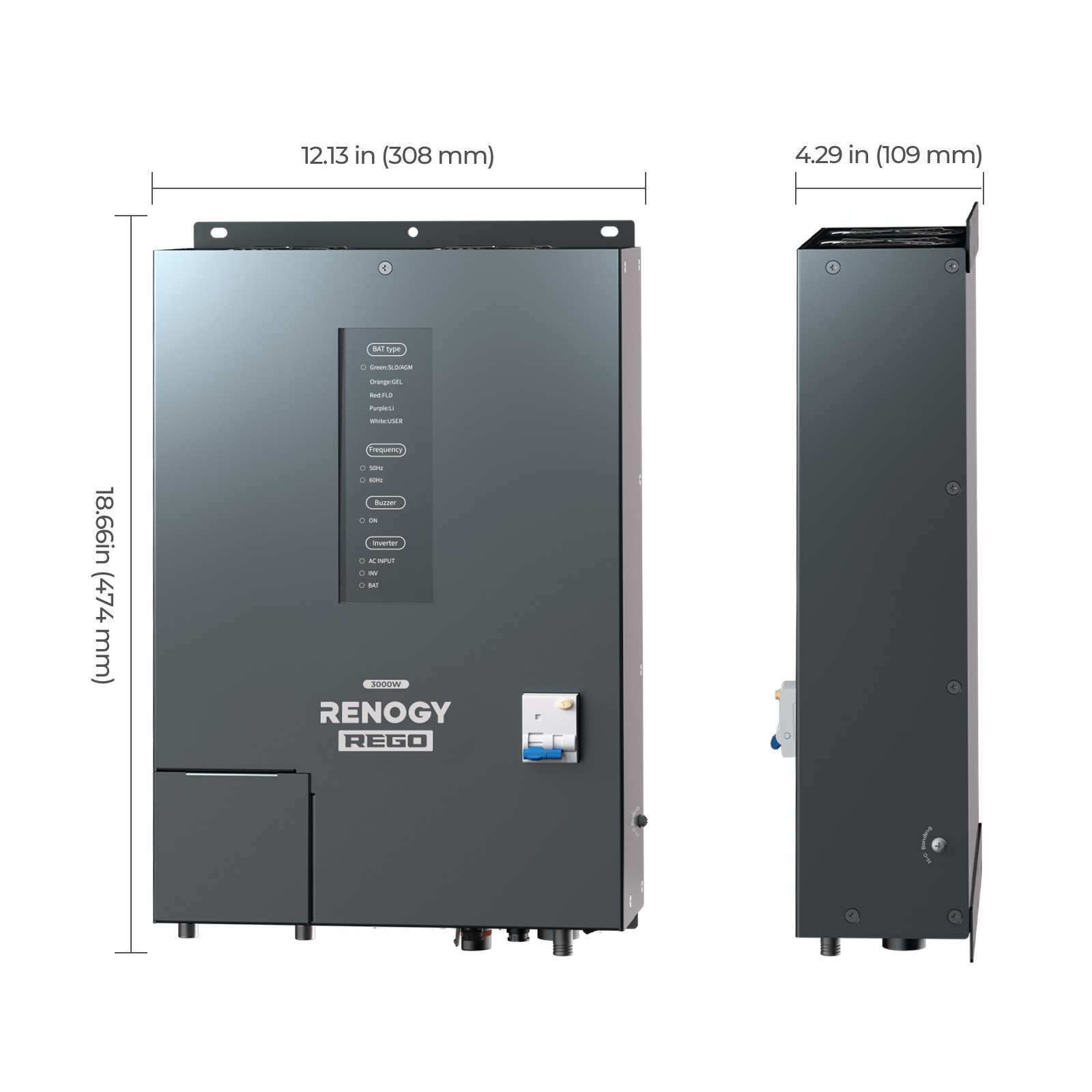

Dimensions 478 x 308 x 109mm
Noise Level < 54 dB
Transfer Rating 16A
Transfer Time Max. 20 ms
Nominal Input Voltage 187~265Vdc
Nominal Input Voltage 12VDC
Optimal Efficiency >90%
No Load Power Consumption <20W (Normal)
Nominal Efficiency > 90% Peak
Nominal Output Voltage 240VAC
Output Frequency (Nominal) 50/60 Hz
Output Frequency (Nominal) 50/60 Hz ± 0.1Hz, 50Hz
Input Voltage Range 9 V to 17 VDC
Output wave form Pure Sine Wave
Surge Power 9000VA
Efficiency ＞90%peak
DC Input Voltage 12V
Continuous Power 3000W
Rated Output Power 3000W
Battery Types SLD, AGM, GEL, FLD, LI, and USER
Storage Temperature -40 ~ 70°C
Humidity 0% to 95%, RH
Output Current 5-150A configurable, 5A intervals
Weight (kg) 8.8
Q & A
-
Which types of batteries are compatible with this inverter charger?
It supports lithium (LiFePO4), GEL, flooded, SLD, and AGM batteries.
-
What is the maximum output power of the inverter charger?
It delivers a rated output of 3000W, with a surge capacity of up to 9000VA for 1 second, 4500VA for 3 seconds and 3600W for 10 seconds. Keeping in mind ambient temperatures can affect output
-
What is the inverter's transfer time between grid power and batteries?
The transfer time is a maximum of 20 milliseconds, ensuring uninterrupted power supply.
-
Can this device be installed outdoors?
No, the inverter charger must be installed indoors in a dry, ventilated area, away from direct sunlight and flammable substances.
-
How much does the Renogy Revo inverter charger draw with no load?
The Renogy Revo Inverter Charger will draw 10w when in sleep mode, with no load.
