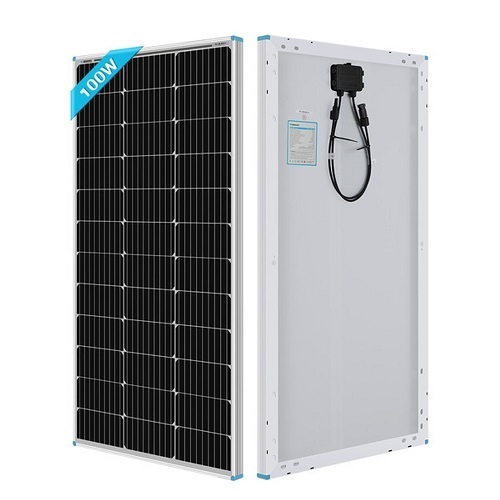

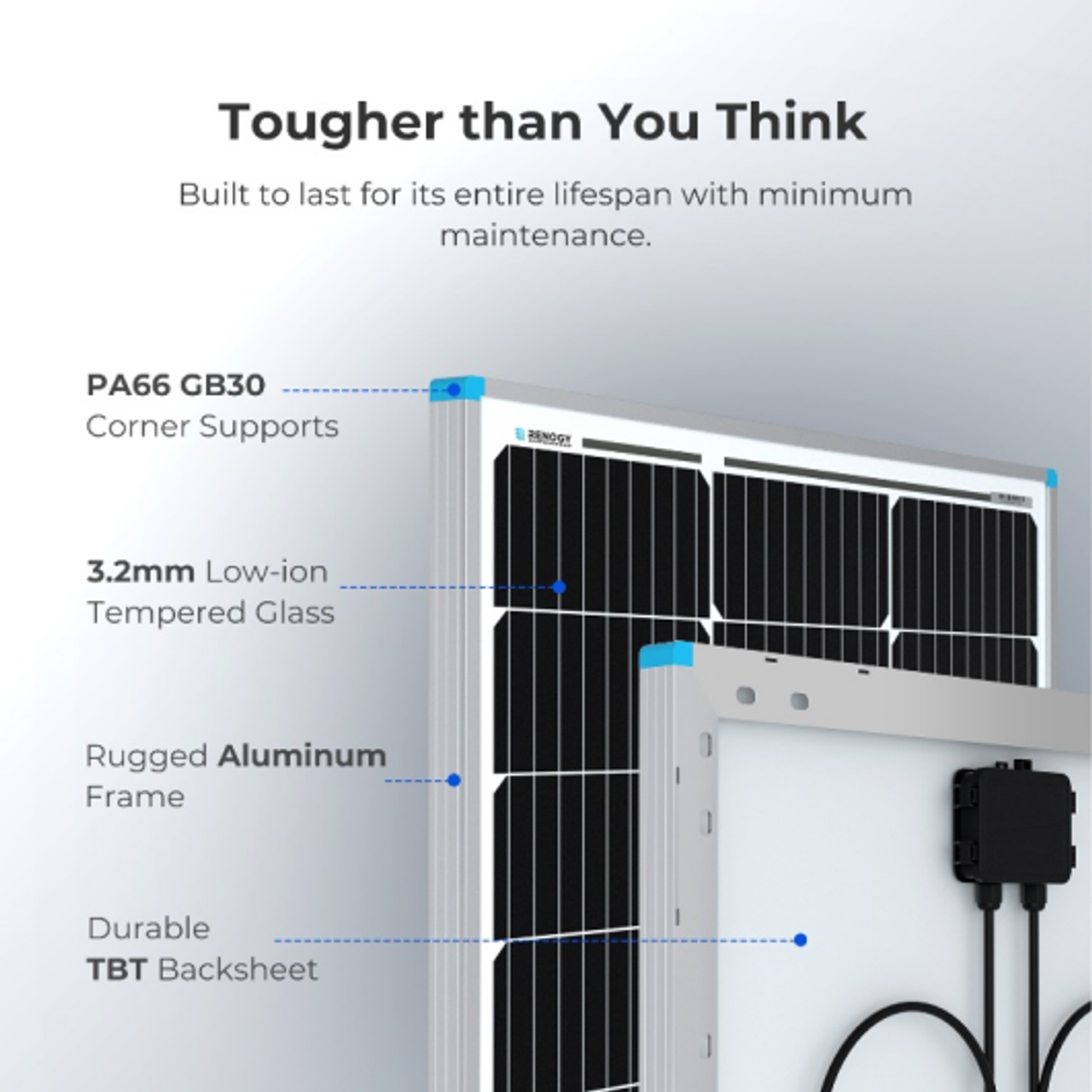

Renogy 100W 12V Monocrystalline Fixed Solar Panel, Compact Design

Renogy Rover Li 12/24V 40A MPPT Solar Charge Controller

The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!

Innovative MPPT Design

• Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.

12V/24V Automatically Detect

• Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

Full System Protection

• Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

4-Stage Safely Charging

• Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation

Diverse Load Control

• Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller

Remote Monitoring

•      RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.

Included:

• Rover Li 40 Amp MPPT Charge Controller
• Remote Temperature Sensor

Optional Accessory:

• BT-1 Bluetooth Module

Specifications:

• Nominal Voltage: 12/24V Auto Recognition
• Rated Charge Current: 40 A
• Max. PV Input Power: 12V/520W, 24V/1040W
• Max. PV Input Voltage: 100 VDC
• Self-Consumption: < 100mA/12V; < 58mA/24V
• Equalization Voltage: Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A
• Float Voltage:    Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A
• Boost Voltage:     Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V
• Operating Temperature: -35°C to 45°C; -31°F to 113°F
• Temperature Compensation: -3mV/°C/2V
• Dimensions: 238 x 172 x 77 mm
• Weight:    2kg

Renogy 4 to 1 Solar Branch Connectors MMMMF+FFFFM Pair

Make wiring parallel solar panels a breeze with these extended 4 to 1 Solar Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.

Features:

• Hard plastic
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Including one male to four female and one female to four male

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Test Voltage: 6500V (50HZ, 5Min)
• Wiring Size: Main: 10AWG; Branch: 12AWG
• Length: Overall: 3.5ft; Branch: 1.5ft
• Protection Degree: IP67
• Rated Current: 30A
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Temperature: -40°F to +194°F


Renogy Solar Y Branch Connectors MMF+FFM Pair

Renogy Solar Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.

Features:

• Hard plastic
• One FFM and one MMF

Specifications:

• Withstanding voltage: 1000V DC(TUV), 600V(UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature: -40°F to +194°F
• Protection Degree: IP67, mated
• Unmating Force:147.51Ft·lb
• Insulation Material: PC/PA
• Contact Material: Copper, silver plated
• Flame Class: UL94-V0 or UL94-5VA

Renogy Cable Entry Housing

The Renogy Cable Entry Housing is an ideal solution for cable entry through roofs. Made from ABS plastic, this waterproof and UV-resistant housing allows an easy cable entry solution for any condition. With its dual cable entry, this Renogy housing easily passes through solar cables for a smooth installation on virtually any roof surface.

Features:

• 100% recyclable and UV resistant.
• Waterproof rated cable entry glands.
• Designated for virtually any aluminum framed solar panels.
• Easier and more flexible installation.
• Compatible with all Renogy solar panels.

Specifications:

• Material: UV-resistant ABS Plastic
• Weight (each component): 4.3 oz.
• Recommended Adhesive: Sikaflex 252 or alike
• Dimensions (l x w x h): 3.9 x 3.5 x 2.0 in
• Cable Gland Diameter Range: 6mm – 12mm

Renogy Solar Panel Mounting Z Bracket, Set of 4

The Renogy Z-Bracket Mount System is designed to support the installation of single solar panel units, generally in off-grid installations. These units are ideal for installation on RV roofs and non-inhabited dwellings such as sheds or garages. It is also suited as attachment to a user made structure such as a wooden frame. The system comes complete with all fasteners to secure the system to the installation surface. This system makes the installation of small solar systems easy, affordable and quick.

Please Note: Not recommended for panels over 150 watt. If you do want to use this product for panels over 150 watt, you would need 2 sets of this Z bracket per panel.

Features:

• Lightweight
• Aluminum corrosion-free construction.
• Ease of installation
• Ideal for mounting small solar panels.
• Mounts panels to RVs, trailers, boats or yachts.
• Perfect for irregular surfaces
• Pre-assembled with bolts and washers

Included:

• Four Z Shape Solar Panel Brackets
• Four M6-16 Hex Cap Bolt
• Four M6 Split Lock Washer
• Eight M6 Flat Washer
• Four M6 Hexagonal Nut
• Eight #11 Self-Drilling Cap Screw and Plastic Retaining Ring

Renogy Wiring and Mounting Kit For 100W Solar Setup

The photovoltaic accessories and cable kit comes with all the cables and accessories you need to connect a 100W Renogy panel and controller to your battery bank. Renogy tray cables offer easy connection between batteries and charge controllers. They are designed with specialized terminal rings for battery connection and exposed wire ends for fast connection to a charge controller. Adapter kit cables allow connection between solar panels and charge controllers, featuring waterproof solar connectors on module ends and exposed wire for charge controller terminal connection. The Renogy Z-Bracket Mount System can be used to easily mount and install a single solar panel.

Features:
Durable Design

• Renogy's cables are TUV tested, UV light resistant and waterproof.
• Light weight aluminum brackets

Scalable Kit

• Expand system by installing more modules and /or wiring.

Flexible and Effortless PV

• Ready to connect any Renogy accessory to a 100W module or PV system.
• Easily expand your system using additional wiring or mounting brackets.

Perfect for DIY Off Grid Installation:

• Easy installation and DIY friendly.
• The kit offers all components required for Renogy’s small scale photovoltaic system installation.
• This kit allows the customer the flexibility to expand their system as needed and is built for 100W systems.

Included:

• Renogy Solar Tray Cables
• Renogy Solar Adaptor Kit
• Renogy Solar Panel Mounting Z Bracket - Set of 4
