Victron Multi RS Solar 48/6000/100-450/100

Description

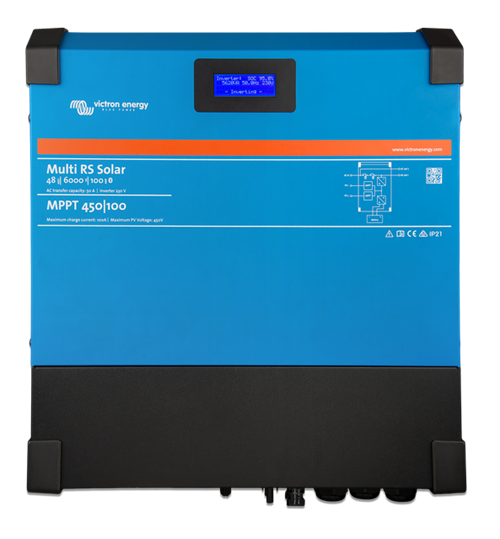

Victron Multi RS Solar 48/6000/100-450/100



The Multi RS Solar 48/6000 is a 48V 6kVA Inverter/Charger with two independent 3kWp PV 450V MPPT tracker inputs for 6kWp PV total.

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

The display reads battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth enabled device, using the VictronConnect app.

In mid-2023 the Multi RS was revised from a single MPPT tracker to a dual MPPT tracker model.



Specifications:

INVERTER

• DC Input voltage range: 38 – 62 V (1)
• Output Output voltage: 230 VAC ± 2 % | Frequency: 50 Hz ± 0,1 % (2)
• Continuous output power at 25 °C: Increases linearly from 4800 W at 46 VDC to 5300 W at 52 VDC
• Continuous output power at 40 °C: 4500 W
• Continuous output power at 65 °C: 3000 W
• Peak power: 9 kW for 3 seconds
• Short-circuit output current: 50 A
• Maximum continuous current: 25 A
• Max. inverter output AC overcurrent protection: 30 A
• Maximum efficiency: 96,5 % at 1 kW load | 94 % at 5 kW load
• Zero load power: 20 W
• Inrush current: NA
• Low Battery shutdown: 37.2 V (adjustable)
• Low battery restart: 43.6 V (adjustable)

SOLAR

• Maximum DC voltage: 450 V
• Start-up voltage: 120 V
• MPPT operating voltage range: 80 – 450 V (3)
• Max operational PV input current: 18 A
• Max PV Short circuit current reverse polarity protection: 20 A
• Maximum DC solar charging power: 4000 W
• Max PV short circuit current (Isc PV): 30 A
• Earth leakage trip level: 30 mA
• Isolation fail level (detection before start-up): 100 kΩ

CHARGER

• Programmable Charger voltage range (VDC): 36 – 60 V (7)
• Charge voltage 'absorption' (V DC): Default setting: 57,6 V (adjustable)
• Charge voltage 'float' (VDC): Default setting: 55,2 V (adjustable)
• Maximum AC charging power at 230 VAC: 5000 W
• Maximum combined charger current :100 A (8)
• AC input current limit:31 A
• Battery temperature sensor: Yes
• Battery voltage sense: Yes

GENERAL

• Parallel and 3-phase operation: 3-phase support with one unit per phase. Parallel not supported.
• Programmable relay: Yes
• Protection: a - g
• Data Communications Ports: VE.Direct port and VE.Can port (6)
• Bluetooth frequency : 2402 – 2480 MHz
• Bluetooth power: 4 dBm
• General purpose analogue/digital in port Yes, 2x
• Remote on-off Yes
• Operating temperature range: -40 to +65 °C (fan assisted cooling)
• Maximum altitude: 2000 m
• Humidity (non-condensing) : max 95 %

ENCLOSURE

• Material & Colour: steel, blue RAL 5012
• Protection category: IP21 Protective Class: I
• Battery-connection: M8 bolts
• 230 VAC-connection: Screw terminals 13 mm² (6 AWG)
• Weight: 11 kg
• Dimensions (hxwxd): 425 x 440 x 125 mm
