Air Conditioners Explained

Author: Paul Napthali   Date Posted:10 February 2016

What’s the difference between a normal household and a Caravan or RV Air Conditioner? Both types do the same job - cool or heat, both are designed for different applications, both are very different in price..

Caravan & RV Air Conditioners Explained

(Click here to view our Caravan and RV Air Conditioner Comparison Chart)



What's the difference between a normal household and a Caravan or RV Air Conditioner?

Both types do the same job - cool or heat, both are designed for different applications, both are very different in price!

The Positives:

The Negatives:

What are the different types of Caravan and RV air conditioners?

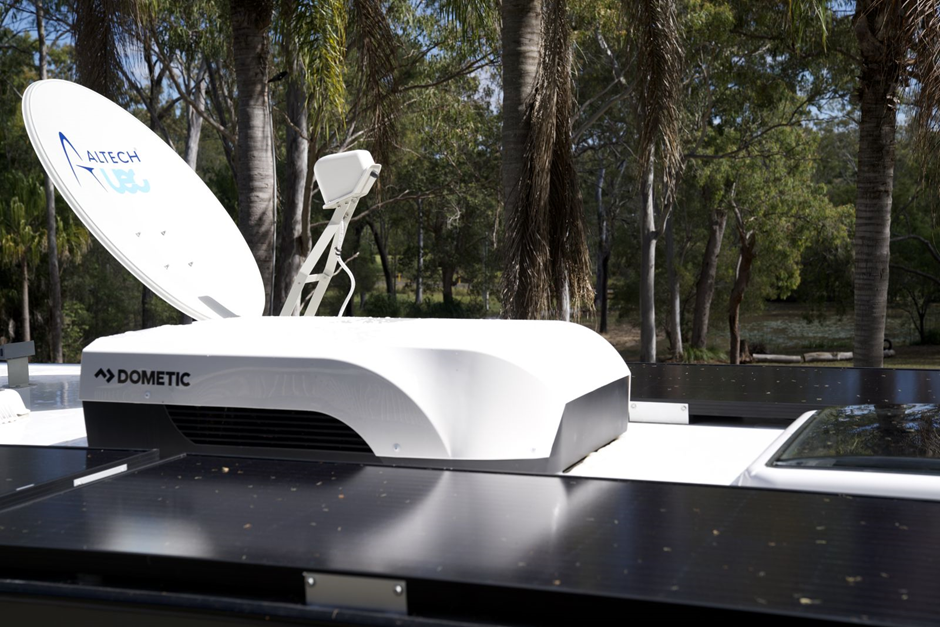

Roof Top - These can be mounted on the roof which is practical for few reasons.

The Positives:

The Negatives:

Built-in Style - From the inside of your Caravan or RV, these air conditioners look like your traditional Box type, but in fact they have the compressor remotely mounted (usually under the floor and vented to the outside) effectively making them a split system air conditioning system.  The box type head unit can be mounted under a bench, on top of a cupboard or anywhere space permits along the wall of your caravan or RV.  The compressor is mounted down below the caravan floor being connected via the refrigerant gas lines and vented to the outside.

The Positives:

The Negatives:



What’s the difference between a reverse cycle heating and an air conditioner with a heating element for caravan and RV’s?

It’s mainly all to do with outside or ‘ambient’ temperatures and energy efficiency, both types of systems have their advantages and disadvantages.

Reverse Cycle Air-conditioning (Heating)

The Positives:

The Negatives:

Heating element type air conditioner

The Positives:

The Negatives:

How effective is Caravan or RV air-conditioning?

Providing you stick to within the manufacturer’s size and insulation specifications, caravan and RV air conditioning is just as effective as your normal household air conditioning.  Just be sure you make generous allowances for caravans, camper trailers and camper vans without insulated roof or wall panels – a larger air conditioning unit will be required.



What size Air Conditioner do I need?

For the caravan industry, generally 2 to 2.5 kW will be suitable for caravans up to 16’ and 3+ kW is suitable for caravans up to 24’

In a nutshell, air conditioners are rated by their effective cooling/heating produced in 1 hour, this is called capacity.  The power that an air conditioner motor/compressor and fan require can differ to achieve the same capacity, so it is therefore common to rate an air conditioner performance by its capacity and not by its power consumption.

Capacity

This is generally measured in Kilo watts (kW) or BTU’s (British Thermal Units).  For Example, A 3 kW cooling capacity air conditioner refers to the amount of actual heat removed from your room in 1 hour.  The manufacturer’s specifications will tell you what size area a 3 kW rated air conditioner can effectively cool. (Manufacturers performance specifications will always be based on fully insulated fixed roof Caravans and RV’s, otherwise a larger unit will be required to compensate for uninsulated or thin skinned pop-tops and campers etc.)

Power

The power required to run the air conditioner can be an important consideration, especially if you plan to run off a generator.  If this is the case, then efficiency is calculated by selecting the cooling/heating capacity you require and finding the lowest amp/power draw for that size, basically more bang for your buck.  Generally your power draw is displayed in voltage and amps, but just to confuse you it can also be measured in Kilo watts (kW), though typically not rated by this as the power required to run the motor is not always a direct correlation with the cooling/heat capacity output.

Why are air conditioners supplied with 360mm or 400mm opening kits?

This refers to the existing square opening in your caravan or RV.  Chances are if your caravan was built in America you will have an existing 360mm or 14’ square opening, if it was built in Europe or anywhere else, 400mm is standard.  Knowing this could come in handy when selecting a new air conditioner as modifying your roof could be an avoidable costly expense.

What is an inverter type Airconditioner?

An Inverter type Caravan Airconditioner is also commonly referred to as an air conditioner with soft start technology.  This is because the inverter technology allows the compressor in your air conditioner to be started with less power or Amp draw then conventional methods.  Every time your compressor cycles, ie starts and stops, you will reap the benefits in power savings with a lower current draw.  This is especially important when running off a portable generator where the maximum output of the generator is close to the caravan airconditioners Amp draw.

The NEW Dometic Harrier air conditioner is the first of its kind for the caravan and motorhome industry with this inverter technology and has proven to be very popular with the 2kVA or 2000 watt portable generator market.  Dometic even go as far to say that it gaurantees it can be run off 2000 watts of continuous supply.

For the smallest portable generator to suit all caravan and RV airconditioners on the market including inverter type caravan airconditioners, check out the Briggs & Stratton 2200 Watt Inverter Generator



Installation

Most touring adventurers would never choose to travel without an air conditioner, all though not all caravan, motor home or RVs are equipped with them.  Having an air conditioner fitted to your pride and joy is quite an easy task if you abide by the appliances specifications and your RVs modification handbook. Most RVs will be designed and manufactured with the addition of air conditioning in mind, full height caravans are built to with stand the weight of a roof top air conditioner by the roof being strengthened with what the RV industry call a structural H frame.  The H frame is designed to evenly disperse the weight of the roof top air conditioner throughout the roof enabling a strong rigid platform for the air conditioner to be mounted on.

If your application involves a 5th wheeler, motor home or pop-top caravan that has already been designed and manufactured without the structure of a H frame don't stress as you can always additionally mount an external H frame that will cater for the weight of a roof top mounted RV air conditioner.  Be sure to check the dimensions of the aperture required for certain air conditioners as they can vary and will be displayed on the manufactures specifications.



(Click here to check out our full range of Caravan Airconditioners at caravanRVcamping.com | Australia Wide Delivery)
