Sunman eArc 175W Flexible Solar Panel

SKU: eASMF175M-4x09U Learn More»
$349
$479
In Stock1-2 Days Dispatch

CALCULATE SHIPPING:

Accessories List:

$25

$55

$17

$9

$10

$15

$36

$5

Click '+' to show more accessories

Description

Sunman eArc 175W Flexible Solar Panel



These lightweight yet robust solar panels are perfect for caravans, motorhomes, yachts, trains, buses and other applications.

Made with a Patent Pending composite material similar to those used in airplane windows.  These panels are tough enough to be approved by the Clean Energy Council for residential use yet they don't have a heavy, rigid frame or glass.

Mounting Options:

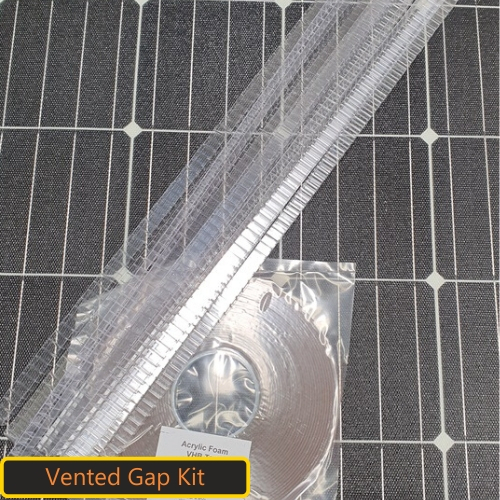

  • The vented gap (height increase of ~15mm) improves panel efficiency and reduces heating of the mounting surface. This method also allows the junction box to sit underneath the panel. This includes:
    • One roll of very high bond double sided adhesive tape
    • Polycarbonate strips
  • Installation via very high bond double sided adhesive tape provides a low profile secure bond.
  • The Bi-Adhesive Backing includes a continuous sheet of 1mm bi-adhesive material over the whole back of the panel for mounting on smooth surfaces with no bumps or dips.  Installation then becomes a simple peel and stick. Mounted in factory to panel prior to shipping. You'll need to remove thin plastic covering prior to mounting in place.
  • A structural silicone (Fix8) can be used to adhere the panel to a surface.
  • Please note: You will only require one mounting option! Please choose one of the mounting options in the Accessory List above.

eArc are the only lightweight solar panels approved for grid connect on buildings which means they have passed the same testing criteria as traditional solar panels.

Tougher, lighter, thinner and more durable

  • Cutting edge technology - glass fibre-reinforced composite polymers similar to aircraft windows
    • ​This reduces the coefficient of thermal expansion to a similar level as fixed panels, eliminating the main cause of cause of flexible/lightweight solar panel failures as seen in ETFE and PET panels, thermal expansion related stress causing failure of the cell to cell connections
  • Light - 100W frameless is 1.8kg

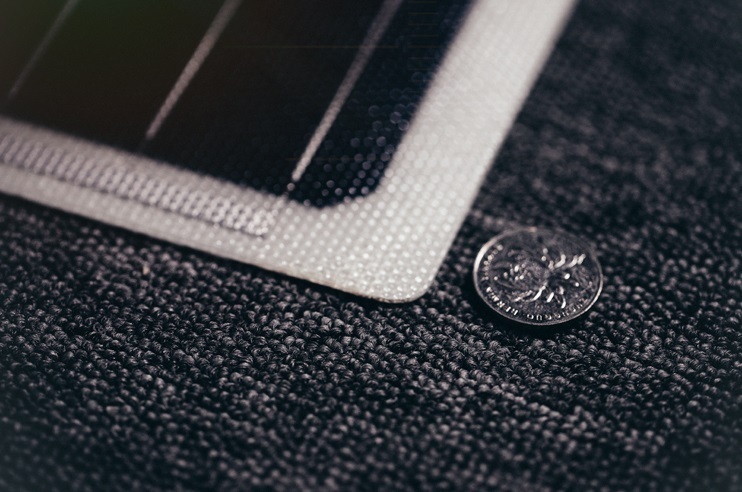

  • Thin - 2mm
  • Tough - Hail tested with ice stones of 35mm diameter and 200g mass at 39.5m per sec​
  • Strong - rated 2400 pascals for wind and 2400 pascals for load
  • Durable - ​10 year product warranty for building and 5 years for mobile application
    • ​25 year exposure simulations/tests show degradation of the solar module at similar levels to fixed panels
  • Output - Efficient monocrystalline cells, 25 year performance guarantee
  • The only lightweight solar panel composition with Clean Energy Council (CEC) Accreditation

Specifications:

  • Wattage: 175 W
  • Solar cells: 36 (4x9)
  • Maximum Power (Pmax): 175
  • Maximum Power Voltage (Vmp): 19.5
  • Maximum Power Current (Imp): 8.98
  • Open-circuit Voltage (Voc): 23.9
  • Short-circuit Current (Isc): 9.5
  • Operating Temperature (°C): -40 °C to 85 °C
  • Maximum System Voltage: 1000 V DC (IEC)
  • Maximum Series Fuse Rating: 20 A
  • Application Class: Class A
  • Power Tolerance: 0/+5 W
  • Backsheet: White
  • Junction box: IP 68 rated (each j-box has one by-pass diode)
  • Output Cables: Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
  • Connector: MC4 compatible

Note: To ensure the best outcome of your eArc solar panels, we recommend to our Victron solar charge controllers with your flexible solar panels. You can find our range of Victron Solar Charge Controllers HERE

Show More

Specifications

SKU eASMF175M-4x09U

Brand Sunman

Product Category Solar Panels

Watts (W) 175

Solar Panel Cell Type Monocrystalline

Solar Panel Type Flexible Solar Panels

-Weight 3 kg

Dimensions 1504 x 663 x 2 mm


NOTE: see full product specifications & further product info in the section on this page.

Reviews

Write a product review

good capacity and perfect size thin solar panel

27 March 2024

This solarpanel fits perfect as a duo mount on a campervan popup roof. It is very light and has a good capacity to recharge the battery. I have made a thin aluminium frame to mount the panels onto the pop up roof instead of contact bond straight to the roof, which allows for a good airflow to maintain the full capacity of the panel. As i have mounted these thin flex panels to my VW-T6 campervan pop up roof, there is very little weight added and the hight of the vehicle remains under the 2.1m mark. The long term quality, as exposed to the elements and drive wind forces will have to be proofed yet.
